2017 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

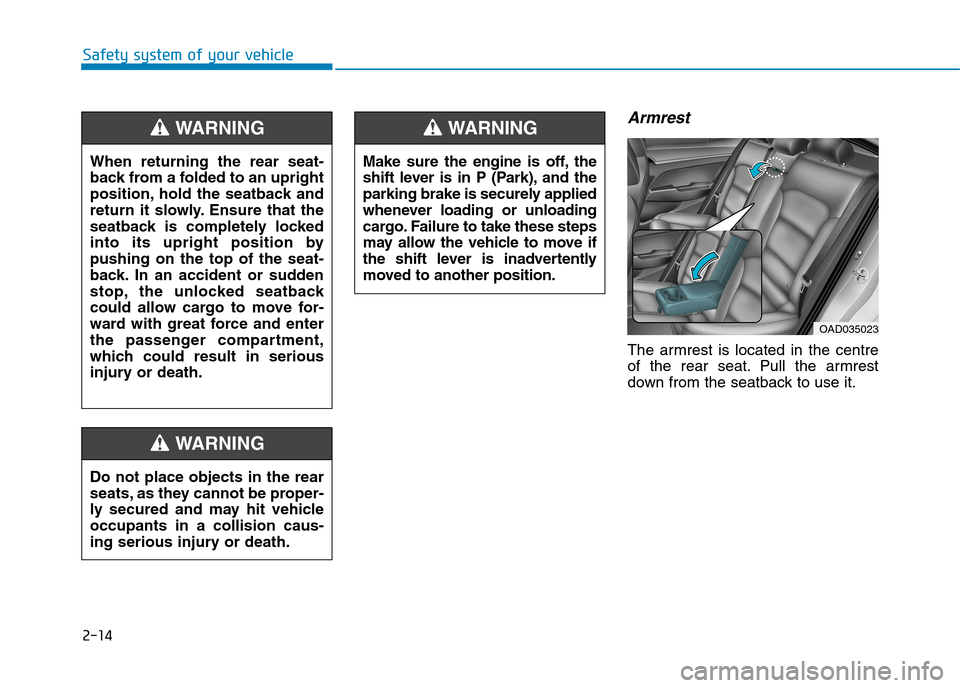

2-14
Safety system of your vehicle
Armrest
The armrest is located in the centre
of the rear seat. Pull the armrest
down from the seatback to use it.
OAD035023
Make sure the engine is off, the
shift lever is in P (Park), and the
parking brake is securely applied
whenever loading or unloading
cargo. Failure to take these steps
may allow the vehicle to move if
the shift lever is inadvertently
moved to another position.
WA R N I N G
Do not place objects in the rear
seats, as they cannot be proper-
ly secured and may hit vehicle
occupants in a collision caus-
ing serious injury or death.
WA R N I N G
When returning the rear seat-
back from a folded to an upright
position, hold the seatback and
return it slowly. Ensure that the
seatback is completely locked
into its upright position by
pushing on the top of the seat-
back. In an accident or sudden
stop, the unlocked seatback
could allow cargo to move for-
ward with great force and enter
the passenger compartment,
which could result in serious
injury or death.
WA R N I N G

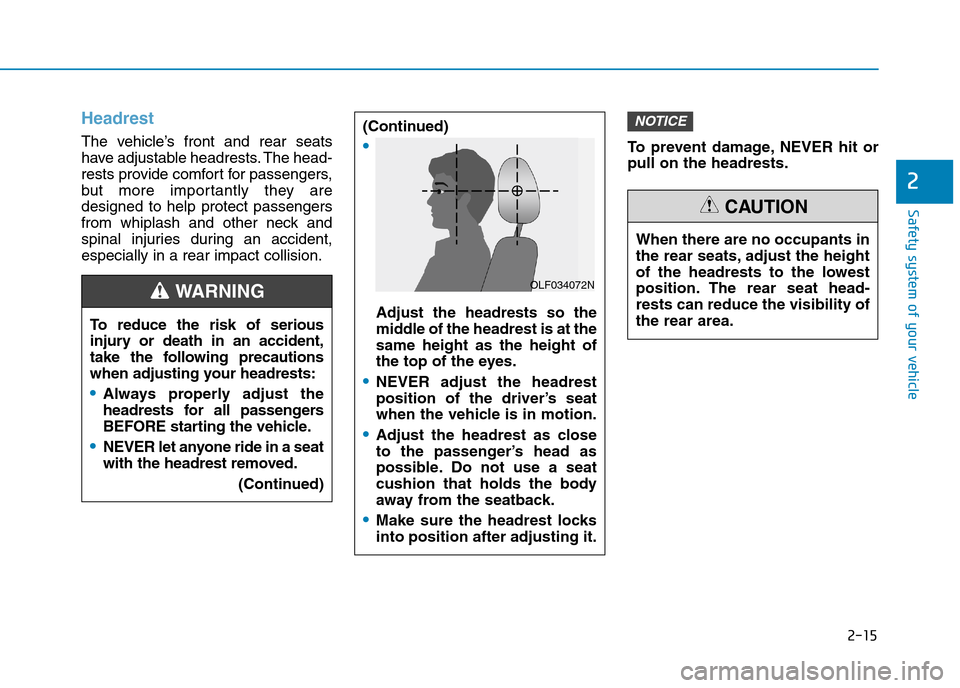

2-15
Safety system of your vehicle
2
Headrest
The vehicle’s front and rear seats
have adjustable headrests. The head-
rests provide comfort for passengers,
but more impor tantly they are
designed to help protect passengers
from whiplash and other neck and
spinal injuries during an accident,
especially in a rear impact collision.
To p r e v e n t d a m a g e , N E V E R h i t o r
pull on the headrests.
NOTICE(Continued)
•
Adjust the headrests so the
middle of the headrest is at the
same height as the height of
the top of the eyes.
•NEVER adjust the headrest
position of the driver’s seat
when the vehicle is in motion.
•Adjust the headrest as close
to the passenger’s head as
possible. Do not use a seat
cushion that holds the body
away from the seatback.
•Make sure the headrest locks
into position after adjusting it.
OLF034072N
To r e d u c e t h e r i s k o f s e r i o u s
injury or death in an accident,
take the following precautions
when adjusting your headrests:
•Always properly adjust the
headrests for all passengers
BEFORE starting the vehicle.
•NEVER let anyone ride in a seat
with the headrest removed.
(Continued)
WA R N I N G
When there are no occupants in
the rear seats, adjust the height
of the headrests to the lowest
position. The rear seat head-
rests can reduce the visibility of
the rear area.
CAUTION

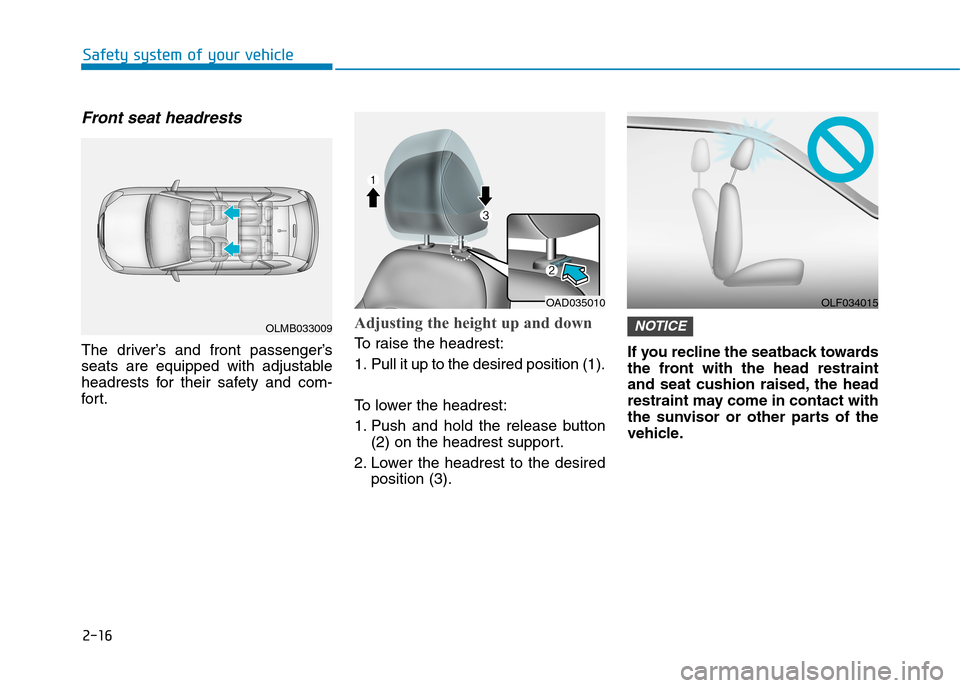

2-16
Safety system of your vehicle
Front seat headrests
The driver’s and front passenger’s
seats are equipped with adjustable
headrests for their safety and com-
for t.
Adjusting the height up and down
To r a i s e t h e h e a d r e s t :
1. Pull it up to the desired position (1).
To l o w e r t h e h e a d r e s t :
1. Push and hold the release button
(2) on the headrest support.
2. Lower the headrest to the desired
position (3).
If you recline the seatback towards
the front with the head restraint
and seat cushion raised, the head
restraint may come in contact with
the sunvisor or other parts of the
vehicle.
NOTICE
OAD035010OLF034015
OLMB033009

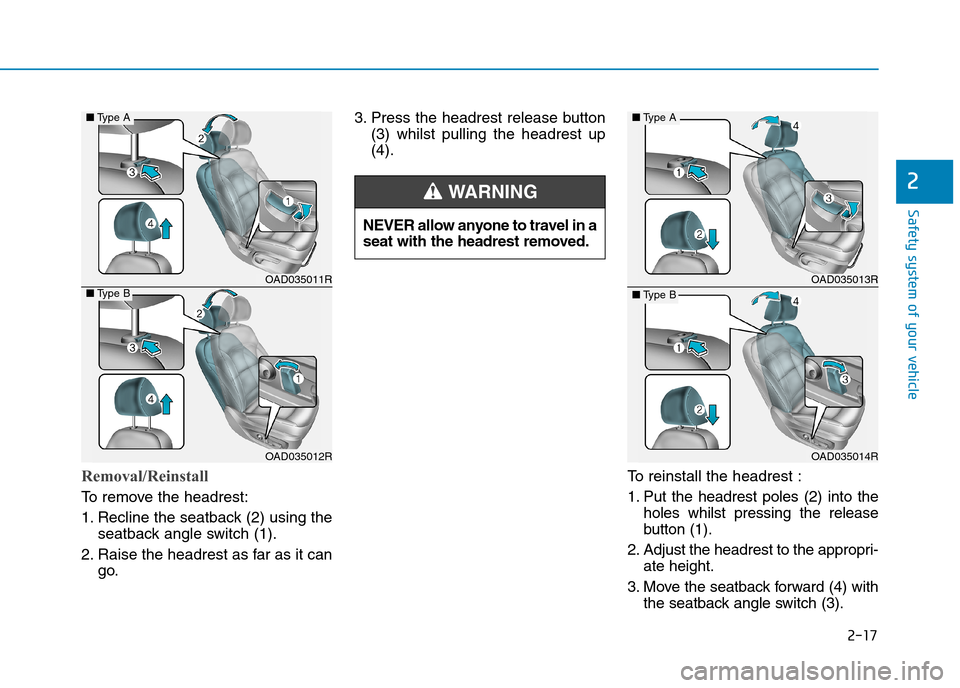

2-17
Safety system of your vehicle
Removal/Reinstall
To r e m o v e t h e h e a d r e s t :
1. Recline the seatback (2) using the
seatback angle switch (1).
2. Raise the headrest as far as it can
go.
3. Press the headrest release button
(3) whilst pulling the headrest up
(4).
To r e i n s t a l l t h e h e a d r e s t :
1. Put the headrest poles (2) into the
holes whilst pressing the release
button (1).
2. Adjust the headrest to the appropri-
ate height.
3. Move the seatback forward (4) with
the seatback angle switch (3).
2
NEVER allow anyone to travel in a
seat with the headrest removed.
WA R N I N G
OAD035011R
OAD035012R
■Ty p e A
■Ty p e BOAD035013R
OAD035014R
■Ty p e A
■Ty p e B

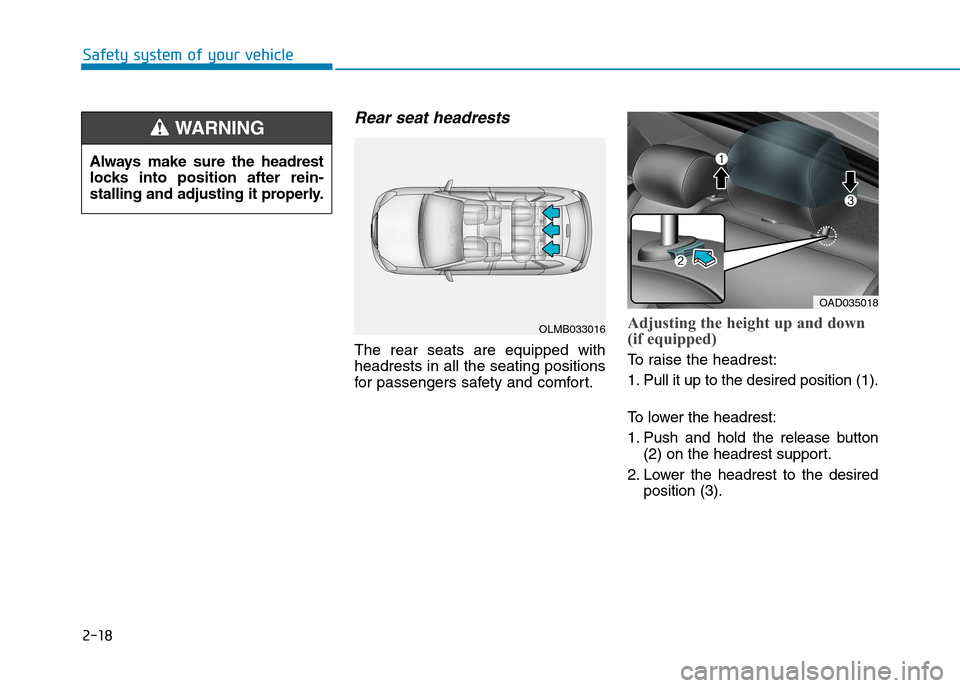

2-18
Rear seat headrests
The rear seats are equipped with
headrests in all the seating positions
for passengers safety and comfor t.
Adjusting the height up and down
(if equipped)
To r a i s e t h e h e a d r e s t :
1. Pull it up to the desired position (1).
To l o w e r t h e h e a d r e s t :
1. Push and hold the release button
(2) on the headrest support.
2. Lower the headrest to the desired
position (3).
Safety system of your vehicle
OLMB033016
OAD035018
Always make sure the headrest
locks into position after rein-
stalling and adjusting it properly.
WA R N I N G

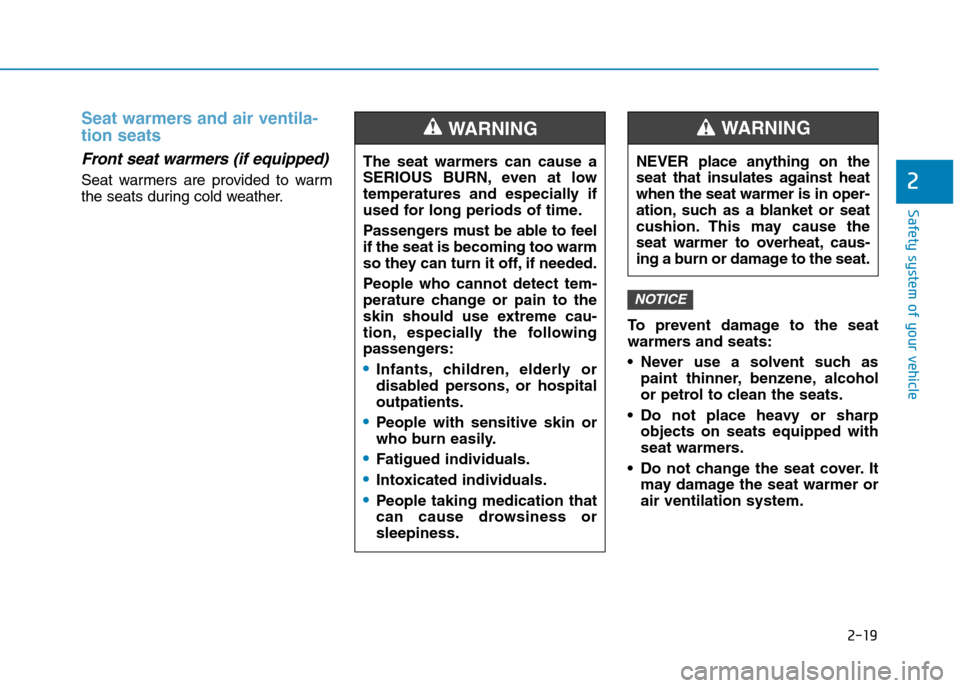

2-19
Safety system of your vehicle
2
Seat warmers and air ventila-
tion seats
Front seat warmers (if equipped)
Seat warmers are provided to warm
the seats during cold weather.
To p r e v e n t d a m a g e t o t h e s e a t
warmers and seats:
•Never use a solvent such as
paint thinner, benzene, alcohol
or petrol to clean the seats.
•Do not place heavy or sharp
objects on seats equipped with
seat warmers.
•Do not change the seat cover.It
may damage the seat warmer or
air ventilation system.
NOTICE
The seat warmers can cause a
SERIOUS BURN, even at low
temperatures and especially if
used for long periods of time.
Passengers must be able to feel
if the seat is becoming too warm
so they can turn it off, if needed.
People who cannot detect tem-
perature change or pain to the
skin should use extreme cau-
tion, especially the following
passengers:
•Infants, children, elderly or
disabled persons, or hospital
outpatients.
•People with sensitive skin or
who burn easily.
•Fatigued individuals.
•Intoxicated individuals.
•People taking medication that
can cause drowsiness or
sleepiness.
WA R N I N G
NEVER place anything on the
seat that insulates against heat
when the seat warmer is in oper-
ation, such as a blanket or seat
cushion. This may cause the
seat warmer to overheat, caus-
ing a burn or damage to the seat.
WA R N I N G

2-20
Safety system of your vehicle
Whilst the engine is running, push
either of the switches to warm the dri-
ver's seat or front passenger's seat.
During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the OFF position.
•Each time you push the switch, the
temperature setting of the seat is
changed as follows :
•When pressing the switch for more
than 1.5 seconds with the seat
warmer operating, the seat warmer
will turn OFF.
•The seat warmer defaults to the
OFF position whenever the ignition
switch is in the ON position.
Information
With the seat warmer switch in the
ON position, the heating system in the
seat turns off or on automatically
depending on the seat temperature.
i
OFF HIGH ( )
LOW ( ) MIDDLE ( )
→→
→
→
OAD035061R

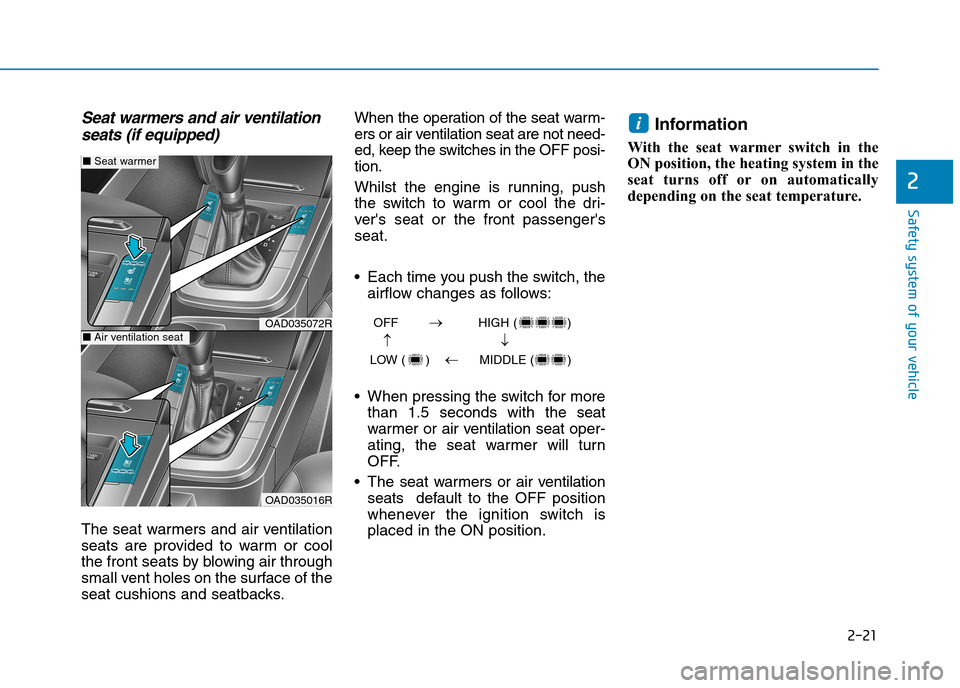

2-21
Safety system of your vehicle
2
Seat warmers and air ventilation
seats (if equipped)
The seat warmers and air ventilation
seats are provided to warm or cool
the front seats by blowing air through
small vent holes on the surface of the
seat cushions and seatbacks.
When the operation of the seat warm-
ers or air ventilation seat are not need-
ed, keep the switches in the OFF posi-
tion.
Whilst the engine is running, push
the switch to warm or cool the dri-
ver's seat or the front passenger's
seat.
•Each time you push the switch, the
airflow changes as follows:
•When pressing the switch for more
than 1.5 seconds with the seat
warmer or air ventilation seat oper-
ating, the seat warmer will turn
OFF.
•The seat warmers or air ventilation
seats default to the OFF position
whenever the ignition switch is
placed in the ON position.
Information
With the seat warmer switch in the
ON position, the heating system in the
seat turns off or on automatically
depending on the seat temperature.
i
OFF HIGH ( )
LOW ( ) MIDDLE ( )
→→
→
→OAD035072R
OAD035016R
■Seat warmer
■Air ventilation seat
