2017 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

4-112
Multimedia System

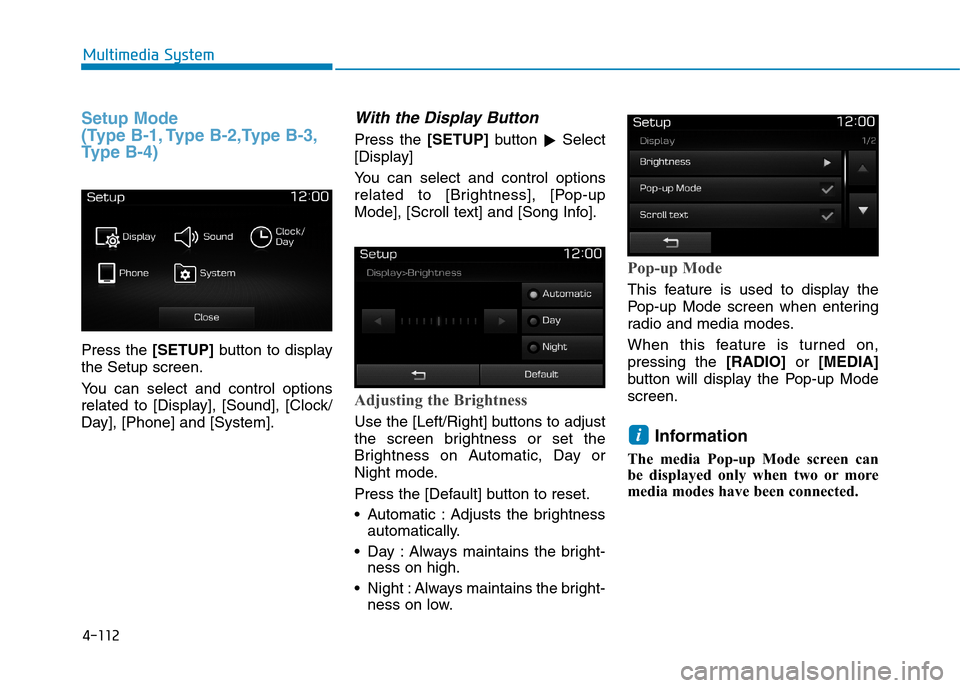

Setup Mode
(Type B-1, Type B-2,Type B-3,
Ty p e B - 4 )
Press the [SETUP]button to display
the Setup screen.
Yo u c a n s e l e c t a n d c o n t r o l o p t i o n s
related to [Display], [Sound], [Clock/
Day], [Phone] and [System].
With the Display Button
Press the [SETUP]button!Select
[Display]
Yo u c a n s e l e c t a n d c o n t r o l o p t i o n s
related to [Brightness], [Pop-up
Mode], [Scroll text] and [Song Info].
Adjusting the Brightness
Use the [Left/Right] buttons to adjust
the screen brightness or set the
Brightness on Automatic, Day or
Night mode.
Press the [Default] button to reset.
•Automatic :Adjusts the brightness
automatically.
•Day :Always maintains the bright-
ness on high.
•Night :Always maintains the bright-
ness on low.
Pop-up Mode
This feature is used to display the
Pop-up Mode screen when enter ing
radio and media modes.
When this feature is turned on,
pressing the [RADIO]or [MEDIA]
button will display the Pop-up Mode
screen.
Information
The media Pop-up Mode screen can
be displayed only when two or more
media modes have been connected.
i

4-113
Multimedia System
4

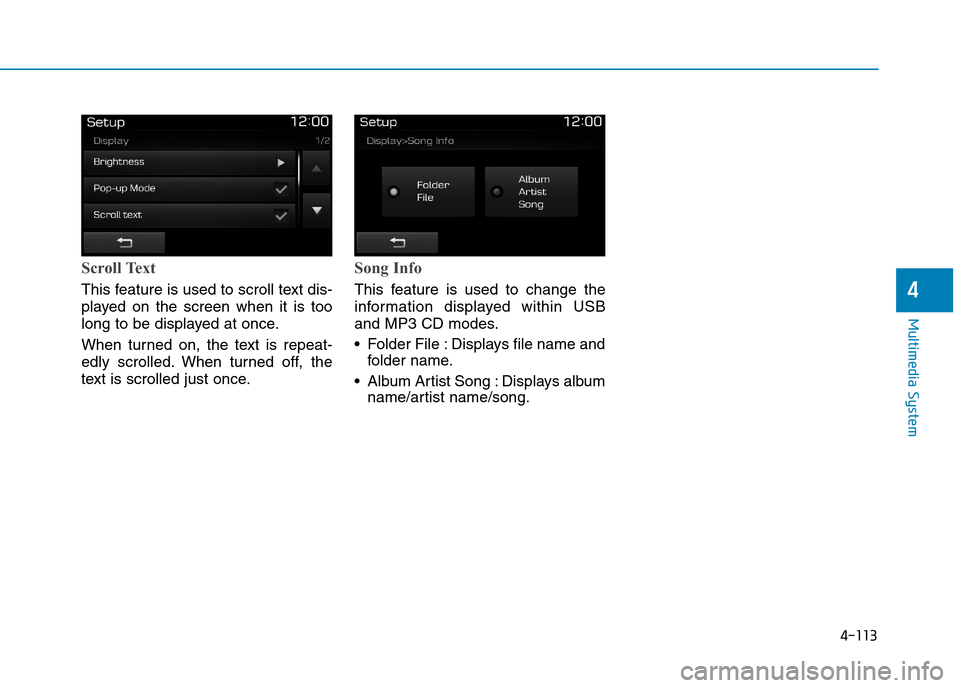

Scroll Text
This feature is used to scroll text dis-
played on the screen when it is too
long to be displayed at once.
When turned on, the text is repeat-
edly scrolled. When turned off, the
text is scrolled just once.
Song Info
This feature is used to change the
information displayed within USB
and MP3 CD modes.
•Folder File :Displays file name and
folder name.
•Album Artist Song :Displays album
name/artist name/song.

4-114
Multimedia System

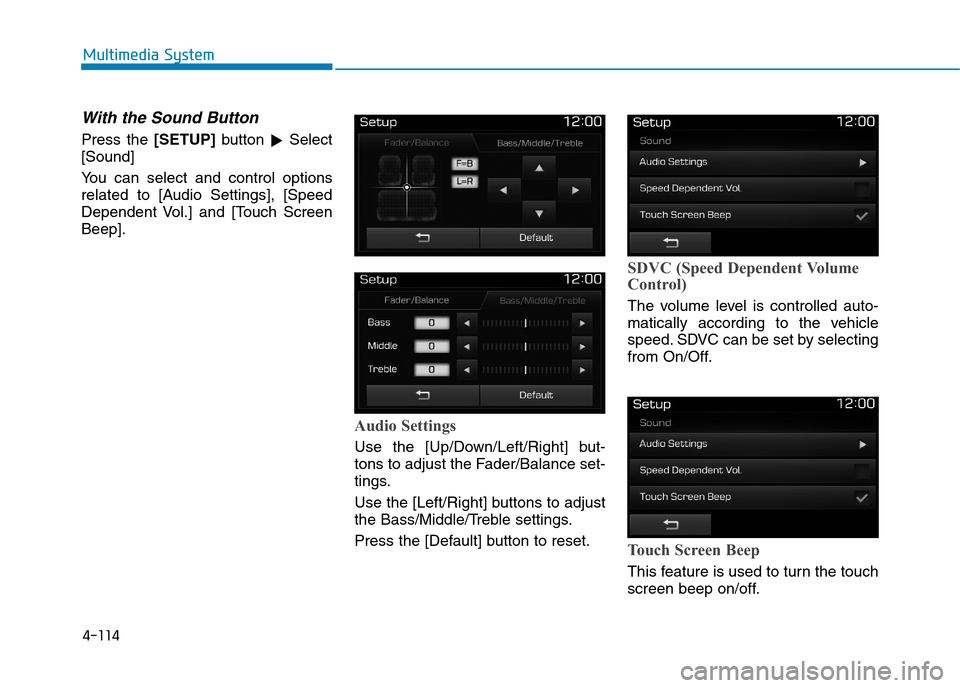

With the Sound Button
Press the [SETUP]button!Select
[Sound]
Yo u c a n s e l e c t a n d c o n t r o l o p t i o n s
related to [Audio Settings], [Speed
Dependent Vol.] and [Touch Screen
Beep].
Audio Settings
Use the [Up/Down/Left/Right] but-
tons to adjust the Fader/Balance set-
tings.
Use the [Left/Right] buttons to adjust
the Bass/Middle/Treble settings.
Press the [Default] button to reset.
SDVC (Speed Dependent Volume
Control)
The volume level is controlled auto-
matically according to the vehicle
speed. SDVC can be set by selecting
from On/Off.
Touch Screen Beep
This feature is used to turn the touch
screen beep on/off.

4-115
Multimedia System
4

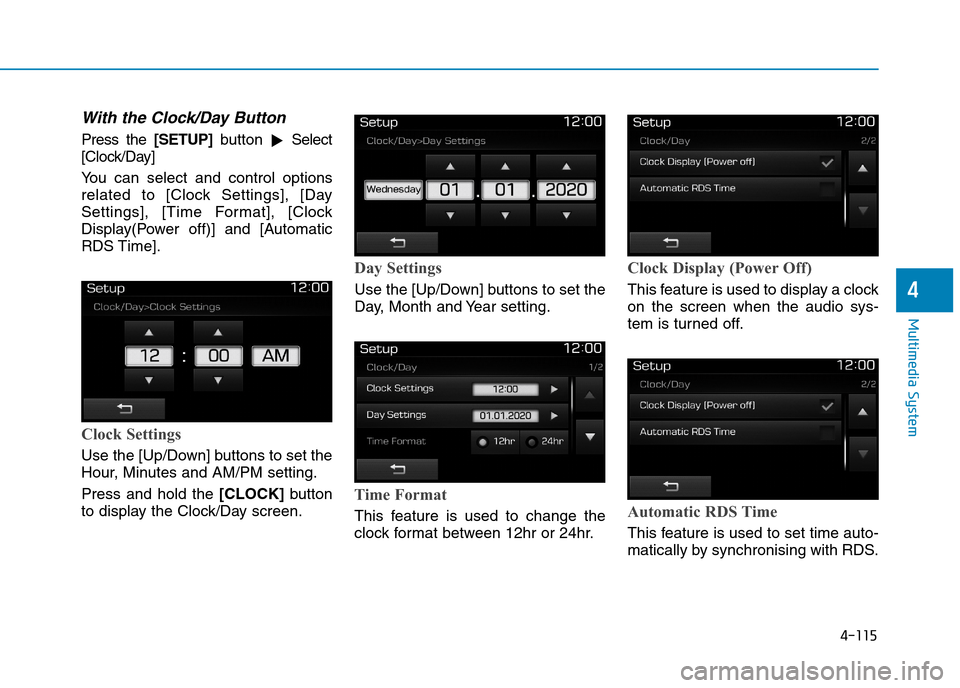

With the Clock/Day Button
Press the [SETUP]button!Select
[Clock/Day]
Yo u c a n s e l e c t a n d c o n t r o l o p t i o n s
related to [Clock Settings], [Day
Settings], [Time Format], [Clock
Display(Power off)] and [Automatic
RDS Time].
Clock Settings
Use the [Up/Down] buttons to set the
Hour, Minutes and AM/PM setting.
Press and hold the [CLOCK]button
to display the Clock/Day screen.
Day Settings
Use the [Up/Down] buttons to set the
Day, Month and Year setting.
Time Format
This feature is used to change the
clock format between 12hr or 24hr.
Clock Display (Power Off)
This feature is used to display a clock
on the screen when the audio sys-
tem is turned off.
Automatic RDS Time
This feature is used to set time auto-
matically by synchronising with RDS.

4-116
Multimedia System
With the Phone Button
Press the [SETUP]button !Select
[Phone]
Yo u c a n s e l e c t a n d c o n t r o l o p t i o n s
related to [Pair Phone], [Paired
Phone List], [Phone book
Download], [Auto Download],
[Outgoing Volume] and [Bluetooth
System Off].Pairing a New Device
Bluetooth®Wireless Technology
devices can be paired with the audio
system.
For more infor mation, refer to the
“Pairing through Phone Setup” sec-
tion within Bluetooth®Wireless
Te c h n o l o g y.
Viewing Paired Phone List
Press the [SETUP]button!Select
[Phone]!Select [Paired Phone List]
This feature is used to view mobile
phones that have been paired with
the audio system. Upon selecting a
paired phone, the setup menu is dis-
played.
For more infor mation, refer to the
“Setting Bluetooth®Wireless
Te c h n o l o g y C o n n e c t i o n ” s e c t i o n w i t h i n
Bluetooth®Wireless Technology.
(1) Moves to the previous screen.
(2) Connect/Disconnects currently select-
ed phone.
(3) Deletes the currently selected
phone.
(4) Sets the currently selected phone
to highest connection priority.

4-117
Multimedia System
4

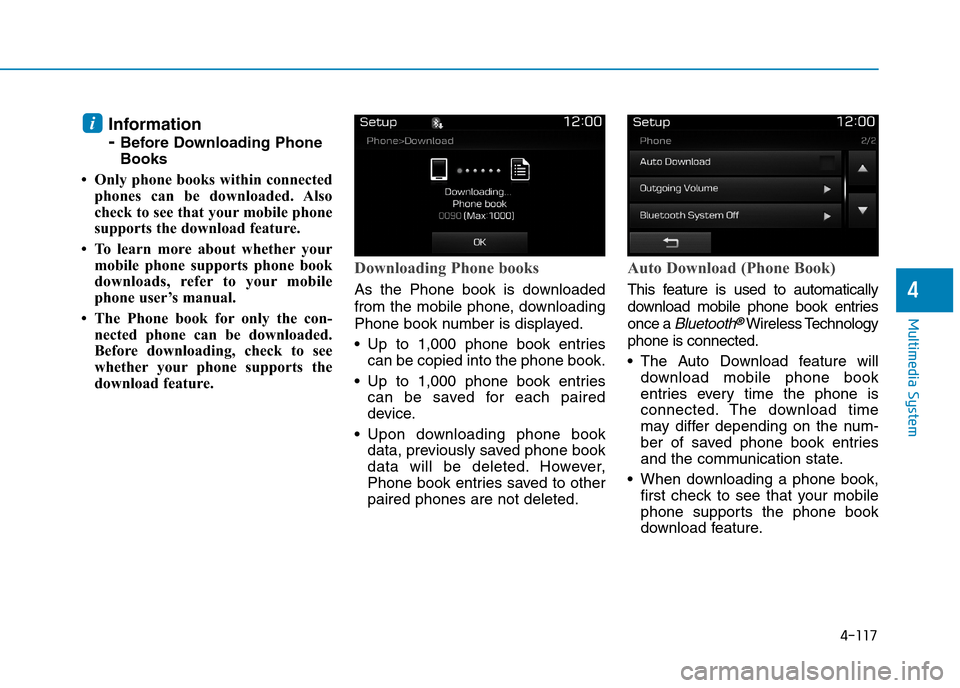

Information
- Before Downloading Phone
Books
• Only phone books within connected
phones can be downloaded. Also
check to see that your mobile phone
supports the download feature.
• To learn more about whether your
mobile phone supports phone book
downloads, refer to your mobile
phone user’s manual.
• The Phone book for only the con-
nected phone can be downloaded.
Before downloading, check to see
whether your phone supports the
download feature.
Downloading Phone books
As the Phone book is downloaded
from the mobile phone, downloading
Phone book number is displayed.
•Up to 1,000 phone book entries
can be copied into the phone book.
•Up to 1,000 phone book entries
can be saved for each paired
device.
•Upon downloading phone book
data, previously saved phone book
data will be deleted. However,
Phone book entries saved to other
paired phones are not deleted.
Auto Download (Phone Book)
This feature is used to automatically
download mobile phone book entries
once a Bluetooth®Wireless Technology
phone is connected.
•The Auto Download feature will
download mobile phone book
entries every time the phone is
connected. The download time
may differ depending on the num-
ber of saved phone book entries
and the communication state.
•When downloading a phone book,
first check to see that your mobile
phone supports the phone book
download feature.
i

4-118
Multimedia System

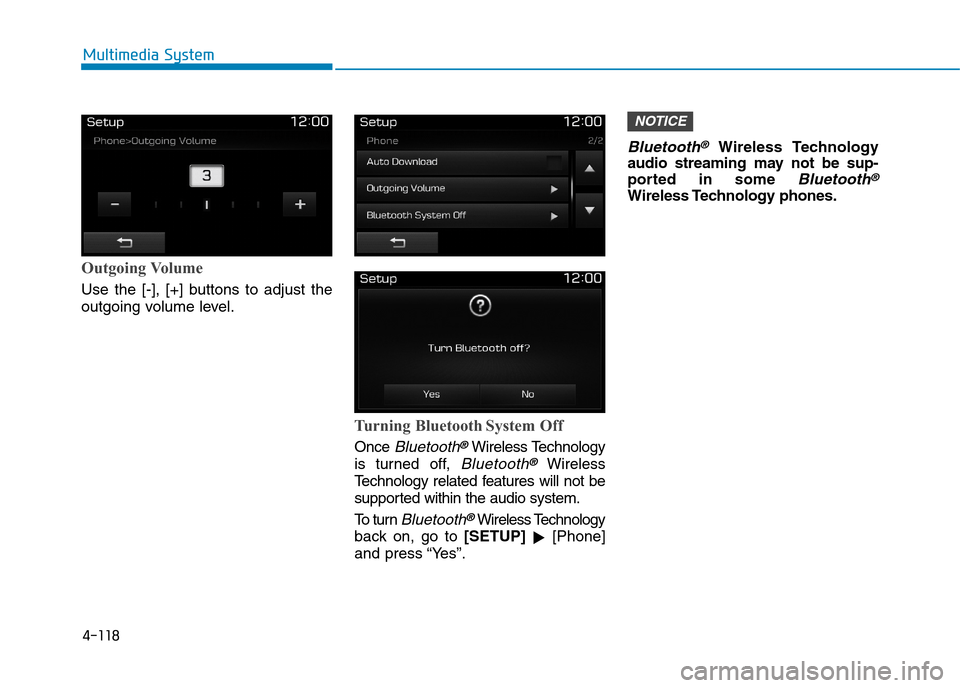

Outgoing Volume
Use the [-], [+] buttons to adjust the
outgoing volume level.
Turning Bluetooth System Off
Once Bluetooth®Wireless Technology
is turned off, Bluetooth®Wireless
Te c h n o l o g y r e l a t e d f e a t u r e s w i l l n o t b e
supported within the audio system.
To t u r n Bluetooth®Wireless Technology
back on, go to [SETUP]![Phone]
and press “Yes”.
Bluetooth®Wireless Technology
audio streaming may not be sup-
ported in some Bluetooth®
Wireless Technology phones.
NOTICE

4-119
Multimedia System
4

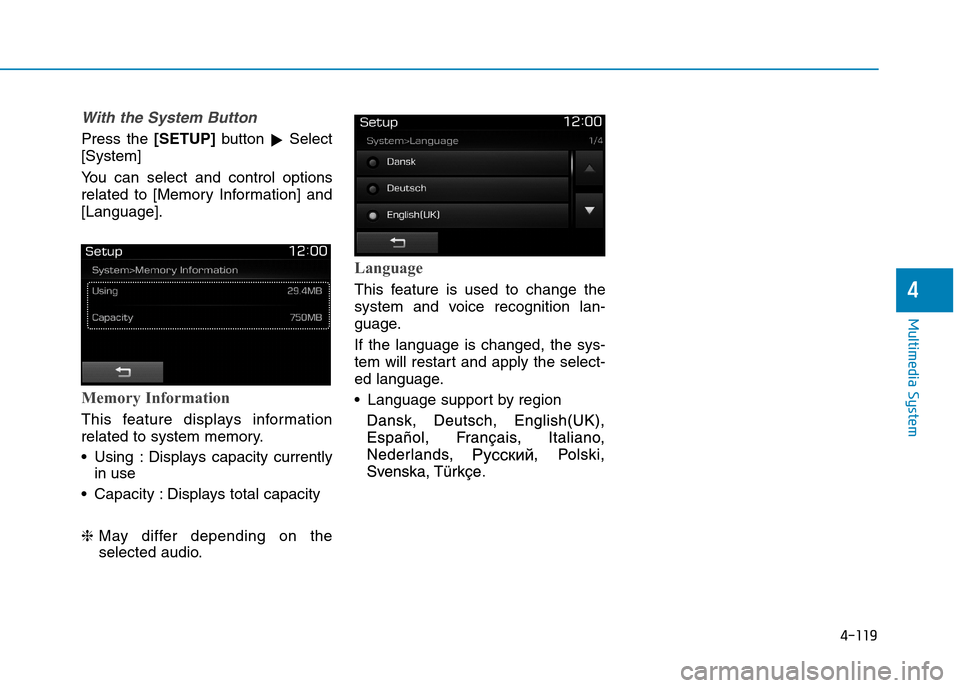

With the System Button
Press the [SETUP]button!Select
[System]
Yo u c a n s e l e c t a n d c o n t r o l o p t i o n s
related to [Memory Information] and
[Language].
Memory Information
This feature displays information
related to system memory.
•Using :Displays capacity currently
in use
•Capacity :Displays total capacity
❈May differ depending on the
selected audio.
Language
This feature is used to change the
system and voice recognition lan-
guage.
If the language is changed, the sys-
tem will restart and apply the select-
ed language.
•Language support by region
