2017 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

4-88
Multimedia System

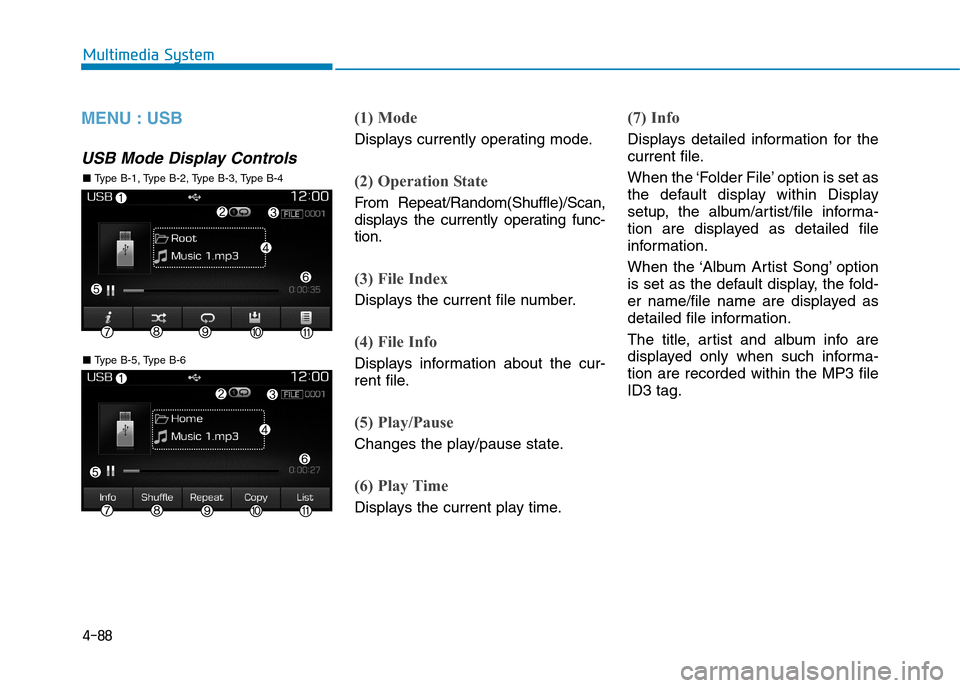

MENU : USB
USB Mode Display Controls
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat/Random(Shuffle)/Scan,
displays the currently operating func-
tion.
(3) File Index
Displays the current file number.
(4) File Info
Displays information about the cur-
rent file.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.
(7) Info
Displays detailed information for the
current file.
When the ‘Folder File’ option is set as
the default display within Display
setup, the album/artist/file informa-
tion are displayed as detailed file
information.
When the ‘Album Artist Song’ option
is set as the default display, the fold-
er name/file name are displayed as
detailed file information.
The title, artist and album info are
displayed only when such informa-
tion are recorded within the MP3 file
ID3 tag.
■ Ty p e B - 5 , Ty p e B - 6
■ Ty p e B - 1 , Ty p e B - 2 , Ty p e B - 3 , Ty p e B - 4

4-89
Multimedia System
4

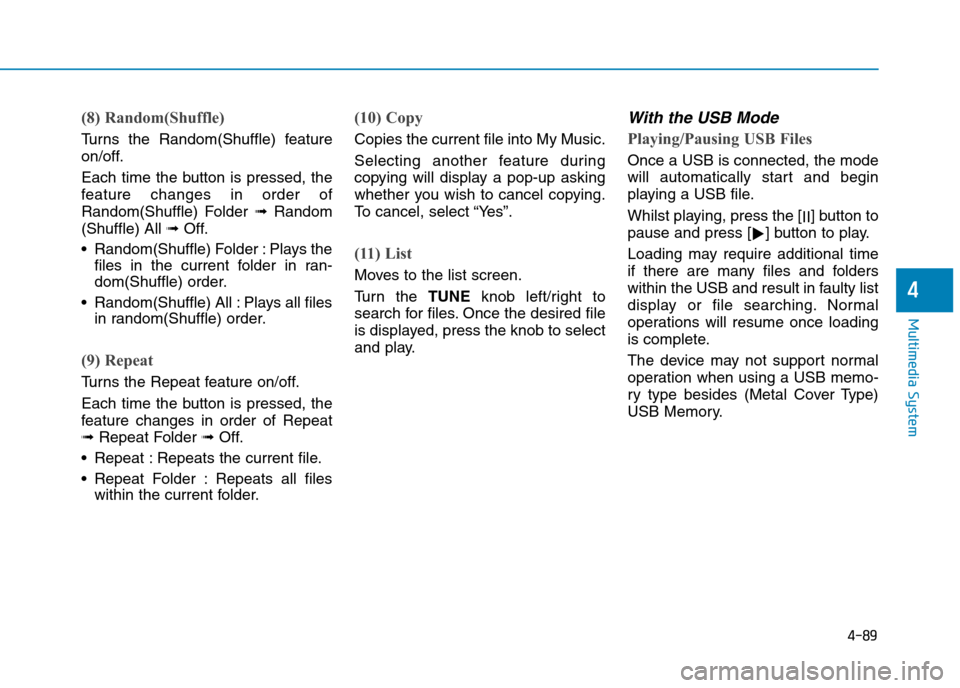

(8) Random(Shuffle)
Tu r n s t h e R a n d o m ( S h u f f l e ) f e a t u r e
on/off.
Each time the button is pressed, the
feature changes in order of
Random(Shuffle) Folder ➟Random
(Shuffle) All ➟Off.
•Random(Shuffle) Folder :Plays the
files in the current folder in ran-
dom(Shuffle) order.
•Random(Shuffle) All :Plays all files
in random(Shuffle) order.
(9) Repeat
Tu r n s t h e R e p e a t f e a t u r e o n / o f f .
Each time the button is pressed, the
feature changes in order of Repeat
➟Repeat Folder ➟Off.
•Repeat :Repeats the current file.
•Repeat Folder :Repeats all files
within the current folder.
(10) Copy
Copies the current file into My Music.
Selecting another feature during
copying will display a pop-up asking
whether you wish to cancel copying.
To c a n c e l , s e l e c t “ Ye s ” .
(11) List
Moves to the list screen.
Tu r n t h e TUNEknob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.
With the USB Mode
Playing/Pausing USB Files
Once a USB is connected, the mode
will automatically start and begin
playing a USB file.
Whilst playing, press the [II]button to
pause and press [!]button to play.
Loading may require additional time
if there are many files and folders
within the USB and result in faulty list
display or file searching. Normal
operations will resume once loading
is complete.
The device may not support normal
operation when using a USB memo-
ry type besides (Metal Cover Type)
USB Memory.

4-90
Multimedia System

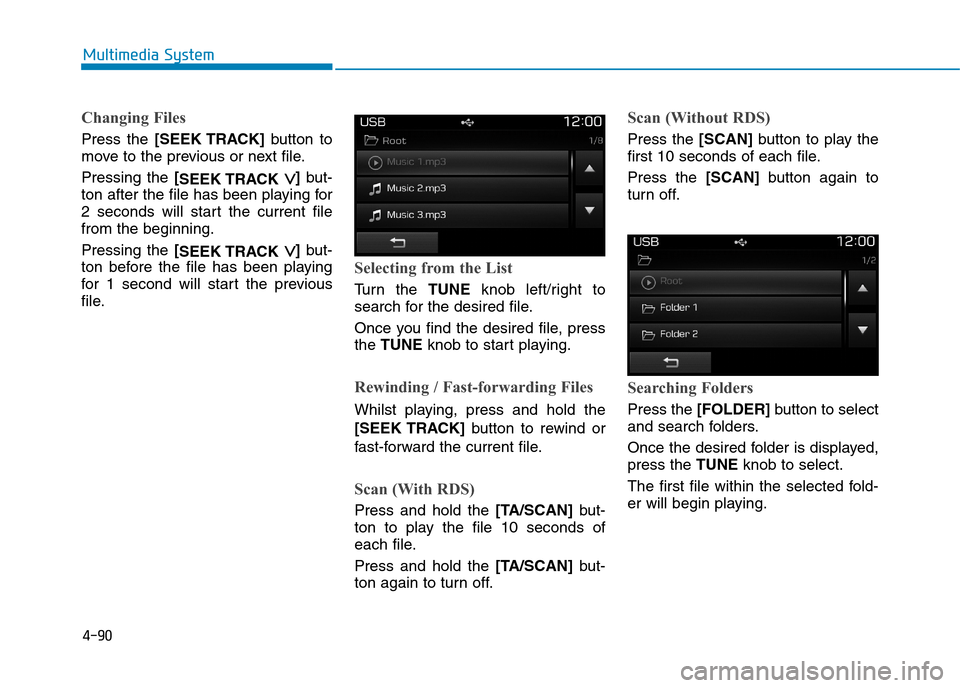

Changing Files
Press the [SEEK TRACK]button to
move to the previous or next file.
Pressing the [SEEK TRACK ∨∨]but-
ton after the file has been playing for
2 seconds will start the current file
from the beginning.
Pressing the [SEEK TRACK ∨∨]but-
ton before the file has been playing
for 1 second will star t the previous
file.
Selecting from the List
Tu r n t h e TUNEknob left/right to
search for the desired file.
Once you find the desired file, press
the TUNEknob to start playing.
Rewinding / Fast-forwarding Files
Whilst playing, press and hold the
[SEEK TRACK]button to rewind or
fast-forward the current file.
Scan (With RDS)
Press and hold the [TA/SCAN]but-
ton to play the file 10 seconds of
each file.
Press and hold the [TA/SCAN]but-
ton again to turn off.
Scan (Without RDS)
Press the [SCAN]button to play the
first 10 seconds of each file.
Press the [SCAN]button again to
turn off.
Searching Folders
Press the [FOLDER]button to select
and search folders.
Once the desired folder is displayed,
press the TUNEknob to select.
The first file within the selected fold-
er will begin playing.

4-91
Multimedia System
4

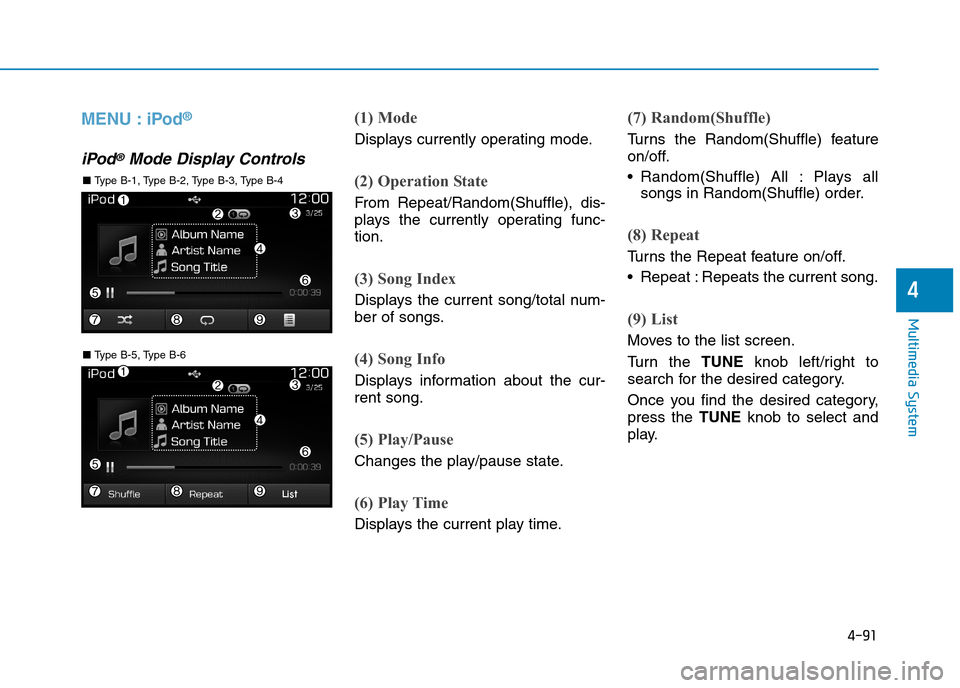

MENU : iPod®
iPod®Mode Display Controls
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat/Random(Shuffle), dis-
plays the currently operating func-
tion.
(3) Song Index
Displays the current song/total num-
ber of songs.
(4) Song Info
Displays information about the cur-
rent song.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.
(7) Random(Shuffle)
Tu r n s t h e R a n d o m ( S h u f f l e ) f e a t u r e
on/off.
•Random(Shuffle) All : Plays all
songs in Random(Shuffle) order.
(8) Repeat
Tu r n s t h e R e p e a t f e a t u r e o n / o f f .
•Repeat :Repeats the current song.
(9) List
Moves to the list screen.
Tu r n t h e TUNEknob left/right to
search for the desired category.
Once you find the desired category,
press the TUNEknob to select and
play.
■ Ty p e B - 5 , Ty p e B - 6
■ Ty p e B - 1 , Ty p e B - 2 , Ty p e B - 3 , Ty p e B - 4

4-92
Multimedia System

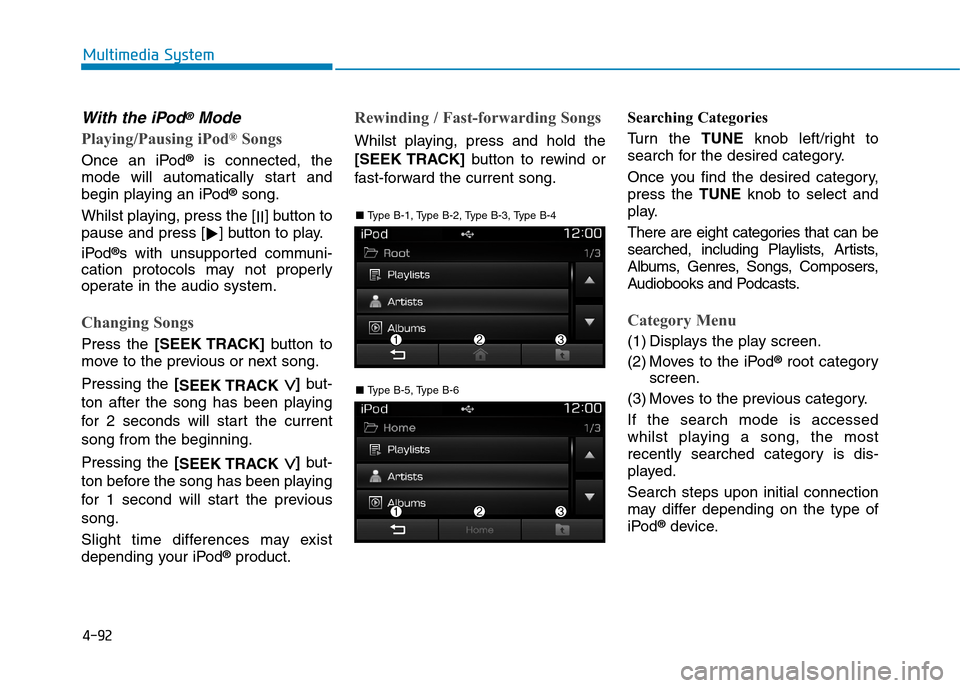

With the iPod®Mode
Playing/Pausing iPod®Songs
Once an iPod®is connected, the
mode will automatically start and
begin playing an iPod®song.
Whilst playing, press the [II]button to
pause and press [!]button to play.
iPod®s with unsupported communi-
cation protocols may not properly
operate in the audio system.
Changing Songs
Press the [SEEK TRACK]button to
move to the previous or next song.
Pressing the [SEEK TRACK∨∨]but-
ton after the song has been playing
for 2 seconds will star t the current
song from the beginning.
Pressing the [SEEK TRACK∨∨]but-
ton before the song has been playing
for 1 second will star t the previous
song.
Slight time differences may exist
depending your iPod®product.
Rewinding / Fast-forwarding Songs
Whilst playing, press and hold the
[SEEK TRACK]button to rewind or
fast-forward the current song.
Searching Categories
Tu r n t h e TUNEknob left/right to
search for the desired category.
Once you find the desired category,
press the TUNEknob to select and
play.
There are eight categories that can be
searched, including Playlists, Artists,
Albums, Genres, Songs, Composers,
Audiobooks and Podcasts.
Category Menu
(1) Displays the play screen.
(2) Moves to the iPod®root category
screen.
(3) Moves to the previous category.
If the search mode is accessed
whilst playing a song, the most
recently searched category is dis-
played.
Search steps upon initial connection
may differ depending on the type of
iPod®device.
■ Ty p e B - 5 , Ty p e B - 6
■ Ty p e B - 1 , Ty p e B - 2 , Ty p e B - 3 , Ty p e B - 4

4-93
Multimedia System
4

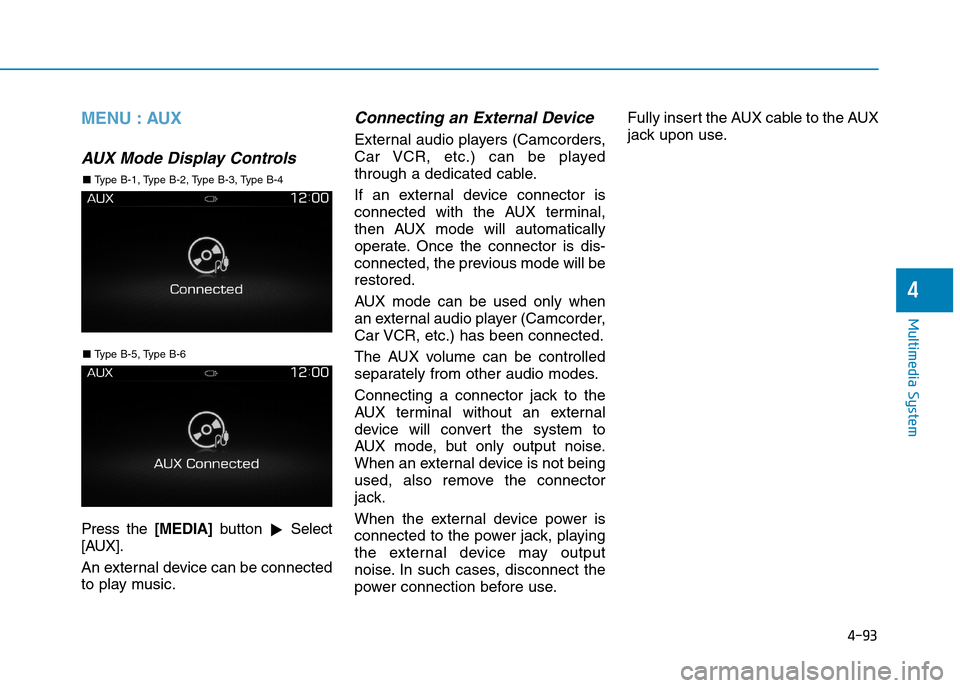

MENU : AUX
AUX Mode Display Controls
Press the [MEDIA]button !Select
[AUX].
An external device can be connected
to play music.
Connecting an External Device
External audio players (Camcorders,
Car VCR, etc.) can be played
through a dedicated cable.
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will be
restored.
AUX mode can be used only when
an external audio player (Camcorder,
Car VCR, etc.) has been connected.
The AUX volume can be controlled
separately from other audio modes.
Connecting a connector jack to the
AUX ter minal without an exter nal
device will convert the system to
AUX mode, but only output noise.
When an external device is not being
used, also remove the connector
jack.
When the external device power is
connected to the power jack, playing
the external device may output
noise. In such cases, disconnect the
power connection before use.
Fully insert the AUX cable to the AUX
jack upon use.
■ Ty p e B - 5 , Ty p e B - 6
■ Ty p e B - 1 , Ty p e B - 2 , Ty p e B - 3 , Ty p e B - 4

4-94
Multimedia System

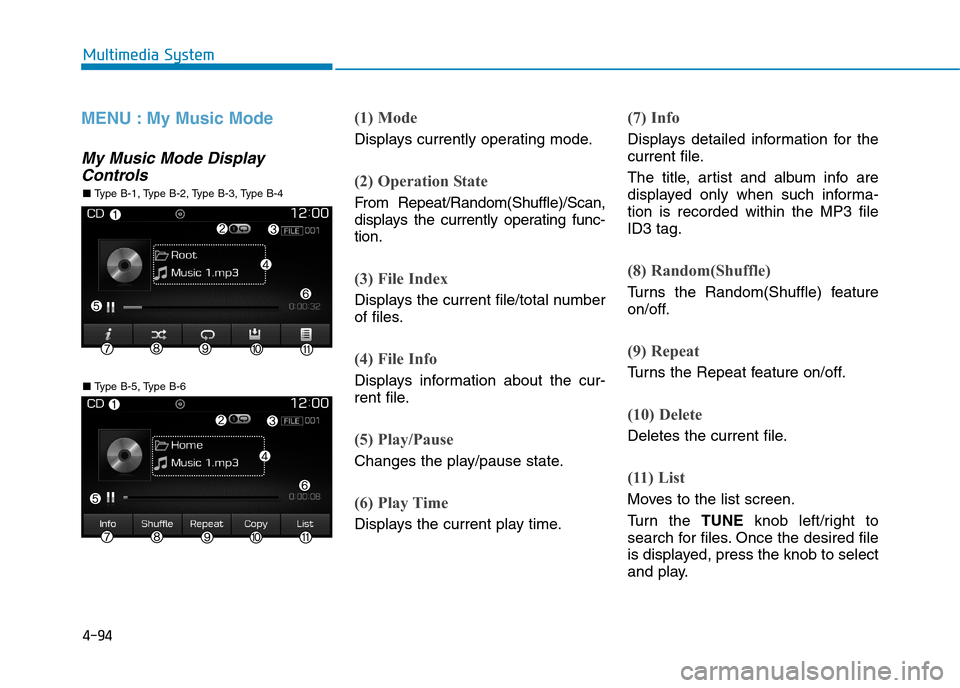

MENU : My Music Mode
My Music Mode Display
Controls
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat/Random(Shuffle)/Scan,
displays the currently operating func-
tion.
(3) File Index
Displays the current file/total number
of files.
(4) File Info
Displays information about the cur-
rent file.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.
(7) Info
Displays detailed information for the
current file.
The title, artist and album info are
displayed only when such informa-
tion is recorded within the MP3 file
ID3 tag.
(8) Random(Shuffle)
Tu r n s t h e R a n d o m ( S h u f f l e ) f e a t u r e
on/off.
(9) Repeat
Tu r n s t h e R e p e a t f e a t u r e o n / o f f .
(10) Delete
Deletes the current file.
(11) List
Moves to the list screen.
Tu r n t h e TUNEknob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.
■ Ty p e B - 5 , Ty p e B - 6
■ Ty p e B - 1 , Ty p e B - 2 , Ty p e B - 3 , Ty p e B - 4

4-95
Multimedia System
4

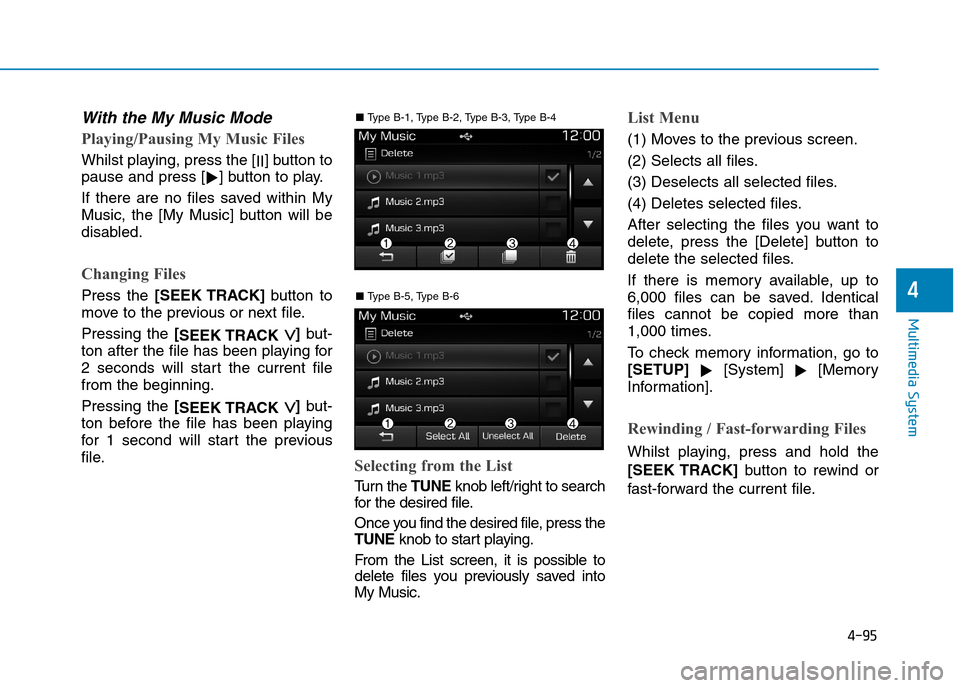

With the My Music Mode
Playing/Pausing My Music Files
Whilst playing, press the [II]button to
pause and press [!]button to play.
If there are no files saved within My
Music, the [My Music] button will be
disabled.
Changing Files
Press the [SEEK TRACK]button to
move to the previous or next file.
Pressing the [SEEK TRACK ∨∨]but-
ton after the file has been playing for
2 seconds will start the current file
from the beginning.
Pressing the [SEEK TRACK ∨∨]but-
ton before the file has been playing
for 1 second will star t the previous
file.Selecting from the List
Tu r n t h e TUNEknob left/right to search
for the desired file.
Once you find the desired file, press the
TUNEknob to start playing.
From the List screen, it is possible to
delete files you previously saved into
My Music.
List Menu
(1) Moves to the previous screen.
(2) Selects all files.
(3) Deselects all selected files.
(4) Deletes selected files.
After selecting the files you want to
delete, press the [Delete] button to
delete the selected files.
If there is memory available, up to
6,000 files can be saved. Identical
files cannot be copied more than
1,000 times.
To c h e c k m e m o r y i n f o r m a t i o n , g o t o
[SETUP]![System] ![Memory
Information].
Rewinding / Fast-forwarding Files
Whilst playing, press and hold the
[SEEK TRACK]button to rewind or
fast-forward the current file.
■ Ty p e B - 5 , Ty p e B - 6
■ Ty p e B - 1 , Ty p e B - 2 , Ty p e B - 3 , Ty p e B - 4
