2017 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

4-120
Multimedia System

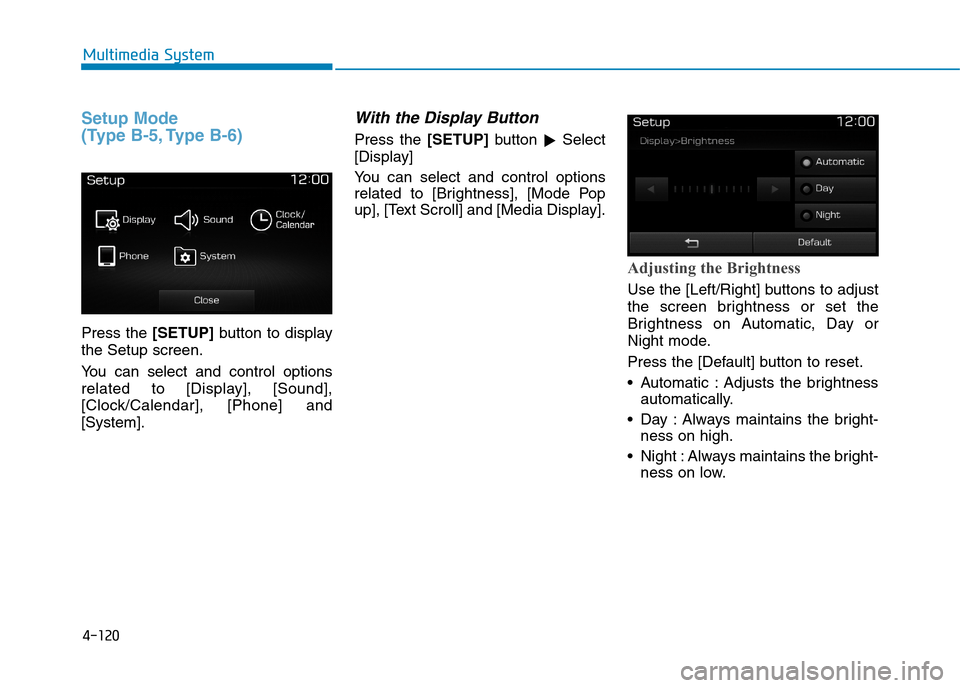

Setup Mode
(Type B-5, Type B-6)
Press the [SETUP]button to display
the Setup screen.
Yo u c a n s e l e c t a n d c o n t r o l o p t i o n s
related to [Display], [Sound],
[Clock/Calendar], [Phone] and
[System].
With the Display Button
Press the [SETUP]button!Select
[Display]
Yo u c a n s e l e c t a n d c o n t r o l o p t i o n s
related to [Brightness], [Mode Pop
up], [Text Scroll] and [Media Display].
Adjusting the Brightness
Use the [Left/Right] buttons to adjust
the screen brightness or set the
Brightness on Automatic, Day or
Night mode.
Press the [Default] button to reset.
•Automatic :Adjusts the brightness
automatically.
•Day :Always maintains the bright-
ness on high.
•Night :Always maintains the bright-
ness on low.

4-121
Multimedia System
4

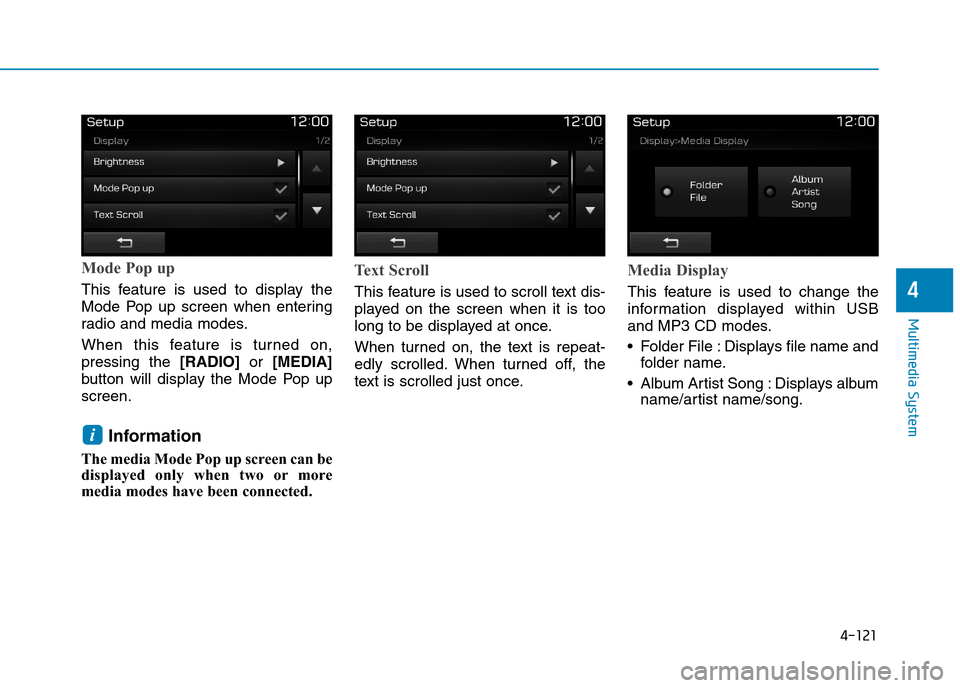

Mode Pop up
This feature is used to display the
Mode Pop up screen when entering
radio and media modes.
When this feature is turned on,
pressing the [RADIO]or [MEDIA]
button will display the Mode Pop up
screen.
Information
The media Mode Pop up screen can be
displayed only when two or more
media modes have been connected.
Text Scroll
This feature is used to scroll text dis-
played on the screen when it is too
long to be displayed at once.
When turned on, the text is repeat-
edly scrolled. When turned off, the
text is scrolled just once.
Media Display
This feature is used to change the
information displayed within USB
and MP3 CD modes.
•Folder File :Displays file name and
folder name.
•Album Artist Song :Displays album
name/artist name/song.
i

4-122
Multimedia System

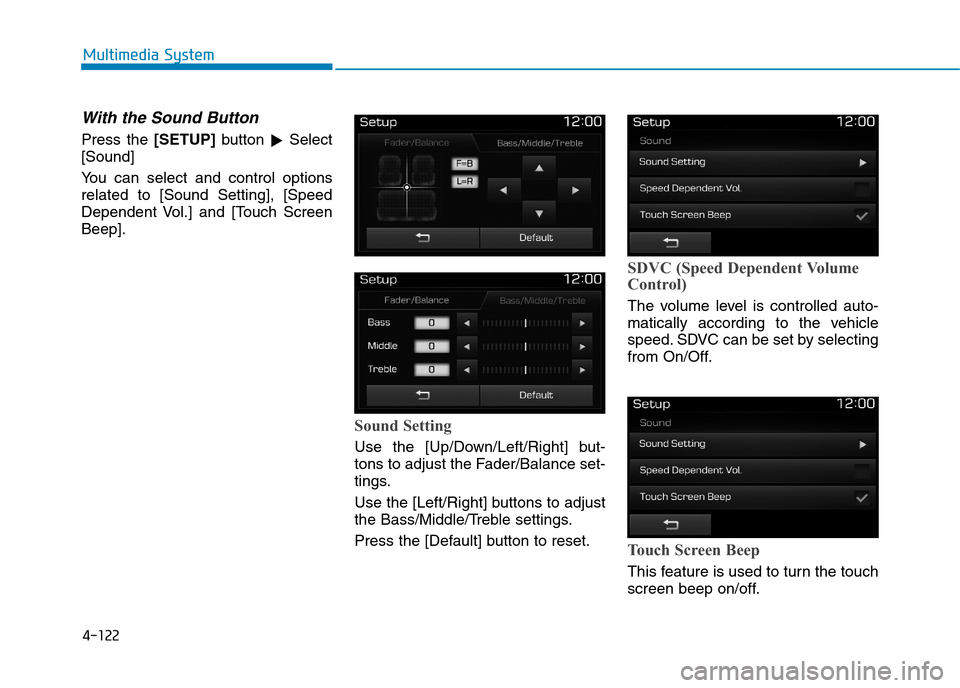

With the Sound Button
Press the [SETUP]button !Select
[Sound]
Yo u c a n s e l e c t a n d c o n t r o l o p t i o n s
related to [Sound Setting], [Speed
Dependent Vol.] and [Touch Screen
Beep].
Sound Setting
Use the [Up/Down/Left/Right] but-
tons to adjust the Fader/Balance set-
tings.
Use the [Left/Right] buttons to adjust
the Bass/Middle/Treble settings.
Press the [Default] button to reset.
SDVC (Speed Dependent Volume
Control)
The volume level is controlled auto-
matically according to the vehicle
speed. SDVC can be set by selecting
from On/Off.
Touch Screen Beep
This feature is used to turn the touch
screen beep on/off.

4-123
Multimedia System
4

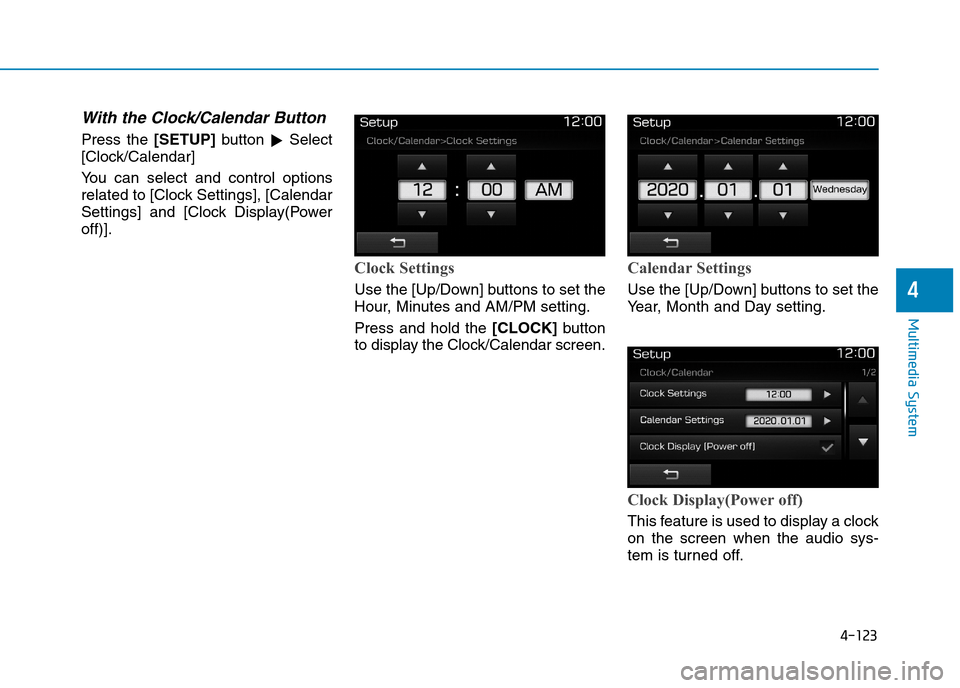

With the Clock/Calendar Button
Press the [SETUP]button !Select
[Clock/Calendar]
Yo u c a n s e l e c t a n d c o n t r o l o p t i o n s
related to [Clock Settings], [Calendar
Settings] and [Clock Display(Power
off)].
Clock Settings
Use the [Up/Down] buttons to set the
Hour, Minutes and AM/PM setting.
Press and hold the [CLOCK]button
to display the Clock/Calendar screen.
Calendar Settings
Use the [Up/Down] buttons to set the
Ye a r , M o n t h a n d D a y s e t t i n g .
Clock Display(Power off)
This feature is used to display a clock
on the screen when the audio sys-
tem is turned off.

4-124
Multimedia System

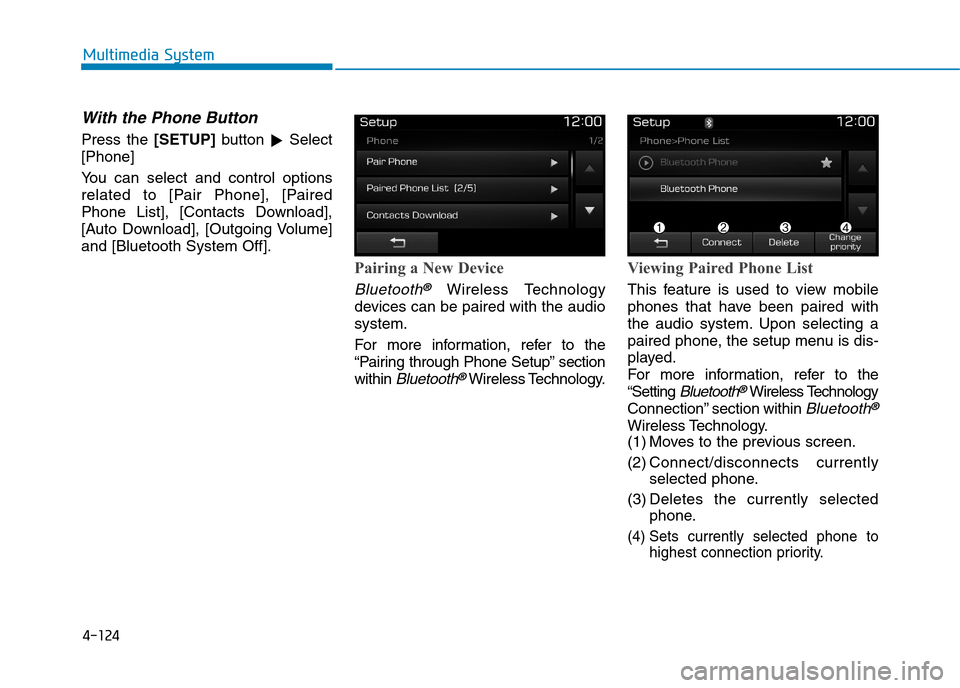

With the Phone Button
Press the [SETUP]button !Select
[Phone]
Yo u c a n s e l e c t a n d c o n t r o l o p t i o n s
related to [Pair Phone], [Paired
Phone List], [Contacts Download],
[Auto Download], [Outgoing Volume]
and [Bluetooth System Off].
Pairing a New Device
Bluetooth®Wireless Technology
devices can be paired with the audio
system.
For more infor mation, refer to the
“Pairing through Phone Setup” section
within Bluetooth®Wireless Technology.
Viewing Paired Phone List
This feature is used to view mobile
phones that have been paired with
the audio system. Upon selecting a
paired phone, the setup menu is dis-
played.
For more infor mation, refer to the
“Setting Bluetooth®Wireless Technology
Connection” section within Bluetooth®
Wireless Technology.
(1) Moves to the previous screen.
(2) Connect/disconnects currently
selected phone.
(3) Deletes the currently selected
phone.
(4) Sets currently selected phone to
highest connection priority.

4-125
Multimedia System
4

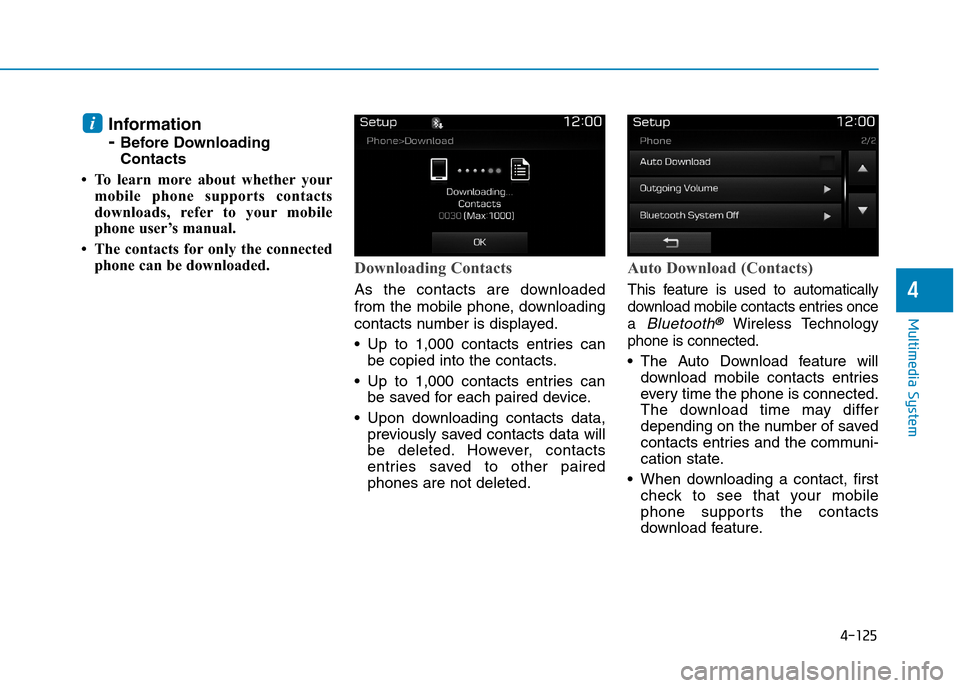

Information
- Before Downloading
Contacts
• To learn more about whether your
mobile phone supports contacts
downloads, refer to your mobile
phone user’s manual.
• The contacts for only the connected
phone can be downloaded.Downloading Contacts
As the contacts are downloaded
from the mobile phone, downloading
contacts number is displayed.
•Up to 1,000 contacts entries can
be copied into the contacts.
•Up to 1,000 contacts entries can
be saved for each paired device.
•Upon downloading contacts data,
previously saved contacts data will
be deleted. However, contacts
entries saved to other paired
phones are not deleted.
Auto Download (Contacts)
This feature is used to automatically
download mobile contacts entries once
a Bluetooth®Wireless Technology
phone is connected.
•The Auto Download feature will
download mobile contacts entries
ever y time the phone is connected.
The download time may differ
depending on the number of saved
contacts entries and the communi-
cation state.
•When downloading a contact, first
check to see that your mobile
phone supports the contacts
download feature.
i

4-126
Multimedia System

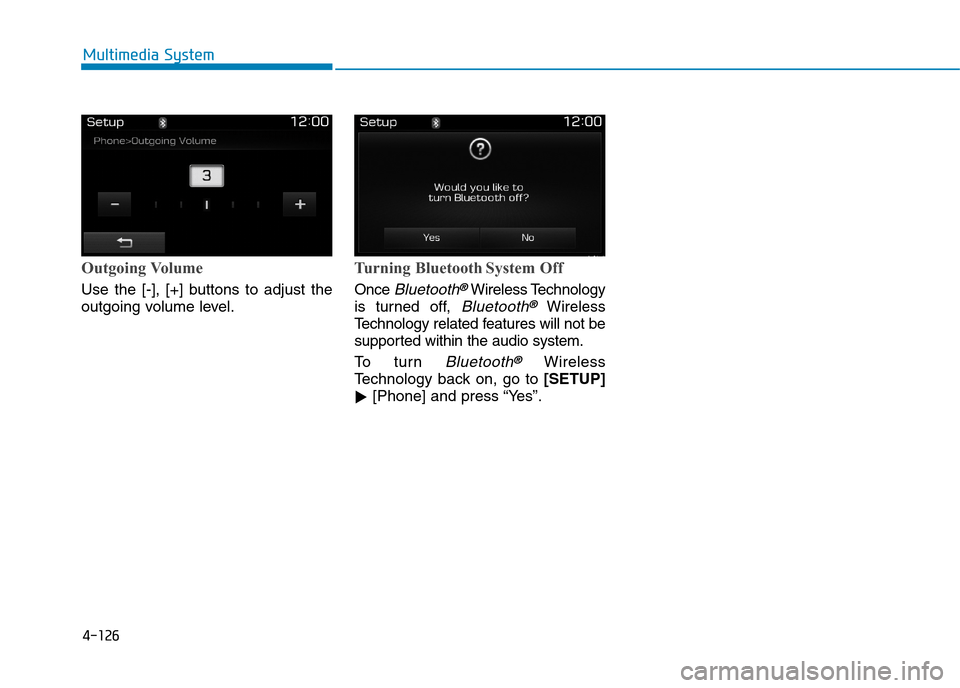

Outgoing Volume
Use the [-], [+] buttons to adjust the
outgoing volume level.
Turning Bluetooth System Off
Once Bluetooth®Wireless Technology
is turned off, Bluetooth®Wireless
Te c h n o l o g y r e l a t e d f e a t u r e s w i l l n o t b e
supported within the audio system.
To t u r n Bluetooth®Wireless
Te c h n o l o g y b a c k o n , g o t o [SETUP]
![Phone] and press “Yes”.

4-127
Multimedia System
4

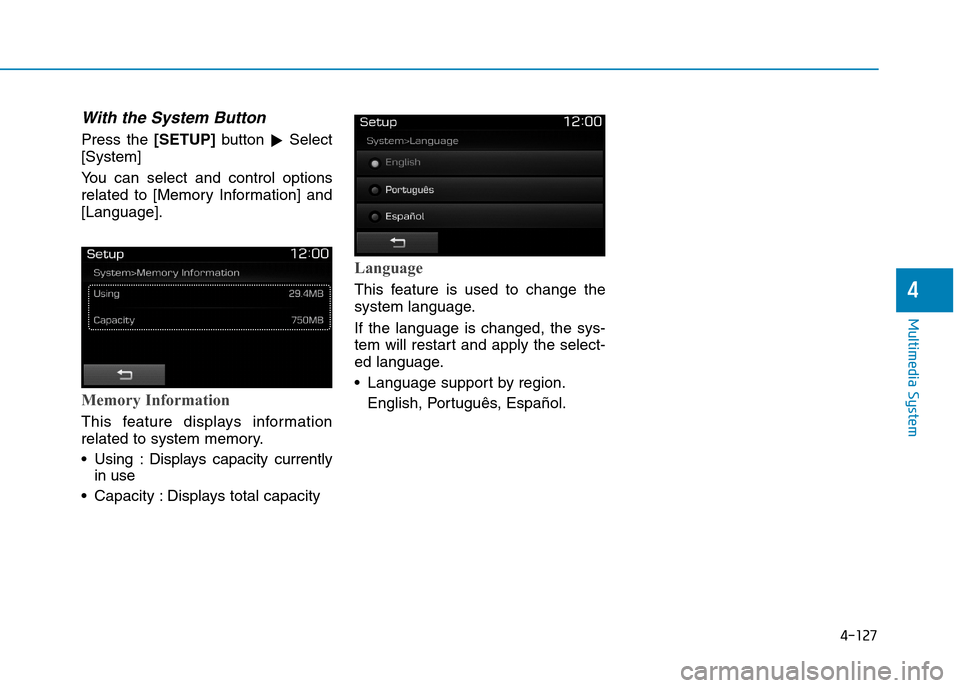

With the System Button
Press the [SETUP]button !Select
[System]
Yo u c a n s e l e c t a n d c o n t r o l o p t i o n s
related to [Memory Information] and
[Language].
Memory Information
This feature displays information
related to system memory.
•Using :Displays capacity currently
in use
•Capacity :Displays total capacity
Language
This feature is used to change the
system language.
If the language is changed, the sys-
tem will restart and apply the select-
ed language.
•Language support by region.
English, Português, Español.
