2017 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

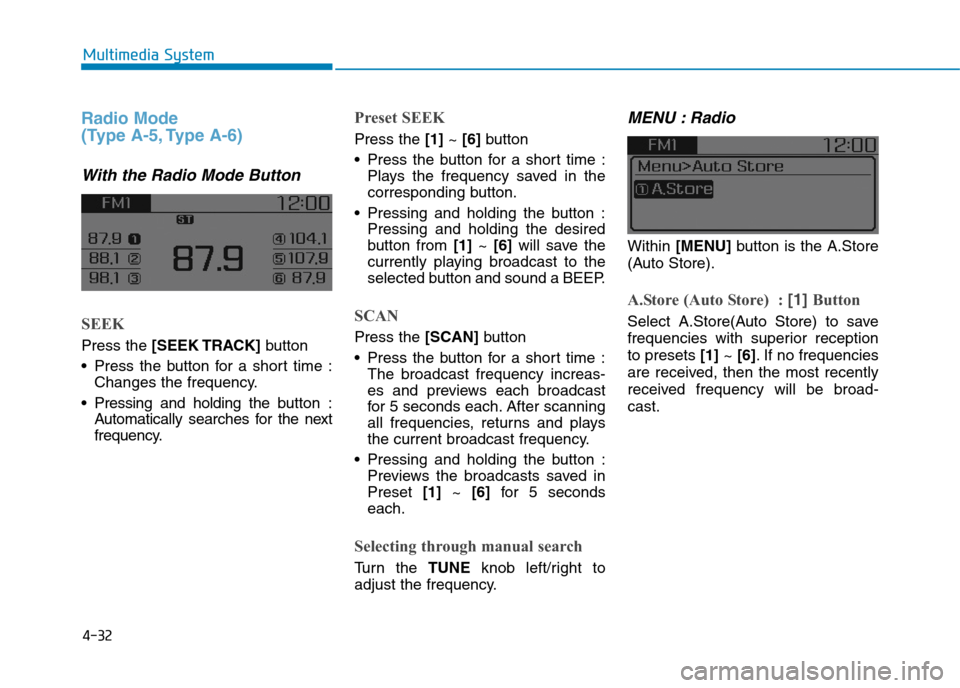

4-32
Multimedia System
Radio Mode
(Type A-5, Type A-6)
With the Radio Mode Button
SEEK
Press the [SEEK TRACK]button
•Press the button for a short time :
Changes the frequency.
•Pressing and holding the button :
Automatically searches for the next
frequency.
Preset SEEK
Press the [1] ~[6]button
•Press the button for a short time :
Plays the frequency saved in the
corresponding button.
•Pressing and holding the button:
Pressing and holding the desired
button from [1] ~[6]will save the
currently playing broadcast to the
selected button and sound a BEEP.
SCAN
Press the [SCAN] button
•Press the button for a short time :
The broadcast frequency increas-
es and previews each broadcast
for 5 seconds each. After scanning
all frequencies, returns and plays
the current broadcast frequency.
•Pressing and holding the button:
Previews the broadcasts saved in
Preset [1] ~[6]for 5 seconds
each.
Selecting through manual search
Tu r n t h e TUNE knob left/right to
adjust the frequency.
MENU : Radio
Within [MENU]button is the A.Store
(Auto Store).
A.Store (Auto Store) : [1] Button
Select A.Store(Auto Store) to save
frequencies with superior reception
to presets [1] ~[6].If no frequencies
are received, then the most recently
received frequency will be broad-
cast.

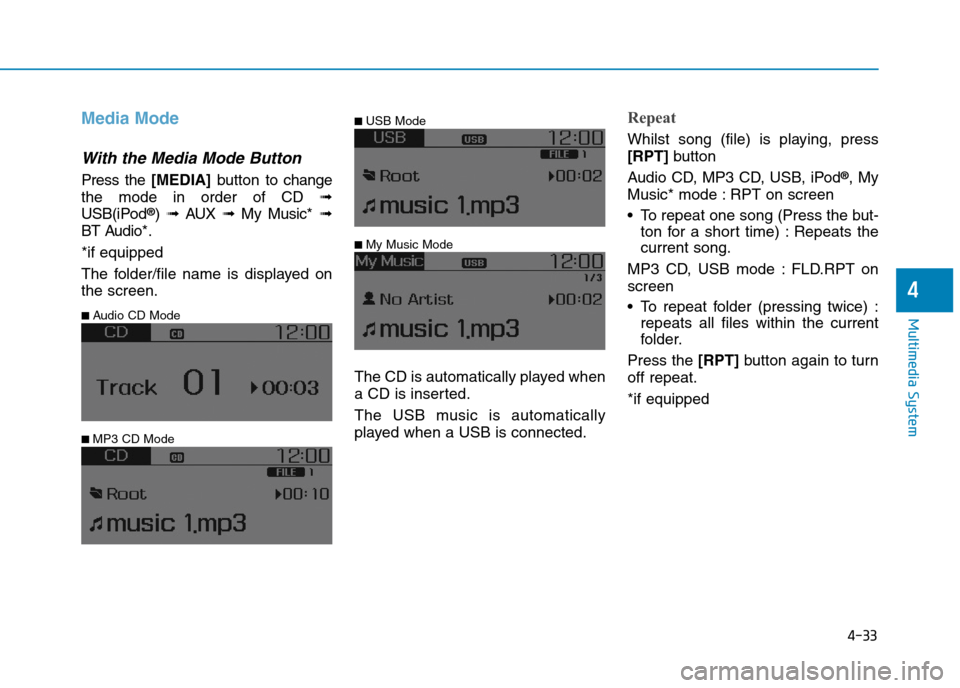

4-33
Multimedia System
4
Media Mode
With the Media Mode Button
Press the [MEDIA]button to change
the mode in order of CD ➟
USB(iPod®) ➟ AUX ➟ My Music*➟
BT Audio*.
*if equipped
The folder/file name is displayed on
the screen.
The CD is automatically played when
a CD is inserted.
The USB music is automatically
played when a USB is connected.
Repeat
Whilst song (file) is playing, press
[RPT]button
Audio CD, MP3 CD, USB, iPod®, My
Music* mode : RPT on screen
•To repeat one song (Press the but-
ton for a short time) : Repeats the
current song.
MP3 CD, USB mode : FLD.RPT on
screen
•To repeat folder (pressing twice) :
repeats all files within the current
folder.
Press the [RPT]button again to turn
off repeat.
*if equipped
■ My Music Mode
■ USB Mode
■ MP3 CD Mode
■ Audio CD Mode

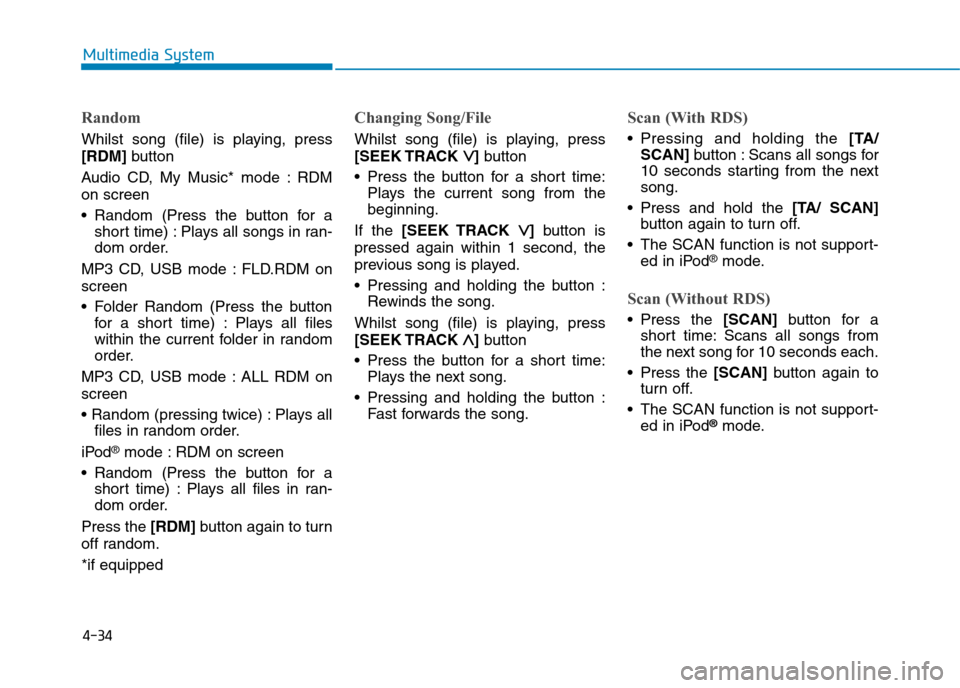

4-34
Multimedia System
Random
Whilst song (file) is playing, press
[RDM]button
Audio CD, My Music* mode : RDM
on screen
•Random (Press the button for a
short time) : Plays all songs in ran-
dom order.
MP3 CD, USB mode : FLD.RDM on
screen
•Folder Random (Press the button
for a shor t time) : Plays all files
within the current folder in random
order.
MP3 CD, USB mode : ALL RDM on
screen
• Random (pressing twice) : Plays all
files in random order.
iPod®mode : RDM on screen
•Random (Press the button for a
short time) : Plays all files in ran-
dom order.
Press the[RDM]button again to turn
off random.
*if equipped
Changing Song/File
Whilst song (file) is playing, press
[SEEK TRACK∨∨]button
•Press the button for a short time:
Plays the current song from the
beginning.
If the [SEEK TRACK ∨∨] button is
pressed again within 1 second, the
previous song is played.
•Pressing and holding the button:
Rewinds the song.
Whilst song (file) is playing, press
[SEEK TRACK∧∧] button
•Press the button for a short time:
Plays the next song.
•Pressing and holding the button:
Fast forwards the song.
Scan (With RDS)
•Pressing and holding the [TA/
SCAN]button : Scans all songs for
10 seconds starting from the next
song.
•Press and hold the [TA/ SCAN]
button again to turn off.
•The SCAN function is not support-
ed in iPod®mode.
Scan (Without RDS)
•Press the [SCAN]button for a
short time: Scans all songs from
the next song for 10 seconds each.
•Press the [SCAN]button again to
turn off.
•The SCAN function is not support-
ed in iPod®mode.

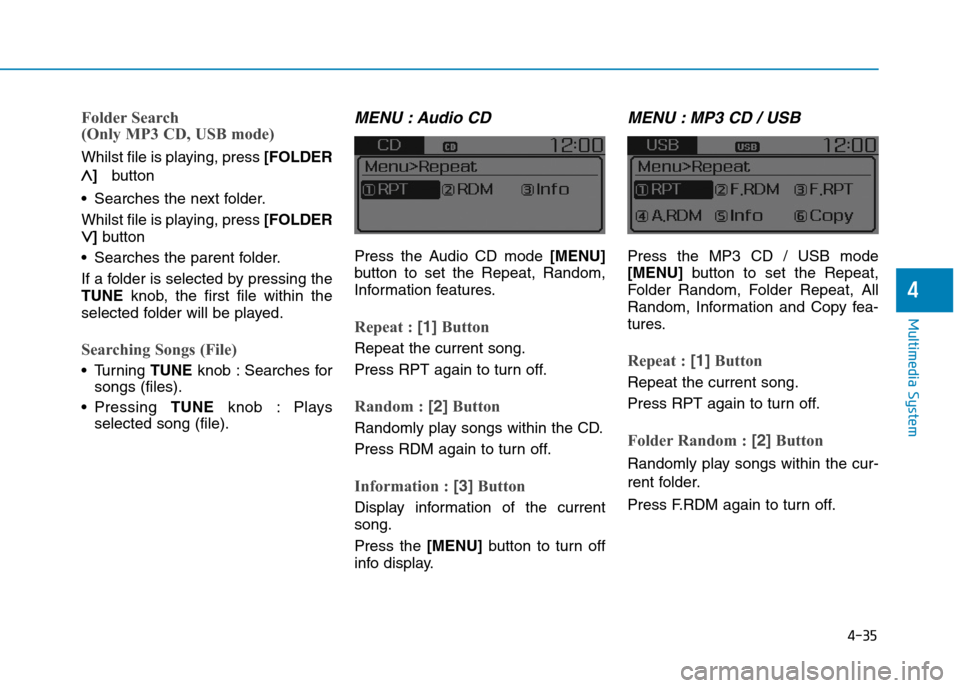

4-35
Multimedia System
4
Folder Search
(Only MP3 CD, USB mode)
Whilst file is playing, press [FOLDER
∧∧] button
•Searches the next folder.
Whilst file is playing, press [FOLDER
∨∨] button
•Searches the parent folder.
If a folder is selected by pressing the
TUNEknob, the first file within the
selected folder will be played.
Searching Songs (File)
•Turning TUNEknob : Searches for
songs (files).
•Pressing TUNEknob : Plays
selected song (file).
MENU : Audio CD
Press the Audio CD mode [MENU]
button to set the Repeat, Random,
Information features.
Repeat : [1]Button
Repeat the current song.
Press RPT again to turn off.
Random : [2]Button
Randomly play songs within the CD.
Press RDM again to turn off.
Information : [3]Button
Display information of the current
song.
Press the [MENU]button to turn off
info display.
MENU : MP3 CD / USB
Press the MP3 CD / USB mode
[MENU]button to set the Repeat,
Folder Random, Folder Repeat, All
Random, Information and Copy fea-
tures.
Repeat : [1]Button
Repeat the current song.
Press RPT again to turn off.
Folder Random : [2]Button
Randomly play songs within the cur-
rent folder.
Press F.RDM again to turn off.

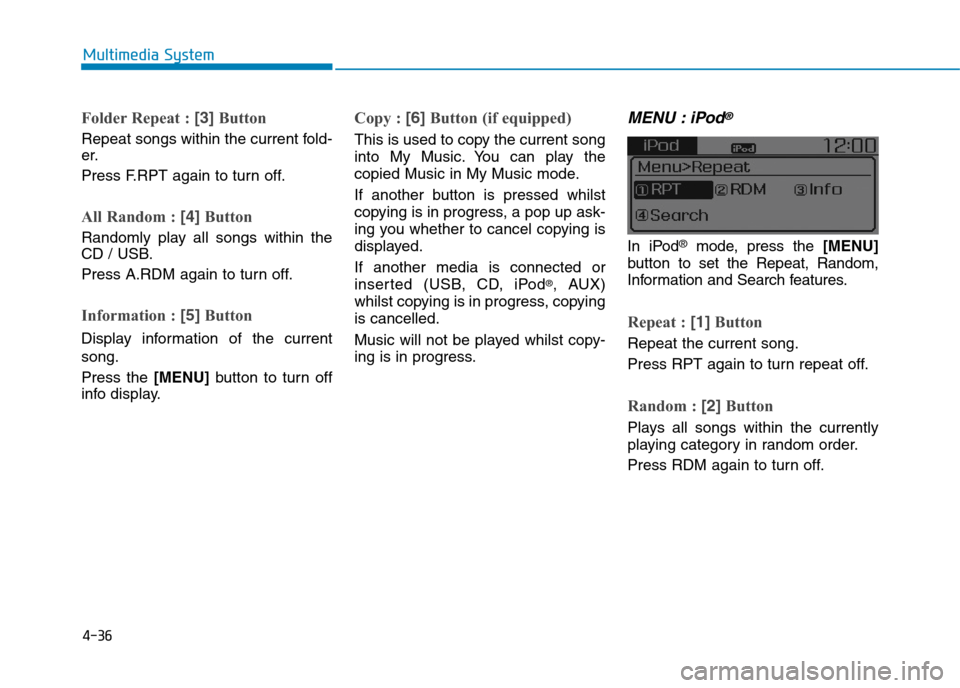

4-36
Multimedia System
Folder Repeat : [3]Button
Repeat songs within the current fold-
er.
Press F.RPT again to turn off.
All Random : [4]Button
Randomly play all songs within the
CD / USB.
Press A.RDM again to turn off.
Information : [5]Button
Display information of the current
song.
Press the [MENU]button to turn off
info display.
Copy : [6]Button (if equipped)
This is used to copy the current song
into My Music. You can play the
copied Music in My Music mode.
If another button is pressed whilst
copying is in progress, a pop up ask-
ing you whether to cancel copying is
displayed.
If another media is connected or
inserted (USB, CD, iPod®, AUX)
whilst copying is in progress, copying
is cancelled.
Music will not be played whilst copy-
ing is in progress.
MENU : iPod®
In iPod®mode, press the [MENU]
button to set the Repeat, Random,
Information and Search features.
Repeat : [1]Button
Repeat the current song.
Press RPT again to turn repeat off.
Random : [2]Button
Plays all songs within the currently
playing category in random order.
Press RDM again to turn off.

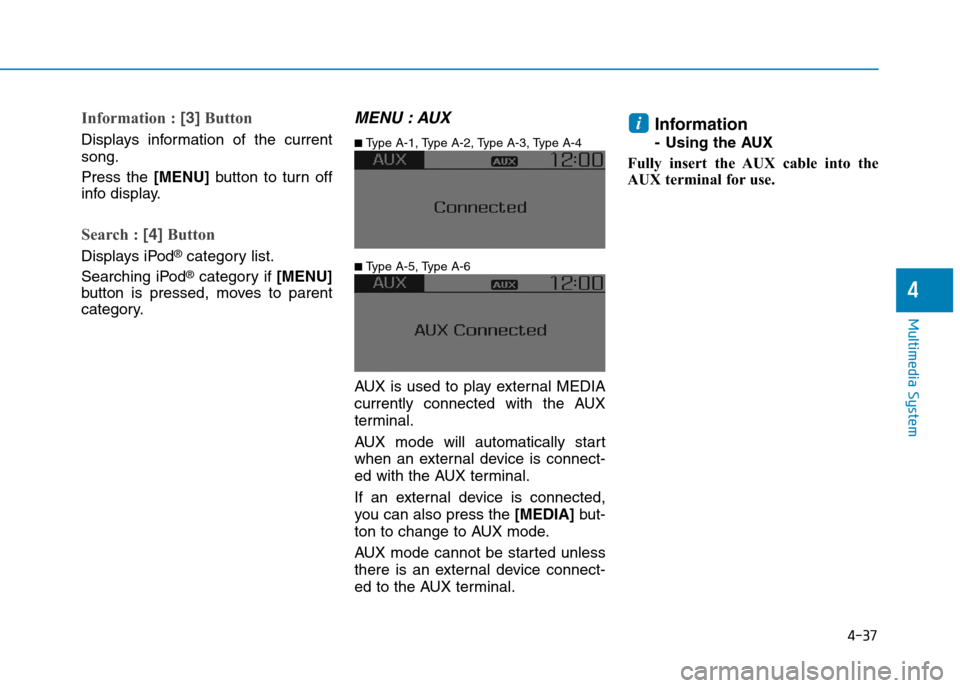

4-37
Multimedia System
4
Information : [3]Button
Displays information of the current
song.
Press the [MENU] button to turn off
info display.
Search : [4]Button
Displays iPod®category list.
Searching iPod®category if [MENU]
button is pressed, moves to parent
category.
MENU : AUX
AUX is used to play exter nal MEDIA
currently connected with the AUX
terminal.
AUX mode will automatically star t
when an external device is connect-
ed with the AUX terminal.
If an external device is connected,
you can also press the [MEDIA]but-
ton to change to AUX mode.
AUX mode cannot be star ted unless
there is an external device connect-
ed to the AUX terminal.
Information
-Using the AUX
Fully insert the AUX cable into the
AUX terminal for use.
i
■ Ty p e A - 5 , Ty p e A - 6
■ Ty p e A - 1 , Ty p e A - 2 , Ty p e A - 3 , Ty p e A - 4

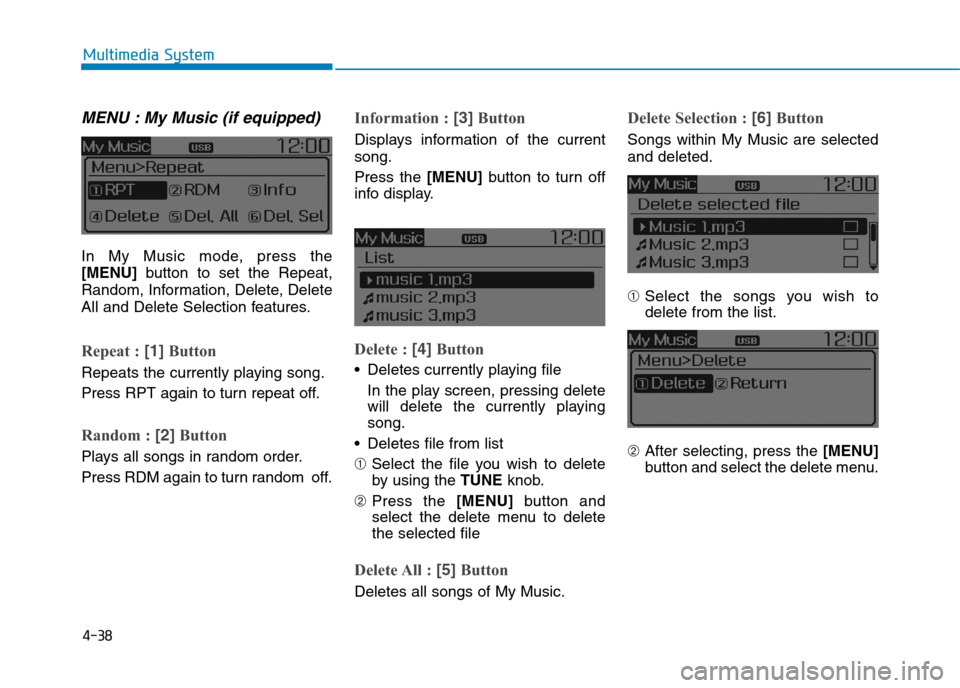

4-38
Multimedia System
MENU : My Music (if equipped)
In My Music mode, press the
[MENU]button to set the Repeat,
Random, Information, Delete, Delete
All and Delete Selection features.
Repeat : [1]Button
Repeats the currently playing song.
Press RPT again to turn repeat off.
Random : [2]Button
Plays all songs in random order.
Press RDM again to turn random off.
Information : [3]Button
Displays information of the current
song.
Press the [MENU]button to turn off
info display.
Delete : [4]Button
•Deletes currently playing file
In the play screen, pressing delete
will delete the currently playing
song.
•Deletes file from list
➀Select the file you wish to delete
by using the TUNEknob.
➁Press the[MENU]button and
select the delete menu to delete
the selected file
Delete All : [5]Button
Deletes all songs of My Music.
Delete Selection : [6]Button
Songs within My Music are selected
and deleted.
➀Select the songs you wish to
delete from the list.
➁After selecting, press the[MENU]
button and select the delete menu.

4-39
Multimedia System
4

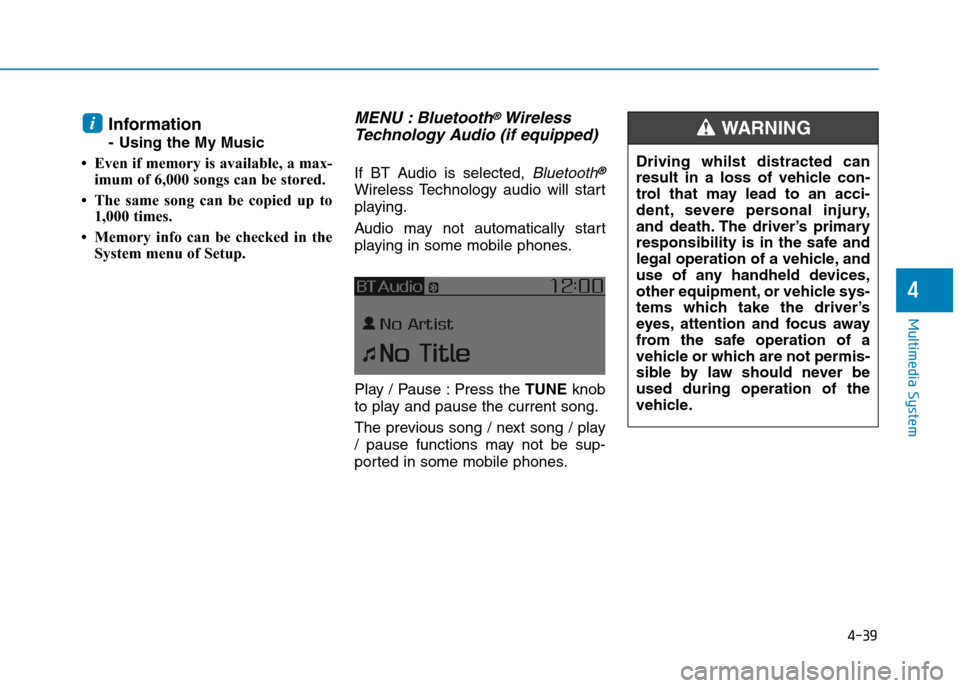

Information
-Using theMy Music
• Even if memory is available, a max-
imum of 6,000 songs can be stored.
• The same song can be copied up to
1,000 times.
• Memory info can be checked in the
System menu of Setup.
MENU : Bluetooth®Wireless
Te ch n o l o g y Au d i o ( i f e q u i p p e d )
If BT Audio is selected, Bluetooth®
Wireless Technology audio will start
playing.
Audio may not automatically star t
playing in some mobile phones.
Play / Pause : Press the TUNEknob
to play and pause the current song.
The previous song / next song / play
/ pause functions may not be sup-
ported in some mobile phones.
i
Driving whilst distracted can
result in a loss of vehicle con-
trol that may lead to an acci-
dent, severe personal injury,
and death. The driver’s primary
responsibility is in the safe and
legal operation of a vehicle, and
use of any handheld devices,
other equipment, or vehicle sys-
tems which take the driver’s
eyes, attention and focus away
from the safe operation of a
vehicle or which are not permis-
sible by law should never be
used during operation of the
vehicle.
WA R N I N G
