2017 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

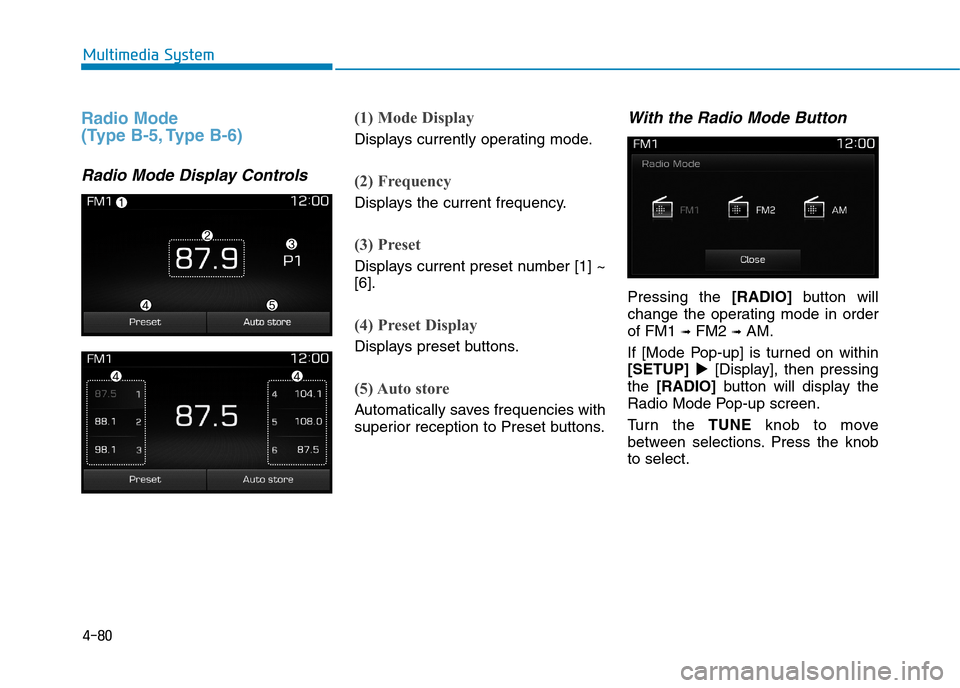

4-80
Multimedia System
Radio Mode
(Type B-5, Type B-6)
Radio Mode Display Controls
(1) Mode Display
Displays currently operating mode.
(2) Frequency
Displays the current frequency.
(3) Preset
Displays current preset number [1] ~
[6].
(4) Preset Display
Displays preset buttons.
(5) Auto store
Automatically saves frequencies with
superior reception to Preset buttons.
With the Radio Mode Button
Pressing the [RADIO]button will
change the operating mode in order
of FM1 ➟FM2 ➟AM.
If [Mode Pop-up] is turned on within
[SETUP]![Display], then pressing
the [RADIO]button will display the
Radio Mode Pop-up screen.
Tu r n t h e TUNEknob to move
between selections. Press the knob
to select.

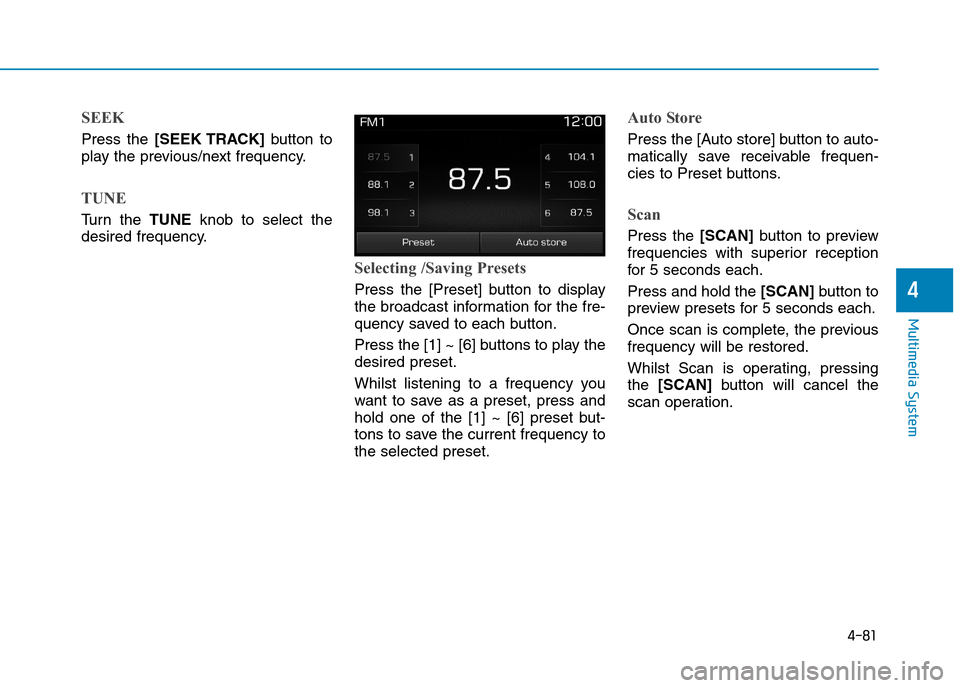

4-81
Multimedia System
4
SEEK
Press the [SEEK TRACK]button to
play the previous/next frequency.
TUNE
Tu r n t h e TUNEknob to select the
desired frequency.
Selecting /Saving Presets
Press the [Preset] button to display
the broadcast information for the fre-
quency saved to each button.
Press the [1] ~ [6] buttons to play the
desired preset.
Whilst listening to a frequency you
want to save as a preset, press and
hold one of the [1] ~ [6] preset but-
tons to save the current frequency to
the selected preset.
Auto Store
Press the [Auto store] button to auto-
matically save receivable frequen-
cies to Preset buttons.
Scan
Press the [SCAN]button to preview
frequencies with superior reception
for 5 seconds each.
Press and hold the [SCAN]button to
preview presets for 5 seconds each.
Once scan is complete, the previous
frequency will be restored.
Whilst Scan is operating, pressing
the [SCAN]button will cancel the
scan operation.

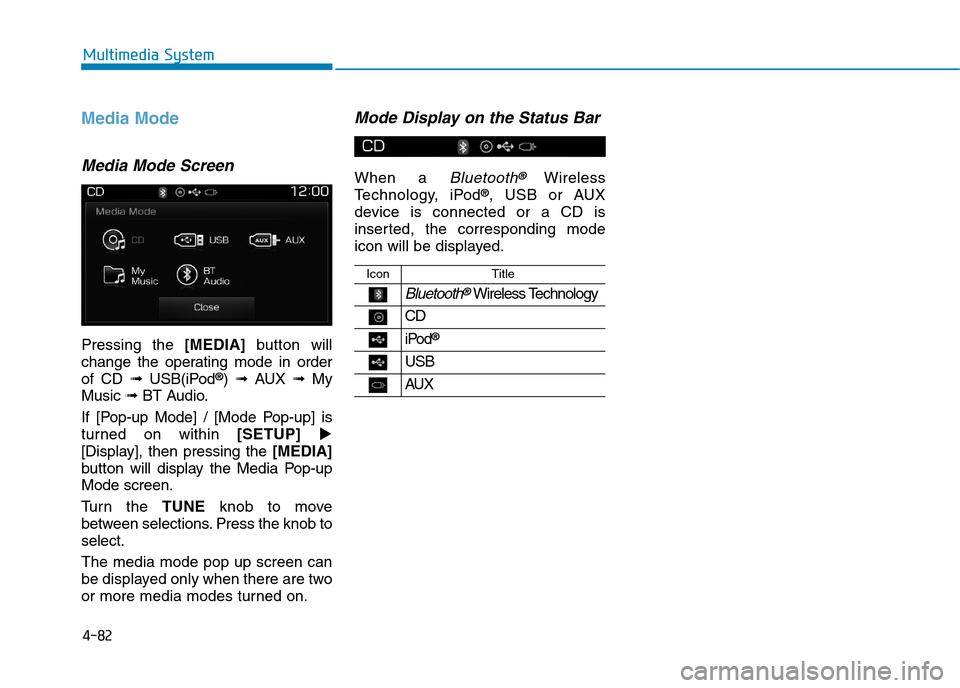

4-82
Multimedia System
Media Mode
Media Mode Screen
Pressing the [MEDIA]buttonwill
change the operating mode in order
of CD ➟ USB(iPod®) ➟ AUX ➟ My
Music ➟BT Audio.
If [Pop-up Mode] / [Mode Pop-up] is
turned on within [SETUP]!
[Display], then pressing the [MEDIA]
buttonwill display the Media Pop-up
Mode screen.
Tu r n t h e TUNEknob to move
between selections. Press the knob to
select.
The media mode pop up screen can
be displayed only when there are two
or more media modes turned on.
Mode Display on the Status Bar
When a Bluetooth®Wireless
Te c h n o l o g y, i P o d®, USB or AUX
device is connected or a CD is
inserted, the corresponding mode
icon will be displayed.
IconTitle
Bluetooth®Wireless Technology
CD
iPod®
USB
AUX

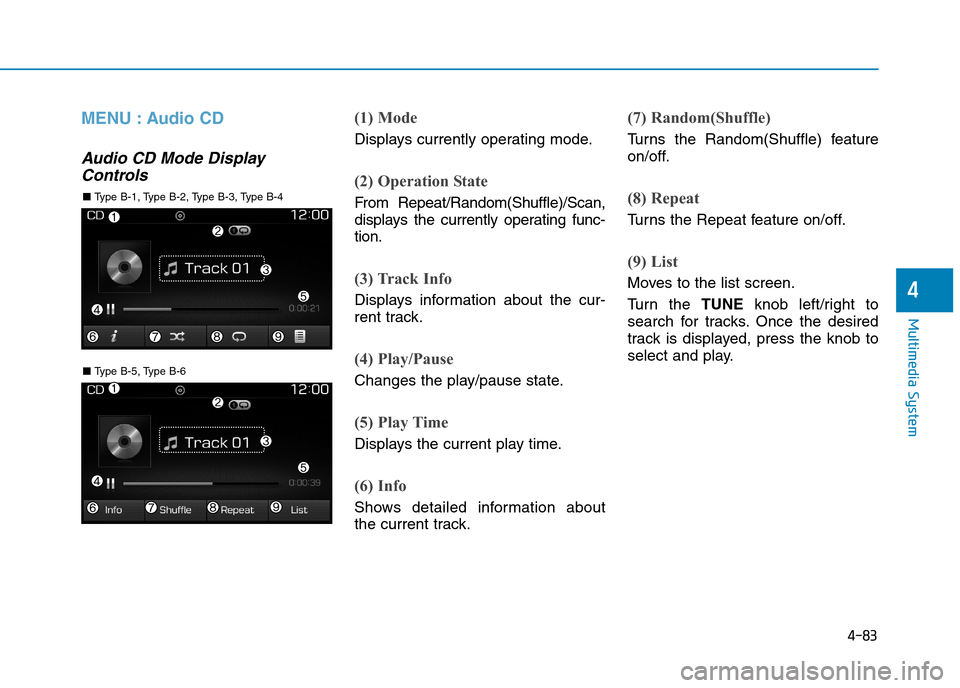

4-83
Multimedia System
4
MENU : Audio CD
Audio CD Mode Display
Controls
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat/Random(Shuffle)/Scan,
displays the currently operating func-
tion.
(3) Track Info
Displays information about the cur-
rent track.
(4) Play/Pause
Changes the play/pause state.
(5) Play Time
Displays the current play time.
(6) Info
Shows detailed information about
the current track.
(7) Random(Shuffle)
Tu r n s t h e R a n d o m ( S h u f f l e ) f e a t u r e
on/off.
(8) Repeat
Tu r n s t h e R e p e a t f e a t u r e o n / o f f .
(9) List
Moves to the list screen.
Tu r n t h e TUNE knob left/right to
search for tracks. Once the desired
track is displayed, press the knob to
select and play.■ Ty p e B - 5 , Ty p e B - 6
■ Ty p e B - 1 , Ty p e B - 2 , Ty p e B - 3 , Ty p e B - 4

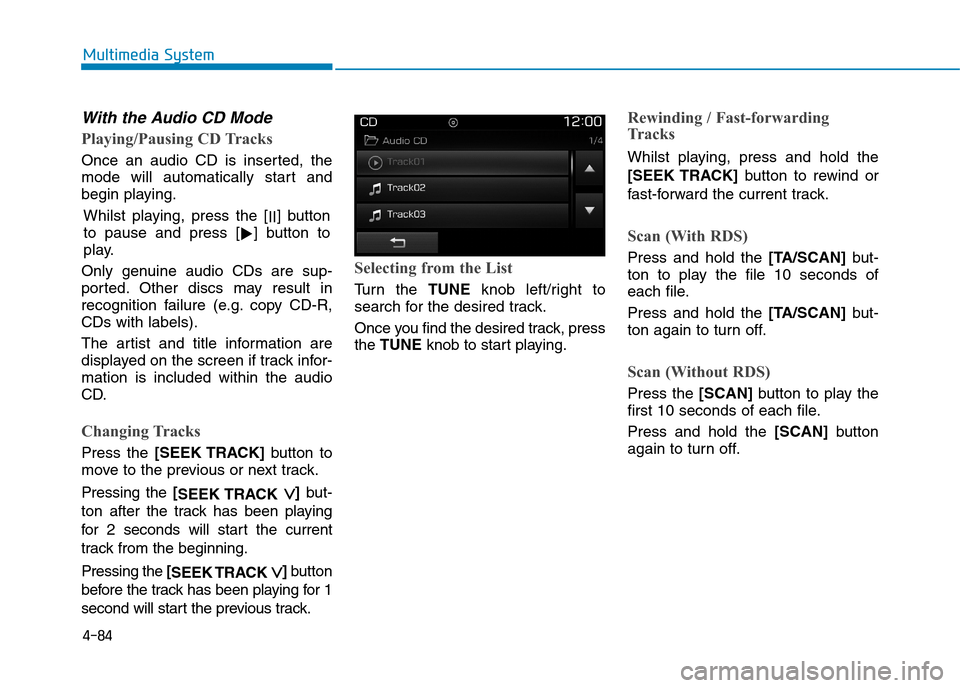

4-84
Multimedia System
With the Audio CD Mode
Playing/Pausing CD Tracks
Once an audio CD is inserted, the
mode will automatically start and
begin playing.
Whilst playing, press the [II]button
to pause and press [!]button to
play.
Only genuine audio CDs are sup-
ported. Other discs may result in
recognition failure (e.g. copy CD-R,
CDs with labels).
The artist and title information are
displayed on the screen if track infor-
mation is included within the audio
CD.
Changing Tracks
Press the [SEEK TRACK]button to
move to the previous or next track.
Pressing the [SEEK TRACK ∨∨]but-
ton after the track has been playing
for 2 seconds will star t the current
track from the beginning.
Pressing the [SEEK TRACK ∨∨]button
before the track has been playing for 1
second will start the previous track.
Selecting from the List
Tu r n t h e TUNEknob left/right to
search for the desired track.
Once you find the desired track, press
the TUNEknob to start playing.
Rewinding / Fast-forwarding
Tracks
Whilst playing, press and hold the
[SEEK TRACK]button to rewind or
fast-forward the current track.
Scan (With RDS)
Press and hold the[TA/SCAN]but-
ton to play the file 10 seconds of
each file.
Press and hold the[TA/SCAN]but-
ton again to turn off.
Scan (Without RDS)
Press the [SCAN]button to play the
first 10 seconds of each file.
Press and hold the [SCAN]button
again to turn off.

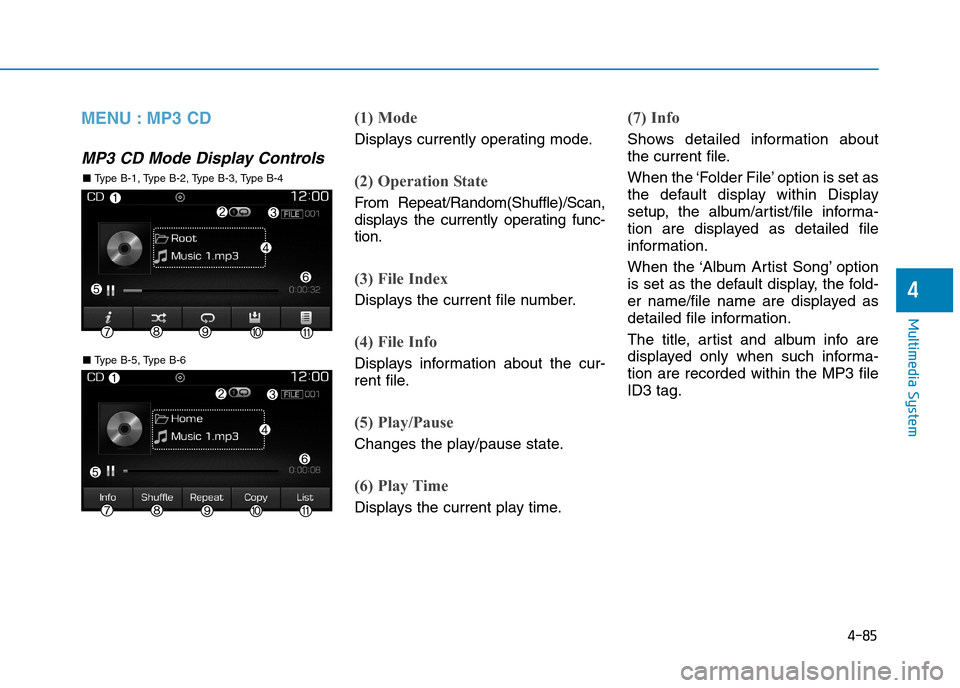

4-85
Multimedia System
4
MENU : MP3 CD
MP3 CD Mode Display Controls
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat/Random(Shuffle)/Scan,
displays the currently operating func-
tion.
(3) File Index
Displays the current file number.
(4) File Info
Displays information about the cur-
rent file.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.
(7) Info
Shows detailed information about
the current file.
When the ‘Folder File’ option is set as
the default display within Display
setup, the album/artist/file informa-
tion are displayed as detailed file
information.
When the ‘Album Artist Song’ option
is set as the default display, the fold-
er name/file name are displayed as
detailed file information.
The title, artist and album info are
displayed only when such informa-
tion are recorded within the MP3 file
ID3 tag.
■ Ty p e B - 5 , Ty p e B - 6
■ Ty p e B - 1 , Ty p e B - 2 , Ty p e B - 3 , Ty p e B - 4

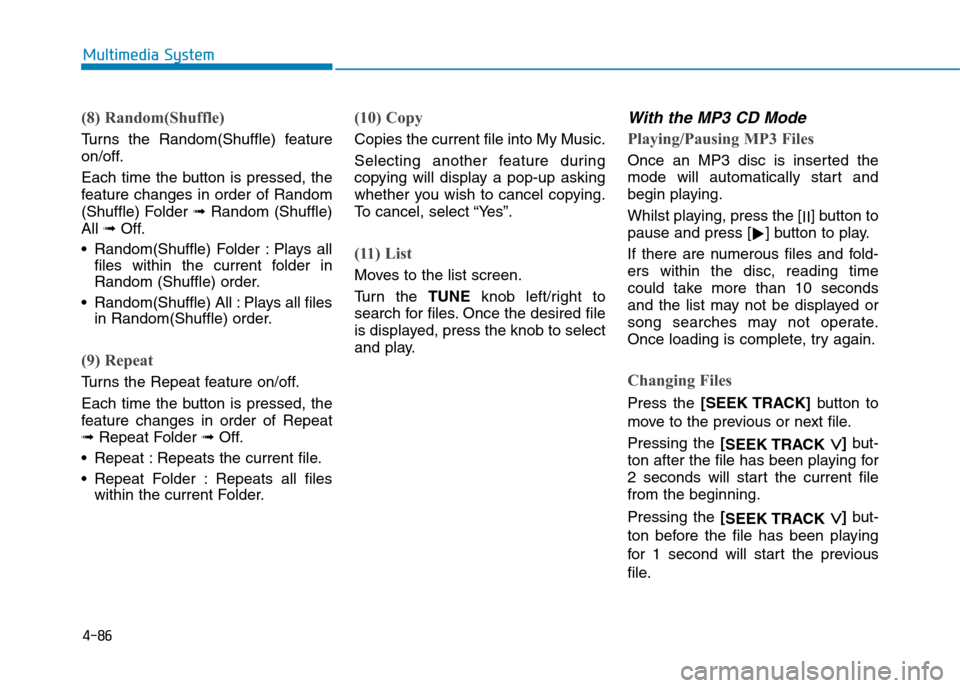

4-86
Multimedia System
(8) Random(Shuffle)
Tu r n s t h e R a n d o m ( S h u f f l e ) f e a t u r e
on/off.
Each time the button is pressed, the
feature changes in order of Random
(Shuffle) Folder➟Random (Shuffle)
All➟Off.
•Random(Shuffle) Folder :Plays all
files within the current folder in
Random (Shuffle) order.
•Random(Shuffle) All :Plays all files
in Random(Shuffle) order.
(9) Repeat
Tu r n s t h e R e p e a t f e a t u r e o n / o f f .
Each time the button is pressed, the
feature changes in order of Repeat
➟Repeat Folder ➟Off.
•Repeat :Repeats the current file.
•Repeat Folder :Repeats all files
within the current Folder.
(10) Copy
Copies the current file into My Music.
Selecting another feature during
copying will display a pop-up asking
whether you wish to cancel copying.
To c a n c e l , s e l e c t “ Ye s ” .
(11) List
Moves to the list screen.
Tu r n t h e TUNEknob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.
With the MP3 CD Mode
Playing/Pausing MP3 Files
Once an MP3 disc is inserted the
mode will automatically start and
begin playing.
Whilst playing, press the [II]button to
pause and press [!]button to play.
If there are numerous files and fold-
ers within the disc, reading time
could take more than 10 seconds
and the list may not be displayed or
song searches may not operate.
Once loading is complete, try again.
Changing Files
Press the [SEEK TRACK]button to
move to the previous or next file.
Pressing the [SEEK TRACK ∨∨]but-
ton after the file has been playing for
2 seconds will start the current file
from the beginning.
Pressing the [SEEK TRACK ∨∨]but-
ton before the file has been playing
for 1 second will star t the previous
file.

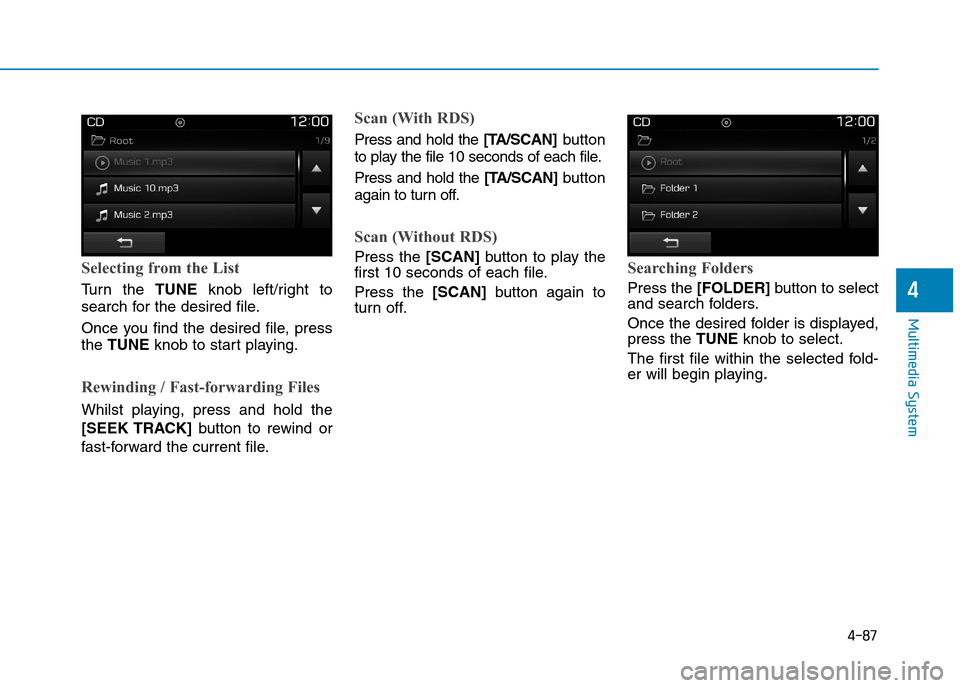

4-87
Multimedia System
4
Selecting from the List
Tu r n t h e TUNEknob left/right to
search for the desired file.
Once you find the desired file, press
the TUNEknob to start playing.
Rewinding / Fast-forwarding Files
Whilst playing, press and hold the
[SEEK TRACK]button to rewind or
fast-forward the current file.
Scan (With RDS)
Press and hold the [TA/SCAN]button
to play the file 10 seconds of each file.
Press and hold the [TA/SCAN]button
again to turn off.
Scan (Without RDS)
Press the [SCAN]button to play thefirst 10 seconds of each file.
Press the [SCAN]button again toturn off.
Searching Folders
Press the [FOLDER]button to selectand search folders.
Once the desired folder is displayed,press the TUNEknob to select.
The first file within the selected fold-er will begin playing.
