2017 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

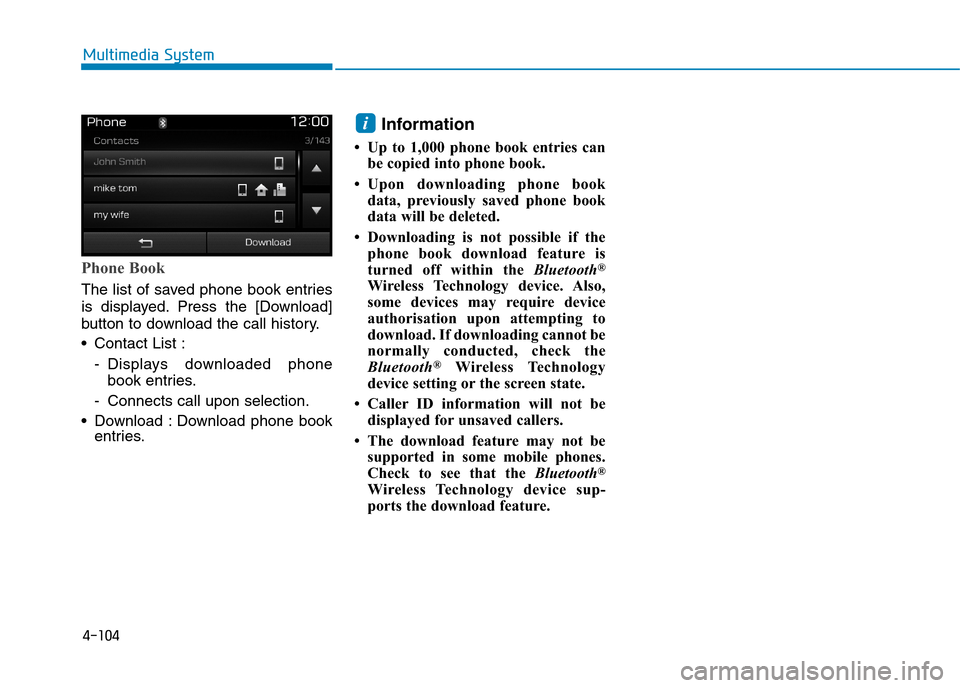

4-104
Multimedia System
Phone Book
The list of saved phone book entries
is displayed. Press the [Download]
button to download the call history.
•Contact List :
-Displays downloaded phone
book entries.
-Connects call upon selection.
•Download :Download phone bookentries.
Information
• Up to 1,000 phone book entries can
be copied into phone book.
•Upon downloading phone book
data, previously saved phone book
data will be deleted.
• Downloading is not possible if the
phone book download feature is
turned off within the Bluetooth®
Wireless Technology device. Also,
some devices may require device
authorisation upon attempting to
download. If downloading cannot be
normally conducted, check the
Bluetooth®Wireless Technology
device setting or the screen state.
• Caller ID information will not be
displayed for unsaved callers.
• The download feature may not be
supported in some mobile phones.
Check to see that the Bluetooth®
Wireless Technology device sup-
ports the download feature.
i

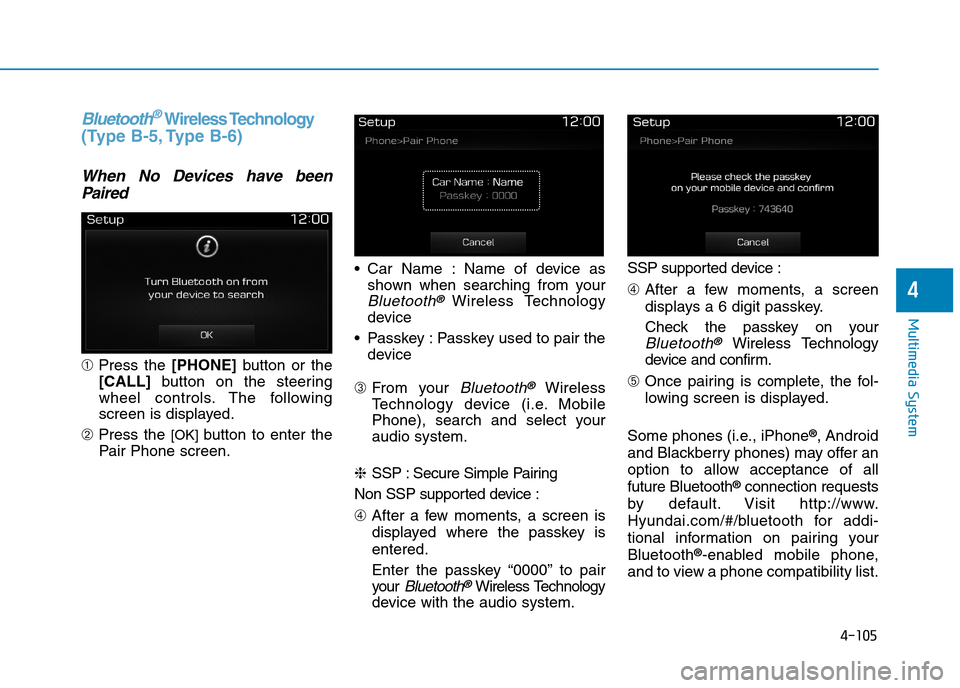

4-105
Multimedia System
4
Bluetooth®Wireless Technology
(Type B-5, Type B-6)
When No Devices have been
Paired
➀Press the [PHONE]button or the
[CALL]button on the steering
wheel controls. The following
screen is displayed.
➁Press the [OK]button to enter the
Pair Phone screen.
•Car Name :Name of device as
shown when searching from your
Bluetooth®Wireless Technology
device
•Passkey :Passkey used to pair the
device
➂From your Bluetooth®Wireless
Te c h n o l o g y d e v i c e ( i . e . M o b i l e
Phone), search and select your
audio system.
❈SSP : Secure Simple Pairing
Non SSP supported device :
➃After a few moments, a screen is
displayed where the passkey is
entered.
Enter the passkey “0000” to pair
your Bluetooth®Wireless Technology
device with the audio system.
SSP supported device :
➃After a few moments, a screen
displays a 6 digit passkey.
Check the passkey on your
Bluetooth®Wireless Technology
device and confirm.
➄Once pairing is complete, the fol-
lowing screen is displayed.
Some phones (i.e., iPhone®, Android
and Blackberry phones) may offer an
option to allow acceptance of all
future Bluetooth®connection requests
by default. Visit http://www.
Hyundai.com/#/bluetooth for addi-
tional information on pairing your
Bluetooth®-enabled mobile phone,
and to view a phone compatibility list.

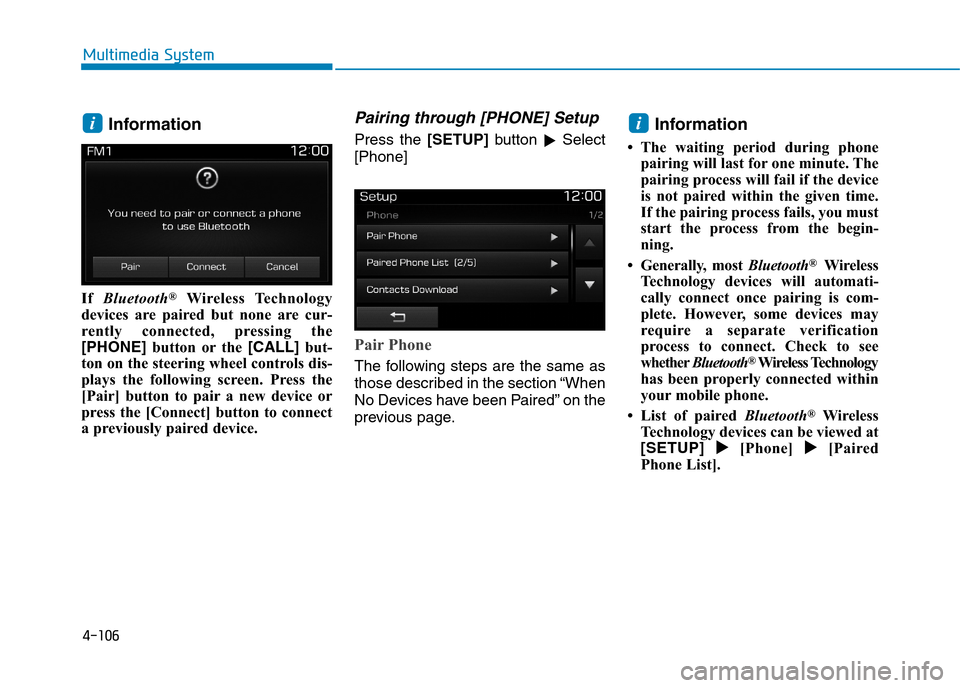

4-106
Multimedia System
Information
If Bluetooth®Wireless Technology
devices are paired but none are cur-
rently connected, pressing the
[PHONE]button or the [CALL]but-
ton on the steering wheel controls dis-
plays the following screen. Press the
[Pair] button to pair a new device or
press the [Connect] button to connect
a previously paired device.
Pairing through [PHONE] Setup
Press the [SETUP]button!Select
[Phone]
Pair Phone
The following steps are the same as
those described in the section “When
No Devices have been Paired” on the
previous page.
Information
• The waiting period during phone
pairing will last for one minute. The
pairing process will fail if the device
is not paired within the given time.
If the pairing process fails, you must
start the process from the begin-
ning.
•Generally, most Bluetooth®Wireless
Technology devices will automati-
cally connect once pairing is com-
plete. However, some devices may
require a separate verification
process to connect. Check to see
whetherBluetooth®Wireless Technology
has been properly connected within
your mobile phone.
• List of paired Bluetooth®Wireless
Technology devices can be viewed at
[SETUP]!![Phone] !![Paired
Phone List].
ii

4-107
Multimedia System
4
Paired Phone List
Press the [SETUP]button !Select
[Phone] !Select [Paired Phone List]
•Connected Phone :Device that is
currently connected.
•Paired Phone : Device that is
paired but not connected.
Connecting a Device
From the paired phone list, select the
device you want to connect and
press the [Connect](1) button.
Disconnecting a Device
From the paired phone list, select the
currently connected device and
press the [Disconnect](2) button.
Deleting a Device
From the paired phone list, select the
device you want to delete and press
the [Delete](3) button.
Information
• When deleting the currently con-
nected device, the device will auto-
matically be disconnected to pro-
ceed with the deleting process.
•If a paired Bluetooth®Wireless
Te c h n o l o g y d e v i c e i s d e l e t e d , t h e
device’s call history and contacts
data will also be deleted.
• To re-use a deleted device, you must
pair the device again.
i

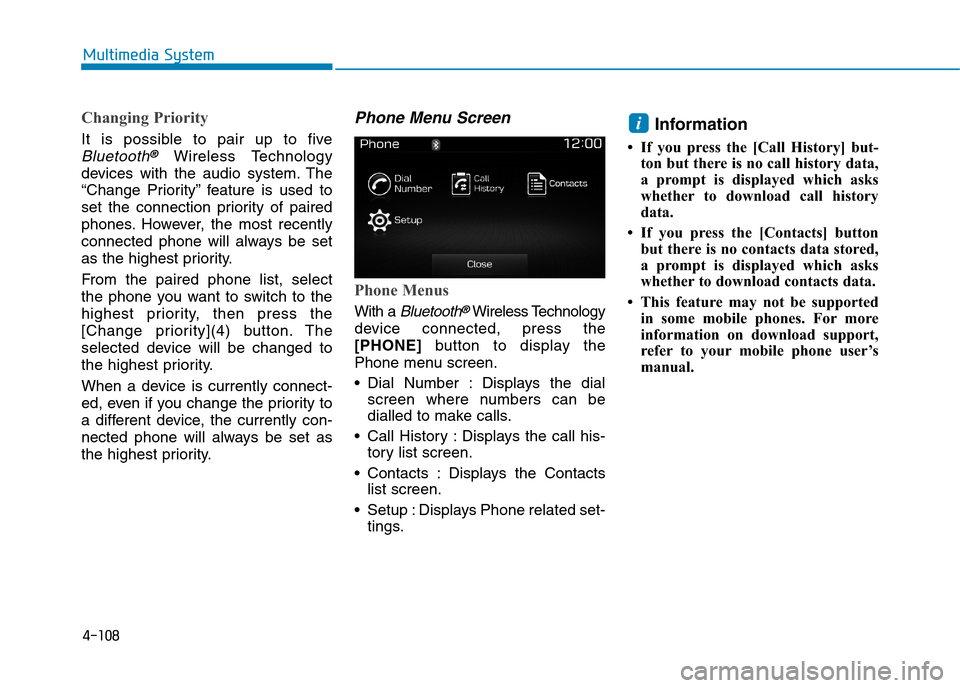

4-108
Multimedia System
Changing Priority
It is possible to pair up to five
Bluetooth®Wireless Technology
devices with the audio system. The
“Change Priority” feature is used to
set the connection priority of paired
phones. However, the most recently
connected phone will always be set
as the highest priority.
From the paired phone list, select
the phone you want to switch to the
highest priority, then press the
[Change priority](4) button. The
selected device will be changed to
the highest priority.
When a device is currently connect-
ed, even if you change the priority to
a different device, the currently con-
nected phone will always be set as
the highest priority.
Phone Menu Screen
Phone Menus
With a Bluetooth®Wireless Technology
device connected, press the
[PHONE]button to display the
Phone menu screen.
•Dial Number : Displays the dial
screen where numbers can be
dialled to make calls.
•Call History :Displays the call his-
tory list screen.
•Contacts :Displays the Contacts
list screen.
•Setup :Displays Phone related set-
tings.
Information
• If you press the [Call History] but-
ton but there is no call history data,
a prompt is displayed which asks
whether to download call history
data.
• If you press the [Contacts] button
but there is no contacts data stored,
a prompt is displayed which asks
whether to download contacts data.
• This feature may not be supported
in some mobile phones. For more
information on download support,
refer to your mobile phone user’s
manual.
i

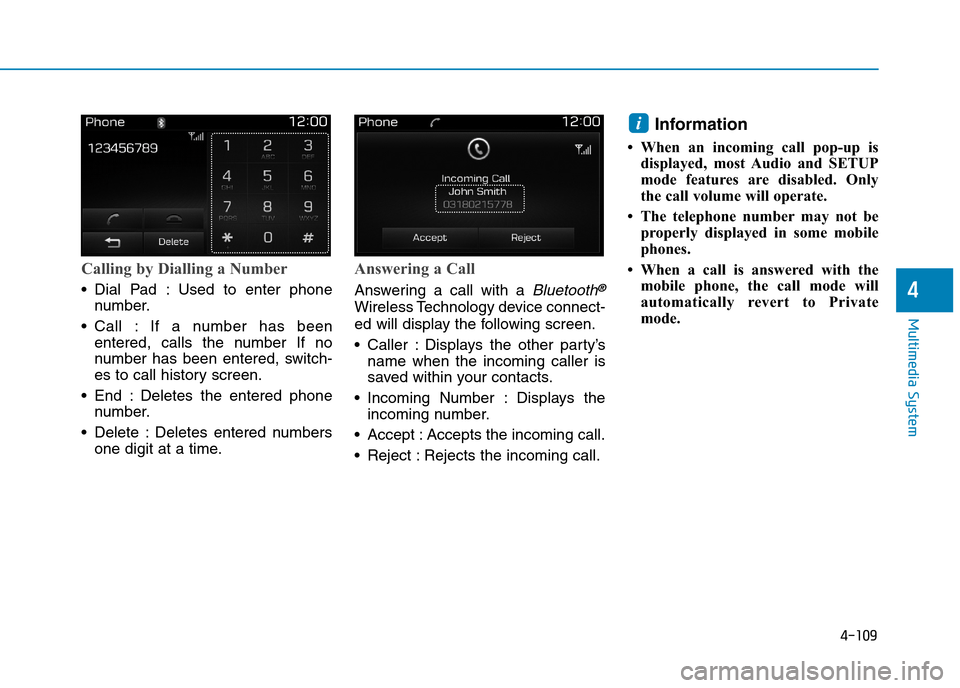

4-109
Multimedia System
4
Calling by Dialling a Number
•Dial Pad :Used to enter phone
number.
•Call : If a number has been
entered, calls the number If no
number has been entered, switch-
es to call history screen.
•End :Deletes the entered phone
number.
•Delete :Deletes entered numbers
one digit at a time.
Answering a Call
Answering a call with a Bluetooth®
Wireless Technology device connect-
ed will display the following screen.
•Caller :Displays the other party’s
name when the incoming caller is
saved within your contacts.
•Incoming Number : Displays the
incoming number.
•Accept :Acceptsthe incoming call.
•Reject :Rejectsthe incoming call.
Information
• When an incoming call pop-up is
displayed, most Audio and SETUP
mode features are disabled. Only
the call volume will operate.
• The telephone number may not be
properly displayed in some mobile
phones.
• When a call is answered with the
mobile phone, the call mode will
automatically revert to Private
mode.
i

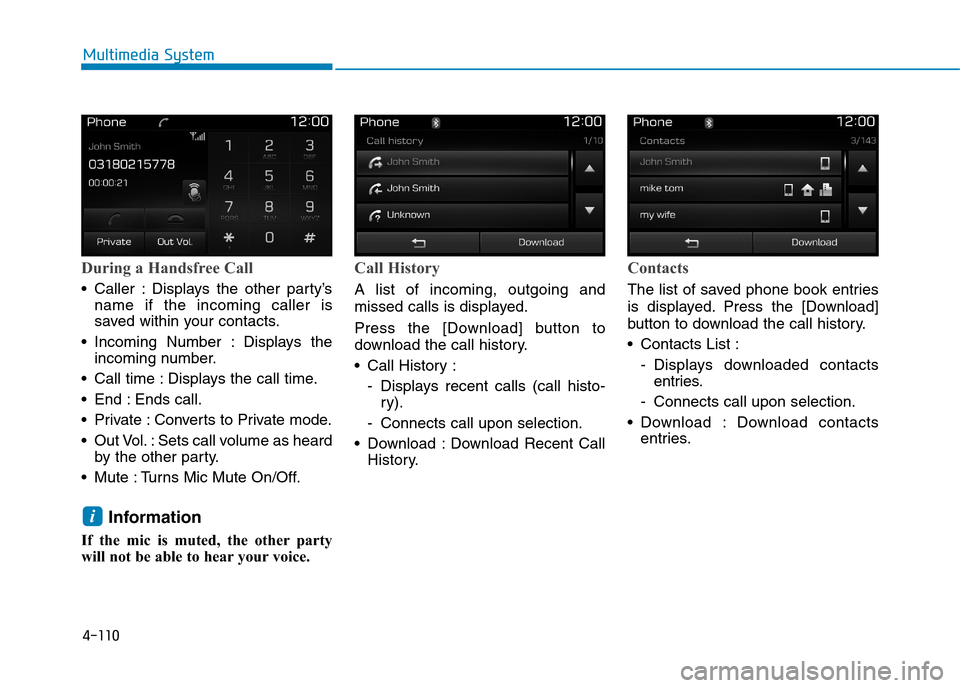

4-110
Multimedia System
During a Handsfree Call
•Caller :Displays the other party’s
name if the incoming caller is
saved within your contacts.
•Incoming Number : Displays the
incoming number.
•Call time :Displays the call time.
•End :Ends call.
•Private :Converts to Private mode.
•Out Vol.:Sets call volume as heard
by the other par ty.
•Mute :Turns Mic Mute On/Off.
Information
If the mic is muted, the other party
will not be able to hear your voice.
Call History
A list of incoming, outgoing and
missed calls is displayed.
Press the [Download] button to
download the call history.
•Call History :
-Displays recent calls (call histo-
ry).
-Connects call upon selection.
•Download :Download Recent Call
History.
Contacts
The list of saved phone book entries
is displayed. Press the [Download]
button to download the call history.
•Contacts List :
-Displays downloaded contacts
entries.
-Connects call upon selection.
•Download : Download contacts
entries.
i

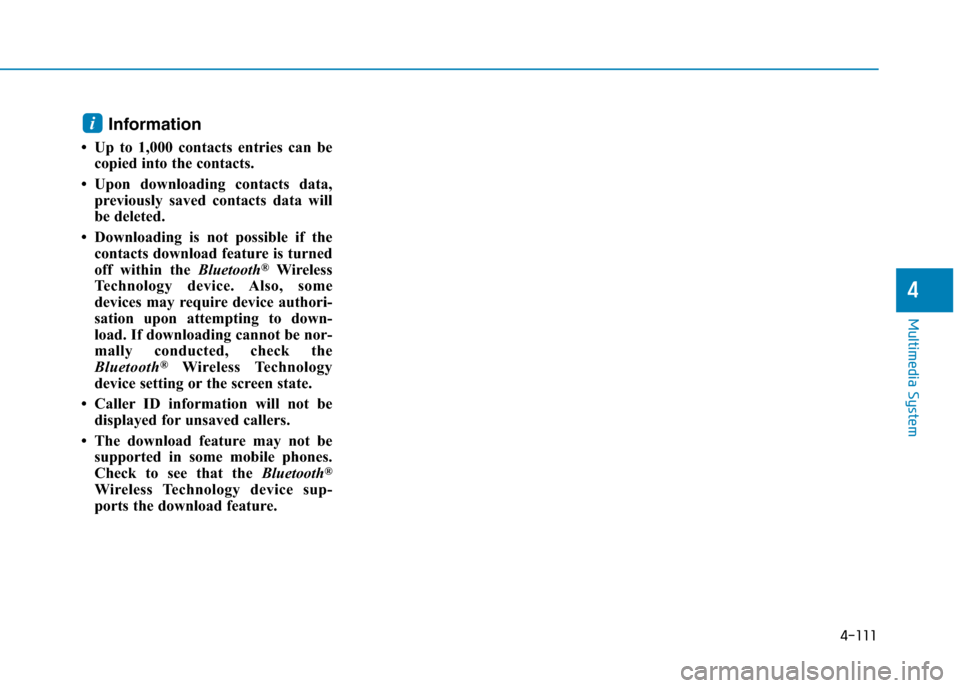

4-111
Multimedia System
4
Information
• Up to 1,000 contacts entries can be
copied into the contacts.
•Upon downloading contacts data,
previously saved contacts data will
be deleted.
• Downloading is not possible if the
contacts download feature is turned
off within the Bluetooth®Wireless
Te c h n o l o g y d e v i c e . A l s o , s o m e
devices may require device authori-
sation upon attempting to down-
load. If downloading cannot be nor-
mally conducted, check the
Bluetooth®Wireless Technology
device setting or the screen state.
• Caller ID information will not be
displayed for unsaved callers.
• The download feature may not be
supported in some mobile phones.
Check to see that the Bluetooth®
Wireless Technology device sup-
ports the download feature.
i
