2017 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

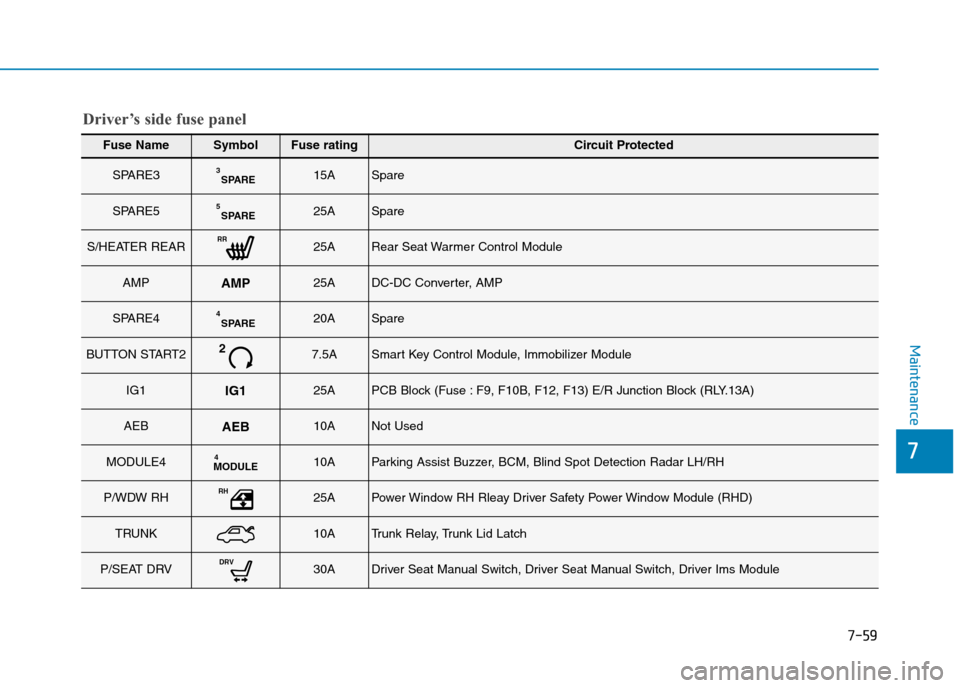

7-59
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
SPARE3SPARE315ASpare
SPARE5SPARE525ASpare
S/HEATER REARRR25ARear Seat Warmer Control Module
AMPAMP25ADC-DC Converter, AMP
SPARE4SPARE420ASpare
BUTTON START227.5ASmart Key Control Module, Immobilizer Module
IG1IG125APCB Block (Fuse : F9, F10B, F12, F13) E/R Junction Block (RLY.13A)
AEBAEB10ANot Used
MODULE4MODULE410APar king Assist Buzzer, BCM, Blind Spot Detection Radar LH/RH
P/WDW RHRH25APower Window RH Rleay Dr iver Safety Power Window Module (RHD)
TRUNK10ATr u n k R e l a y, Tr u n k L i d L a t c h
P/SEAT DRVDRV30ADriver Seat Manual Switch, Driver Seat Manual Switch, Driver Ims Module
Driver’s side fuse panel

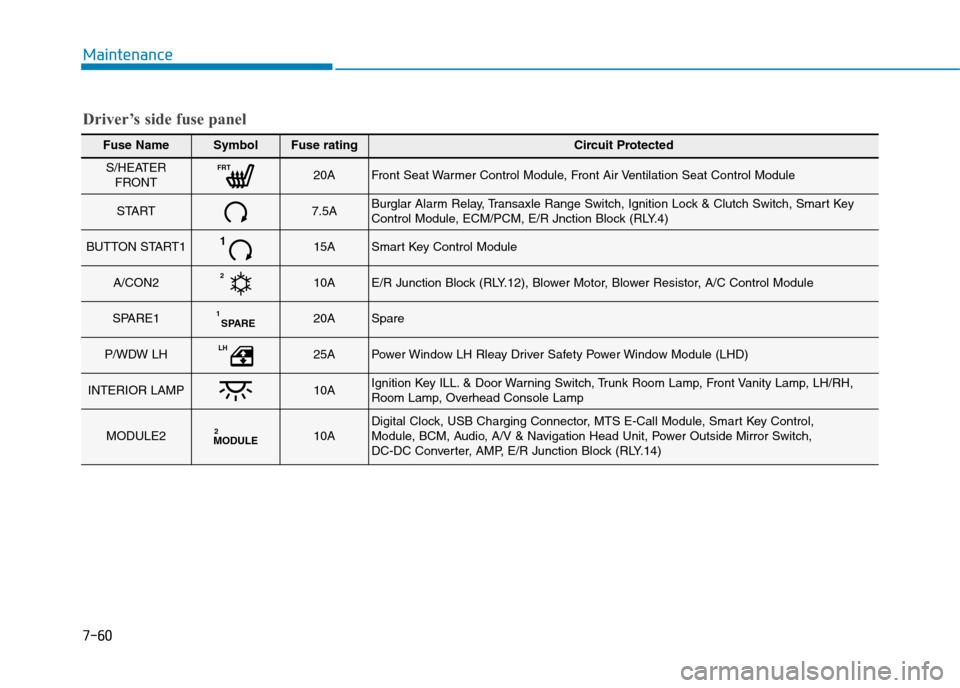

7-60
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
S/HEATERFRONT
FRT20AFront Seat War mer Control Module, Front Air Ventilation Seat Control Module
START7.5ABurglar Alarm Relay, Transaxle Range Switch, Ignition Lock & Clutch Switch, Smart KeyControl Module, ECM/PCM, E/R Jnction Block (RLY.4)
BUTTON START1115ASmart Key Control Module
A/CON2210AE/R Junction Block (RLY.12), Blower Motor, Blower Resistor, A/C Control Module
SPARE1SPARE120ASpare
P/WDW LHLH25APower Window LH Rleay Dr iver Safety Power Window Module (LHD)
INTERIOR LAMP10AIgnition Key ILL. & Door Warning Switch, Trunk Room Lamp, Front Vanity Lamp, LH/RH,Room Lamp, Overhead Console Lamp
MODULE2MODULE210ADigital Clock, USB Charging Connector, MTS E-Call Module, Smart Key Control, Module, BCM, Audio, A/V & Navigation Head Unit, Power Outside Mirror Switch, DC-DC Converter, AMP, E/R Junction Block (RLY.14)
Driver’s side fuse panel

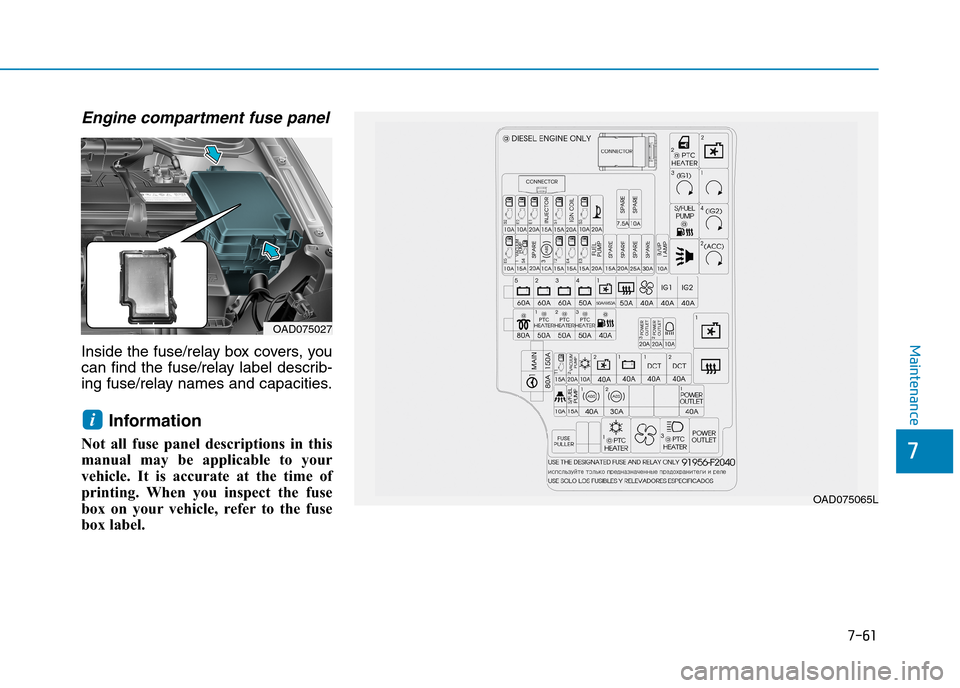

7-61
7
Maintenance
Engine compartment fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay names and capacities.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
box on your vehicle, refer to the fuse
box label.
i
OAD075065L
OAD075027

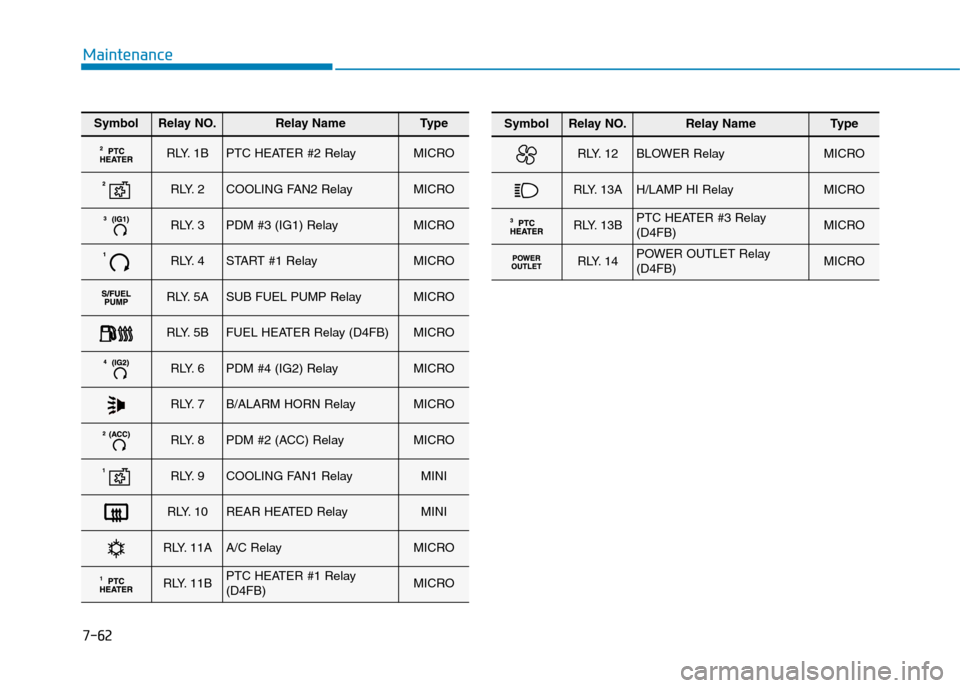

7-62
Maintenance
SymbolRelay NO.Relay NameTy p e
RLY. 1BPTC HEATER #2 RelayMICRO
RLY. 2COOLING FAN2 RelayMICRO
RLY. 3PDM #3 (IG1) RelayMICRO
RLY. 4START #1 RelayMICRO
RLY. 5ASUB FUEL PUMP RelayMICRO
RLY. 5BFUEL HEATER Relay (D4FB)MICRO
RLY. 6PDM #4 (IG2) RelayMICRO
RLY. 7B/ALARM HORN RelayMICRO
RLY. 8PDM #2 (ACC) RelayMICRO
RLY. 9COOLING FAN1 RelayMINI
RLY. 10REAR HEATED RelayMINI
RLY. 11AA/C RelayMICRO
RLY. 11BPTC HEATER #1 Relay(D4FB)MICRO
SymbolRelay NO.Relay NameTy p e
RLY. 12BLOWER RelayMICRO
RLY. 13AH/LAMP HI RelayMICRO
RLY. 13BPTC HEATER #3 Relay(D4FB)MICRO
RLY. 14POWER OUTLET Relay(D4FB)MICRO

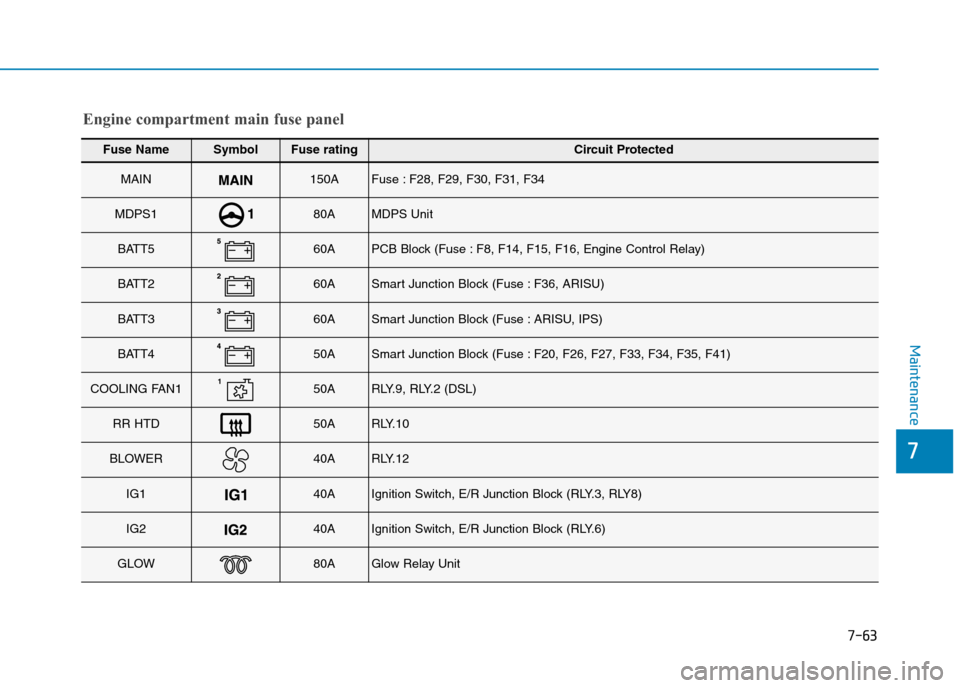

7-63
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
MAIN150AFuse : F28, F29, F30, F31, F34
MDPS180AMDPS Unit
BATT560APCB Block (Fuse : F8, F14, F15, F16, Engine Control Relay)
BATT260ASmart Junction Block (Fuse : F36, ARISU)
BATT360ASmart Junction Block (Fuse : ARISU, IPS)
BATT450ASmart Junction Block (Fuse : F20, F26, F27, F33, F34, F35, F41)
COOLING FAN150ARLY.9, RLY.2 (DSL)
RR HTD50ARLY.10
BLOWER40ARLY.12
IG140AIgnition Switch, E/R Junction Block (RLY.3, RLY8)
IG240AIgnition Switch, E/R Junction Block (RLY.6)
GLOW80AGlow Relay Unit
Engine compartment main fuse panel

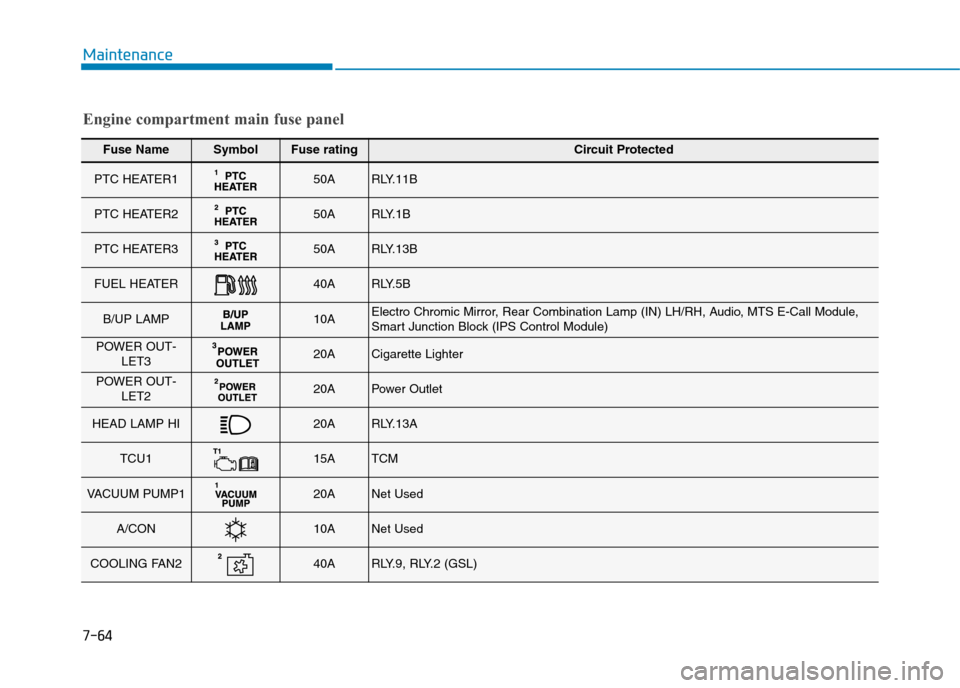

7-64
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
PTC HEATER150ARLY.11B
PTC HEATER250ARLY.1B
PTC HEATER350ARLY.13B
FUEL HEATER40ARLY.5B
B/UP LAMP10AElectro Chromic Mirror, Rear Combination Lamp (IN) LH/RH, Audio, MTS E-Call Module,Smart Junction Block (IPS Control Module)
POWER OUT-LET320ACigarette Lighter
POWER OUT-LET220APower Outlet
HEAD LAMP HI20ARLY.13A
TCU115ATCM
VAC U U M P U M P 120ANet Used
A/CON10ANet Used
COOLING FAN240ARLY.9, RLY.2 (GSL)
Engine compartment main fuse panel

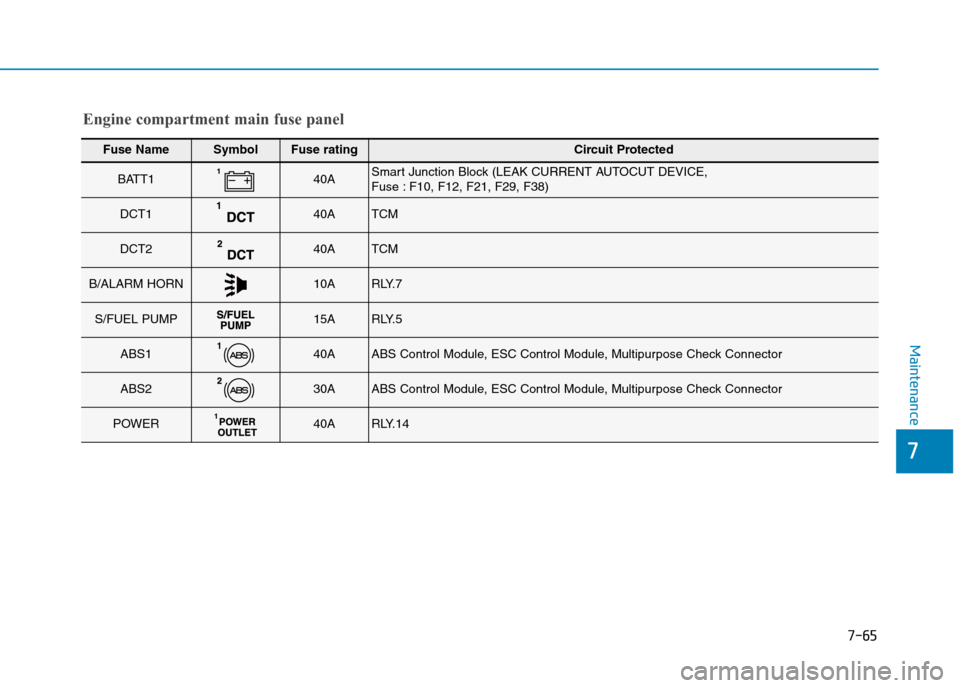

7-65
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
BATT140ASmart Junction Block (LEAK CURRENT AUTOCUT DEVICE, Fuse : F10, F12, F21, F29, F38)
DCT140ATCM
DCT240ATCM
B/ALARM HORN10ARLY.7
S/FUEL PUMP15ARLY.5
ABS140AABS Control Module, ESC Control Module, Multipurpose Check Connector
ABS230AABS Control Module, ESC Control Module, Multipurpose Check Connector
POWER40ARLY.14
Engine compartment main fuse panel

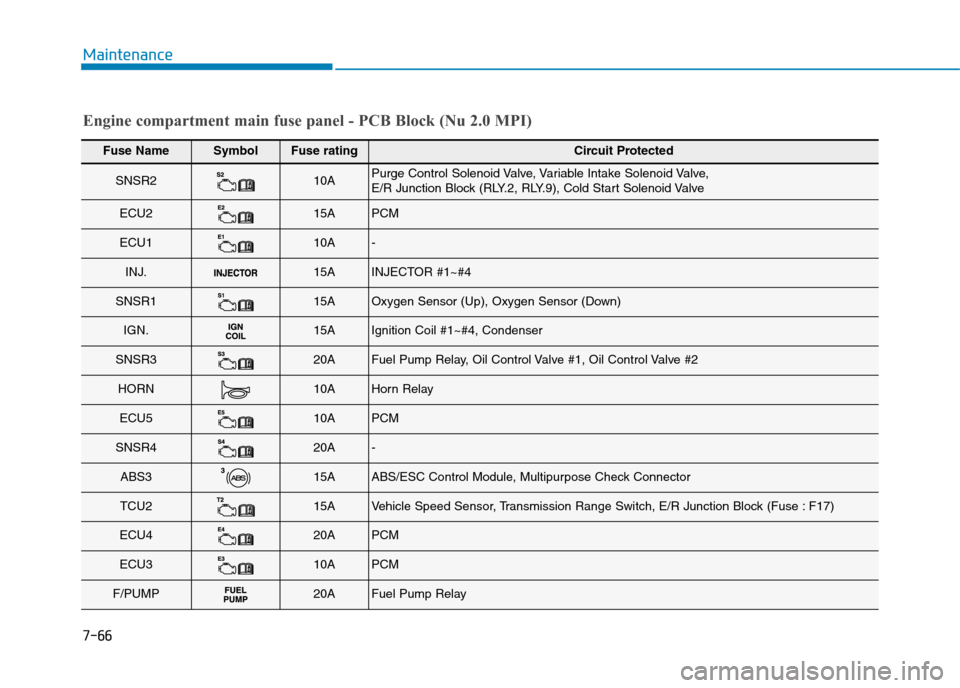

7-66
Maintenance
Engine compartment main fuse panel - PCB Block (Nu 2.0 MPI)
Fuse NameSymbolFuse ratingCircuit Protected
SNSR210APurge Control Solenoid Valve, Variable Intake Solenoid Valve, E/R Junction Block (RLY.2, RLY.9), Cold Start Solenoid Valve
ECU215APCM
ECU110A-
INJ.15AINJECTOR #1~#4
SNSR115AOxygen Sensor (Up), Oxygen Sensor (Down)
IGN.15AIgnition Coil #1~#4, Condenser
SNSR320AFuel Pump Relay, Oil Control Valve #1, Oil Control Valve #2
HORN10AHorn Relay
ECU510APCM
SNSR420A-
ABS315AABS/ESC Control Module, Multipurpose Check Connector
TCU215AVe h i c l e S p e e d S e n s o r, Tr a n s m i s s i o n R a n g e S w i t c h , E / R J u n c t i o n B l o c k ( F u s e : F 1 7 )
ECU420APCM
ECU310APCM
F/PUMP20AFuel Pump Relay
