2017 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

7-75
7
Maintenance

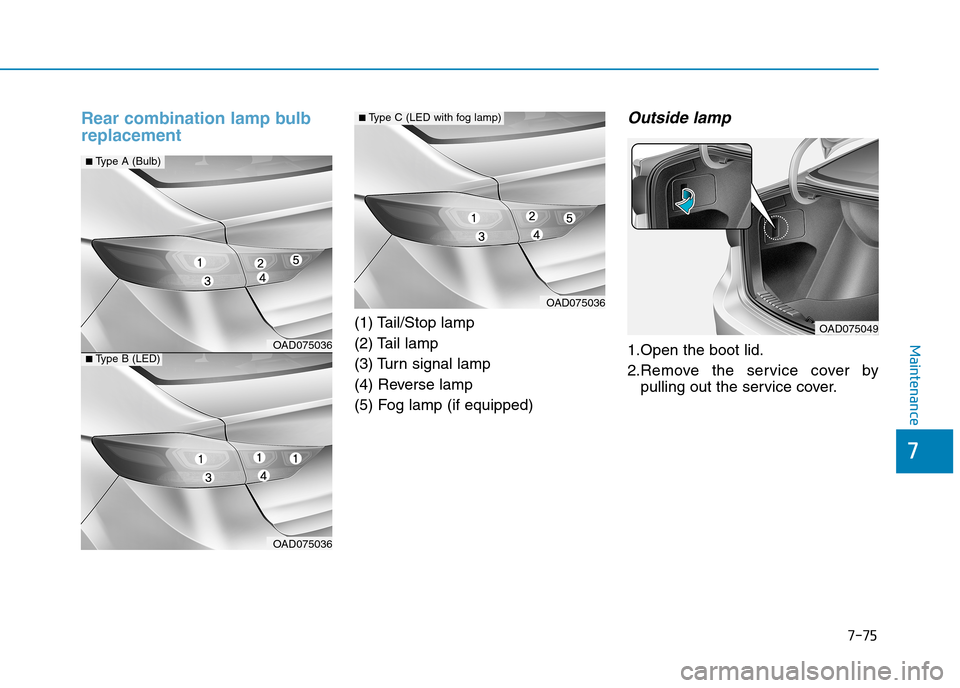

Rear combination lamp bulb
replacement
(1) Tail/Stop lamp
(2) Tail lamp
(3) Turn signal lamp
(4) Reverse lamp
(5) Fog lamp (if equipped)
Outside lamp
1.Open the boot lid.
2.Remove the ser vice cover by
pulling out the service cover.
OAD075036
■ Ty p e C ( L E D w i t h f o g l a m p )
OAD075049
OAD075036
■ Ty p e A ( B u l b )
OAD075036
■ Ty p e B ( L E D )

7-76
Maintenance

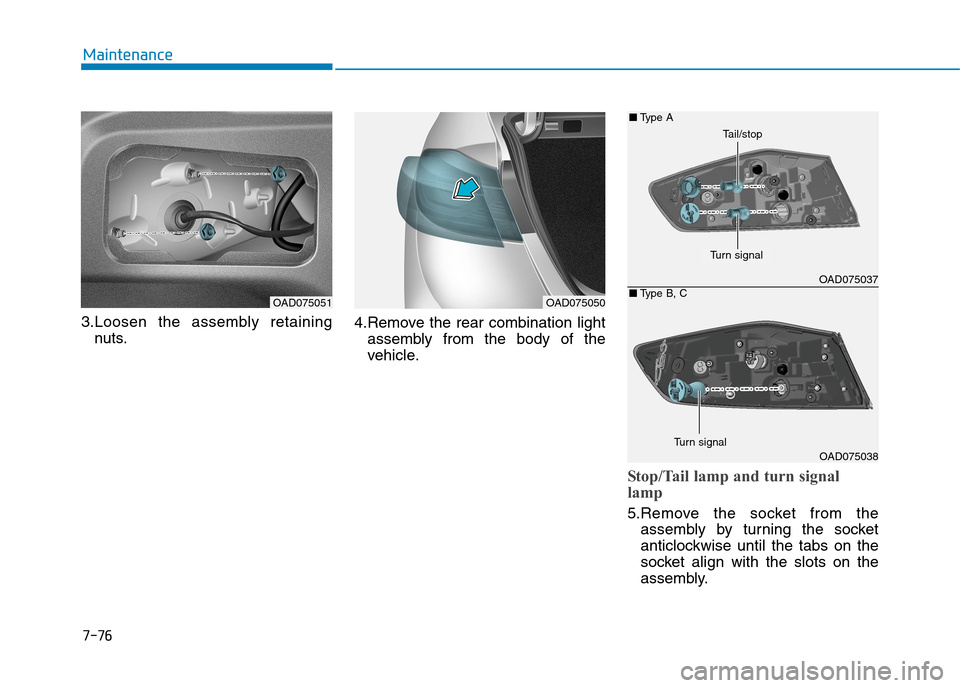

3.Loosen the assembly retaining
nuts.
4.Remove the rear combination light
assembly from the body of the
vehicle.
Stop/Tail lamp and turn signal
lamp
5.Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
OAD075037
OAD075038
■Ty p e A
■Ty p e B , C
Ta i l / s t o p
Tu r n s i g n a l
Tu r n s i g n a l
OAD075051OAD075050

7-77
7
Maintenance

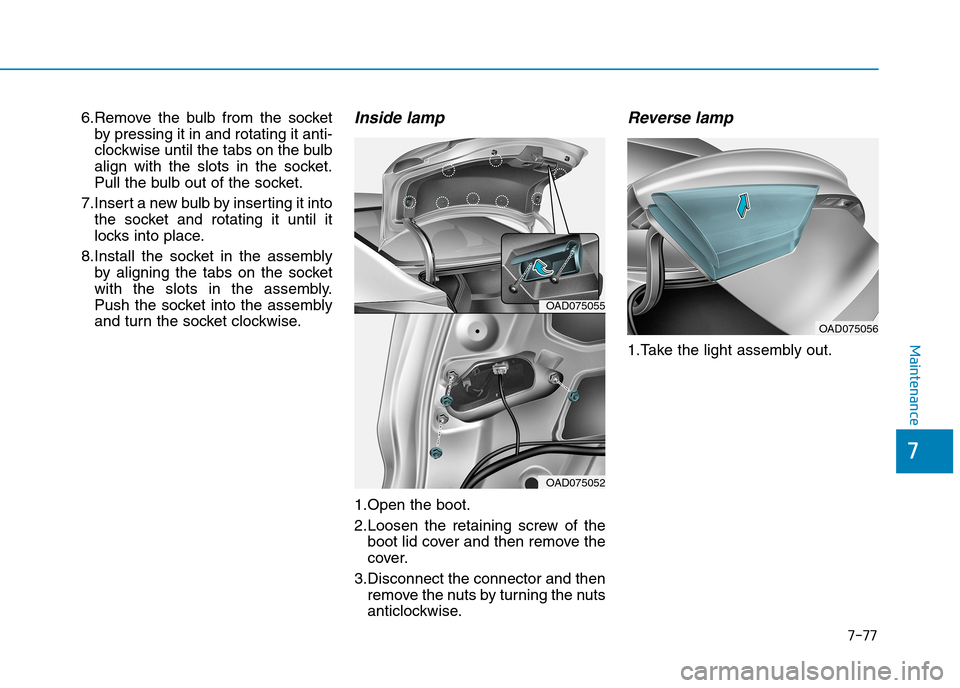

6.Remove the bulb from the socket
by pressing it in and rotating it anti-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
7.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
8.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
Inside lamp
1.Open the boot.
2.Loosen the retaining screw of the
boot lid cover and then remove the
cover.
3.Disconnect the connector and then
remove the nuts by turning the nuts
anticlockwise.
Reverse lamp
1.Take the light assembly out.
OAD075056
OAD075055
OAD075052

7-78
Maintenance

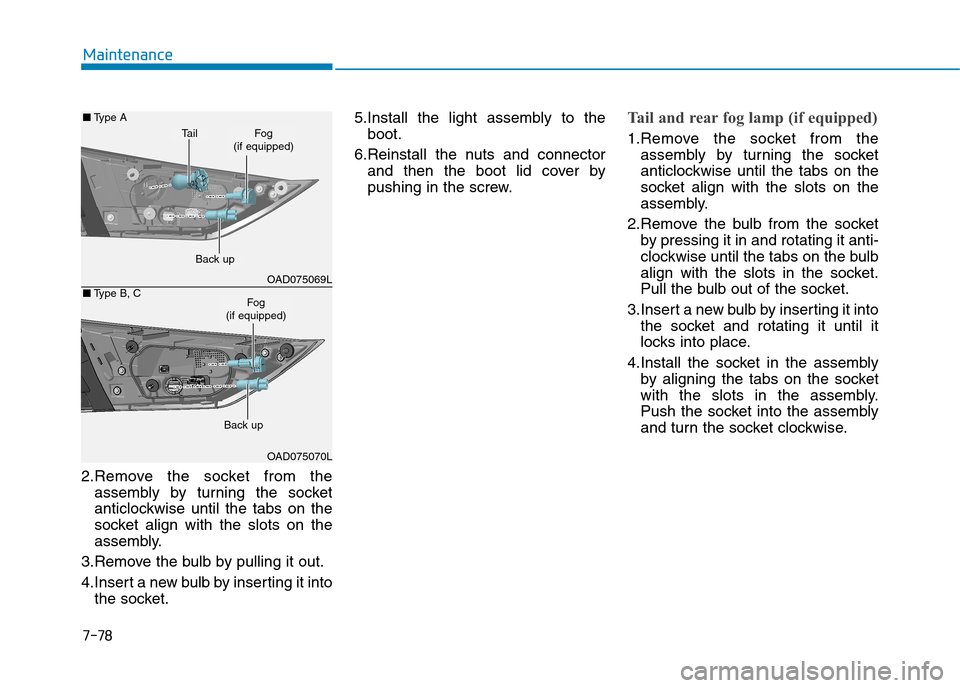

2.Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
3.Remove the bulb by pulling it out.
4.Insert a new bulb by inserting it into
the socket.
5.Install the light assembly to the
boot.
6.Reinstall the nuts and connector
and then the boot lid cover by
pushing in the screw.
Tail and rear fog lamp (if equipped)
1.Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
2.Remove the bulb from the socket
by pressing it in and rotating it anti-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
3.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
4.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
OAD075069L
OAD075070L
■Ty p e A
■Ty p e B , C
Back up
Ta i lFog(if equipped)
Fog(if equipped)
Back up

7-79
7
Maintenance

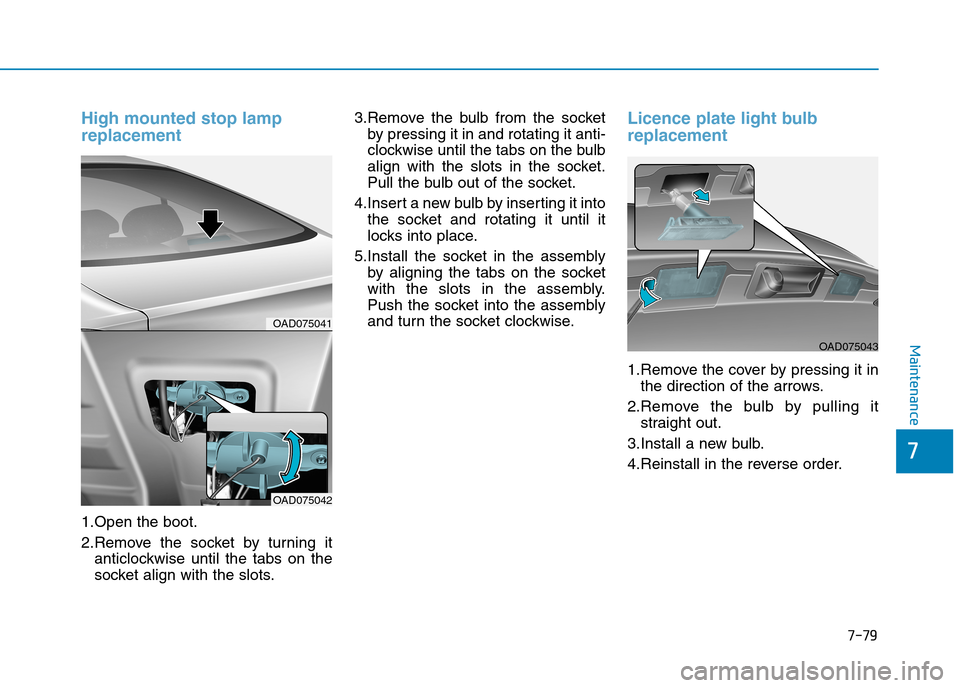

High mounted stop lamp
replacement
1.Open the boot.
2.Remove the socket by turning it
anticlockwise until the tabs on the
socket align with the slots.
3.Remove the bulb from the socket
by pressing it in and rotating it anti-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
4.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
5.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
Licence plate light bulb
replacement
1.Remove the cover by pressing it in
the direction of the arrows.
2.Remove the bulb by pulling it
straight out.
3.Install a new bulb.
4.Reinstall in the reverse order.
OAD075043
OAD075041
OAD075042

7-80
Maintenance

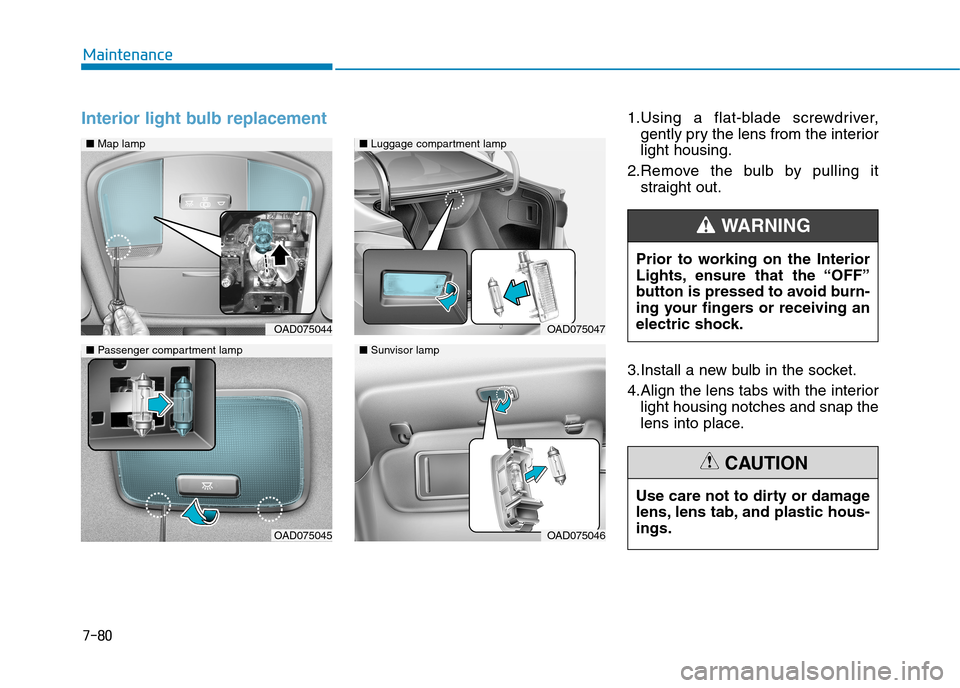

Interior light bulb replacement1.Using a flat-blade screwdriver,
gently pry the lens from the interior
light housing.
2.Remove the bulb by pulling it
straight out.
3.Install a new bulb in the socket.
4.Align the lens tabs with the interior
light housing notches and snap the
lens into place.
Prior to working on the Interior
Lights, ensure that the “OFF”
button is pressed to avoid burn-
ing your fingers or receiving an
electric shock.
WA R N I N G
Use care not to dirty or damage
lens, lens tab, and plastic hous-
ings.
CAUTION
■Map lamp
OAD075044
OAD075045
■Luggage compartment lamp
■Sunvisor lamp
OAD075047
OAD075046
■Passenger compar tment lamp

7-81
7
Maintenance
AAPPPPEEAARRAANNCCEE CCAARREE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.
High-pressure washing
•When using high-pressure wash-
ers, make sure to maintain suffi-
cient distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
•Do not spray the camera, sensors
or its surrounding area directly with
a high pressure washer. Shock
applied from high pressure water
may cause the device to not oper-
ate normally.
•Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be dam-
aged if they come into contact with
high pressure water.
Finish maintenance
Washing
To h e l p p r o t e c t y o u r v e h i c l e ’ s f i n i s h
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign
materials. Make sure the drain holes
in the lower edges of the doors and
rocker panels are kept clear and
clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain
water may not completely remove all
these deposits.
A mild soap, safe for use on painted
surfaces, may be used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
•Do not use strong soap,chemi-
cal detergents or hot water, and
do not wash the vehicle in direct
sunlight or when the body of the
vehicle is warm.
•Be careful when washing the
side windows of your vehicle.
Especially, with high-pressure
water, water may leak through
the windows and wet the interi-
or.
•To prevent damage to the plastic
parts and lamps, do not clean
with chemical solvents or strong
detergents.
NOTICE

7-82
Maintenance
•Water washing in the engine
compartment including high
pressure water washing may
cause the failure of electrical cir-
cuits located in the engine com-
partment.
•Never allow water or other liq-
uids to come in contact with
electrical/electronic compo-
nents inside the vehicle as this
may damage them.
Waxing
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle
before waxing. Use a good quality
liquid or paste wax, and follow the
manufacturer’s instructions. Wax all
metal trim to protect it and to main-
tain its luster. Removing oil, tar, and
similar materials with a spot remover
will usually strip the wax from the fin-
ish. Be sure to re-wax these areas
even if the rest of the vehicle does
not yet need waxing.
•Wiping dust or dirt off the body
with a dry cloth will scratch the
finish.
•Do not use steel wool,abrasive
cleaners, or strong detergents
containing highly alkaline or
caustic agents on chrome-plat-
ed or anodised aluminium parts.
This may result in damage to the
protective coating and cause
discolouration or paint deterio-
ration.
NOTICE
NOTICE
Wet brakes
After washing the vehicle, test
the brakes whilst driving slowly
to see if they have been affected
by water. If braking performance
is impaired, dry the brakes by
applying them lightly whilst
maintaining a slow forward
speed.
WA R N I N G
OLMB073082
