2017 Hyundai Elantra Owner's Manual - RHD (UK. Australia)

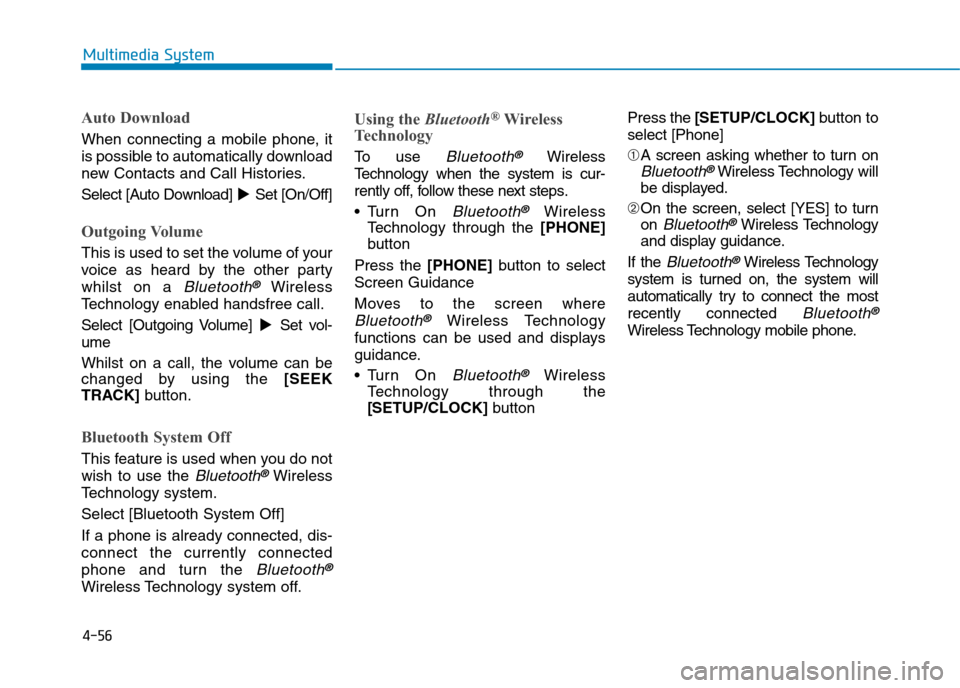

4-56
Multimedia System
Auto Download
When connecting a mobile phone, it
is possible to automatically download
new Contacts and Call Histories.
Select [Auto Download]!Set [On/Off]
Outgoing Volume
This is used to set the volume of your
voice as heard by the other par ty
whilst on a Bluetooth®Wireless
Te c h n o l o g y e n a b l e d h a n d s f r e e c a l l .
Select [Outgoing Volume]!Set vol-
ume
Whilst on a call, the volume can be
changed by using the [SEEK
TRACK]button.
Bluetooth System Off
This feature is used when you do not
wish to use the Bluetooth®Wireless
Te c h n o l o g y s y s t e m .
Select [Bluetooth System Off]
If a phone is already connected, dis-
connect the currently connected
phone and turn the Bluetooth®
Wireless Technology system off.
Using the Bluetooth®Wireless
Technology
To u s e Bluetooth®Wireless
Te c h n o l o g y w h e n t h e s y s t e m i s c u r -
rently off, follow these next steps.
•Turn On Bluetooth®Wireless
Te c h n o l o g y t h r o u g h t h e [PHONE]
button
Press the [PHONE]button to select
Screen Guidance
Moves to the screen where
Bluetooth®Wireless Technology
functions can be used and displays
guidance.
•Turn On Bluetooth®Wireless
Te c h n o l o g y t h r o u g h t h e
[SETUP/CLOCK] button
Press the [SETUP/CLOCK]button to
select [Phone]
➀A screen asking whether to turn on
Bluetooth®Wireless Technology will
be displayed.
➁On the screen, select [YES] to turn
on Bluetooth®Wireless Technology
and display guidance.
If the Bluetooth®Wireless Technology
system is turned on, the system will
automatically try to connect the most
recently connected Bluetooth®
Wireless Technology mobile phone.

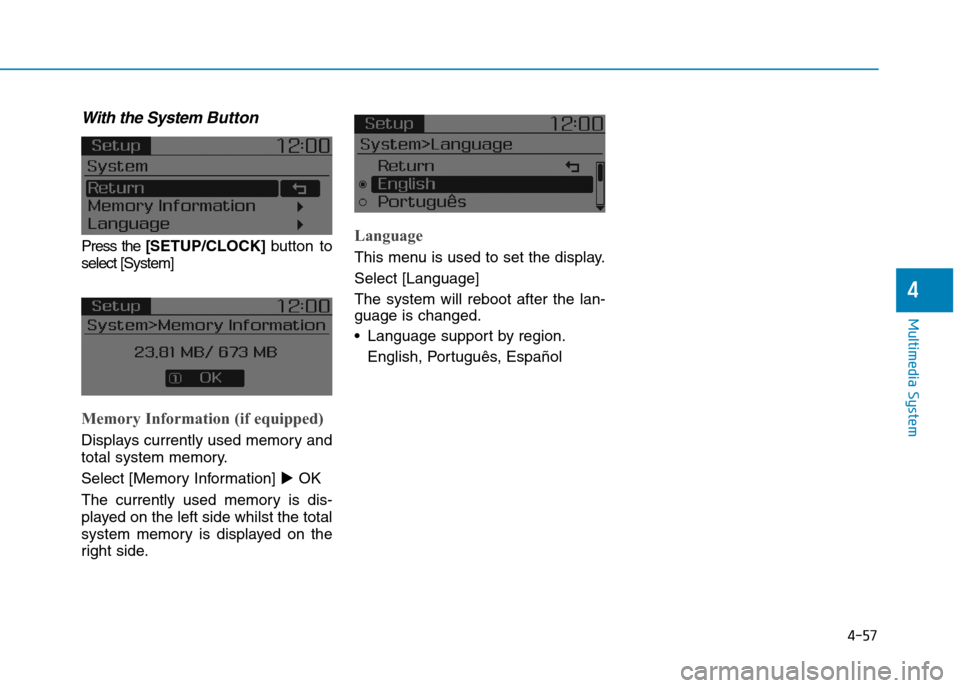

4-57
Multimedia System
4
With the System Button
Press the [SETUP/CLOCK]button to
select [System]
Memory Information (if equipped)
Displays currently used memory and
total system memory.
Select [Memory Information] !OK
The currently used memory is dis-
played on the left side whilst the total
system memory is displayed on the
right side.
Language
This menu is used to set the display.
Select [Language]
The system will reboot after the lan-
guage is changed.
•Language support by region.
English, Português, Español

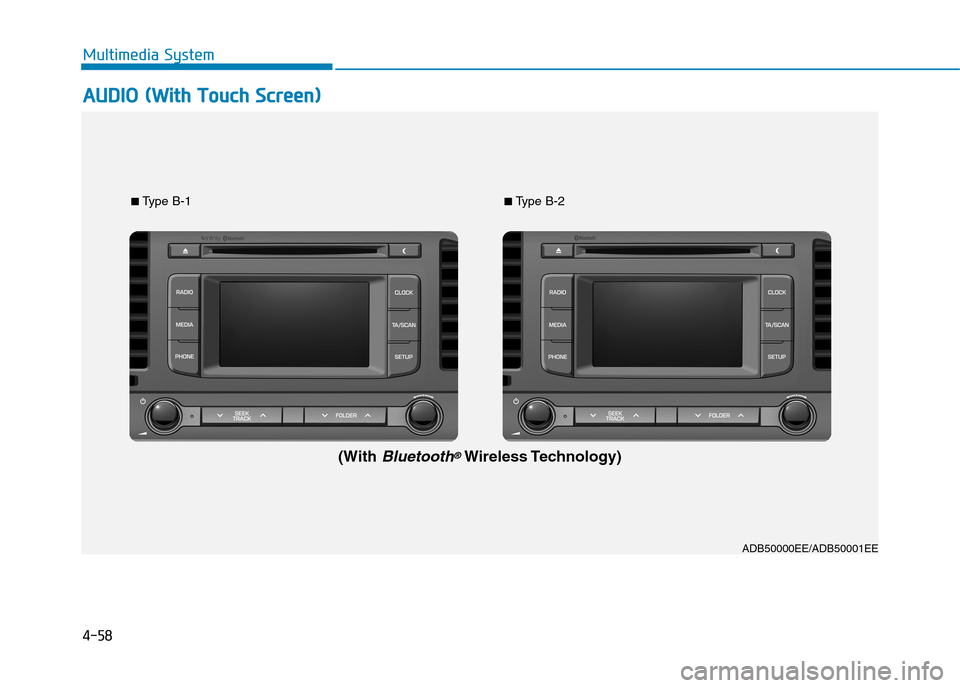

4-58
Multimedia System
AAUUDDIIOO ((WWiitthh TToouucchh SSccrreeeenn))
ADB50000EE/ADB50001EE
■Ty p e B - 1■Ty p e B - 2
(WithBluetooth®Wireless Technology)

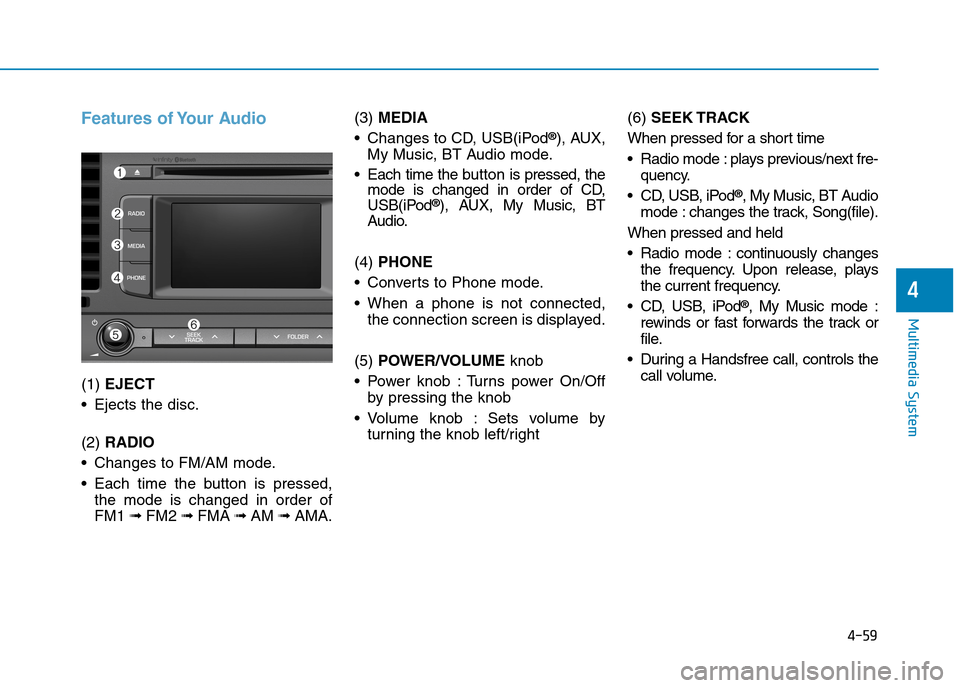

4-59
Multimedia System
4
Features of Your Audio
(1) EJECT
•Ejects the disc.
(2) RADIO
•Changes to FM/AM mode.
•Each time the buttonis pressed,
the mode is changed in order of
FM1 ➟FM2 ➟FMA ➟AM ➟AMA.
(3)MEDIA
•Changes to CD, USB(iPod®), AUX,
My Music, BT Audio mode.
•Each time the button is pressed, themode is changed in order of CD,USB(iPod®), AUX, My Music, BTAudio.
(4) PHONE
•Converts to Phone mode.
•When a phone is not connected,
the connection screen is displayed.
(5) POWER/VOLUMEknob
•Power knob :Turns power On/Off
by pressing the knob
•Volume knob : Sets volume by
turning the knob left/right
(6) SEEK TRACK
When pressed for a short time
•Radio mode :plays previous/next fre-
quency.
•CD, USB, iPod®, My Music, BT Audio
mode : changes the track, Song(file).
When pressed and held
•Radio mode :continuously changes
the frequency. Upon release, plays
the current frequency.
•CD, USB, iPod®, My Music mode :
rewinds or fast forwards the track or
file.
•During a Handsfree call, controls the
call volume.

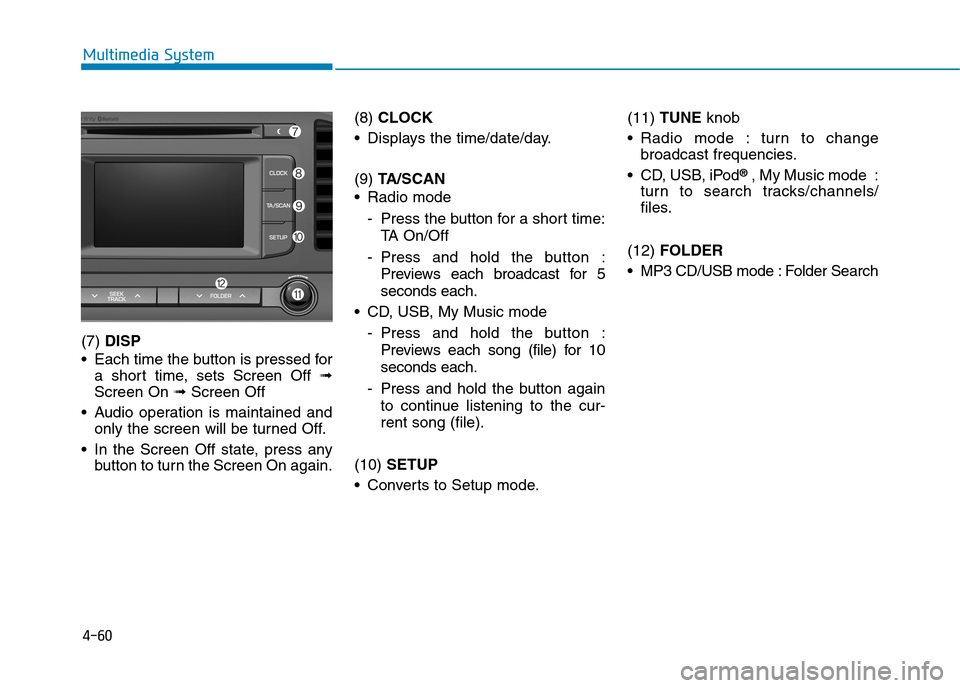

4-60
Multimedia System
(7) DISP
•Each time the buttonis pressed for
a short time, sets Screen Off ➟
Screen On ➟Screen Off
•Audio operation is maintained and
only the screen will be turned Off.
•In the Screen Off state, press any
button to turn the Screen On again.
(8) CLOCK
•Displays the time/date/day.
(9) TA / S C A N
•Radio mode
-Press the button for a short time:
TA O n / O f f
-Press and hold the button :
Previews each broadcast for 5
seconds each.
•CD, USB, My Music mode
-Press and hold the button :
Previews each song (file) for 10
seconds each.
-Press and hold the buttonagain
to continue listening to the cur-
rent song (file).
(10) SETUP
•Converts to Setup mode.
(11) TUNE knob
•Radio mode : turn to change
broadcast frequencies.
•CD, USB, iPod®, My Music mode :
turn to search tracks/channels/
files.
(12) FOLDER
•MP3 CD/USB mode :Folder Search

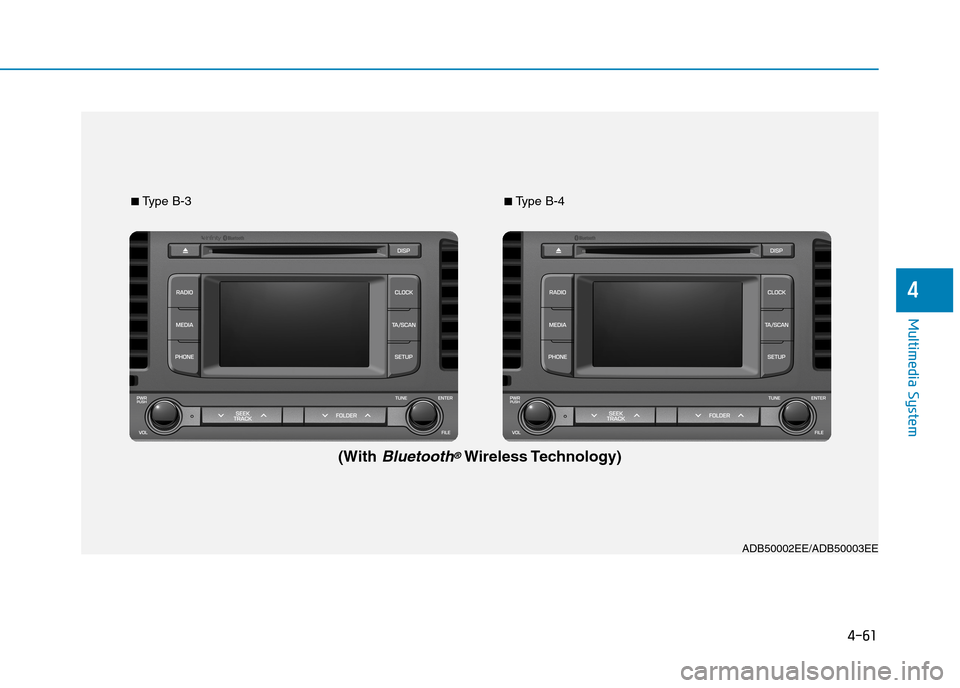

4-61
Multimedia System
4
ADB50002EE/ADB50003EE
■Ty p e B - 3■Ty p e B - 4
(WithBluetooth®Wireless Technology)

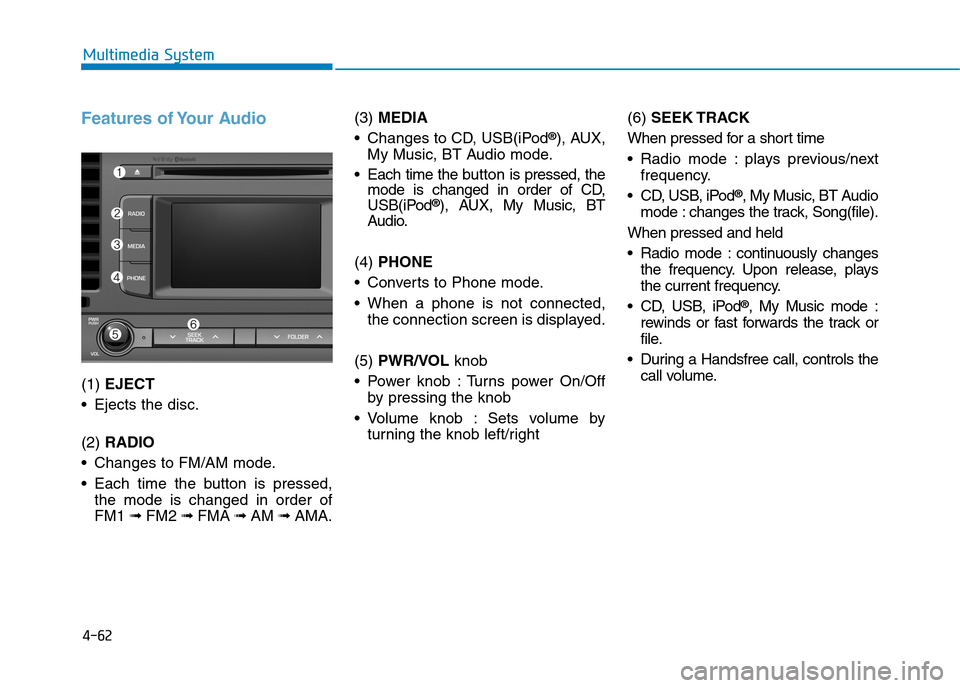

4-62
Multimedia System
Features of Your Audio
(1) EJECT
•Ejects the disc.
(2) RADIO
•Changes to FM/AM mode.
•Each time the button is pressed,
the mode is changed in order of
FM1 ➟FM2 ➟FMA ➟AM ➟AMA.
(3)MEDIA
•Changes to CD, USB(iPod®), AUX,
My Music, BT Audio mode.
•Each time the button is pressed, themode is changed in order of CD,USB(iPod®), AUX, My Music, BTAudio.
(4) PHONE
•Converts to Phone mode.
•When a phone is not connected,
the connection screen is displayed.
(5) PWR/VOLknob
•Power knob :Turns power On/Off
by pressing the knob
•Volume knob : Sets volume by
turning the knob left/right
(6) SEEK TRACK
When pressed for a short time
•Radio mode :plays previous/next
frequency.
•CD, USB, iPod®, My Music, BT Audio
mode : changes the track, Song(file).
When pressed and held
•Radio mode :continuously changes
the frequency. Upon release, plays
the current frequency.
•CD, USB, iPod®, My Music mode :
rewinds or fast forwards the track or
file.
•During a Handsfree call, controls the
call volume.

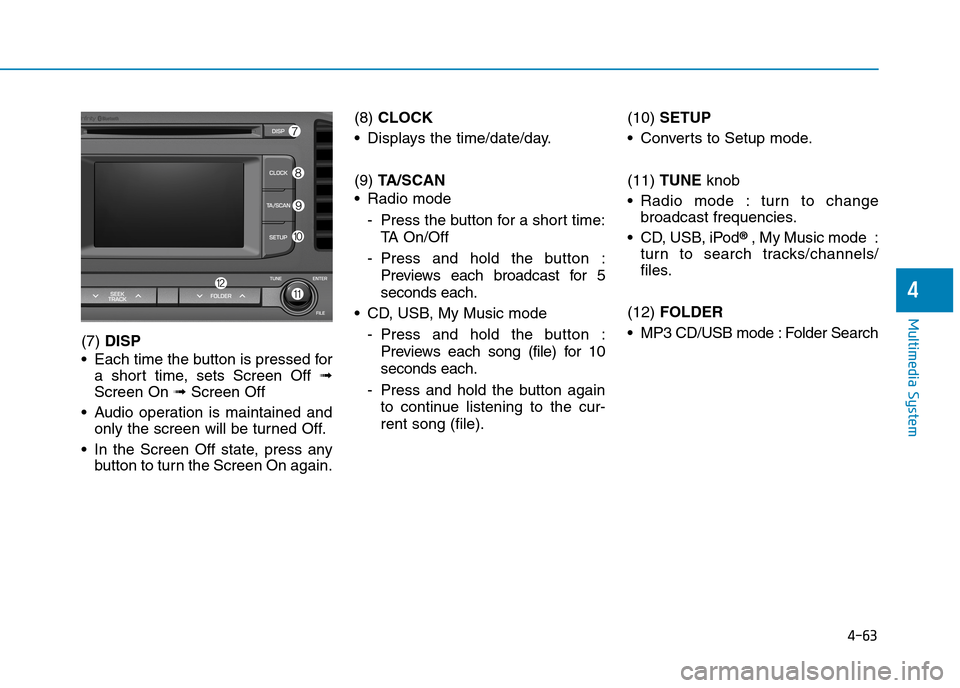

4-63
Multimedia System
4
(7) DISP
•Each time the button is pressed for
a short time, sets Screen Off ➟
Screen On ➟Screen Off
•Audio operation is maintained and
only the screen will be turned Off.
•In the Screen Off state, press any
button to turn the Screen On again.
(8) CLOCK
•Displays the time/date/day.
(9) TA / S C A N
•Radio mode
-Press the button for a short time:
TA O n / O f f
-Press and hold the button :
Previews each broadcast for 5
seconds each.
•CD, USB, My Music mode
-Press and hold the button :
Previews each song (file) for 10
seconds each.
-Press and hold the button again
to continue listening to the cur-
rent song (file).
(10) SETUP
•Converts to Setup mode.
(11) TUNE knob
•Radio mode : turn to change
broadcast frequencies.
•CD, USB, iPod®, My Music mode :
turn to search tracks/channels/
files.
(12) FOLDER
•MP3 CD/USB mode :Folder Search
