During use
Never  unlock   the   device   when
a


trailer   or   load   carrier   is   fitted   to   the
swan

  neck.
After use
For

journeys

made

without

a

trailer

or


load   carrier,   the   swan   neck   must
be


removed   and   the   blanking   plug
inserted

  in   the   carrier.
This
  measure
applies

  particularly   if   the   swan   neck
could hinder visibility of the number
plate

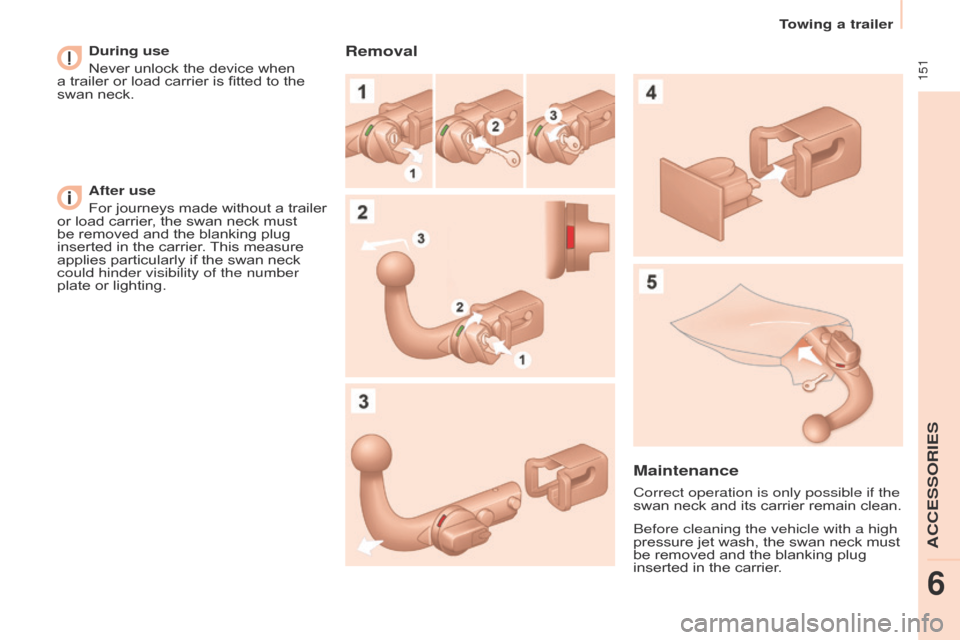

  or   lighting.Removal
Maintenance
Correct operation is only possible if the
swan  neck   and   its   carrier   remain   clean.
Before cleaning the vehicle with a high
pressure
  jet   wash,   the   swan   neck   must
be

  removed   and   the   blanking   plug
inserted

  in   the   carrier.
Towing a trailer
ACCESSORIES
6

152
Berlingo2VP_en_Chap06_Accessoire_ed02-2016Berlingo2VP_en_Chap06_Accessoire_ed02-2016
OTHER ACCESSORIES
These accessories and parts, having been
tested and approved for reliability and
safety,  are   all   adapted   to   your   vehicle.
A wide range of recommended accessories


and
  genuine   parts   is   available.
A further range is also available,
structured around comfort, leisure and
maintenance:
Anti-theft
  alarm,   window   etching,   first
aid

  kit,   high   visibility   vest,   front   and
rear

  parking   sensors,   warning   triangle,
security

  bolts   for   alloy   wheels, ...
Seat covers compatible with airbags
for the front seats, bench seat, rubber
mats, carpet mats, snow chains, blinds,
tailgate
  bicycle   carrier,   ...
To prevent the mat from becoming
caught
  under   the   pedals:
-

ensure
  that   the   mat   and   its   fixings
are positioned correctly

,
-

never
  fit   one   mat   on   top   of   another.Audio
  equipment,   hands-free   kit,
 speakers,

  CD   changer,   satellite
 navigation


system,

USB

box,

V
ideo
kit,
...
Regardless of the audio and telematic
equipment   offered   on   the   market,   the
 technical constraints associated with

the   fitting   of   equipment   of   these   product groups mean that the special features

of the equipment and its compatibility
with the capacities of your vehicle's
standard
  equipment   must   be   taken   into
 account.

  Please   ask   a   CITROËN   dealer
 for

  more   information   before   fitting   such
 equipment.
Maximum weights on bars
-


T
ransverse bars on longitudinal
bars:
  75   Kg   (these   bars   are   not
compatible

  with   the   Modutop   roof).
Installing radiocommunication
transmitters
You are advised to contact a CITROËN
dealer before installing accessory
radiocommunication transmitters with
external
  aerial   on   your   vehicle.
The
  CITROËN dealer   network
will

  inform   you   of   the   specification
(frequency band, maximum output
power

,   aerial   position,   specific
conditions of installation) of the
transmitters

  which   can   be   fitted,   in
accordance with the Motor V

ehicle
Electromagnetic Compatibility
Directive (2004/104/EC). Front
  mud   flaps,   rear   mud   flaps,
15/17 inch

  alloy   wheels,   wheelarch
trim,

  leather   steering   wheel,   ...
Screenwash, interior and exterior
cleaning and maintenance products,
spare   bulbs,   ...
The
  fitting   of   electrical   equipment
or accessories which are not
recommended by CITROËN may
result in a failure of your vehicle's
electronic

  system.   Please   note   this
specific

  warning.
Y
ou   are   advised
to contact a dealer to be shown the
range of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory
to have a high visibility vest, warning
triangle and spare bulbs available in
the

  vehicle.
Equipment

153
Berlingo2VP_en_Chap07_Verification_ed02-2016Berlingo2VP_en_Chap07_Verification_ed02-2016
TOTAL & CITROËN
Partners in performance and
protecting the environment
Innovation in the search for
performance
For over 40 year, the TOTAL Research and
Development departments have developed
for CITROËN, lubricants to match the latest
technical innovations on CITROËN vehicles,
both  for   competition   and   for   everyday   motoring.
For you, this is an assurance that you will
obtain of the best performance from your
engine.
Optimum protection for your
engine
By having your CITROËN
vehicle serviced with TOTAL
lubricants, you are contributing
towards improving the life and
performance of your engine,
while also protecting the
environment.
prefers
CHECKS
7
Maintenance with TOTAL

154
Berlingo2VP_en_Chap07_Verification_ed02-2016
OPENING THE BONNET
Bonnet stay
Secure the stay in its location,
identified  by   a   sticker   on   the   right-hand
side of the vehicle, to hold the bonnet
open.
Before closing the bonnet, put the stay
back

  in   its   clip   without   using   excessive
force.
On the outside
Raise the bonnet slightly by reaching
in  a   flat   hand,   palm   down,   to   make
access

  to   the   lever   easier.
With this hand, push the safety catch
to
  the   left.   Raise   the   bonnet.
On the inside
Pull the lever below the dashboard
towards  you.  The   bonnet   is   released.
To close
Lower the bonnet and release it at the
end  of   its   travel.   Check   that   the   bonnet
is

  secure.
Avoid opening the bonnet in strong
winds.
Opening the bonnet

155
Berlingo2VP_en_Chap07_Verification_ed02-2016Berlingo2VP_en_Chap07_Verification_ed02-2016
PETROL ENGINE
1. Screenwash   fluid   reservoir.
2.
Fusebox.
3.


Engine
  coolant   header   tank.
Battery
  connections:
+

Positive
  terminal.
-

Negative
  point   (earth).
Take
  care   when   working   under   the   bonnet.
4.  Brake   and   clutch   fluid   reservoir.
5.
Air
  filter.
6.

Engine
  oil   dipstick.7.
 Engine   oil   filler   cap.
8.
Power
  steering   fluid   reservoir.
CHECKS
7
Under the bonnet

156
Berlingo2VP_en_Chap07_Verification_ed02-2016Berlingo2VP_en_Chap07_Verification_ed02-2016
DIESEL ENGINE
4. Brake   and   clutch   fluid   reservoir.
5.
Air
  filter.
6.

Engine
  oil   dipstick.
7.

Engine
  oil   filler   cap. 8.
 Power   steering   fluid   reservoir.
9.
Priming pump
 (except

  BlueHDi   engines).
1.
 Screenwash

fluid

reservoir.
2.

Fusebox.
3.


Engine


coolant

header

tank.
Battery
  connections:
+

Positive
  terminal.
-

Negative
  point   (earth).
Take

care

when

working

under

the

bonnet.
Under the bonnet

 157
Berlingo2VP_en_Chap07_Verification_ed02-2016Berlingo2VP_en_Chap07_Verification_ed02-2016
LEVELS
Oil change
This must be carried out at
the  intervals   specified   in   the
manufacturer's

  servicing   schedule.
Ask

for

  advice   from   a   CITROËN   dealer.
Remove
  the   dipstick   before   filling.
Check
  the   level   after   filling   (never
exceed

  the   max   mark).
Refit
  the   oil   filler   cap   before   closing   the
bonnet.
Changing the brake fluid
The brake fluid must be changed at the intervals stated, according to the
manufacturer's  servicing   schedule.
Use
  fluids   recommended   by   the
manufacturer

, which meet the DOT4
standard.
The level must be between the MIN
and
  MAX   marks   on   the   reservoir.
If
  fluid   has   to   be   added   frequently,
this indicates a fault which must be
checked

  by   a   CITROËN   dealer   or
a

  qualified   workshop   as   soon   as
possible.
Warning lamps
 If you have to remove / refit the engine style cover, handle it with
care
  to   avoid   damaging   the   fixing
clips.
Oil level
It is recommended that the oil level be
checked  every   3   000   miles   (5   000   km)
and topped up if necessary between oil
changes.
Check

  the   level   with   the   vehicle   level,
engine

  cold,   using   the   dipstick.
Dipstick
Viscosity selection
In all cases, the oil selected must
meet
  the   requirements   specified   in   the
manufacturer's

  service   schedule.
These regular maintenance
operations
  will   keep   your   vehicle
in

  good   working   order.
Ask
  for
advice from a CITROËN dealer or refer
to the maintenance and warranty guide
in

  the   handbook   pack.
Checks   using   the   warning
lamps in the instrument panel
is described in chapter 3,
"Instruments and controls"
section.
There

  are   two   marks   on
the

  dipstick:
A = maximum
If
  you   fill   past   this   mark,
contact a CITROËN
dealer

  or   a   qualified
workshop.
B

= minimum
Never allow the level to
fall
  below   this   mark.
To maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil
is
  prohibited.
CHECKS
7
Levels

158
Berlingo2VP_en_Chap07_Verification_ed02-2016Berlingo2VP_en_Chap07_Verification_ed02-2016
Cooling system
Only use the fluid recommended by the manufacturer.
Otherwise,
  you   risk   seriously   damaging
your

  engine.
When the engine is warm, the
temperature of the coolant is controlled
by
  the   engine   fan.
As
  this   fan   can
operate

  with   the   ignition   key   removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying

  out   any   work.
Slacken
  the   cap   by   1/4   of   a   turn   to
release the pressure to prevent any
risk

  of   scalding.   When   the   pressure
has dropped, remove the cap and top
up

  the   level   with   coolant.
If
  fluid   has   to   be   added   frequently,
this indicates a fault which must be
checked

  by   a   CITROËN   dealer   as
soon

  as   possible.
Power steering fluid level
The vehicle must be parked on level ground  with   the   engine   cold.   Unscrew
the cap integrated with the gauge and
check

  the   level   which   must   be   between
the

  MIN   and   MAX   marks. In
  order   to   regenerate   the   filter,   you  are advised to drive at a speed higher
than
  40   mph   (60   km/h)   for   at   least   five  minutes as soon as possible, when
traffic
  conditions   permit   (until   the
message disappears and the service
warning

  lamp   goes   off).
During regeneration of the particle
emission
  filter,   the   noise   of   a   relay
operating may be heard under the
dashboard.
If the message is still displayed and
if the service warning lamp remains
on, contact a CITROËN dealer or a
qualified

  workshop.
Topping up
The level must be between the MIN
and

MAX

marks

on

the

expansion

bottle.


If

more

than

1

litre

of

fluid

is

required to top up the level, have the
system


checked

by

a

CITROËN

dealer

or


a

qualified

workshop.
Screenwash level
For best quality cleaning and for your
safety, we would advise that you use
products   of   the   CITROËN   range.
For optimum cleaning and to avoid
freezing,
  this   fluid   must   not   be   topped
up

  or   replaced   with   plain   water.
Capacity
  of   the   screenwash   reservoir:
approximately

  3   litres.
Diesel additive level
(Diesel with particle
filter)
Topping up
This additive must be topped up by
a  CITROËN   dealer   or   a   qualified
workshop

  without   delay.
Waste products
Avoid prolonged contact of used oil
with  the   skin.
Brake
  fluid   is   harmful   to   health   and
very

  corrosive.
Do
  not   dispose   of   used   oil,   brake   fluid
or coolant into drains or into the ground
but into the containers dedicated to this
use at a CITROËN dealer (France) or
an

  authorised   waste   disposal   site.
The minimum level of this additive
is indicated by lighting of the service
warning lamp, accompanied by an
audible signal and a message in the
screen.
When this occurs with the engine
running it is due to the start of
saturation

of

the

particle

filter

(exceptionally prolonged urban type
driving


conditions:

low

speed,

long

traffic


jams,

...).
Levels
