2017 Citroen BERLINGO MULTISPACE RHD Owner's Manual

183
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
3. Direction indicators
Type B, PY21W - 21W (amber)
-
Remove the cover by pullin
g the
flexible
  rubber   tab.
-

T
urn the bulb holder a quarter turn
anticlockwise.
-

Remove the bulb by pressing it
lightly

  while   turning   it   anticlockwise.
-

Change
  the   bulb.
-

Ensure
  that   the   cover   is   refitted
correctly all round to assure correct
sealing. 4. Front foglamps
T

ype C, H1 - 55W
-

Remove the three clips and the
screw securing the wheel arch liner

,
located
  below   the   bumper.
-

Move
  the   wheel   arch   liner   upwards.
-

Disconnect the bulb holder
connector by pressing the tab at
the

  top.-

Remove the bulb holder by
squeezing the two clips (at top and
bottom)

  using   a   finger   and   thumb.
-

Replace the module (bulb holder
and

  bulb).
-

Carry out the operations in reverse
order

  to   fit   the   module   and   refit   the
wheel

  arch   liner.
QUICK HELP
8
Changing a bulb

184
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
Side repeater
Type A, WY5W - 5W (amber)
-
Push the repeater towards the rear
and disengage it by pullin

g the
front.
-

Contact a CITROËN dealer to
obtain a new repeater which is a
sealed

  component.
-

T
o   refit,   engage   the   repeater
towards the rear and bring it
towards

  the   front.
Courtesy lamps
Type A, 12V5W - 5W
-
Unclip the lens by sliding a
screwdriver in the slots on each
side

  of   the   courtesy   lamp.
-

Pull
  the   bulb   out   and   change   it.
-

Clip the lens in its housing and
ensure

  that   it   is   secured   correctly.
Front / Rear
Changing a bulb

185
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016

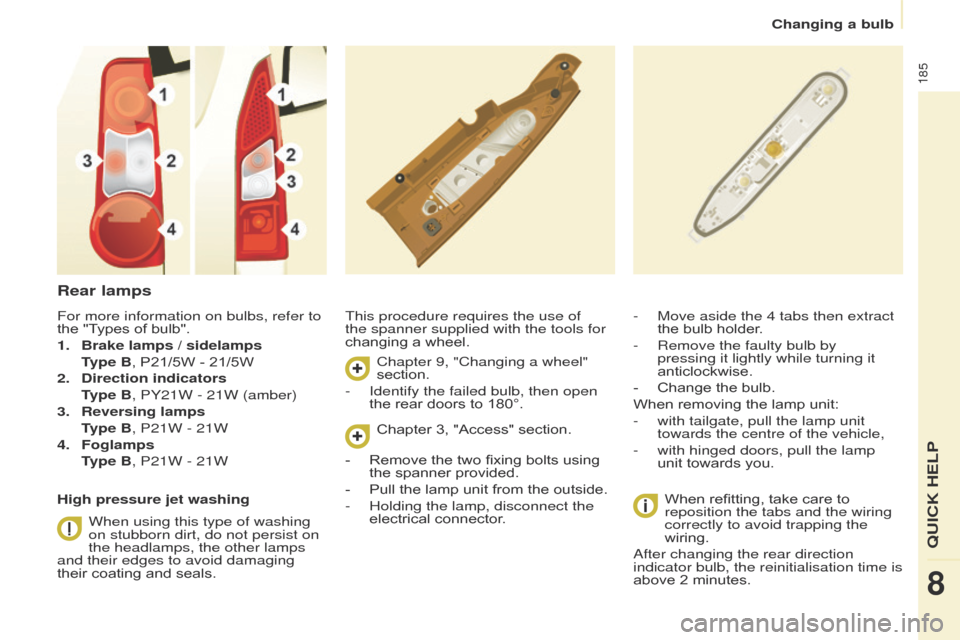

Rear lamps
This procedure requires the use of
the spanner supplied with the tools for
changing  a   wheel.
When
  refitting,   take   care   to
reposition the tabs and the wiring
correctly to avoid trapping the
wiring.
After changing the rear direction
indicator bulb, the reinitialisation time is
above

  2   minutes.
-
Move aside the 4 tabs then extract
the
  bulb   holder.
-

Remove the faulty bulb by
pressing it lightly while turning it
anticlockwise.
-


Change
  the   bulb.
When
  removing   the   lamp   unit:
-

with tailgate, pull the lamp unit
towards the centre of the vehicle,
-


with hinged doors, pull the lamp
unit

  towards   you.
For more information on bulbs, refer to
the

"Types

of

bulb".
1.

Brake lamps / sidelamps


T

ype B,

P21/5W

-

21/5W
2.

Direction indicators


T

ype B, PY21W - 21W (amber)
3.

Reversing lamps


T

ype B, P21W - 21W
4.

Foglamps


T

ype B, P21W - 21W
High pressure jet washing When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the other lamps
and their edges to avoid damaging
their

coating

and

seals. Chapter 9, "Changing a wheel"
section.
-

Identify the failed bulb, then open
the

  rear   doors   to   180°.
Chapter
  3,   "Access"   section.
-

Remove
  the   two   fixing   bolts   using
the

  spanner   provided.
-

Pull
  the   lamp   unit   from   the   outside.
-

Holding the lamp, disconnect the
electrical

  connector.
QUICK HELP
8
Changing a bulb

186
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
Number plate lamps
- Unscrew  the   two   nuts.
-
Push
  the   pins.
-

If necessary
, disconnect the
connector
  to   remove   the   lamp.
-

Change
  the   bulb.
Third brake lamp
Type A, W16W - 16W
Type A, W5W - 5W
With tailgate
-

Disengage the plastic lens using a
screwdriver

.
-

Change


the

bulb.
-

Replace the plastic lens and press
on


it. With hinged doors
-

Unclip


the

interior

trim.
-

Disconnect the connector by
moving


aside

its

tab.
-

T

urn the bulb holder a quarter turn
anticlockwise.
-

Change


the

bulb.
-

Put


the

bulb

holder

back

in

place

and


reconnect

the

connector.
-

Put


the

trim

back

in

place.
Changing a bulb

187
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
CHANGING A FUSE
The fuseboxes are located:
-
in the lower dashboard on the left-
hand side (behind the cover),
-


under
  the   bonnet   (near   the   battery).
The information given concerns only
those fuses which can be changed by
the user using the tweezer, located
behind the dashboard storage
compartment
  on   the   right-hand   side.
For

  any   other   work,   visit   a   CITROËN
dealer

  or   a   qualified   workshop.
Removing and fitting a fuse
Always replace a failed fuse with a
fuse of the same rating.
Motor

trade

technicians:

for

complete information on the fuses
and relays, refer to the "Repair
Manual" diagrams via the dealer
network.
CITROËN will not accept responsibility
for the cost incurred in repairing
your vehicle or for rectifying the
malfunctions resulting from the
installation of accessories not
supplied and not recommended by the
CITROËN


network

and

not

installed

in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 millia

mperes. Before replacing a fuse, the cause of
the
  incident   must   be   identified   and
rectified.
●


Use
  the   tweezer.
QUICK HELP
8
Changing a fuse

188
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
Dashboard fuses
Tilt the cover to gain access to the
fuses.Fuses
F Amperes
A Allocation
1 15 Rear wiper
2 - Not used
3 5 Airbag
4 10 Air
  conditioning,   diagnostic   socket,   mirror   control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5Rear courtesy lamp, front map reading lamp, roof
console
8 20 Audio

  equipment,   screen,   tyre   under-inflation
detection, alarm and siren
9 30 Front

  and   rear   12V   socket
10 15 Central column 11 15 Low current ignition switch
12 15 Rain and sunshine sensor, airbag
13 5 Instrument panel
14 15 Parking
  sensors,   digital   air   conditioning   controls,
hands-free

  phone   kit
15 30 Locks
16 - Not used
17 40Rear
  screen/mirrors   demist/defrost
Changing a fuse

189
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
Passenger compartment fuses
Fuses F Amperes
A Allocation
1 - Not used
2 20 Heated seats
3 - Not used
4 15 Folding mirrors relay
5 15 Refrigeration
  equipment   socket   relay
QUICK HELP
8
Changing a fuse

190
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
Fuses under the bonnet
After opening the bonnet, unclip and tilt
the corresponding box to gain access
to  the   fuses. Fuses
F Amperes
A Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 - Not used
5 15 Engine components
6 10 Steering wheel angle sensor, DSC
7 10Brake
  switch,   clutch   switch
8 25 Starter motor
9 10 Headlamp
  beam   motor,   fleet   management   unit
10 30 Engine components 11 40 Not used
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp
Changing a fuse
