Placing the windscreen wiper
blades in the special positionChanging a front wiper blade
- Lift
  the   wiper   arm.
-
Unclip
  the   blade   and   remove   it.
-

Fit
  the   new   blade.
-

Push
  back   the   wiper   arm.
Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade  and   remove   it.
-

Fit
  the   new   blade   and   push   back
the

  wiper   arm.
CHANGING A WIPER BLADE
- Within a minute after switching of f
the   ignition,   press   the   wiper   stalk
downwards to position the wiper
blades along the windscreen pilla

rs
(special
  position). To return the windscreen wipers to
their normal position, switch on the
ignition
  and   operate   the   wiper   stalk.
QUICK HELP
8
Changing a wiper blade

192
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
Without lifting (4 wheels on the
road)
You should always use a towing arm.
BEING TOWED
This procedure involves the use of
the towing eye supplied with the tools
for
  changing   a   wheel.
From the front
- Unclip the cover by pressing the
bottom  part.
-

Fully screw in the removable
towing eye.
From the rear
- Unclip the cover using a coin or the
flat   part   of   the   towing   eye,
-

Fully screw in the removable
towing eye. When towing with the engine
switched

  off,   there   is   no   braking   or
steering

  assistance.
Lifting (only 2 wheels on the
road)
It is preferable to raise the vehicle
using
  professional   lifting   equipment.Vehicles fitted with a manual
gearbox (Diesel version)
In
  the   case   of   vehicles   fitted   with
a manual gearbox, the gear lever
must be in neutral, failure to observe
this special condition may result in
damage

  to   transmission   and   braking
components and the absence of
braking

  assistance   when   the   engine   is
started

  again.
Section

8,

"Changing

a

wheel".
Having your vehicle towed

193
Berlingo2VP_en_Chap09_Caract-technique_ed02-2016Berlingo2VP_en_Chap09_Caract-technique_ed02-2016
TECHNICAL DATA
9
Dimensions

194
Berlingo2VP_en_Chap09_Caract-technique_ed02-2016Berlingo2VP_en_Chap09_Caract-technique_ed02-2016
DIMENSIONS (MM)
L Overall length4380
H Overall height 1801-1862
A Wheelbase 2728
B Front overhang 925
C Rear overhang 727
D Width
  over   panels: without mirrors
1810
with mirrors 2112
E Width
  of   front   tracks 1505-1507
F Width
  of   rear   tracks 1554-1556
- Length of the loading surface to the
seat Row 2
990
Row 2, seat fully folded 1343
With front passenger seat folded 3000
Dimensions

195
Berlingo2VP_en_Chap09_Caract-technique_ed02-2016Berlingo2VP_en_Chap09_Caract-technique_ed02-2016

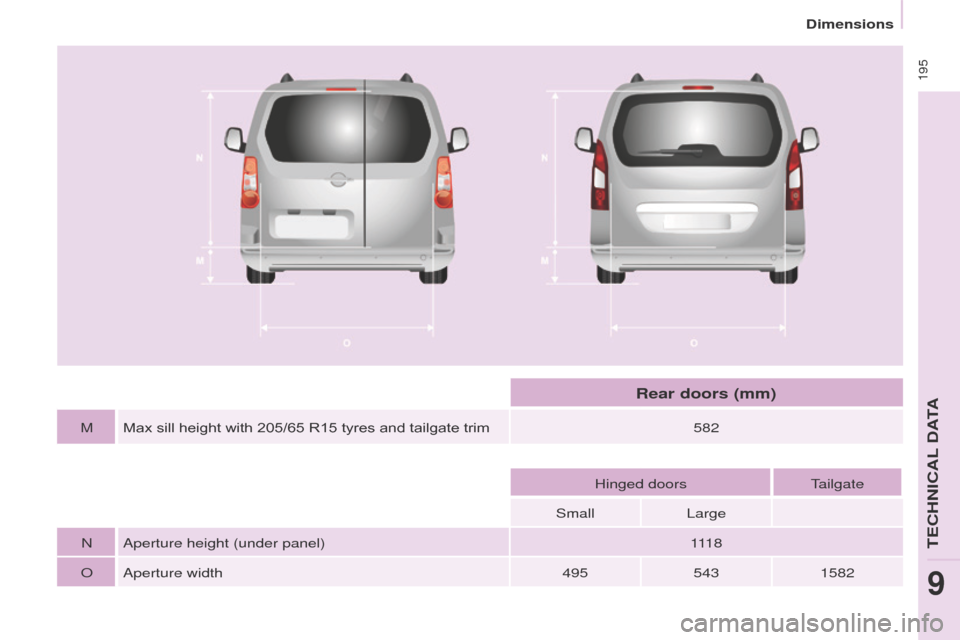

MMax   sill   height   with   205/65   R15   tyres   and   tailgate   trim582
Hinged doors Tailgate
Small Large
N Aperture height (under panel) 111 8
O Aperture width 4955431582
Rear doors (mm)
TECHNICAL DATA
9
Dimensions

196
Berlingo2VP_en_Chap09_Caract-technique_ed02-2016Berlingo2VP_en_Chap09_Caract-technique_ed02-2016
P Aperture height1009
Q Aperture width 640
- Height under raised tailgate 1892
Sliding side doors (mm)
Dimensions

 197
Berlingo2VP_en_Chap09_Caract-technique_ed02-2016Berlingo2VP_en_Chap09_Caract-technique_ed02-2016
ENGINE CHARACTERISTICS
The engine characteristics (capacity,
maximum power, maximum power
speed, fuel, CO
2 emissions...) for your vehicle are given in the registration
certificate.
These characteristics correspond
to the values type-approved
on a test bed, under conditions
defined

in

European   legislation
(Directive 1999/99/EC).
For more information, refer to the
manufacturer's website or sales
brochure


for

the
  model.   Contact
a


CITROËN

dealer   or   a   qualified
workshop.
WEIGHTS AND TOWED LOADS
These values, expressed in kg, can be found on the manufacturer's VIN plate
or
  label.
The maximum weights and towed
loads for your vehicle can be found on
the
  vehicle's   registration   certificate.
The
  kerb   weight   is   equal   to   the   weight
without

  load   +   driver   (75   kg)   +   fuel   tank
filled

  to   90%.
The GTW and towed load values
indicated are valid up to a maximum
altitude
  of   1000   metres.
The
  value   of
the towed load mentioned must be
reduced by 10 % for each additional
1000

  metres.
With
  load   transfer,   the   braked   trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW

  is   not   exceeded. High ambient temperatures
may result in a reduction in the
performance of the vehicle in
order
  to   protect   the   engine.   When   the
ambient temperature is higher than
37 °C,

  limit   the   towed   weight.
Towing with a lightly loaded
vehicle can adversely affect road
holding.
Towing
  a   trailer   increases   braking
distances.
When towing, the maximum permitted
speed is reduced (comply with the
legislation

  in   force   in   the   country).
The recommended nose weight is
the downward force on the towball
(removable
  with   or   without   tools).
GVW: gross vehicle weight, the
maximum
  authorised   weight.
GTW: gross train weight, the maximum
weight
  for   vehicle   plus   trailer.
The location of the manufacturer's
plate is given in chapter 9,
"Identification
  markings"   section.
In each country, it is imperative that
the maximum towed loads authorised
by local legislation are complied
with.

T
o   find   out   your   vehicle's   towing
capacities and its gross train weight,
consult

  a   CITROËN   dealer.
TECHNICAL DATA
9
Weights

198
Berlingo2VP_en_Chap09_Caract-technique_ed02-2016Berlingo2VP_en_Chap09_Caract-technique_ed02-2016
Petrol Engines / Weights
5-seatEngine Gearbox Engine oil
capacity with filter
replacement (litres) Unbraked trailer (kg)
Recommended nose
weight (kg)
1.6 110 hp 5-speed manual 3.25750 55
1.6 VTi 100 hp 5-speed manual 4.25600 70
1.6 VTi 120 hp 5-speed manual 4.25690 70
1.6 VTi 120 hp Euro 6 5-speed manual
4.25600 70
1.2 PureTech S&S 110 hp Euro 6 5-speed manual
3.45600 70
7-seat Engine Gearbox Engine oil
capacity with filter
replacement (litres) Unbraked trailer (kg)
Recommended nose
weight (kg)
1.6 110 hp 5-speed manual 3.25750 70
Weights
