2017 Citroen BERLINGO MULTISPACE RHD Owner's Manual

103
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Automatic switching on/off
The front courtesy lamp comes on when
the  key   is   removed   from   the   ignition,   when the

  vehicle   is   unlocked,   when   one   of   the
 front doors is opened and for location of


the
  vehicle   using   the   remote   control.
It goes off gradually after the ignition is
switched on and when the vehicle is
locked.Front seats: comes on when one of the front doors is
opened. These are switched on and of
f by
means of a manual switch, with
the
  ignition   on.
Rear
  seats:   comes   on   when
one of the rear doors is
opened.
If the doors remain open for
a few minutes, the courtesy
lamps

  go   off.
Permanently
  off.
Permanently

on,

ignition

on.
Front courtesy lamp
COURTESY
LAMPS
Rear courtesy lamp Front individual reading lamps
EASE OF USE and COMFORT
4
Practical information

104
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

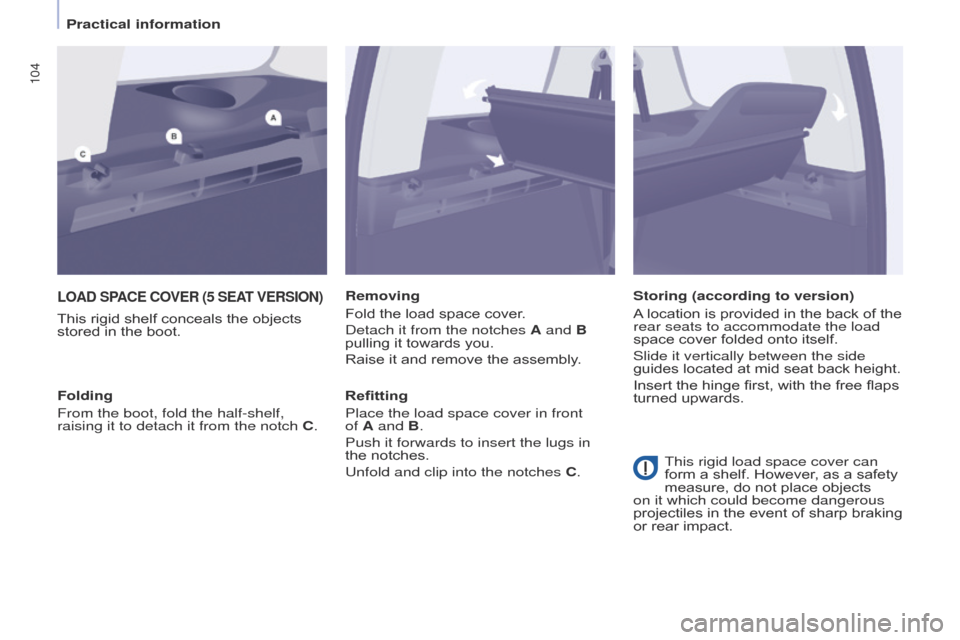

LOAD SPACE COVER (5 SEAT VERSION)
This rigid shelf conceals the objects stored  in   the   boot. Removing
Fold
  the   load   space   cover.
Detach it from the notches A and B
pulling
  it   towards   you.
Raise
  it   and   remove   the   assembly.
Refitting
Place the load space cover in front
of A and B.
Push it forwards to insert the lugs in
the
  notches.
Unfold and clip into the notches C.
Folding
From the boot, fold the half-shelf,
raising it to detach it from the notch C. Storing (according to version)
A
location   is   provided   in   the   back   of   the  rear seats to accommodate the load
space
  cover   folded   onto   itself.
Slide it vertically between the side
guides
  located   at   mid   seat   back   height.
Insert
  the   hinge   first,   with   the   free   flaps
turned

  upwards.
This rigid load space cover can
form
  a   shelf.   However,   as   a   safety
measure,

  do   not   place   objects
on it which could become dangerous
projectiles

  in   the   event   of   sharp   braking
or

  rear   impact.
Practical information

105
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
12 volt socket (120 W max)
It is advisable to limit the use of this
socket  to   avoid   discharging   the   battery.
Protective net
Open the cover located in the hook support.
Fix the top of the net in the notches,
having
  first   turned   the   bar   1/4   of   a   turn.
Ensure that the end of the bar engages
correctly in the metal part of its
location.
Fix the straps in the locations provided
on
  the   floor.
Tighten
  the   net   using   the   straps.
Stowing rings
Use these rings to secure loads on the
floor.
The connection of an electrical
device not approved by CITROËN,
such as a USB charger, may
adversely affect the operation of
vehicle electrical systems, causing
faults such as poor telephone reception
or interference with displays in the
screens.
EASE OF USE and COMFORT
4
Practical information

106
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
REAR FITTINGS
(7 SEAT VERSION )
Cup holder
Any liquid carried in a cup (mug or
other) on board which could spill,
presents   a   risk.
Take
  care.
12 volt socket (120 W max)
It is advisable to limit the use of this
socket   to   avoid   discharging   the   battery.
Stowing rings
Use the stowing rings on the floor to secure  and   retain   your   loads   firmly.
The seat belt anchorages must not be
used
  for   this   purpose.
It is recommended that the load is
immobilised

  by   securing   it   firmly
using the stowing rings on the
floor

.
Practical information

 107
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Storage flaps
Raise the corresponding flap.Next to the boot sill, the recess is
intended to receive the roller tube
containing
  the   load   space   cover.
Seat belts
Ensure that the centre seat belt has
reeled in correctly to its carrier in the
roof.
Prevent
  the   row   3   seat   belt   buckles
from

  knocking   by   raising   them   as   close
as possible to the anchorages in the
roof.
The

  seat   belt   buckle   attachment   rings
on each side of the boot must not be
used

  to   retain   loads.
EASE OF USE and COMFORT
4
Practical information

108
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
BLIND, LOAD SPACE COVER
Position the load space screen so as to
present  the   rear   load   space   cover   flaps
towards

  you.
Engage the left-hand lug of the roller in
the support A.
The load space cover is the roller blind
type.

T

ake

care

not

to

place

heavy

objects


on

the

load

space

cover

when

unreeled.
Compress then place the right-hand
lug facing the support
B.
Release to engage the roller in its
support.
Unroll the load space cover to the rear
side
  pillars.
Engage the ends in the rear notches to
keep
  it   taut.
To install it
Place the row 3 seats in the fully folded
position.
Raise

the

storage

flap

at

the

boot

sill.
Take

hold

of

the

roller

in

the

centre

and

compress


it

towards

the

left-hand

pillar.
Raise

the

assembly.
Practical information

109
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
To remove it
From the boot, pull the load space
cover towards you to release it from
the  side   pillars.
Guide
  the   load   space   cover   as   it   rolls   up.
Remove
  the   clips   of   the   three   flaps
from the base of each row 2 head
restraint.
Compress the roller to the left to
remove it from the support

B.
Raise
  it   and   pivot   it   forwards. To store it
Store it in the recess at the boot sill,
with
  the   two   rear   flaps   uppermost.
First, compress the load space screen
to
  the   left.
Release.
Arrange
  the   two   flaps   and   close   the
storage

  flap.
The

roller

is

fitted

with

three

flaps

permitting concealment of the
boot, whether the row 2 seats
are in the normal position or the
comfort


position.
Each

flap

has

two

clips

which

are

hooked


on

the

base

of

each

head

restraint.
EASE OF USE and COMFORT
4
Practical information

11 0
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Adjusting electric door mirrors
- Move the control to the right or to
the left to select the corresponding
mirror.
-

Move the control in all four
directions

  to   adjust.
-

Return the control to the central
position.
MIRRORS
Heated mirrors
Adjusting manual door mirrors
Forced folding
If the mirror casing has come out of
its initial location, with the vehicle
stationary reposition the mirror casing
manually or use the electric folding
control.Press the heated rear screen
button.
Move the lever in all four directions to
adjust.
When

the

vehicle

is

parked,

the

door

mirrors


can

be

folded

back

manually.
The mirrors are not equipped with
automatic

heating.
Electric folding / unfolding
The mirrors can be folded or unfolded
electrically from the inside, with the
vehicle
  parked   and   the   ignition   on:
-

Place the control in the central
position.
-


T
urn   the   control   downwards. The
  mirrors   that   have   electric   folding/
unfolding   can   be   heated.
Mirrors and windows
