SURVEILLANCE MIRROR
This mirror, placed on top of the
central mirror, enables the driver or
front passenger to observe all the rear
seats.
Fitted  on   its   own   ball   joint,   its   manual
adjustment

  is   simple   and   provides   a
view

  of   the   rear   interior   of   the   vehicle.
It
  can   also   be   adjusted   for   improved
visibility during manoeuvres or when
overtaking.
REAR WINDOWS
To partially open the rear windows, tilt
the  lever   and   push   it   fully   to   lock   the
windows

  in   the   open   position.
Manual rear view mirror
The rear view mirror has two positions:
-
day (normal),
-


night
  (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the
  mirror.
EASE OF USE and COMFORT
4
Mirrors and windows

11 2
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
ELECTRIC WINDOWS
Lower the window fully, then raise it, it
will rise in steps of a few centimetres
each  time   the   control   is   pressed.
Repeat the operation until the window
is

  fully   closed.
Continue to press the control for at
least one second after the window
closed
  position   has   been   reached.
The safety anti-pinch does not operate
during
  these   operations.
Safety anti-pinch
When the window rises and meets an
obstacle,  it   stops   and   partially   lowers.
Manual mode
This mode is available
depending on equipment; it is
identified
  by   this   symbol   on   the
control

  in   question.
Good practice
If the electric windows meet an
obstacle during operation, you must
reverse  the   movement   of   the   window.
T

o
do

this,

press

the

control

concerned.
When the driver operates the
passenger electric window controls,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric windows
correctly

.
Be aware of children when operating
the
  windows.
Following
  several   consecutive   closing/
opening operations of the electric
window control, a protection system
is triggered which only allows closing
of
  the   window.
After
  closing,   wait
approximately

  40   minutes.   Once   this
time has elapsed, the control becomes
operational

  again.
1.
Driver's side
2.

Passenger's side
Reinitialisation
Following reconnection of the battery,
or in the event of a malfunction, the
safety anti-pinch function must be
reinitialised. The electrical functions of the electric
windows   are   deactivated:
-
approximately 45 seconds after the
ignition is switched of

f,
-
after one of the front doors is
opened,

  if   the   ignition   is   off.
There

are

two

operating

modes:
Press or pull the control, without
passing

the

point

of

resistance.
The window stops when you release
the

control.
One-touch mode
Press or pull the control, beyond the
point
  of   resistance.
The window opens or closes fully when
the
  control   is   released.
Pressing or pulling the control again
stops
  the   movement   of   the   window.
Mirrors and windows

11 3
Berlingo2VP_en_Chap05_Securite_ed02-2016
Driving safely
Labels are applied at various
points

on

your

vehicle.

They


carry safety warnings as well as
vehicle


identification

information.

Do

not


remove

them:

they

form

an

integral

part


of

your

vehicle.
GENERAL SAFETY RECOMMENDATIONS
For any work on your vehicle, use a
  qualified   workshop   that   has   the
technical

  information,   skills   and
equipment required, all of which a
CITROËN

  dealer   is   able   to   provide.We draw your attention to the
following points:
-
The
  fitting   of   electrical   equipment
or accessories not listed by
CITROËN

may cause excessive
current consumption and faults and
failures with the electrical system of
your   vehicle.   Contact   a   CITROËN
dealer for information on the range
of

  recommended   accessories.
-
As a safety measure, access to
the

  diagnostic   socket,   used   for  the vehicle's electronic systems,
is reserved strictly for CITROËN
dealers
  or   qualified   workshops,
equipped with the special tools
required

  (risk   of   malfunctions   of   the
vehicle's electronic systems that
could

  cause   breakdowns   or   serious
accidents).


The
  manufacturer
cannot be held responsible if this
advice

  is   not   followed.
-

Any
  modification   or   adaptation
not intended or authorised by
Automobiles CITROËN or carried
out without meeting the technical
requirements

  defined   by   the
manufacturer would lead to the
suspension of the legal and
contractual

  warranties.Installation of accessory radio
communication transmitters
Before installing a radio communication
transmitter, you must contact a
CITROËN   dealer   for   the   specification
of

  transmitters   which   can   be   fitted
(frequency

, maximum power,
aerial   position,   specific   installation
requirements), in line with the V

ehicle
Electromagnetic Compatibility
Directive (2004/104/EC).
Depending on the legislation in
force in the country, certain safety
equipment
  may   be   compulsory:
high visibility safety vests, warning
triangles, breathalysers, spare bulbs,
spare

  fuses,   fire   extinguisher,   first
aid

  kit,   mud   flaps   at   the   rear   of   the
vehicle...
SAFETY
5

11 4
Berlingo2VP_en_Chap05_Securite_ed02-2016

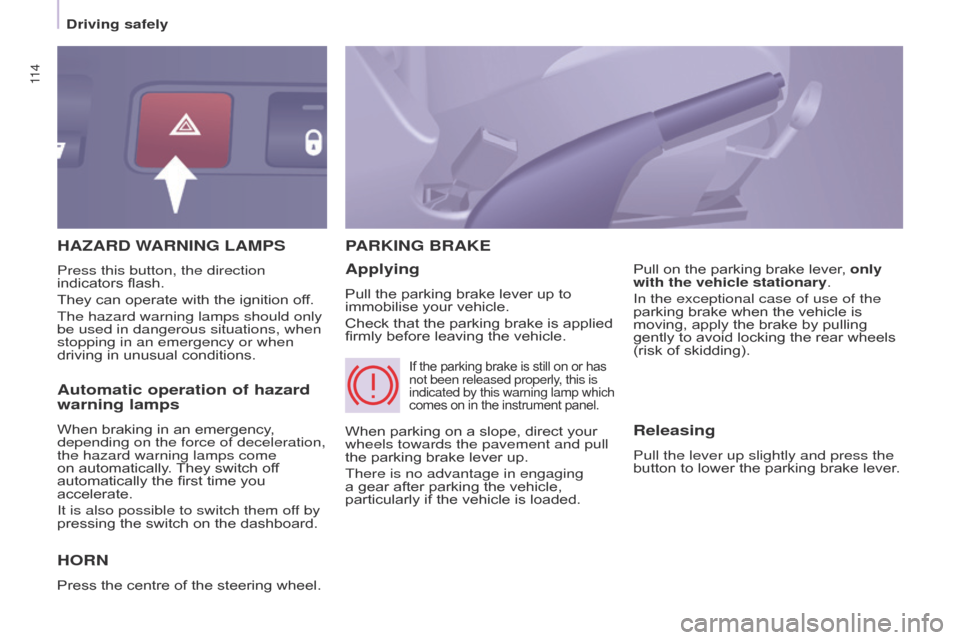

HAZARD WARNING LAMPS
H
ORN
Press the centre of the steering wheel.
PARKING BRAKE
Applying
Pull the parking brake lever up to immobilise
  your   vehicle.
Check
  that   the   parking   brake   is   applied
firmly

  before   leaving   the   vehicle.Pull
  on   the   parking   brake   lever,   only
with the vehicle stationary.
In the exceptional case of use of the
parking
  brake   when   the   vehicle   is
moving,

  apply   the   brake   by   pulling
gently

  to   avoid   locking   the   rear   wheels
(risk

  of   skidding).
Press this button, the direction
indicators

flash.
They

can

operate

with

the

ignition

off.
The hazard warning lamps should only
be used in dangerous situations, when
stopping in an emergency or when
driving

in

unusual

conditions.
When
  parking   on   a   slope,   direct   your
wheels towards the pavement and pull
the

  parking   brake   lever   up.
There is no advantage in engaging
a
  gear   after   parking   the   vehicle,
particularly

  if   the   vehicle   is   loaded.
If the parking brake is still on or has not been released properly, this is
indicated by this warning lamp which
comes
  on   in   the   instrument   panel.
Automatic operation of hazard
warning lamps
When braking in an emergency, depending on the force of deceleration,
the hazard warning lamps come
on  automatically.
They
  switch   off
automatically

  the   first   time   you
accelerate.
It is also possible to switch them of

f by
pressing
  the   switch   on   the   dashboard.Releasing
Pull the lever up slightly and press the
button  to   lower   the   parking   brake   lever.
Driving safely

11 5
Berlingo2VP_en_Chap05_Securite_ed02-2016
The audible (front and rear) and visual
(rear)  parking   sensor   system   consists
of proximity sensors, installed in the
rear

  bumper.
The sensors detect any obstacle which
enters
  its   field   of   operation:   person,
vehicle, tree, fence, behind the vehicle
during

  the   manoeuvre.
Certain
  objects   detected   at   the
beginning of the manoeuvre will no
longer be detected at the end of the
manoeuvre due to the blind spots
between

  and   below   the   sensors.
Examples:
  stake,   roadworks   cone   or
pavement

  post.
Engage reverse gear
P
ARKING


SENSORS
Display in the screen
An

audible

signal

confirms

the

activation of the system by engaging
reverse


gear.
The proximity information is indicated
by an audible signal which becomes
more rapid as the vehicle approaches
the

obstacle.
When the distance between the rear
of the vehicle and the obstacle is less
than approximately thirty centimetres,
the audible signal becomes
continuous.
Parking sensors
SAFETY
5

11 6
Berlingo2VP_en_Chap05_Securite_ed02-2016
Activation / DeactivationMalfunction
In the event of a malfunction, the LED
in the button comes on, accompanied
by an audible signal and a message in
the
  screen.
Contact
  a   CITROËN   dealer   or   qualified
workshop.
Good practice
In bad weather or in winter, ensure that
the sensors are not covered with mud,
ice  or   snow.
The system will be deactivated
automatically if a trailer is being towed
or
  if   a   bicycle   carrier   is   fitted   (vehicle
fitted

  with   a   towbar   or   bicycle   carrier
recommended

  by   CITROËN).
You can activate or deactivate
the system by pressing this
button.
The activation or deactivation
of the system is stored when
the

vehicle

stops.
Engage forward gear
In addition to the rear parking sensors, the   front   parking   sensors   are   triggered
when an obstacle is detected in
front of the vehicle and the speed
of the vehicle remains below 6 mph
(10 km/h).
The

  tone   from   the   speaker   (front
or rear) allows an obstacle to be
identified

  as   either   in   front   of   or
behind

  the   vehicle.
Stop the assistance
Change to neutral. The   parking   sensor   system
cannot, in any circumstances,
take

  the   place   of   the   vigilance   and
responsibility

  of   the   driver.
Parking sensors

 117
Berlingo2VP_en_Chap05_Securite_ed02-2016
REVERSING CAMERA
The reversing camera is activated
automatically when reverse gear is
engaged.
The image is displayed in the touch
screen  tablet.
The reversing camera function may be
completed
  with   parking   sensors.
The reversing camera cannot in
any circumstances be a substitute
for vigilance on the part of the
driver. High pressure jet washing
When washing your vehicle, do
not direct the lance within 30 cm of
the
  camera   lens.
The superimposed representation of
guide
  lines   helps   with   the   manoeuvre.
They
  are   represented   by   lines   marked
"on the ground" and do not allow the
position of the vehicle to be determined
relative

  to   tall   obstacles   (for   example:
other

  vehicles,   ...).
Some deformation of the image is
normal. The blue lines represent the general
direction of the vehicle (the difference
corresponds to the width of your
vehicle
  without   the   mirrors).
The red lines represent a distance of
about 30 cm beyond the edge of your
vehicle's
  rear   bumper.
The green lines represent distances of
about 1 and 2 metres beyond the edge
of
  your   vehicle's   rear   bumper.
The turquoise blue curves represent
the
  maximum   turning   circle.
Opening the tailgate causes the
display
  to   disappear.
Clean the reversing camera regularly
using
  a   soft,   dry   cloth.
Parking sensors
SAFETY
5

ABS
ABS
11 8
Berlingo2VP_en_Chap05_Securite_ed02-2016
ANTI-LOCK BRAKING SYSTEM
(ABS / EBFD)

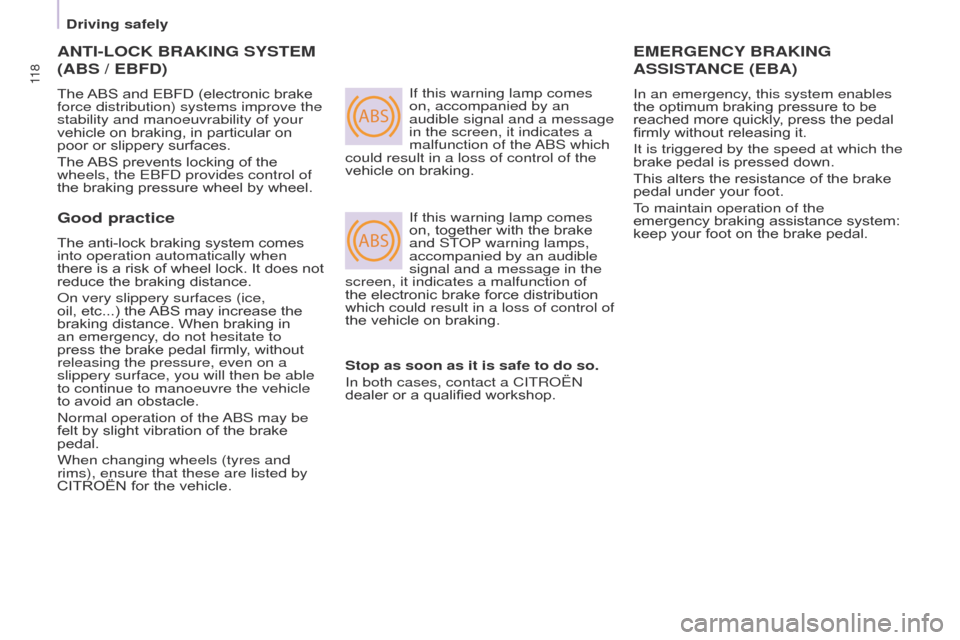

The ABS   and   EBFD   (electronic   brake  force distribution) systems improve the
stability and manoeuvrability of your
vehicle
  on   braking,   in   particular   on
poor

  or   slippery   surfaces.
The

ABS
  prevents   locking   of   the
wheels, the EBFD provides control of
the

  braking   pressure   wheel   by   wheel.If this warning lamp comes
on, accompanied by an
audible signal and a message
in the screen, it indicates a
malfunction of the ABS which
could result in a loss of control of the
vehicle
  on   braking.
If this warning lamp comes
on,
  together   with   the   brake
and ST

OP warning lamps,
accompanied by an audible
signal and a message in the
screen, it indicates a malfunction of
the
  electronic   brake   force   distribution
which could result in a loss of control of
the

  vehicle   on   braking.
EMERGENCY BRAKING
ASSIST

ANCE (EBA)
In an emergency, this system enables
the  optimum   braking   pressure   to   be
reached

  more   quickly,   press   the   pedal
firmly

  without   releasing   it.
It is triggered by the speed at which the
brake
  pedal   is   pressed   down.
This
  alters   the   resistance   of   the   brake
pedal

  under   your   foot.
To maintain operation of the
emergency
  braking   assistance   system:
keep

  your   foot   on   the   brake   pedal.
Good practice
The anti-lock braking system comes into operation automatically when
there  is   a   risk   of   wheel   lock.   It   does   not
reduce

  the   braking   distance.
On very slippery surfaces (ice,
oil, etc...)
  the
ABS
  may   increase   the
braking

  distance.   When   braking   in
an emergency

, do not hesitate to
press
  the   brake   pedal   firmly,   without
releasing the pressure, even on a
slippery surface, you will then be able
to continue to manoeuvre the vehicle
to

  avoid   an   obstacle.
Normal operation of the ABS may be
felt
  by   slight   vibration   of   the   brake
pedal.
When changing wheels (tyres and
rims), ensure that these are listed by
CITROËN

  for   the   vehicle. Stop as soon as it is safe to do so.
In both cases, contact a CITROËN
dealer
  or   a   qualified   workshop.
Driving safely
