If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a P
eu

ge
Ot d
ealer or a qualified
workshop for assistance.
F
Sw

itch on the compressor by moving
the switch B to position "I" until the tyre
pressure reaches 2.0 bars.
the s
ealant is injected into the tyre under
pressure; do not disconnect the pipe from
the valve during this operation (risk of
splashing). F
Re
move the kit and screw the cap back on
the white pipe.
tak
e care to avoid staining your vehicle
with traces of fluid. Keep the kit to hand.
F
Dr
ive immediately for approximately
three miles (five kilometres), at reduced
speed (between 15 and 35 mph (20 and
60
k
m/h)), to plug the puncture.
F
St
op to check the repair and the tyre
pressure using the kit.

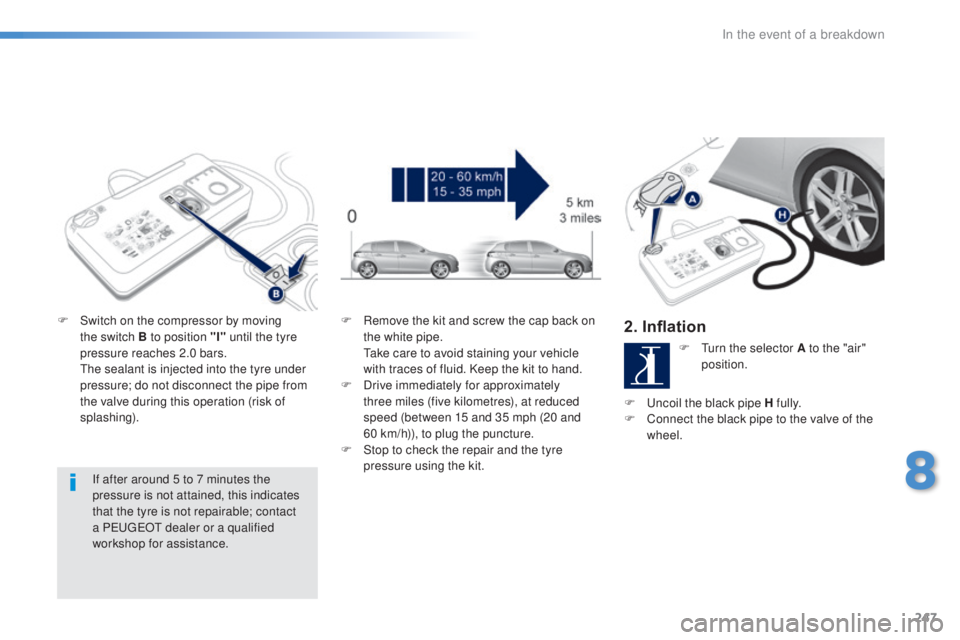

2. Inflation
F turn the selector A to the "air"
p osition.
F


u
nc

oil the black pipe H fully.
F
Co

nnect the black pipe to the valve of the
wheel.
8
In the event of a breakdown

248
308_en_Chap08_en-cas-de-panne_ed02-2015
F Connect the compressor's electric plug to
t
he vehicle's 12 V socket.
F
St

art the vehicle again and leave the
engine running. F Ad
just the pressure using the compressor
(to inflate: switch B in position "I" ; to
deflate: switch B
i

n position "O" and press
button C ), in accordance with the vehicle's
tyre pressure label (located on the left
hand door aperture).
A lo

ss of pressure indicates that the
puncture has not been fully plugged;
contact a P
eu

ge
Ot d
ealer or qualified
workshop for assistance.
F
Re

move and stow the kit.
F
Dr

ive at reduced speed (50 mph [80 km/h]
max) limiting the distance travelled to
approximately 120 miles (200 km).
As soon as possible, go to a P
eu

ge
Ot
d

ealer or a qualified workshop.
You must inform the technician that you
have used this kit. After inspection, the
technician will advise you on whether
the tyre can be repaired or if it must be
replaced.

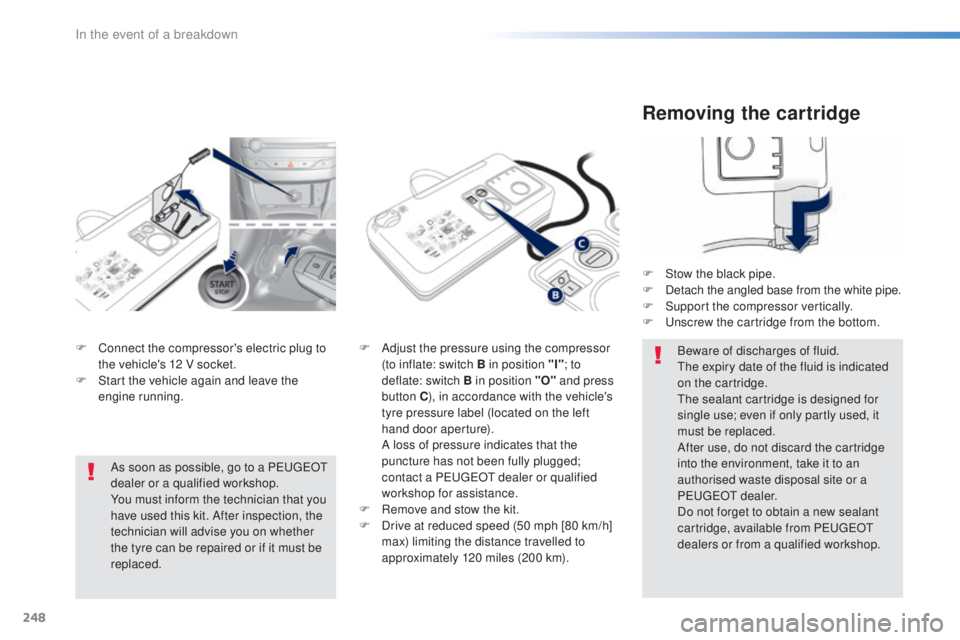

Removing the cartridge
F Stow the black pipe.
F De tach the angled base from the white pipe.
F
Su

pport the compressor vertically.
F


u
ns
crew the cartridge from the bottom.
Beware of discharges of fluid.
the e

xpiry date of the fluid is indicated
on the cartridge.
the s

ealant cartridge is designed for
single use; even if only partly used, it
must be replaced.
After use, do not discard the cartridge
into the environment, take it to an
authorised waste disposal site or a
P
eu

ge
Ot dea
ler.
Do not forget to obtain a new sealant
cartridge, available from P
eu

ge
Ot
d

ealers or from a qualified workshop.
In the event of a breakdown

249
308_en_Chap08_en-cas-de-panne_ed02-2015

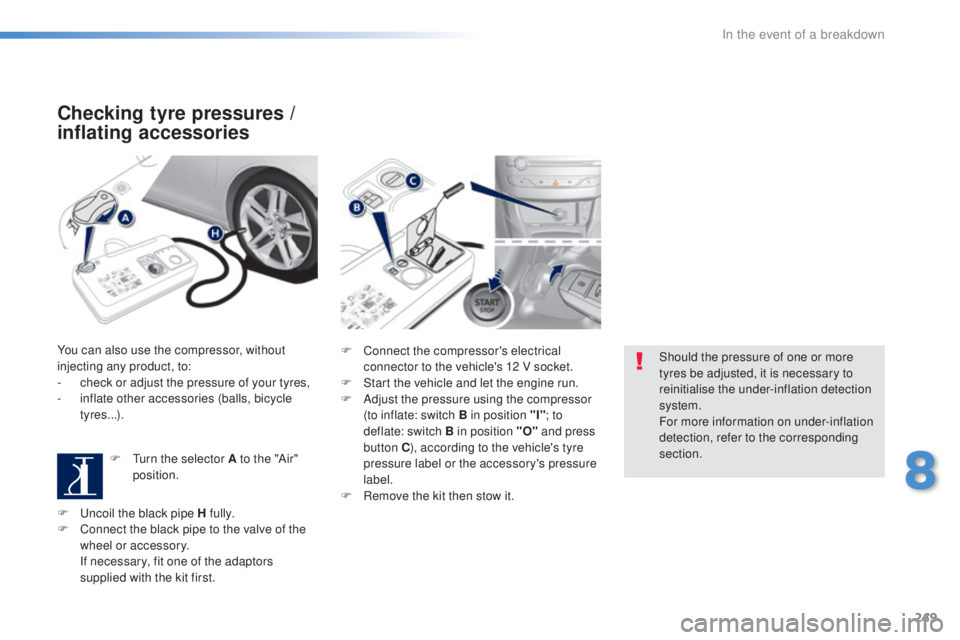

Checking tyre pressures /
inflating accessories
You can also use the compressor, without
injecting any product, to:
-
ch

eck or adjust the pressure of your tyres,
-
in

flate other accessories (balls, bicycle
tyres...).
F


t
ur
n the selector A to the "Air"
position. F Con
nect the compressor's electrical
connector to the vehicle's 12 V socket.
F
St

art the vehicle and let the engine run.
F
Ad

just the pressure using the compressor
(to inflate: switch B in position "I" ; to
deflate: switch B in position "O" and press
button C ), according to the vehicle's tyre
pressure label or the accessory's pressure
label.
F
Re

move the kit then stow it.Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
For more information on under-inflation
detection, refer to the corresponding
section.
F


u
nc
oil the black pipe H fully.
F
Co

nnect the black pipe to the valve of the
wheel or accessory.
If n

ecessary, fit one of the adaptors
supplied with the kit first.
8
In the event of a breakdown

250
308_en_Chap08_en-cas-de-panne_ed02-2015
Changing a wheel
the tools are installed in the boot under the
f l o o r.
Access to the tooling
List of tools
these tools are specific to your vehicle and can
v ary according to the level of equipment. Do
not use them for other purposes.
1.
W

heelbrace.
Fo

r removing the wheel trim and removing
the wheel bolts.
2.
Ja

ck with integral handle.
Fo

r raising the vehicle. 3.
"B

olt cover" tool.
Fo

r removing the bolt protectors (covers)
on alloy wheels.
4.
So
cket for the security bolts (located in the
glove box).
Fo
r adapting the wheelbrace to the special
"security" bolts.
5.
tow
ing eye.
Procedure for changing a wheel with a damaged or punctured tyre for the spare wheel using the tools provided with the vehicle.
For more information on towing, refer to
the corresponding section.
Wheel with trim
When refitting the wheel, refit the trim
starting by placing its notch facing the
valve and press around its edge with
the palm of your hand.
In the event of a breakdown

251
308_en_Chap08_en-cas-de-panne_ed02-2015
Taking out the wheel
F unscrew the (coloured) central bolt.
F Ra ise the spare wheel towards you from
the rear.
F


t
ak
e the wheel out of the boot.
Access to the spare wheel
the spare wheel is located in the boot under
t h e f l o o r.
Depending on the country of sale, the spare
wheel may be steel, alloy or of the "space-
saver" type.
Putting the wheel back in place
F Put the wheel back in its housing.
F uns crew the (coloured) central bolt by a
few turns then put it in place in the centre
of the wheel.
F


t
ig
hten fully until the central bolt clicks to
retain the wheel correctly. F Pu
t the box back in place in the centre of
the wheel and clip it.
F
Pu

t the polystyrene storage box back in
place.
8
In the event of a breakdown

252
308_en_Chap08_en-cas-de-panne_ed02-2015
F Remove the bolt cover from each of
t
he bolts using the tool 3 (according to
equipment).
F
Fi

t the security socket 4 on the
wheelbrace
1

to slacken the security bolt
(if
f

itted).
F
Sl

acken the other bolts using the
wheelbrace 1 o n l y. F Po
sition the foot of the jack on the ground,
ensuring that it is directly below the
vehicle's jacking point A or B , the one
closest to the wheel to be changed.
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and not slippery.
Apply the parking brake unless it has
been programmed to automatic mode,
switch off the ignition and engage first
gear to block the wheels.
Check that the braking warning lamp
and the P warning lamp in the parking
brake control lever come on.
the o

ccupants must get out of the
vehicle and wait where they are safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.
Do not use:
-
th

e jack for any other purpose than
lifting the vehicle,
-
a ja

ck other than the one supplied
by the manufacturer.
In the event of a breakdown

253
308_en_Chap08_en-cas-de-panne_ed02-2015
ensure that the jack is stable. If the ground is slippery or loose, the jack may slip or drop -
R isk of injury!
ens

ure that the jack is positioned only at one of the jacking points A or B under the vehicle,
making sure that the vehicle's contact sur face is centred on the head of the jack. Other wise
there is a risk of damage to the vehicle and/or of the jack dropping - Risk of injury! F
Re

move the bolts and store them in a clean
place.
F
Re
move the wheel.
F


e
xt
end the jack 2
until its head comes into contact with the jacking point A or B used, with the
contact sur face A or B on the vehicle correctly engaged with the central part of the head of the jack.
F
Rai
se the vehicle until there is sufficient space between the wheel and the ground to admit the
spare (not punctured) wheel easily.
8
In the event of a breakdown

254
308_en_Chap08_en-cas-de-panne_ed02-2015

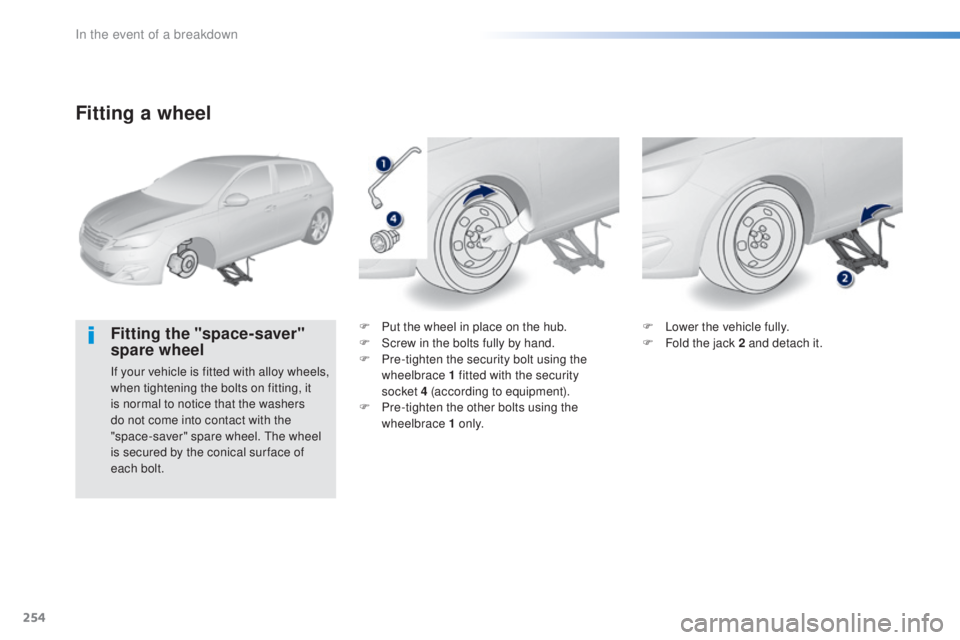

Fitting a wheel
Fitting the "space-saver"
spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel.
the w

heel
is secured by the conical sur face of
each bolt. F
Pu

t the wheel in place on the hub.
F
Sc
rew in the bolts fully by hand.
F Pr e-tighten the security bolt using the
wheelbrace 1 fitted with the security
socket 4 (according to equipment).
F
Pr

e-tighten the other bolts using the
wheelbrace 1 o n l y. F
Lo

wer the vehicle fully.
F
Fo
ld the jack 2 and detach it.
