2016 Peugeot 308 Owner's Manual

95
308_en_Chap03_ergonomie-et-confort_ed02-2015
the air conditioning is designed to
ope rate effectively in all seasons,
with the windows closed.
Air conditioning On / Off
Switching on
Switching off
the air conditioning does not operate
w hen the air flow adjustment is set
to
of

f.
F
Press this button, its indicator lamp
comes on.
It enables you to:
- lo
wer the temperature, in summer,
-
in

crease the effectiveness of the demisting
in winter, above 3°C.
F
Pr

ess this button again, its
indicator lamp goes off.
Air distribution adjustment
these buttons are used to arrange
t he distribution of air in the passenger
compartment by combining several air outlets.
Windscreen.
the a

ir distribution can be adapted by using
several buttons: illumination of the indicator
lamp confirms the presence of fan boosted air
in the direction indicated, the indicator lamp off
indicates the absence of fan boosted air in the
direction indicated.
For a uniform distribution of air in the
passenger compartment, the three buttons can
be activated simultaneously. Footwells. Central and side vents.
Switching off may result in some discomfort
(humidity, misting).
to ob
tain cool air more quickly, you can use
interior air recirculation for a few moments.
the

n return to the intake of exterior air.
3
ease of use and comfort

96
308_en_Chap03_ergonomie-et-confort_ed02-2015

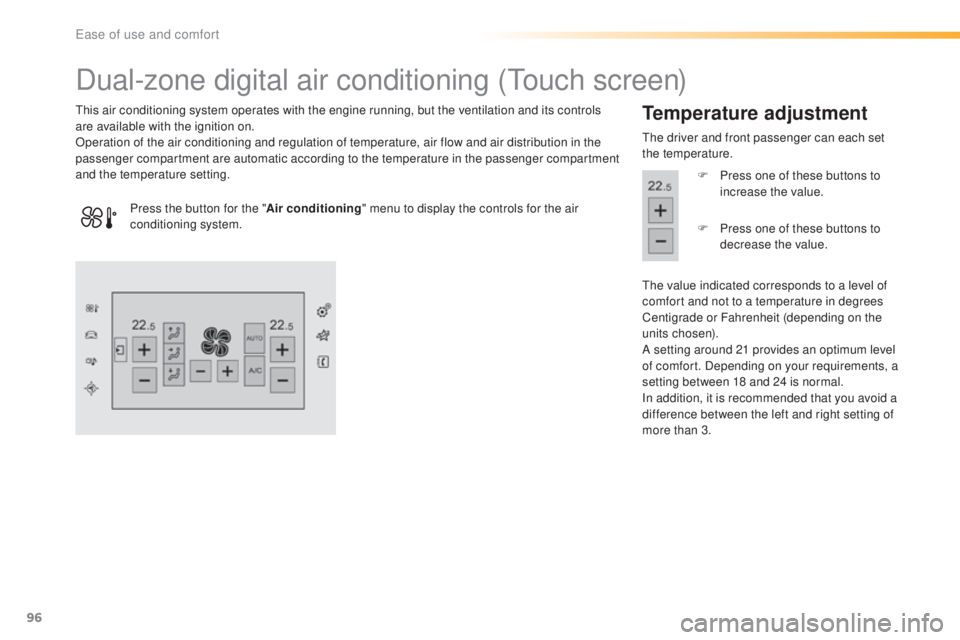

Dual-zone digital air conditioning (touch screen)
this air conditioning system operates with the engine running, but the ventilation and its controls
a re available with the ignition on.
Operation of the air conditioning and regulation of temperature, air flow and air distribution in the
passenger compartment are automatic according to the temperature in the passenger compartment
and the temperature setting.Temperature adjustment
the driver and front passenger can each set
t he temperature.
F
Pr

ess one of these buttons to
increase the value.
the v

alue indicated corresponds to a level of
comfort and not to a temperature in degrees
Centigrade or Fahrenheit (depending on the
units chosen).
A setting around 21 provides an optimum level
of comfort. Depending on your requirements, a
setting between 18 and 24 is normal.
In addition, it is recommended that you avoid a
difference between the left and right setting of
more than 3.
Press the button for the "
Air conditioning" menu to display the controls for the air
conditioning system. F
Pr

ess one of these buttons to
decrease the value.
ease of use and comfort

97
308_en_Chap03_ergonomie-et-confort_ed02-2015
In cold conditions and when the engine
is cold, to limit distribution of cold air
in the passenger compartment, the
air flow will change gradually until the
comfort setting is reached.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value setting, there
is no need to alter the value displayed
in order to reach more quickly the
required level of comfort.
the s
ystem
compensates automatically and
corrects the temperature difference as
quickly as possible.
thi

s setting is associated with A
utO mo
de
only. However, on deactivation of A
utO mo
de,
the indicator for the last setting remains on.
Changing the setting does not reactivate A
utO
m

ode if deactivated.
When the indicator lamp in the button is on, the
air conditioning system operates automatically:
the system manages the temperature, air
flow and air distribution in the passenger
compartment in an optimum way according to
the comfort level you have selected. F
Pr

ess the "AUTO"
button
to activate or deactivate the
automatic mode of the air
conditioning system.
Automatic comfort programme
to change the current setting, shown by the
g reen indicator lamp, press the button for the
desired mode:
"Soft": provides soft and quiet
operation by limiting air flow.
"Normal": offers the best compromise
between a comfortable temperature
and quiet operation (default setting).
"Fast": provides strong and effective
air f low.
It is possible to modulate the intensity
of the automatic comfort programme
by choosing one of three mode
settings offered in a secondary page
of the "
Air conditioning " menu.
3
ease of use and comfort

98
308_en_Chap03_ergonomie-et-confort_ed02-2015
You can modulate the distribution of air in the
passenger compartment using these three buttons.
Air flow adjustment
Avoid driving for too long with the
ventilation off (risk of misting and
deterioration of air quality).
Air distribution adjustment
F Press one of these buttons
to increase or decrease the
speed of the booster fan.
the a

ir flow symbol (a fan) is filled in
progressively in relation to the quantity of air
wanted.
By reducing the air flow to minimum, you are
stopping ventilation.
" OFF " is displayed alongside the fan. Windscreen.
Centre and side vents. Footwells.
eac

h press on a button activates or deactivates
the function.
the i

ndicator lamp is on when the
button is activated. For a uniform distribution in
the passenger compartment, all three buttons
can be pressed simultaneously.
Resuming manual control
You can manually adjust one or more settings,
while retaining automatic control of the other
functions:
-
ai

r flow,
-
air

distribution.
F
Pr

ess the "AUTO" button again
to activate the automatic comfort
programme again.
As soon as you modify a setting, the indicator
lamp in the "
AUTO" button goes off.
In A
utO mo

de, the indicator lamps in all three
buttons are off.
ease of use and comfort

99
308_en_Chap03_ergonomie-et-confort_ed02-2015

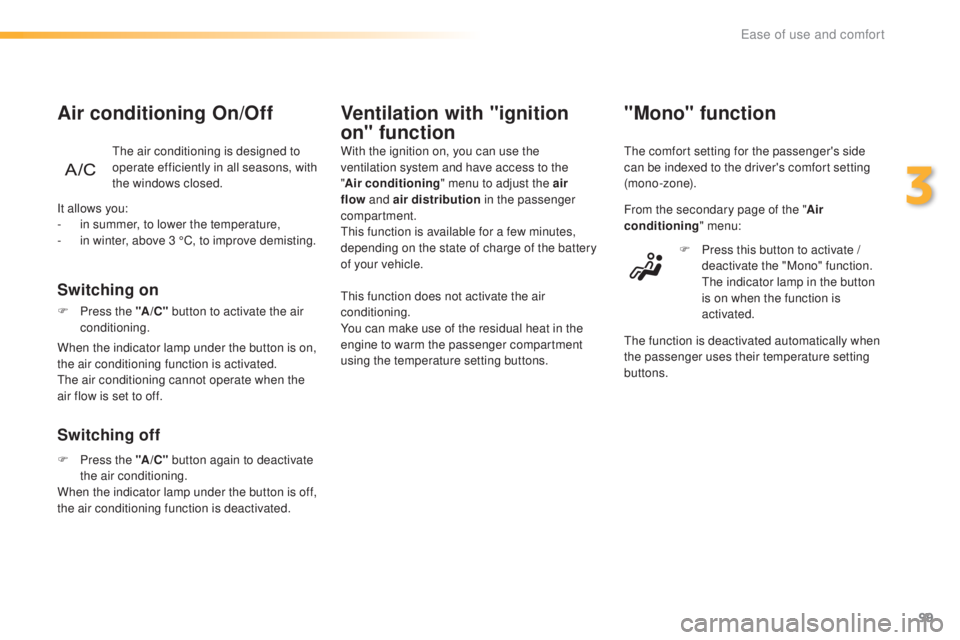

"Mono" function
the comfort setting for the passenger's side
c an be indexed to the driver's comfort setting
(mono-zone).
From the secondary page of the " Air
conditioning " menu:
F
Pr

ess this button to activate /
deactivate the "Mono" function.
the i

ndicator lamp in the button
is on when the function is
activated.
the f

unction is deactivated automatically when
the passenger uses their temperature setting
buttons.
It allows you:
-
in s

ummer, to lower the temperature,
-
in w

inter, above 3 °C, to improve demisting.
Switching off Switching on
Air conditioning On/Off
the air conditioning is designed to
o perate efficiently in all seasons, with
the windows closed.
Ventilation with "ignition
on" function
With the ignition on, you can use the
ventilation system and have access to the
" Air conditioning " menu to adjust the air
flow and air distribution in the passenger
compartment.
thi

s function is available for a few minutes,
depending on the state of charge of the battery
of your vehicle.
thi

s function does not activate the air
conditioning.
You can make use of the residual heat in the
engine to warm the passenger compartment
using the temperature setting buttons.
F
Pr

ess the " A/C" button to activate the air
conditioning.
When the indicator lamp under the button is on,
the air conditioning function is activated.
the a

ir conditioning cannot operate when the
air flow is set to off.
F
Pr

ess the "A /C " button again to deactivate
the air conditioning.
When the indicator lamp under the button is off,
the air conditioning function is deactivated.
3
ease of use and comfort

100
308_en_Chap03_ergonomie-et-confort_ed02-2015
Air intake / Air recirculation
the intake of exterior air avoids misting of the
w indscreen and side windows.
the r

ecirculation of interior air insulates the
passenger compartment from exterior odours
and smoke. Return to exterior air intake as soon as
possible to prevent deterioration of the
air quality and the formation of mist.
thi

s allows hot or cold air to be
delivered quickly when required. F
Pr

ess this button to recirculate
the interior air. Its indicator lamp
comes on.
F
Pr
ess the button again to allow
fresh air into the passenger
compartment. Its indicator lamp
goes off.
ease of use and comfort

101
308_en_Chap03_ergonomie-et-confort_ed02-2015
Front demist - defrost
these markings on the control panel indicate the control positions for rapid demisting or
d efrosting of the windscreen and side windows.
With manual air
conditioning
With Stop & Start, when demisting has
been activated, the StOP m ode is not
available.
With manual or dual-zone
digital air conditioning
F Put the air flow, temperature and
d istribution controls to the dedicated
marked position.
F
Pr

ess the "A /C " button for air conditioning;
the indicator lamp in the button comes on. F Pr
ess this button to demist or
defrost the windscreen and side
windows as quickly as possible.
(with the touch screen)
the system automatically manages the air
c onditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
F


t
o st
op, press this button again or on
"AUTO" .
the s

ystem reverts to the previous settings.
3
ease of use and comfort

102
308_en_Chap03_ergonomie-et-confort_ed02-2015
Rear screen demist - defrost
Switching onSwitching off
F Press this button to demist /
d
efrost the rear screen and
(depending on version) the door
mirrors.
the i

ndicator lamp associated with
the button comes on.
the demisting/defrosting switches off automatically
t o prevent an excessive consumption of current.
the rear screen demist - defrost
c an only operate when the engine is
running.
Switch off the heating of the rear screen
and door mirrors as soon as you judge it
possible, as reducing the consumption
of electrical current reduces fuel
consumption. F
It i
s possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing the
button again.
the i
ndicator lamp associated with
the button goes off.
ease of use and comfort
