2016 Peugeot 308 Owner's Manual

71
308_en_Chap03_ergonomie-et-confort_ed02-2015
Steering wheel adjustment
F When stationary, l ower the control lever
to release the steering wheel adjustment
mechanism.
F
Ad

just the height and reach to suit your
driving position.
F
Pu

ll the control lever to lock the steering
wheel adjustment mechanism.
As a safety precaution, these
operations should only be carried out
while the vehicle is stationary.
PeugeOt i- Cockpit
Before taking to the road and to make the most
of the special ergonomics of the Peu
geOt
i
- Cockpit, carry out these adjustments in the
following order:
-
head

restraint height,
-
ba

ckrest angle,
-
seat

cushion height,
-
se

at longitudinal position,
-
st

eering wheel reach and then height
-
th

e interior and door mirrors.
Once these adjustments have been made,
ensure that from your driving position you can
see the "head-up" instrument panel clearly,
over the reduced diameter steering wheel.
Before moving the seat backwards,
ensure that there is nothing that might
prevent the full travel of the seat, so
as to avoid the risk of of jamming the
seat caused by the presence of objects
on the floor behind the seat or rear
passengers. If the seat jams, stop the
movement immediately.
3
ease of use and comfort

72
308_en_Chap03_ergonomie-et-confort_ed02-2015
Front seats with manual adjustments
F Raise the control and slide the seat
forwards or backwards. F Pu
ll the control upwards to raise or push
it downwards to lower, as many times as
required, to obtain the position required. F
tur n the knob to adjust the backrest.
Forwards-backwards
HeightSeat backrest angle
As a safety measure, seat adjustments should only be carried out when stationary.
F

t
ur
n the knob manually to obtain the
desired level of lumbar support.
LumbarBefore moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of
objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement
immediately.
ease of use and comfort

73
308_en_Chap03_ergonomie-et-confort_ed02-2015
electric driver's seat
Forwards-backwardsSeat backrest angleSeat cushion height and
angle
to avoid discharging the battery, carry out
t hese adjustments with the engine running.
F Push the control for wards or rear wards to
sl ide the seat. F
til t the control for wards or rear wards to
adjust the angle of the seat backrest. F
tip t he rear of the control upwards or
downwards to obtain the desired height.
F


t
ip t
he front of the control upwards or
downwards to obtain the desired angle.
Before moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of
objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement
immediately.
3
ease of use and comfort

74
308_en_Chap03_ergonomie-et-confort_ed02-2015

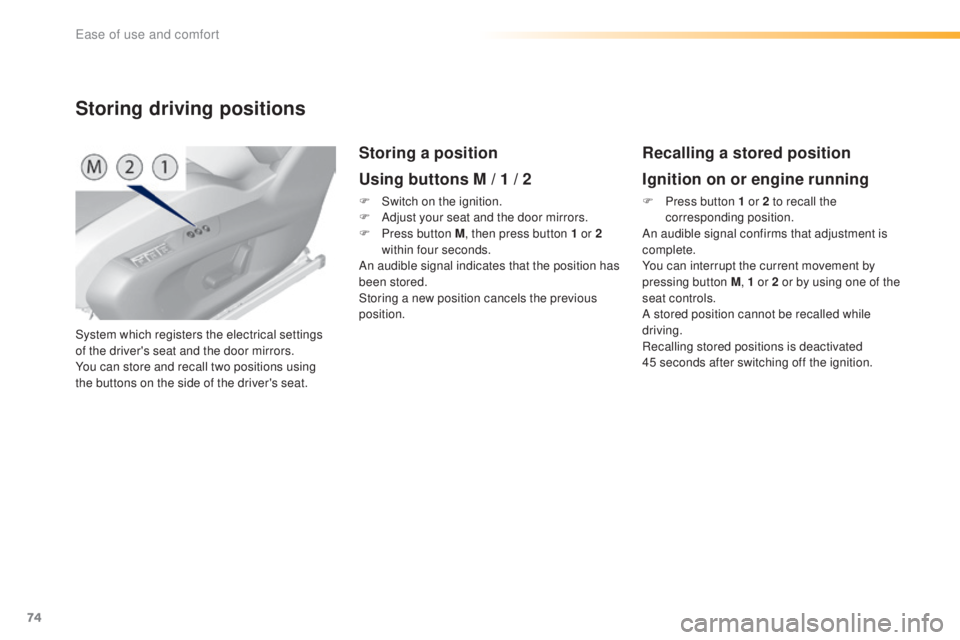

System which registers the electrical settings
of the driver's seat and the door mirrors.
You can store and recall two positions using
the buttons on the side of the driver's seat.
Storing driving positions
Storing a position
Using buttons M / 1 / 2
F Switch on the ignition.
F Ad just your seat and the door mirrors.
F
Pr

ess button M , then press button 1 or 2
within four seconds.
An audible signal indicates that the position has
been stored.
Storing a new position cancels the previous
position.
Recalling a stored position
Ignition on or engine running
F Press button 1 or 2 to recall the
c orresponding position.
An audible signal confirms that adjustment is
complete.
You can interrupt the current movement by
pressing button M , 1 or 2 or by using one of the
seat controls.
A stored position cannot be recalled while
driving.
Recalling stored positions is deactivated
45
s

econds after switching off the ignition.
ease of use and comfort

75
308_en_Chap03_ergonomie-et-confort_ed02-2015
Heated seats control
0: Of f.
1 : Low.
2 : Medium.
3 : High.
F


u
se t
he adjustment wheel to switch on and
select the level of heating required:
With the engine running, the front seats can be
heated separately.
F
to ra
ise the head restraint, pull it upwards.
F


t
o re

move the head restraint, press the
lug
A

and pull the head restraint upwards.
F
to put the head restraint back in place, engage
t he head restraint stems in the openings
keeping them in line with the seat back.
F to lower the head restraint, press the lug A
a nd the head restraint at the same time.
the h
ead restraint is fitted with a frame
with notches which prevents it from
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Head restraint height
Additional adjustments
3
ease of use and comfort

76
308_en_Chap03_ergonomie-et-confort_ed02-2015
Electric lumbar adjustment
You can deactivate the massage
function at any time by pressing this
switch, its indicator lamp goes off.
Deactivation
Activation
Massage function
this system provides the occupants of the front
s eats with a lumbar massage. It only operates
when the engine is running or in S
tOP m

ode of
the Stop & Start system.
F
Pr

ess this switch.
Its indicator lamp comes on and the massage
function is activated for a period of 1 hour.
During this time, massage is per formed in
6 cycles of 10 minutes (6 minutes of massage
followed by 4 minutes break).
After one hour, the function is deactivated, the
indicator lamp goes off.
Adjustment of intensity
Press this button to adjust the
intensity of the massage.
two l
evels of massage are available.
F
Pr

ess the control to obtain the desired
lumbar support.
ease of use and comfort

77
308_en_Chap03_ergonomie-et-confort_ed02-2015
Rear seats (hatchback)
F Move the corresponding front seat for ward
if necessary.
F
Che

ck that the corresponding outer seat
belt is positioned correctly against the
backrest and buckle it.
F
Pl

ace the head restraints in the low
position. F Straighten the seat backrest 2 and secure it.F Check that the red indicator, located next to
t
he control 1 , is no longer visible.
F


u
nb
uckle and reposition the outer seat belt
on the side of the backrest.
When folding the seat, the centre seat
belt should not be fastened, but laid out
flat on the seat
F
Pr

ess control 1 to release the seat
backrest 2 .
F Fo
ld the seat backrest 2 on to the
cushion
3 .
Folding the backrestRepositioning the seat backrest
Rear seats with fixed one-piece cushion and 1/3 - 2/3 split backrests which can be folded individually to adapt the load space in the boot.
the r

ear seat cushion does not fold,
just the seat backrest can be folded to
increase the boot loading space. When repositioning the seat backrest,
take care not to trap the seat belts.
3
ease of use and comfort

78
308_en_Chap03_ergonomie-et-confort_ed02-2015
Rear seats (SW)
1/3 - 2/3 split rear seats which can be folded to vary the boot load space.
eac
h section of the seat (1/3 or 2/3) has its own control to release the seat back from inside the
boot.
Folding the seat from the
boot
F Check that nothing is preventing the seat
b ack from folding (seat belts, . ..) and that
no object might inter fere with the seat
manoeuvre (above as well as below).
F
Pl

ace the head restraints in the low
position. F Pu
ll the control from inside the boot, the
seat backrest folds onto the cushion.
Folding the seat from the
rear
F Check that nothing is preventing the seat
b ackrest folding and that no object might
interfere with the seat manoeuvre
(above as well as below).
F
Mov

e the corresponding front seat
forwards if necessary.
F
Ch

eck that the seat belt is positioned
correctly on the side of the seat back.
F
Pl

ace the head restraints in the low
position.
ease of use and comfort
