2016 Peugeot 308 Owner's Manual

255
308_en_Chap08_en-cas-de-panne_ed02-2015
F tighten the security bolt using the
w heelbrace 1 fitted with the security
socket
4

(according to equipment).
F


t
ig
hten the other bolts using the
wheelbrace 1 o n l y.
F
Re

fit the bolt covers on each of the bolts
(according to equipment).
F
St

ore the tools in the box.
the t
yre inflation pressures are given on
this
lab

el.
After changing a wheel
to store the punctured wheel in the boot
c orrectly, first remove the central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80
k

m/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a P
eu

ge
Ot d
ealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
If your vehicle has tyre under-inflation
detection, check the tyre pressures then
refer to the corresponding section.
8
In the event of a breakdown

256
308_en_Chap08_en-cas-de-panne_ed02-2015
Changing a bulb
Front lamps
Model with "full LED" technology
headlamps
1. Daytime running lamps / sidelamps (light
e
mitting diodes - LeDs ).
2.
Dip

ped beam headlamps (light emitting
diodes - full L
eDs

).
3.
Ma

in beam headlamps (light emitting
diodes - full L
eDs

).
4.
Di

rection indicators (PY21-21W).
Model with halogen headlamps
1. Dipped beam headlamps (H7-55W).
2. Ma in beam headlamps (HB3).
3.
Di

rection indicators (PY21-21W).
4.
Da

ytime running lamps / sidelamps
(light emitting diodes - L
eDs

).
For H7 type bulbs with lugs... take care to
observe their correct installation so as to
ensure the best lighting performance.
Front fog lamps (H11)
Direction indicators
(GT version)
For the replacement of this type of LeD la mp,
contact a Peu geOt d ealer or a qualified
workshop.
A replacement kit for the L
eDs i

s available from
P
eu

ge
Ot dea
lers.
In the event of a breakdown

257
308_en_Chap08_en-cas-de-panne_ed02-2015
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.the h
eadlamps are fitted with
polycarbonate glass with a protective
coating:
F
do n

ot clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
us

e a sponge and soapy water or a
pH neutral product,
F
wh

en using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
Do n

ot touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (
uV) t

ype bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Daytime running lamps / sidelamps
For the replacement of this type of LeD la mp
and lighting guides, contact a Peu geOt d ealer
or a qualified workshop.
A replacement kit for the L
eDs i

s available from
P
eu

ge
Ot dea
lers.
8
In the event of a breakdown

258
308_en_Chap08_en-cas-de-panne_ed02-2015
Main beam headlamps
(halogen model)
F Remove the protective plastic cover by
p
ulling on the tab.
F


t
ur
n the connector (with its bulb) towards
the top (1/4 turn).
F
Re

move the bulb by pulling it out and
change it.
For reassembly, carry out these operations in
reverse order.
Dipped beam headlamps
(halogen model)
F Remove the protective plastic cover by
p
ulling on the tab.
F
Di

sconnect the bulb connector.
F
Disenga

ge the two springs (press then
move them outwards).
F


e
xt
ract the bulb by pulling and change it.
For reassembly, carry out these operations in
reverse order.
Be aware that the area behind the
right-hand headlamp (facing forwards)
may be hot, with the risk of burns
(over flow
p

ipe).
to al

low the headlamp to be moved for ward
a few centimetres for access to the bulbs,
proceed as follows:
F Move the orange clip towards the rear
t hen while pressing on the black part
(located above the orange clip) pull on the
connector.
F
Re

move the two screws holding the lamp.
F
Disenga

ge the rear pin then the front
centre piece.
F
Mov

e the lamp for wards.
Tips for removing the headlamp (halogen model)
In the event of a breakdown

259
308_en_Chap08_en-cas-de-panne_ed02-2015
For reassembly, carry out these operations in
reverse order.

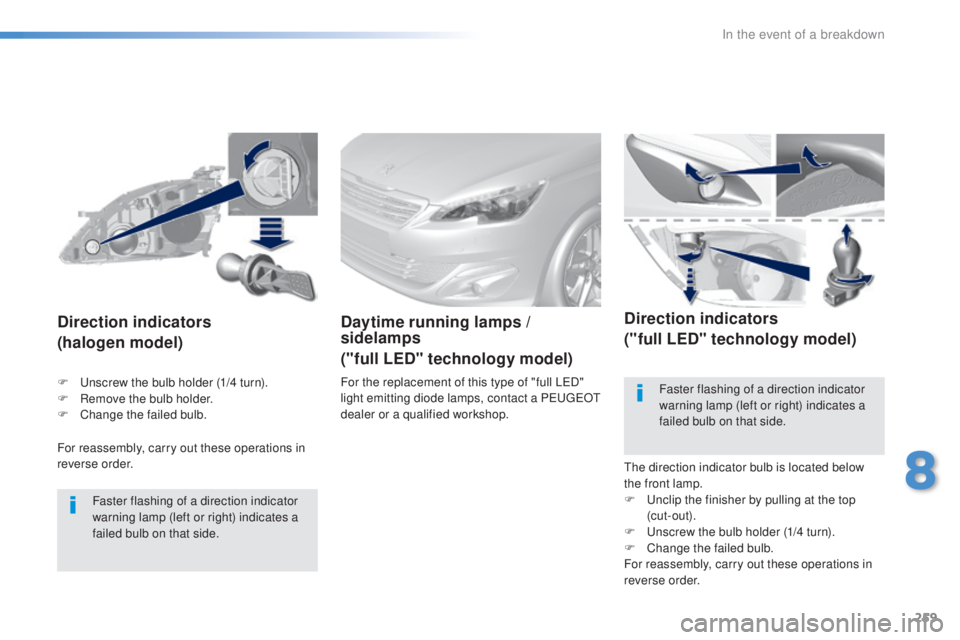

Direction indicators
(halogen model)
Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
Daytime running lamps /
sidelamps
("full LED" technology model)
For the replacement of this type of "full LeD"
l ight emitting diode lamps, contact a Peu geOt
d
ealer or a qualified workshop.
Direction indicators
("full LED" technology model)
the direction indicator bulb is located below
t he front lamp.
F


u
nc
lip the finisher by pulling at the top
(cut-out).
F


u
ns
crew the bulb holder (1/4 turn).
F
Ch

ange the failed bulb.
For reassembly, carry out these operations in
reverse order. Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
F


u
ns

crew the bulb holder (1/4 turn).
F
Re

move the bulb holder.
F
Ch

ange the failed bulb.
8
In the event of a breakdown

260
308_en_Chap08_en-cas-de-panne_ed02-2015
Integrated direction indicator
side repeaters
You should contact a Peu geOt d ealer or a
qualified workshop for the replacement of these
bulbs. You should contact a P
eu
ge
Ot d
ealer or a
qualified workshop for the replacement of the
light emitting diode - L
eD.
Front foglamps
F unclip the finisher by pulling at the top
( cut-out).
F
Re

move the two screws to remove the unit
from its housing. F Di
sconnect the connector.
F uns crew the bulb holder (1/4 turn).
F
Re

move the bulb holder.
F
Ch

ange the failed bulb.
For reassembly, carry out these operations in
reverse order, pressing on the finisher to refit it.
Door mirror spotlamps
In the event of a breakdown

261
308_en_Chap08_en-cas-de-panne_ed02-2015
1. Sidelamps (light emitting diodes - LeDs ).
2. Re versing lamps (W16W).
3.
Di

rection indicators (PY21W amber).
4.
Br

ake lamps (light emitting diodes - L
eDs
).
5.
Fo

glamps (P21W).
Rear lamps
(hatchback)
Light emitting
diodes-LEDs
For replacement, contact a Peu geOt
d ealer or qualified workshop.
Reversing lamps, direction
indicators (on the wings)
F Disconnect the lamp connector.
F Re move the lamp fixing nut.
F
Ca

refully remove the lamp unit from
outside.
F


u
ns
crew the bulb holder (a quarter of a
turn) and change the bulb.
For reassembly, carry out these operations in
reverse order.
F Op
en the tailgate then remove the access
c ove r.
8
In the event of a breakdown

262
308_en_Chap08_en-cas-de-panne_ed02-2015
F unclip the left and right access covers.
F Re move the screws located in each
opening.
F


u
nc
lip the boot trim for access to the lamp
connector.
F
Di

sconnect the lamp connector.
F
Re

move the lamp fixing nut.
F
Ca

refully remove the lamp from the
outside.
F


u
ns
crew the bulb holder (a quarter of a
turn) and change the bulb.
For reassembly, carry out these operations in
reverse order.
Foglamp (tailgate)
F Open the tailgate and then remove the
l arge plastic cover.
