Topping-up the AdBlue® additive
Filling the AdBlue® tank is an operation
included in every routine service on your
vehicle by a P
eu

ge
Ot d
ealer or a qualified
workshop.
Nevertheless, given the capacity of the tank,
it may be necessary to top-up the additive
between services, more particularly if an alert
(warning lamps and a message) signals the
requirement.
You can got to a P
eu

ge
Ot d
ealer or a
qualified workshop.
If you envisage topping-up yourself, please
read the following warnings carefully.Precautions in use
Keep AdBlue® out of the reach of
children, in its original bottle.
Never transfer AdBlue
® to another
container: it would lose its purity.
use
only AdBlue
® additive that meets the
ISO 22241 standard.
Never dilute the additive with water.
Never pour the additive into the Diesel
fuel tank.
the s

upply in a non-drip bottle simplifies
toping-up. You can obtain 1.89 litre (half a
uS
ga

llon) bottles from a P
eu
ge
Ot d
ealer or a
qualified workshop.
Never top-up from an AdBlue
®
dispenser reserved for heavy goods
vehicles.
the

AdBlue
® additive is an urea-based
solution. thi
s liquid is non-flammable,
colourless and odourless (kept in a cool area).
In the event of contact with the skin, wash
the affected area with soap and water. In the
event of contact with the eyes, wash (irrigate)
the eyes with large amounts of water or with
an eye wash solution for at least 15 minutes.
If a burning sensation or irritation persists, get
medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (high ambient
temperature, for example), the risk of release
of ammonia cannot be excluded: do not inhale
the product. Ammonia vapour has en irritant
effect on mucous membranes (eyes, nose and
throat).
Important
If your vehicle's AdBlue
® tank is
co
mpletely empty (which is confirmed
by the alert messages and the
impossibility of starting the engine)
you must add at least 3.8 litres
(so two 1.89 litre bottles).
7
Practical information

240
308_en_Chap07_info-pratiques_ed02-2015
Recommendations on storage
Never store bottles of AdBlue® in your
vehicle.
AdBlue
® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
under

these conditions, the additive can be
kept for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
Procedure
Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Otherwise the AdBlue
® may be frozen and
so cannot be poured into its tank. Park your
vehicle in a warmer area for a few hours to
allow the top-up to be carried out.
F
Sw

itch off the ignition and remove the
key, or if your vehicle has one, press
the S
tARt/StOP b

utton to switch off
the
eng

ine. F
Fo

r access to the AdBlue
® tank, raise the
boot carpet then, depending on equipment,
lift out the spare wheel and/or the storage
box.
F
Wi

thout pressing, turn the black cap a
quarter turn anti-clockwise and lift it off.
F


t
ur

n the blue cap a 6
th of a turn anti-
clockwise.
F
Li

ft off the cap.
Practical information

241
308_en_Chap07_info-pratiques_ed02-2015
Never dispose of AdBlue® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your dealer.
F
Af

ter emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth. If any additive is split or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
F
Re

fit the blue cap to the tank and turn it a
6
th of a turn clockwise, to its stop.
F Re fit the black cap and turn it a quarter of
a turn clockwise without pressing.
ens

ure
that the indicator on the cap lines up with
the indicator on the support.
F
De

pending on equipment, return the spare
wheel and/or the storage box to the bottom
of the boot.
F
Re

fit the boot carpet and close the tailgate. Important: when topping
-up after
running out of additive , signalled
by the message "
top u
p emissions
additive: Starting prevented", you
must wait for about 5 minutes before
switching on the ignition, without
opening the driver's door, unlocking
the vehicle, introducing the key
into the ignition switch, or placing
the key of the "Keyless Entr y and
Star ting" system inside the vehicle .
Switch on the ignition, then wait for
10
se

conds before starting the engine.
F
Ob

tain a bottle of AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank.
Freezing of the AdBlue
® additive
the

AdBlue
® additive freezes at
temperatures below around -11°C.
the S

CR system includes a heater
for the AdBlue
® tank, allowing you to
continue driving in very cold conditions.
7
Practical information

242
308_en_Chap07_info-pratiques_ed02-2015
Version with bass woofer unit
- Carefully disengage the wiring harness
from its housing to give a little more free
length.
-
Re

move the yellow screw retaining the
woofer unit. F Re
move or raise the storage well.
F Pl
ace the bass woofer unit to the side of
the boot.
For reassembly, first slacken the yellow screw
a few turns.
Practical information

243
308_en_Chap08_en-cas-de-panne_ed02-2015
Warning triangle (stowing)
Before leaving your vehicle to set up
and install the triangle, switch on the
hazard warning lamps and put on your
high visibility vest.
thi

s safety equipment should be used in
addition to the hazard warning lamps.
Its presence in the vehicle is mandatory.
Placing the triangle in the
road
Refer to the manufacturer's instructions on
unfolding and installing supplied with the
triangle. F
Pl
ace the triangle behind the vehicle, as
required by the legislation in force in your
c o unt r y.
the t

riangle is available as an
accessory; contact a P
eu

ge
Ot d
ealer
or a qualified workshop.
the s

torage location for a folded triangle or its
box is under the boot floor.
8
In the event of a breakdown

244
308_en_Chap08_en-cas-de-panne_ed02-2015

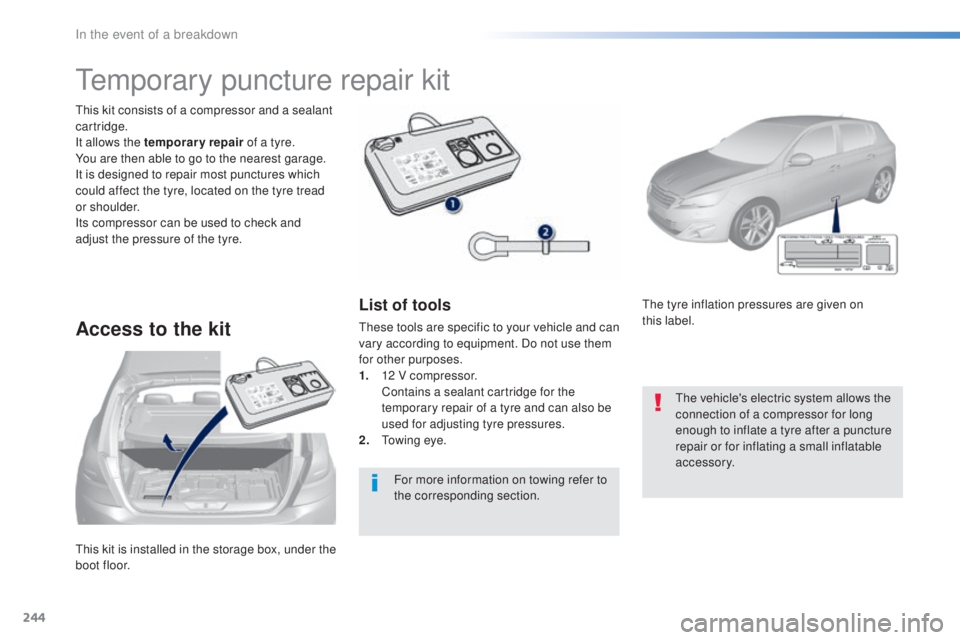

this kit is installed in the storage box, under the
bo ot floor.
thi
s kit consists of a compressor and a sealant
cartridge.
It allows the temporary repair of a tyre.
You are then able to go to the nearest garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.
Its compressor can be used to check and
adjust the pressure of the tyre.
temporary puncture repair kit
Access to the kit
List of tools
these tools are specific to your vehicle and can
v ary according to equipment. Do not use them
for other purposes.
1.
12 V c

ompressor.
Co

ntains a sealant cartridge for the
temporary repair of a tyre and can also be
used for adjusting tyre pressures.
2.
tow

ing eye.
the t
yre inflation pressures are given on
this lab el.
the v

ehicle's electric system allows the
connection of a compressor for long
enough to inflate a tyre after a puncture
repair or for inflating a small inflatable
accessory.
For more information on towing refer to
the corresponding section.
In the event of a breakdown

245
308_en_Chap08_en-cas-de-panne_ed02-2015

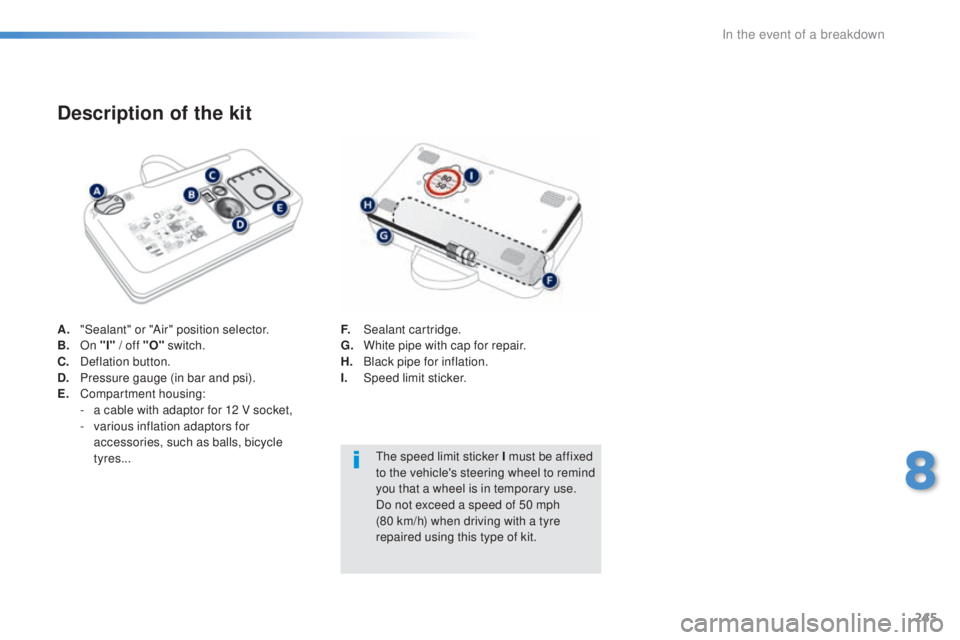

A. "Sealant" or "Air" position selector.
B. O n "I" / off "O" switch.
C.
Def

lation button.
D.
Pr

essure gauge (in bar and psi).
E.
Co

mpartment housing:
-
a ca

ble with adaptor for 12 V socket,
-
var

ious inflation adaptors for
accessories, such as balls, bicycle
tyres...
Description of the kit
F. Sealant cartridge.
G. Wh ite pipe with cap for repair.
H.
Bla

ck pipe for inflation.
I.
Speed

limit sticker.
the s

peed limit sticker I must be affixed
to the vehicle's steering wheel to remind
you that a wheel is in temporary use.
Do not exceed a speed of 50 mph
(80
k

m/h) when driving with a tyre
repaired using this type of kit.
8
In the event of a breakdown

246
308_en_Chap08_en-cas-de-panne_ed02-2015

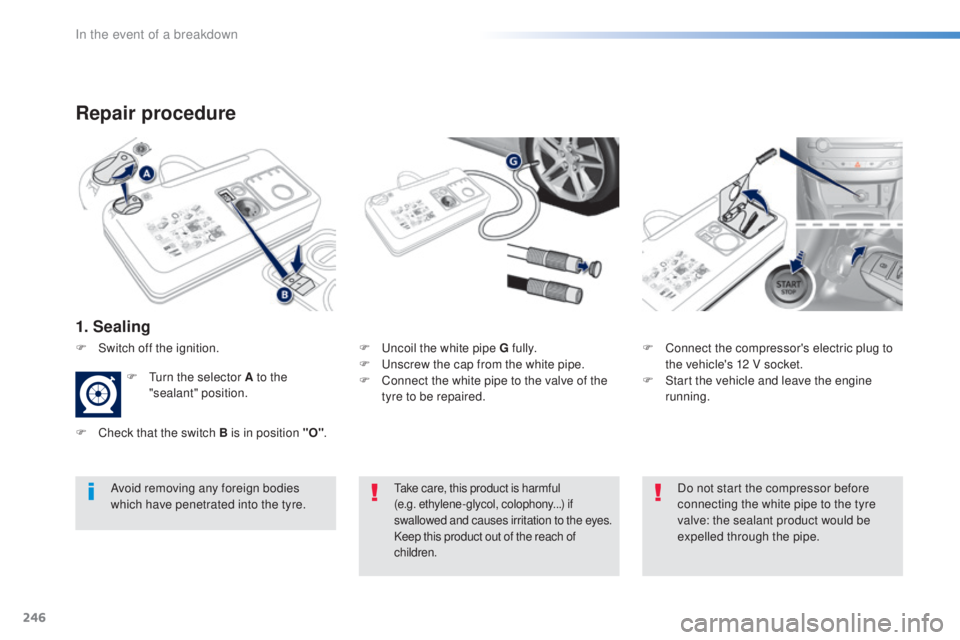

Repair procedure
1. Sealing
F uncoil the white pipe G fully.
F uns crew the cap from the white pipe.
F
Co

nnect the white pipe to the valve of the
tyre to be repaired. F Co
nnect the compressor's electric plug to
the vehicle's 12 V socket.
F
St

art the vehicle and leave the engine
running.
take care, this product is harmful
( e.g. e thylene-glycol, colophony...) if
swallowed and causes irritation to the eyes.
Keep this product out of the reach of
children.Avoid removing any foreign bodies
which have penetrated into the tyre. Do not start the compressor before
connecting the white pipe to the tyre
valve: the sealant product would be
expelled through the pipe.
F
Swi

tch off the ignition.
F

t
ur
n the selector A to the
"sealant" position.
F
Ch
eck that the switch B is in position "O"
.
In the event of a breakdown
