2016 Peugeot 308 Owner's Manual

79
308_en_Chap03_ergonomie-et-confort_ed02-2015
these have one position for use (up) and
a s towed position (down).
the

y can be removed and are interchangeable.
Outer rear seat head
restraints
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
to re

move a head restraint:
F
pu
ll the head restraint upwards to the stop,
F
th

en, press the lug A
.
the c
entre head restraint is not
adjustable.
F
Pu

ll the control 1 for wards, the seat
backrest folds onto the cushion.
Returning the seat back to
its original position
F Put the seat back in the upright position
a nd secure it.
F
Ch

eck that the red indicator, located at the
control 1 , is no longer visible.
F
Re

fit the head restraints or put them back
in place.
When returning the rear seat back to
its original position, take care not to
trap the seat belts and ensure that their
buckles are positioned correctly.
3
ease of use and comfort

80
308_en_Chap03_ergonomie-et-confort_ed02-2015

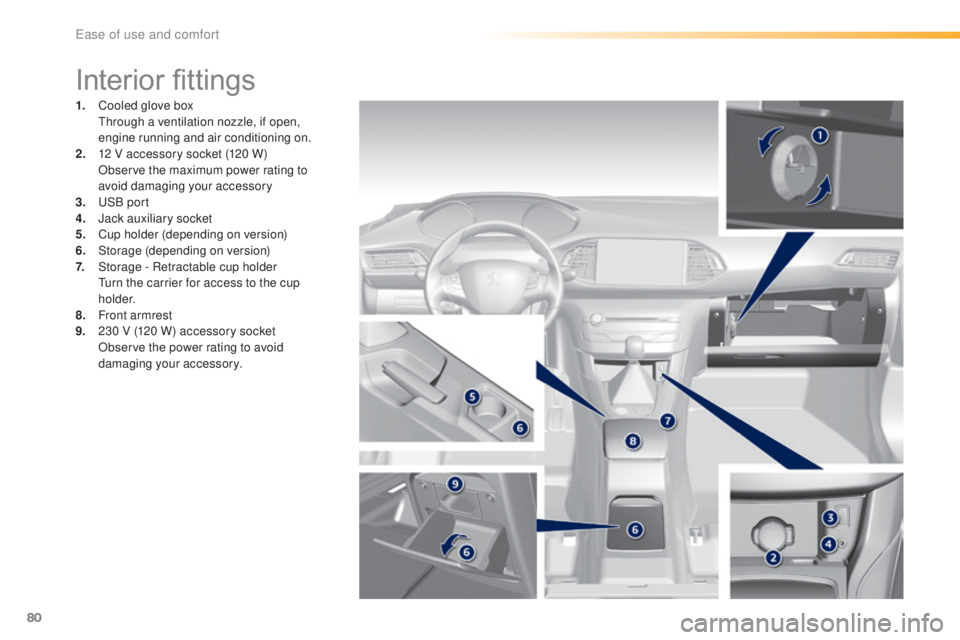

Interior fittings
1. Cooled glove box through a ventilation nozzle, if open,
engine running and air conditioning on.
2.
12 V a

ccessory socket (120 W)

Ob

serve the maximum power rating to
avoid damaging your accessory
3.
uSB p

ort
4.
Ja

ck auxiliary socket
5.
Cu

p holder (depending on version)
6.
Sto

rage (depending on version)
7.
Sto

rage - Retractable cup holder
tur

n the carrier for access to the cup
h o l d e r.
8.
Fro

nt armrest
9.
23

0 V (120 W) accessory socket
Ob

serve the power rating to avoid
damaging your accessory.
ease of use and comfort

81
308_en_Chap03_ergonomie-et-confort_ed02-2015
Mats
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
the o
ther mats are simply placed on the
carpet.
Fitting Removal
Refitting
to avoid any risk of jamming of the
ped als:
-
on

ly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-
ne

ver fit one mat on top of another.
the u

se of mats not approved by
P
eu

ge
Ot m
ay inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
the m

ats approved by P
eu
ge
Ot h
ave
two fixings located below the seat.
to re

move the mat on the driver's side:
F
mov
e the seat as far back as possible,
F
unc
lip the fixings,
F
re

move the mat.
to re

fit the mat on the driver's side:
F
po
sition the mat correctly,
F
re

fit the fixings by pressing,
F
ch
eck that the mat is secured correctly.
3
ease of use and comfort

82
308_en_Chap03_ergonomie-et-confort_ed02-2015
Front armrest
the height and longitudinal position of the armrest cover can be adjusted for greater comfort.
F
Ra
ise the cover to the required position
(low, intermediate or high).
F
If y

ou raise the cover slightly beyond the
high position, guide it when lowering it to
the low position. F
Rai

se the lever.
F
Rai

se the cover fully.
F
Sl

ide the cover fully for wards or rear wards.
Storage
Longitudinal adjustment
Height adjustment
ease of use and comfort

83
308_en_Chap03_ergonomie-et-confort_ed02-2015

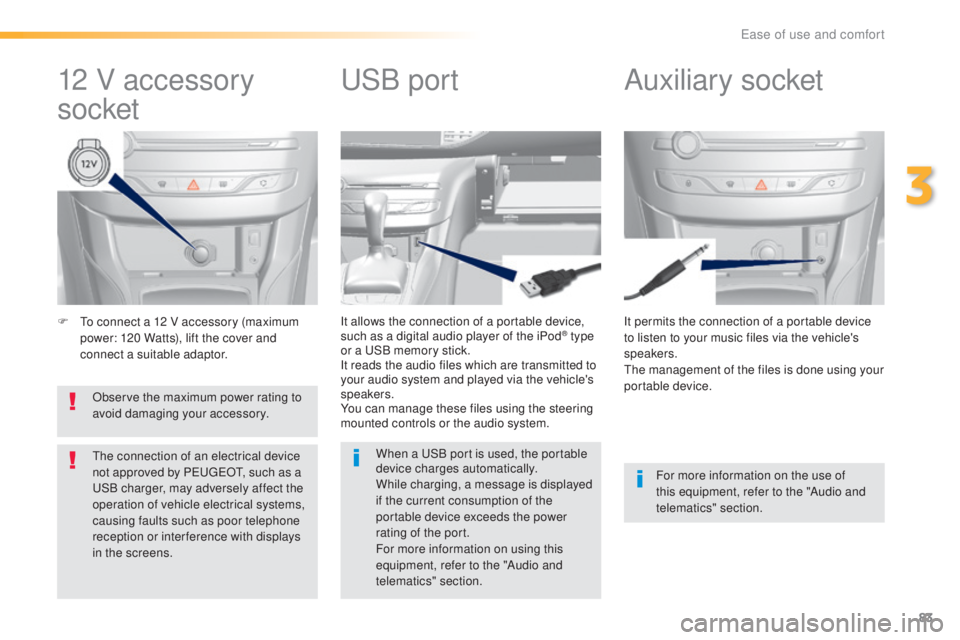

F to connect a 12 V accessory (maximum
p ower: 120 Watts), lift the cover and
connect a suitable adaptor. It permits the connection of a portable device
to listen to your music files via the vehicle's
speakers.
the m

anagement of the files is done using your
portable device.
It allows the connection of a portable device,
such as a digital audio player of the iPod® type
or a uSB m
emory stick.
It reads the audio files which are transmitted to
your audio system and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system.
12 V accessory
socket Auxiliary socketuSB po
rt
For more information on the use of
this equipment, refer to the "Audio and
telematics" section.
When a
uSB p

ort is used, the portable
device charges automatically.
While charging, a message is displayed
if the current consumption of the
portable device exceeds the power
rating of the port.
For more information on using this
equipment, refer to the "Audio and
telematics" section.
Observe the maximum power rating to
avoid damaging your accessory.
the c

onnection of an electrical device
not approved by Peu
geOt, su
ch as a uSB c
harger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
3
ease of use and comfort

84
308_en_Chap03_ergonomie-et-confort_ed02-2015
230 V / 50 Hz power socket
A 230 V / 50 Hz socket (maximum power:
120 W) is fitted in the rear storage box.
thi

s socket works with the engine running, as
well as in S
tOP m

ode with Stop & Start.
F
Op

en the central storage box,
F
Ch

eck that the warning lamp is on green,
F
Co

nnect your multimedia or other electrical
device (telephone charger, laptop
computer, CD-DVD player, baby food
warmer...).
In the event of a fault with the socket, the green
warning lamp flashes.
Have it checked by a P
eu

ge
Ot d
ealer or a
qualified workshop. Connect only one device at a time to
the socket (no extension or multi-way
connector).
Connect only devices with class II
insulation (shown on the device).
Do not use a device with a metal case.
As a safety measure, when electrical
consumption is high and when required
by the vehicle's electrical system
(particular weather conditions, electrical
overload...), the current supply to the
socket will be cut off; the green warning
lamp goes off.
the d

ifferent "ports and sockets" can
be either not available, an option or
standard, depending on the trim level of
the vehicle.
ease of use and comfort

85
308_en_Chap03_ergonomie-et-confort_ed02-2015
Ski flap
F Lower the armrest.
F Pr ess the flap opening control.
F
Lo

wer the flap.
F
Lo

ad the objects from inside the boot.
F
Lo

wer the rear armrest for a more
comfortable position.
It may be fitted with cup holders and also gives
access to the ski flap.
Rear armrest
Do not leave the flap open when not
carrying long objects in the vehicle.
It allows long objects to be carried in the
vehicle.
3
ease of use and comfort

86
308_en_Chap03_ergonomie-et-confort_ed02-2015
Boot fittings (hatchback)
1. Rear parcel shelf
2. Boot floor
Ra

ise the floor for access to the storage.
3.
Sto

rage wells
in w

hich are stowed:
-
th

e towing eye,
-
th

e temporary puncture repair kit,
-
th

e spare wheel, depending on trim
level, an option or standard.
4.
St

owing rings
5.
St

rap (depending on version)
ease of use and comfort
