Rear lamps
(SW)
Light emitting
diodes-LEDs
For replacement, contact a Peu geOt
d ealer or qualified workshop.
Direction indicators
(on the wings)
F Open the tailgate then remove the access
c ove r.
F
Re

move the two lamp fixing nut (pipe
spanner or socket recommended).
F
Disenga

ge the retaining clip, carefully
removing the lamp unit from outside. F
Di

sconnect the lamp connector.
F
Rem
ove the sealing foam.
F

u
nc
lip the bulb holder by pressing on the
two tongues.
F
Re
place the bulb.
For reassembly, carry out these operations in
reverse order.
1.
Si

delamps (light emitting diodes - L
eDs

).
2.
Di

rection indicators (PY21W amber).
3.
Br

ake lamps (light emitting diodes - L
eDs

).
4.
Re

versing lamps (W16W).
5.
Fo

glamps (P21W).
8
In the event of a breakdown

264
308_en_Chap08_en-cas-de-panne_ed02-2015
Reversing lamp, rear foglamp
(tailgate)
F Open the tailgate and then remove the
a
ccess cover. F
Ca

refully remove the lamp from the
outside.
F
Di
sconnect the lamp connector.
F
Fo
glamp: unclip the bulb holder by
pressing on the two tongues then replace
the bulb.
F
Re
versing lamp: turn the bulb holder a
quarter of a turn then replace the bulb.
For reassembly, carry out these operations in
reverse order.
F
Re

move the lamp fixing nut.
In the event of a breakdown

265
308_en_Chap08_en-cas-de-panne_ed02-2015
For the replacement of this type of lamp,
contact a Peu
geOt d ealer or a qualified
workshop.
Third brake lamp (light emitting
diodes-LED) Number plate lamps
(W5W)
to refit, press on the lens to clip it in place.
F
In
sert a thin screwdriver into one of the
cutouts in the the lens.
F
Push
it outwards to unclip it.
F
Re
move the lens.
F
Ch
ange the faulty bulb.
8
In the event of a breakdown

266
308_en_Chap08_en-cas-de-panne_ed02-2015
F unclip the cover by pulling at the top left,
t hen right.
F
Di

sengage the cover completely and turn it
ove r.
Access to the tools
Before changing a fuse:
F th e cause of the failure must be identified
and rectified,
F
al

l electrical consumers must be switched
of f,
F
th

e vehicle must be immobilised with the
ignition off,
F
id

entify the failed fuse using the tables and
layout drawings in the following pages.
Changing a fuse
Good Failed
the r

eplacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a P
eu

ge
Ot d
ealer or a qualified
workshop. Tw e e z e r
Changing a fuse
to replace a fuse, you must:
F us e the special tweezer to extract the fuse
from its housing and check the condition of
its filament,
F
al

ways replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of
f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a P
eu

ge
Ot d
ealer or a qualified workshop.
F
Re

move the tweezer from the back of the
cover to which it is fitted.the e
xtraction tweezer is fitted to the back of
the dashboard fusebox cover.
In the event of a breakdown

267
308_en_Chap08_en-cas-de-panne_ed02-2015
PeugeOt w ill not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by P
eu

ge
Ot a
nd
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a P
eu

ge
Ot d
ealer or
a qualified workshop.
8
In the event of a breakdown

268
308_en_Chap08_en-cas-de-panne_ed02-2015
Dashboard fuses
the fusebox is placed in the lower dashboard
( left-hand side). Fuse
N° Rating
(A) Functions
F4 5
eme
rgency and assistance calls.
F6 A or B 15Audio system, touch screen, CD player, navigation.
F11 5"Keyless
ent
ry and starting" system
F13 10Front 12 V accessory socket.
F14 1012 V accessory socket in the boot.
F16 3
glov
e box lamp, rear courtesy lamp.
F17 3Vanity mirror lamp, front courtesy lamp.
F19 5Instrument panel.
F21 10Multifunction screen, air conditioning.
F22 5Reversing camera, parking sensors.
F24 3Rain and sunshine sensor
F25 5Airbags.
F28 A or B 15Audio system (battery +).
F30 20Rear wiper.
F31 30Locks.
F32 10Hi-Fi amplifier.
F33 3Memorisation of driving positions.
F34 5
ele

ctric power steering.
F35 3Seat belts not fastened display.
Access to the fuses
F unclip the cover by pulling at top left, then
r ight.
Version 1 (Full)
In the event of a breakdown

269
308_en_Chap08_en-cas-de-panne_ed02-2015
Version 2 (Eco)
Fuse
N° Rating
(A) Functions
F9 5
eme

rgency and assistance calls.
F13 5Reversing camera and parking sensors
F15 1512 V accessory socket.
F16 15Cigarette lighter.
F17 15Audio system.
F18 20
tou

ch screen, CD player, audio and navigation system.
F19 5Rain, sunshine sensor.
F20 5Airbags.
F21 5Instrument panel.
F22/F24 30Interior, exterior, front and rear locks.
F23 5
glov

e box lamp, vanity mirror, front and rear courtesy lamps.
F25/F27 15Front/rear screenwash pump.
F26 15Horn.
F30 15Rear wiper.
8
In the event of a breakdown

270
308_en_Chap08_en-cas-de-panne_ed02-2015

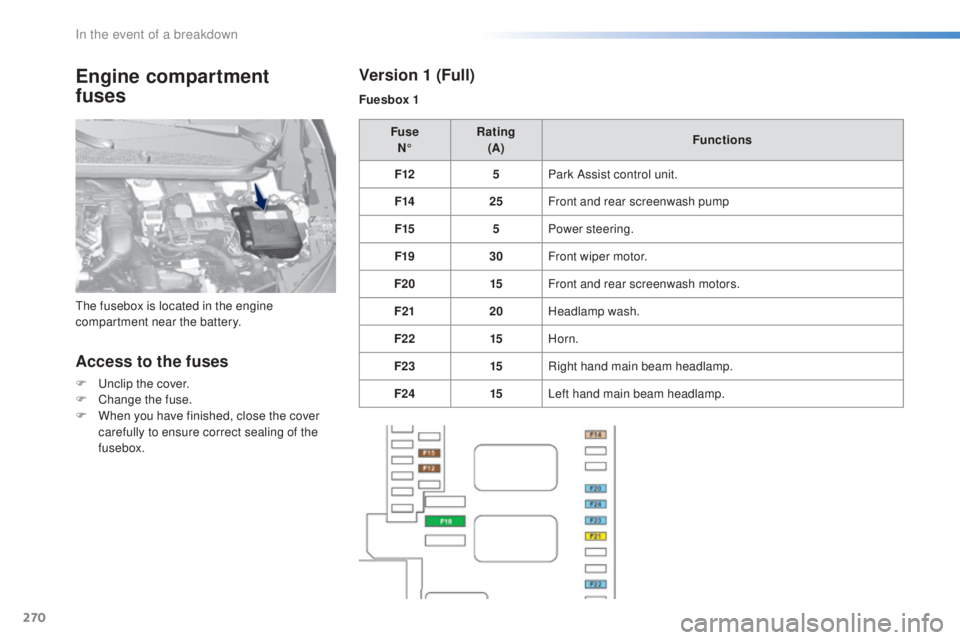

Engine compartment
fuses
Access to the fuses
F unclip the cover.
F Chan ge the fuse.
F
Wh

en you have finished, close the cover
carefully to ensure correct sealing of the
fusebox. Fuse
N° Rating
(A) Functions
F12 5Park Assist control unit.
F14 25Front and rear screenwash pump
F15 5Power steering.
F19 30Front wiper motor.
F20 15Front and rear screenwash motors.
F21 20Headlamp wash.
F22 15Horn.
F23 15Right hand main beam headlamp.
F24 15Left hand main beam headlamp.
the f
usebox is located in the engine
compartment near the battery.
Version 1 (Full)
Fuesbox 1
