2016 Peugeot 308 Owner's Manual

87
308_en_Chap03_ergonomie-et-confort_ed02-2015
Boot fittings (SW)
1. Boot lamp
2. Rea r seat folding controls
3.
12 V a

ccessory socket (120 W max)
4.
Re

movable storage boxes
Pu

ll up to unclip them.
5.
Sto

rage wells
wh

ere are stowed:
-
th

e towing eye,
-
th

e temporary puncture repair kit,
-
th

e spare wheel, depending on trim
level, an option or standard.
6.
St

rap
7.
Lo

ad space cover
(se

e corresponding section)
8.
eyes f

or fixing a net (to restrain luggage)
(d

epending on version)
F


e
xt
ract the eyes one at a time then slide
them into the oblong housing.
F
Wh

ile pressing the button, move the eye to
the desired position.
F
Ob

serve the direction of fitting (eyes in the
vertical position towards the outside of the
vehicle).
3
ease of use and comfort

88
308_en_Chap03_ergonomie-et-confort_ed02-2015
Load space cover, roller blind (SW)
To reel inTo removeStorage
F Remove the roller guide from the rails in
t
he boot pillars.
F
Re

lease the roller blind, it reels in
automatically. F Pl
ace a hand on the left under
the luggage
c ove r.
F


t
ur
n the end of the reel towards the front
(clockwise) to release it.
F
Re

peat the operation on the right (anti-
clockwise). A recess in the floor well, under the boot
carpet, allows the luggage cover to be stowed
diagonally.
thi

s recess is not available with the
bass woofer unit.
ease of use and comfort

89
308_en_Chap03_ergonomie-et-confort_ed02-2015
To install
F Position the left and then right hand ends
of the luggage cover in their respective
housings.
F
Pl

ace your hands on the roller then turn the
assembly to the rear to secure it.
F


u
nr
eel the roller blind until it locks on the
rear pillar.
High load (SW)
Luggage retaining net
Row 1
F Fold the rear seats.
F Re move the cover trims in the roof on each
side.
F
Po

sition the net's upper hooks in the roof,
on each side in turn.
F
At

tach the bottom of the net to the fixings
located at the seat belt mountings.
F
Pu

ll on the straps to stretch the net.
Once fitted, the net does not prevent folding of
the rear seat backrests.
Row 2
F Remove the cover trims in the roof on each
si de.
F
Po

sition the net's upper hooks in the roof,
on each side in turn.
F
At

tach the bottom of the net to the rings
located either side of the boot carpet or on
the boot rails (depending on trim level).
F
Pu

ll on the straps to stretch the net.
thi

s allows the use of the entire loading volume up to the roof:
-
be

hind the front seats (row 1) when the rear seats are folded.
-
be

hind the rear seats (row 2).
3
ease of use and comfort

90
308_en_Chap03_ergonomie-et-confort_ed02-2015

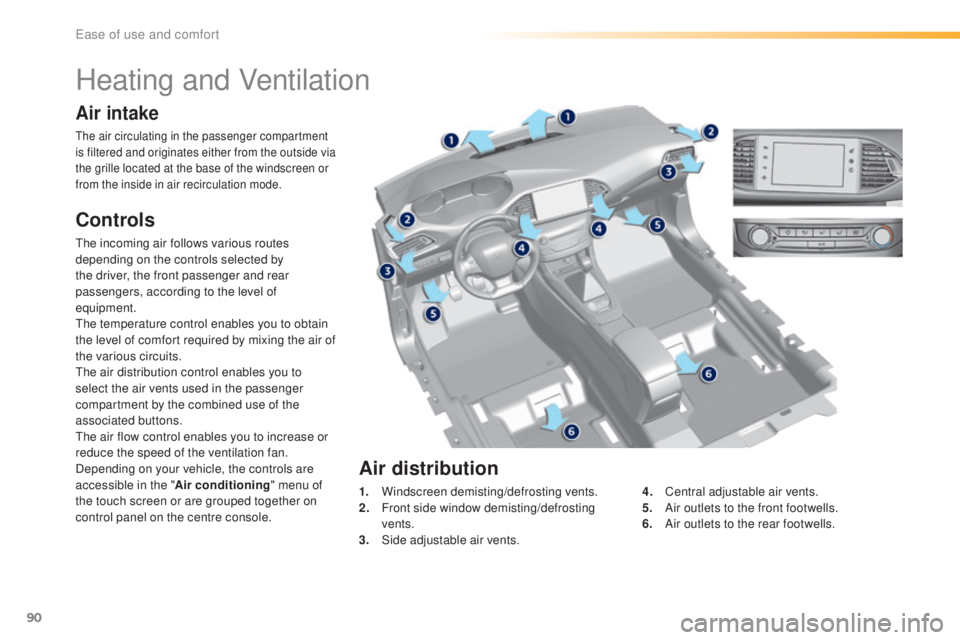

Heating and Ventilation
Air intake
the air circulating in the passenger compartment
i s filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.
Controls
the incoming air follows various routes
d epending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
the t

emperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
the a

ir distribution control enables you to
select the air vents used in the passenger
compartment by the combined use of the
associated buttons.
the a

ir flow control enables you to increase or
reduce the speed of the ventilation fan.
Depending on your vehicle, the controls are
accessible in the " Air conditioning" menu of
the touch screen or are grouped together on
control panel on the centre console. 1.
Wi

ndscreen demisting/defrosting vents.
2.
Fr

ont side window demisting/defrosting
vents.
3.
Si

de adjustable air vents.4.
Ce

ntral adjustable air vents.
5.
Ai

r outlets to the front footwells.
6.
Ai

r outlets to the rear footwells.
Air distribution
ease of use and comfort

91
308_en_Chap03_ergonomie-et-confort_ed02-2015
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F

t
o ob
tain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F
Do n

ot cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F
Op

erate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F


e
ns
ure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
We r

ecommend the use of a combined passenger compartment filter.
tha
nks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F


t
o en
sure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the warranty and maintenance record.
F
If t

he system does not produce cold air, switch it off and contact a P
eu
ge
Ot d
ealer or
a qualified workshop.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
the a

ir conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
the c

ondensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Stop & Start
the heating and air conditioning
s ystems only work when the engine
is running.
to ma

intain a comfortable
temperature in the passenger
compartment, you can temporarily
deactivate the Stop & Start system (see
the corresponding section).
3
ease of use and comfort

92
308_en_Chap03_ergonomie-et-confort_ed02-2015
Temperature adjustment
F turn the dial from blue
( cold) to red (hot) to adjust
the temperature to your
requirements.
the a
ir conditioning system only operates with the engine running.
Air flow adjustment
F turn the dial to obtain a
c omfortable air flow. If you put the air flow control in the
minimum
position ( system off), the
temperature is no longer controlled.
However, a slight flow of air can still be
felt, resulting from the movement of the
vehicle.
Manual air conditioning
Heating / Ventilation
ease of use and comfort

93
308_en_Chap03_ergonomie-et-confort_ed02-2015

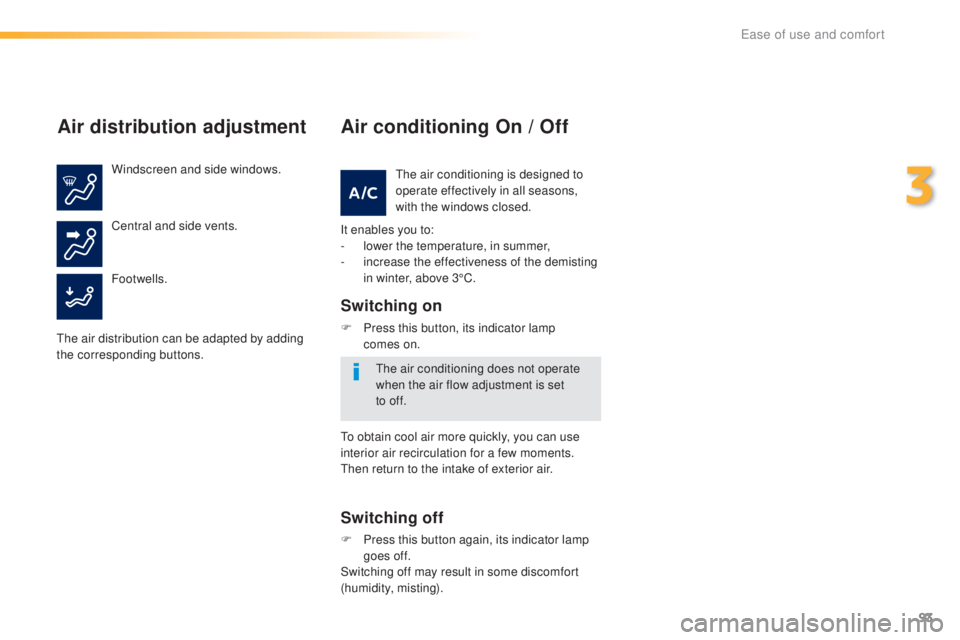

Air distribution adjustment
Windscreen and side windows.
Footwells. Central and side vents.
the a

ir distribution can be adapted by adding
the corresponding buttons.
Air conditioning On / Off
It enables you to:
- lo wer the temperature, in summer,
-
in

crease the effectiveness of the demisting
in winter, above 3°C.
Switching on
F Press this button, its indicator lamp
c omes on.
Switching off
F Press this button again, its indicator lamp
go es off.
Switching off may result in some discomfort
(humidity, misting).
the a
ir conditioning is designed to
operate effectively in all seasons,
with the windows closed.
the a
ir conditioning does not operate
when the air flow adjustment is set
to
of
f.
to ob

tain cool air more quickly, you can use
interior air recirculation for a few moments.
the
n return to the intake of exterior air.
3
ease of use and comfort

94
308_en_Chap03_ergonomie-et-confort_ed02-2015
Manual air conditioning (touch screen)
Temperature adjustment
F Press one of these buttons to reduce or
inc
rease the value.
the a

ir conditioning system operates with the
engine running.
Air flow adjustment
Press one of these buttons to
increase or decrease the speed of
the air booster fan.
the a

ir flow symbol (a fan) fills progressively
according to the quantity of air wanted.
By reducing the air flow to minimum, you are
stopping ventilation.
Avoid driving too long without ventilation
(risk of misting and deterioration of air
quality).
Press the button for the "
Air
conditioning " menu to display the
system controls page.
ease of use and comfort
