2015 Peugeot 208 Owner's Manual - RHD (UK, Australia)

215
208_en_Chap08_Informations-pratiques_ed01-2015
Level
Brake fluid
The brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.

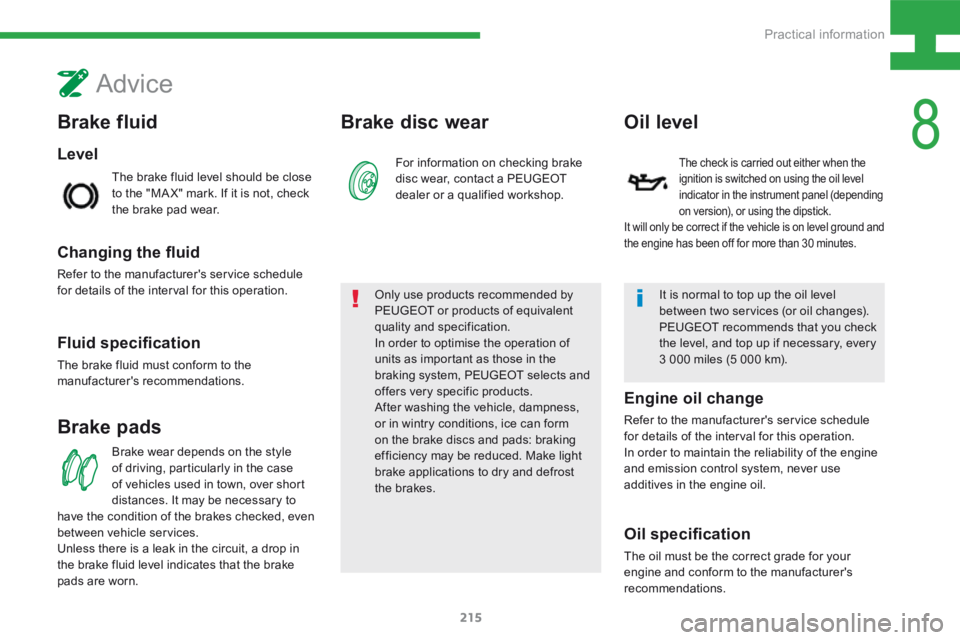

Advice
Changing the fluid
Refer to the manufacturer's service schedule
for details of the interval for this operation.
Brake padsBrake disc wear
For information on checking brake
disc wear, contact a PEUGEOT
dealer or a qualified workshop.
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to
have the condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn. Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, PEUGEOT selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Fluid specification
The brake fluid must conform to the
manufacturer's recommendations.
It is normal to top up the oil level
between two services (or oil changes).
PEUGEOT recommends that you check
the level, and top up if necessary, every
3 000 miles (5 000 km).
Oil level
The check is carried out either when the
ignition is switched on using the oil level
indicator in the instrument panel (depending
on version), or using the dipstick.
It will only be correct if the vehicle is on level ground and
the engine has been off for more than 30 minutes.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil.
Oil specification
The oil must be the correct grade for your
engine and conform to the manufacturer's
recommendations.
8
Practical information

216
208_en_Chap08_Informations-pratiques_ed01-2015
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a PEUGEOT dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
Used products

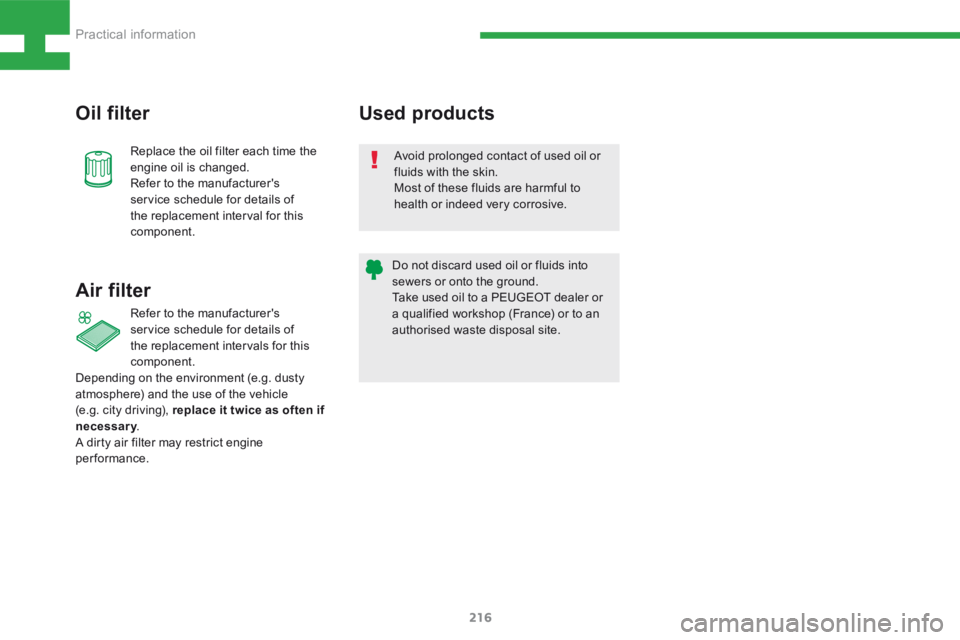

Oil filter
Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.
Air filter
Refer to the manufacturer's
service schedule for details of
the replacement intervals for this
component.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace it twice as often if
necessary .
A dirty air filter may restrict engine
performance.
Practical information

217
208_en_Chap08_Informations-pratiques_ed01-2015

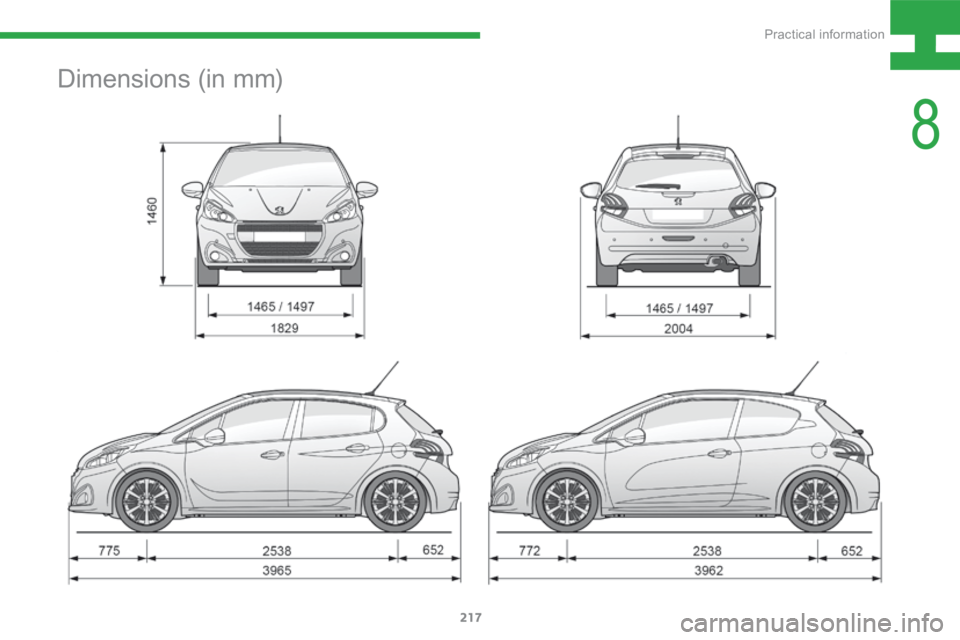

Dimensions (in mm)
8
Practical information

218
208_en_Chap08_Informations-pratiques_ed01-2015
Affaire version
Number of seats: 2.
Boot volume: 1.062 m3
Load floor length: 1.335 m.
Load width between wheel arches: 1.042 m.
Load width at centre: 1.061 m.
Load height at centre: 0.857 m.
Practical information

219
208_en_Chap08_Informations-pratiques_ed01-2015

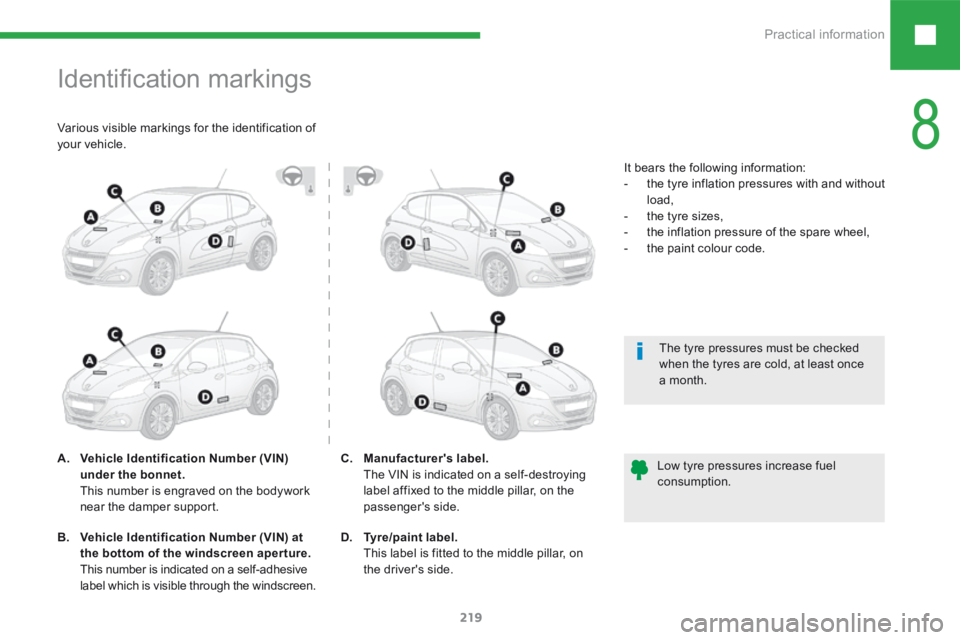

Identification markings
A. Vehicle Identification Number (VIN)
under the bonnet.
This number is engraved on the bodywork
near the damper support. The tyre pressures must be checked
when the tyres are cold, at least once
a month.
Low tyre pressures increase fuel
consumption.
B. Vehicle Identification Number (VIN) at
the bottom of the windscreen aperture.
This number is indicated on a self-adhesive
label which is visible through the windscreen. C.
Manufacturer's label.
The VIN is indicated on a self-destroying
label affixed to the middle pillar, on the
passenger's side.
D. Tyre/paint label.
This label is fitted to the middle pillar, on
the driver's side. It bears the following information:
-
the tyre inflation pressures with and without
load,
- the tyre sizes,
- the inflation pressure of the spare wheel,
- the paint colour code.
Various visible markings for the identification of
your vehicle.
8
Practical information

220
208_en_Chap9a_BTA_ed01-2015

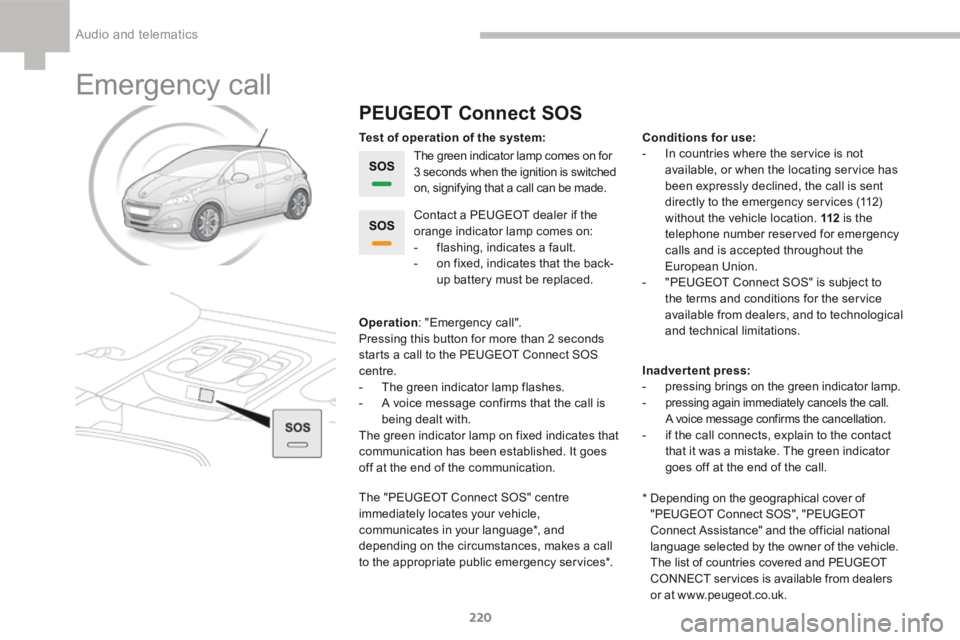

Emergency call
PEUGEOT Connect SOS
The green indicator lamp comes on for
3 seconds when the ignition is switched
on, signifying that a call can be made.
Operation : "Emergency call".
Pressing this button for more than 2 seconds
starts a call to the P EUGEOT Connect SOS
centre.
- The green indicator lamp flashes.
- A voice message confirms that the call is
being dealt with.
The green indicator lamp on fixed indicates that
communication has been established. It goes
off at the end of the communication. Contact a P
EUGEOT dealer if the
orange indicator lamp comes on:
- flashing, indicates a fault.
- on fixed, indicates that the back-
up battery must be replaced.
The " PEUGEOT Connect SOS" centre
immediately locates your vehicle,
communicates in your language*, and
depending on the circumstances, makes a call
to the appropriate public emergency services*. Test of operation of the system: Conditions for use:
- In countries where the service is not
available, or when the locating service has
been expressly declined, the call is sent
directly to the emergency services (112)
without the vehicle location. 112 is the
telephone number reserved for emergency
calls and is accepted throughout the
European Union.
- " PEUGEOT Connect SOS" is subject to
the terms and conditions for the service
available from dealers, and to technological
and technical limitations.
Inadvertent press:
- pressing brings on the green indicator lamp.
-
pressing again immediately cancels the call.
A voice message confirms the cancellation.
- if the call connects, explain to the contact
that it was a mistake. The green indicator
goes off at the end of the call.
* Depending on the geographical cover of
"PEUGEOT Connect SOS", "PEUGEOT
Connect Assistance" and the official national
language selected by the owner of the vehicle.
The list of countries covered and PEUGEOT
CONNECT services is available from dealers
or at www.peugeot.co.uk.
Audio and telematics

221
208_en_Chap9a_BTA_ed01-2015

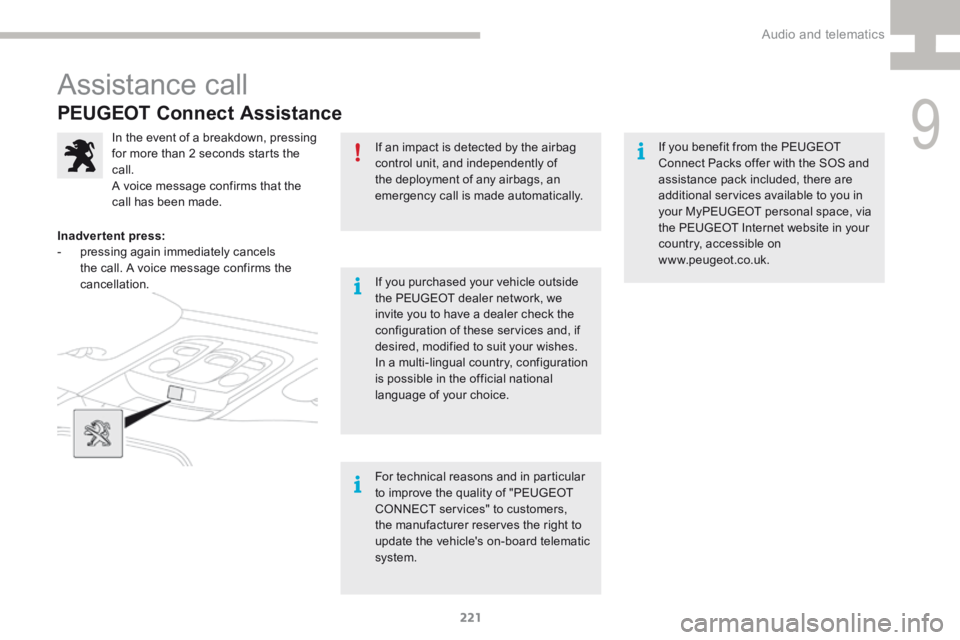

PEUGEOT Connect Assistance
If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
If you purchased your vehicle outside
the PEUGEOT dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.
In the event of a breakdown, pressing
for more than 2 seconds starts the
call.
A voice message confirms that the
call has been made.
Inadvertent press:
- pressing again immediately cancels
the call. A voice message confirms the
cancellation.
For technical reasons and in particular
to improve the quality of "PEUGEOT
CONNECT services" to customers,
the manufacturer reserves the right to
update the vehicle's on-board telematic
system.If you benefit from the P
EUGEOT
Connect Packs offer with the SOS and
assistance pack included, there are
additional services available to you in
your My PEUGEOT personal space, via
the PEUGEOT Internet website in your
country, accessible on
www.peugeot.co.uk.
Assistance call
9
Audio and telematics
