2015 Peugeot 208 Owner's Manual - RHD (UK, Australia)

7
208_en_Chap01_vue-ensemble_ed01-2015

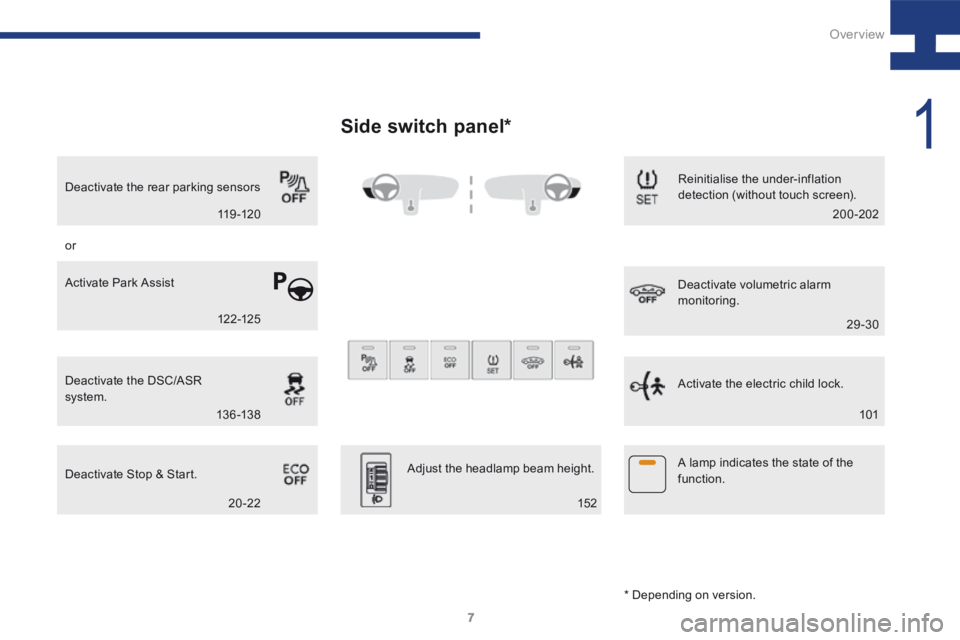

Side switch panel*
Deactivate the DSC/ASR
system.
Deactivate Stop & Start.Reinitialise the under-inflation
detection (without touch screen).
Deactivate the rear parking sensors
or
Activate the electric child lock. Deactivate volumetric alarm
monitoring.
Adjust the headlamp beam height.
Activate Park Assist
A lamp indicates the state of the
function.
* Depending on version.
11 9 -12 0
12 2-125
13 6 -13 8 20-22 152200-202
29-30101
1
Over view

8
208_en_Chap01_vue-ensemble_ed01-2015

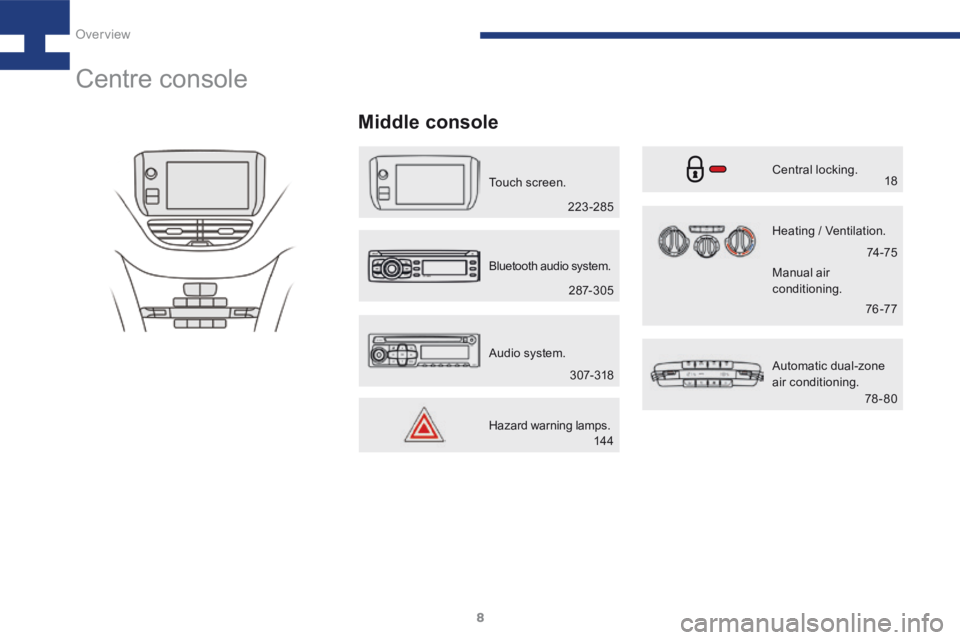

Touch screen.Heating / Ventilation.
Hazard warning lamps. Bluetooth audio system.
Audio system.
Middle console
Central locking.
Automatic dual-zone
air conditioning.
Centre console
223-285 2 87- 3 0 5
3 07- 318 74 -75
76 -77
78- 80
14 4 18
Manual air
conditioning.
Over view

9
208_en_Chap01_vue-ensemble_ed01-2015

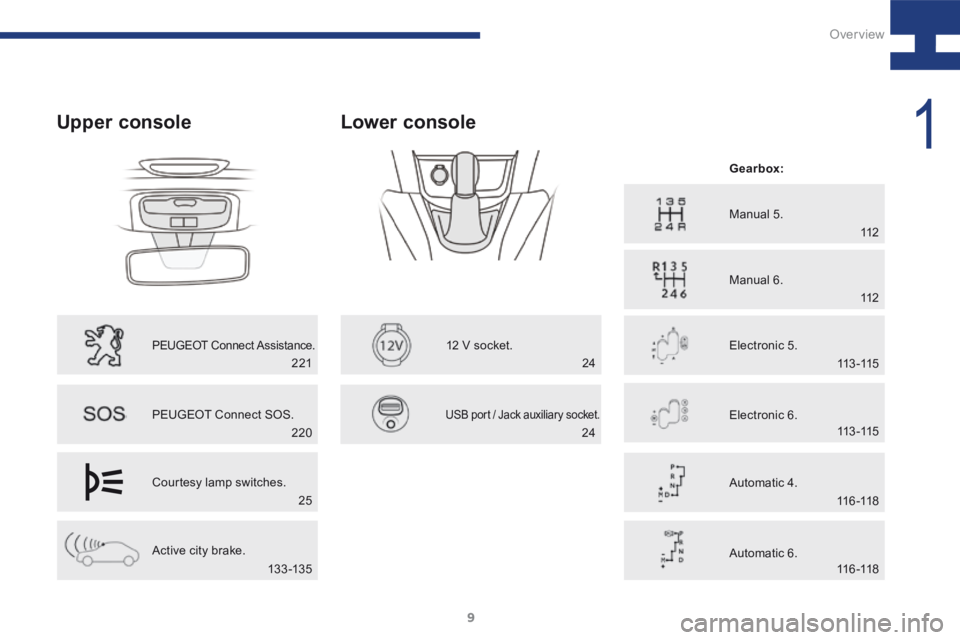

Upper console
PEUGEOT Connect Assistance.
PEUGEOT Connect SOS.
Courtesy lamp switches.
Active city brake.
Lower console
12 V socket.
USB port / Jack auxiliary socket.
Manual 5.
Manual 6.
Electronic 5. Gearbox:
Electronic 6.
Automatic 4.
Automatic 6.
220 112
112
113 -115
113 -115
11 6 -118
11 6 -118
24
25
13 3 -13 5 221
24
1
Over view

10
208_en_Chap01_vue-ensemble_ed01-2015

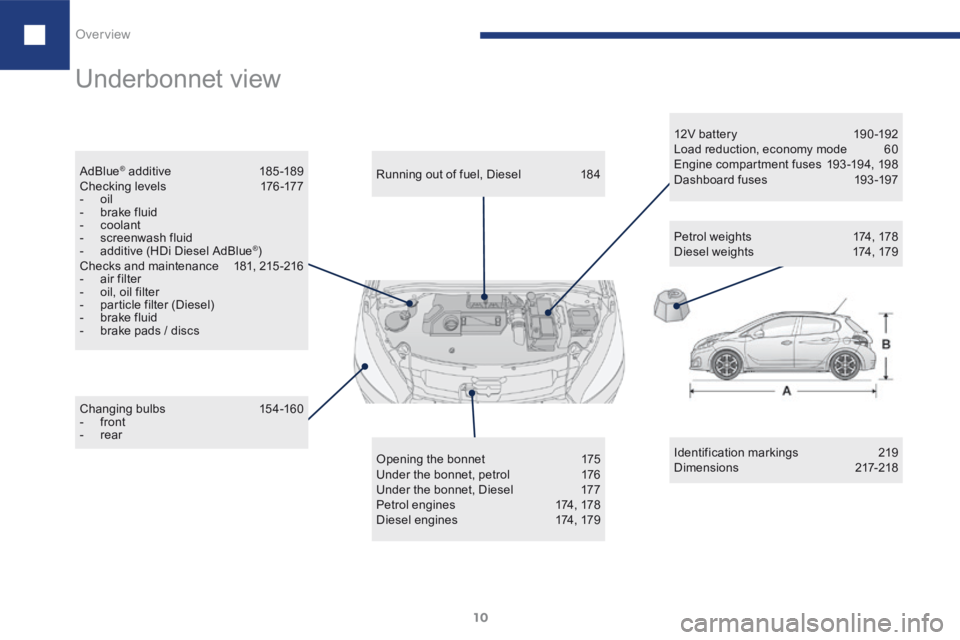

Underbonnet view
Identification markings 219
Dimensions 217-218
Changing bulbs
154-160
- front
- rear Running out of fuel, Diesel
184
Opening the bonnet 175
Under the bonnet, petrol 176
Under the bonnet, Diesel 177
Petrol engines 174, 178
Diesel engines 174, 17912V bat ter y
19 0 -192
Load reduction, economy mode 60
Engine compartment fuses 193-194, 198
Dashboard fuses 193-197
Petrol weights 174, 178
Diesel weights 174, 179
AdBlue
® additive
185 -189
C h e c k i n g l eve l s 176 -17 7
- oil
- brake fluid
- coolant
- screenwash fluid
- additive (HDi Diesel AdBlue
®)
Checks and maintenance 181, 215-216
- air filter
- oil, oil filter
- particle filter (Diesel)
- brake fluid
- brake pads / discs
Over view

11
208_en_Chap02_ Acces-Demarrage_ed01-2015
Remote control
A. Unfolding / Folding.
B. Unlocking.
Disarming the alarm.
C. Locking.
Locating the vehicle.
Arming the alarm.
Complete unlocking
Using the key
F Turn to the front.
Using the remote control
F Press.
Selective unlocking
F Press once to unlock the driver's
d o o r o n l y.
Using the remote control
This is set in the " Driving
assistance " menu, then " Vehicle
settings " and "Vehicle access ". Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the electric door
mirrors unfold at the same time as the
first unlocking action.
F
Press twice in succession to unlock the
other doors and the boot.
Complete unlocking is activated by default.
In the "Driving assistance" menu
Doors
2
Access and starting

12
208_en_Chap02_ Acces-Demarrage_ed01-2015
F A press switches on the vehicle's
lighting and flashes the direction
indicators for a few seconds to
help you locate your vehicle in a
car park.

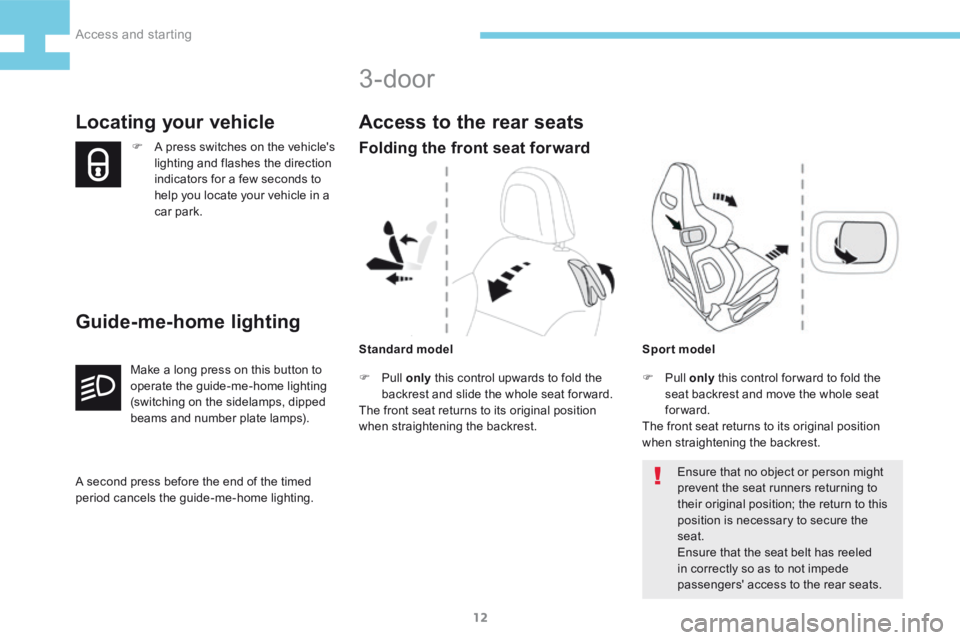

Locating your vehicle
Guide-me-home lighting
Make a long press on this button to
operate the guide-me-home lighting
(switching on the sidelamps, dipped
beams and number plate lamps).
A second press before the end of the timed
period cancels the guide-me-home lighting.
Access to the rear seats
Folding the front seat forward
Ensure that no object or person might
prevent the seat runners returning to
their original position; the return to this
position is necessary to secure the
seat.
Ensure that the seat belt has reeled
in correctly so as to not impede
passengers' access to the rear seats.
Sport model
3-door
Standard model
F Pull
only this control upwards to fold the
backrest and slide the whole seat for ward.
The front seat returns to its original position
when straightening the backrest. F Pull
only this control for ward to fold the
seat backrest and move the whole seat
forward.
The front seat returns to its original position
when straightening the backrest.
Access and starting

13
208_en_Chap02_ Acces-Demarrage_ed01-2015

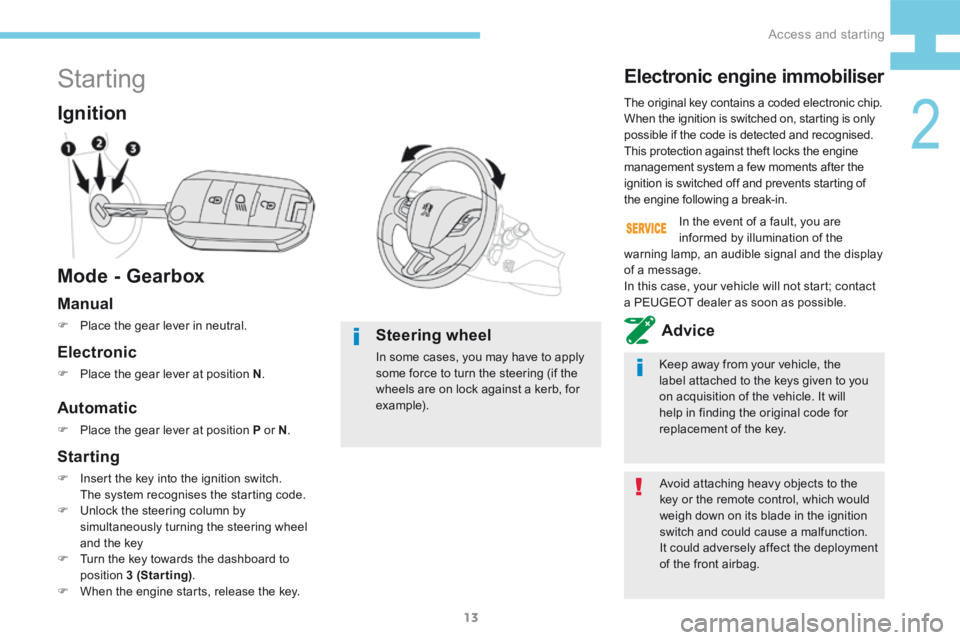

Starting
Mode - Gearbox Ignition
Avoid attaching heavy objects to the
key or the remote control, which would
weigh down on its blade in the ignition
switch and could cause a malfunction.
It could adversely affect the deployment
of the front airbag.
The original key contains a coded electronic chip.
When the ignition is switched on, starting is only
possible if the code is detected and recognised.
This protection against theft locks the engine
management system a few moments after the
ignition is switched off and prevents starting of
the engine following a break-in.
Electronic engine immobiliser
Keep away from your vehicle, the
label attached to the keys given to you
on acquisition of the vehicle. It will
help in finding the original code for
replacement of the key.
In the event of a fault, you are
informed by illumination of the
warning lamp, an audible signal and the display
of a message.
In this case, your vehicle will not start; contact
a PEUGEOT dealer as soon as possible.
Manual
F Place the gear lever in neutral.Advice
Automatic
F Place the gear lever at position P or N .
Electronic
F Place the gear lever at position N .
Steering wheel
In some cases, you may have to apply
some force to turn the steering (if the
wheels are on lock against a kerb, for
example).
Starting
F Insert the key into the ignition switch.
The system recognises the starting code.
F Unlock the steering column by
simultaneously turning the steering wheel
and the key
F Turn the key towards the dashboard to
position 3 (Starting) .
F When the engine starts, release the key.
2
Access and starting

14
208_en_Chap02_ Acces-Demarrage_ed01-2015

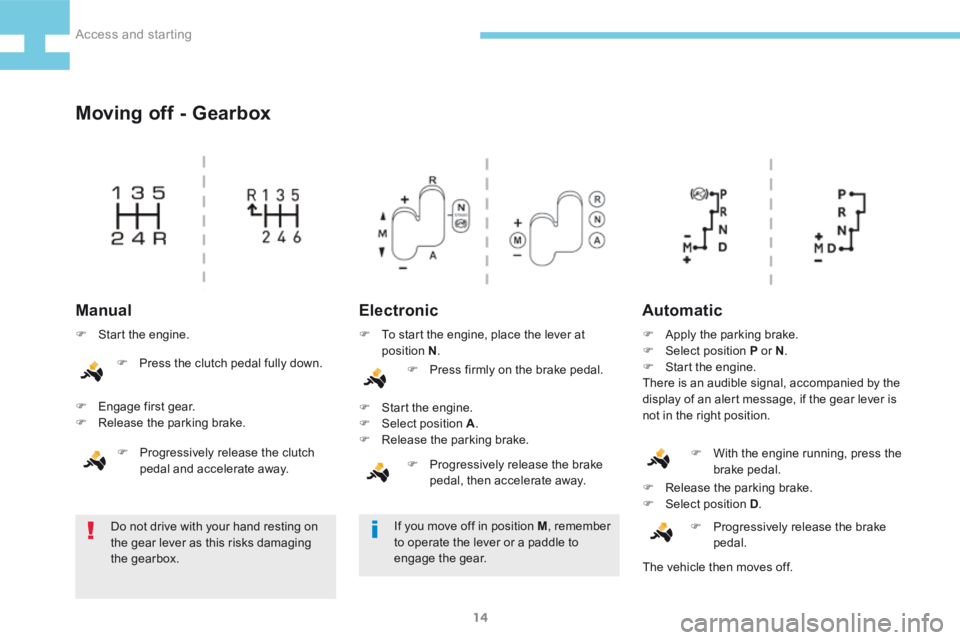

Moving off - Gearbox
ElectronicAutomatic
Do not drive with your hand resting on
the gear lever as this risks damaging
the gearbox. F
Release the parking brake.
F Select position D .
F Progressively release the brake
pedal.
Manual
F Start the engine.
F Engage first gear.
F Release the parking brake.
F Progressively release the clutch
pedal and accelerate away. F
To start the engine, place the lever at
position N .
F Press firmly on the brake pedal.
F Start the engine.
F Select position A .
F Release the parking brake.
F Progressively release the brake
pedal, then accelerate away. F
Apply the parking brake.
F Select position P or N .
F Start the engine.
There is an audible signal, accompanied by the
display of an alert message, if the gear lever is
not in the right position.
If you move off in position M , remember
to operate the lever or a paddle to
engage the gear. F
With the engine running, press the
brake pedal.
The vehicle then moves off.
F
Press the clutch pedal fully down.
Access and starting
