2015 Peugeot 208 Owner's Manual - RHD (UK, Australia)

95
208_en_Chap04_confort_ed01-2015

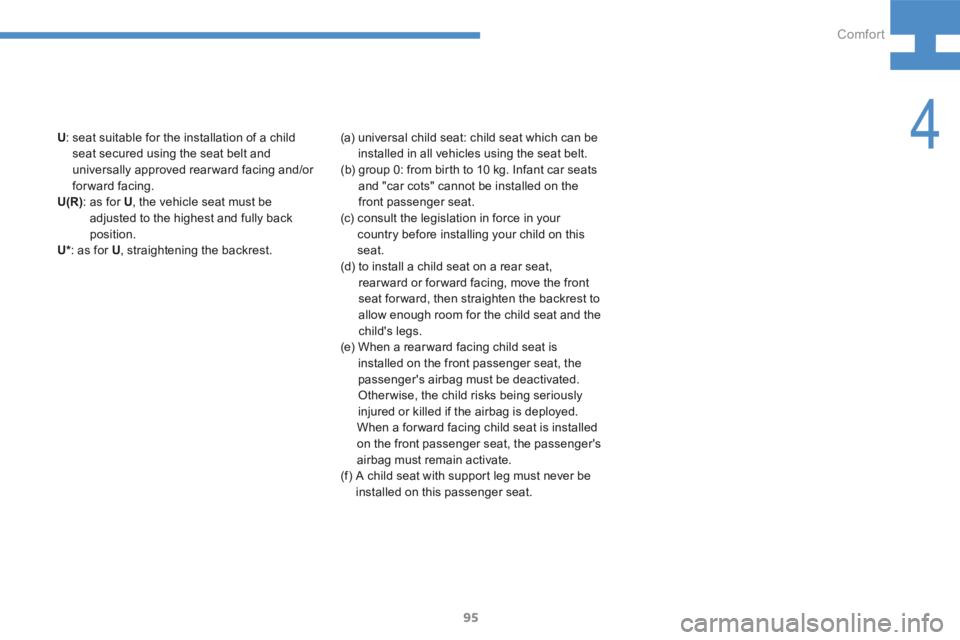

U: seat suitable for the installation of a child
seat secured using the seat belt and
universally approved rear ward facing and/or
forward facing.
U(R) : as for U , the vehicle seat must be
adjusted to the highest and fully back
position.
U* : as for U , straightening the backrest. (a)
universal child seat: child seat which can be
installed in all vehicles using the seat belt.
(b) group 0: from birth to 10 kg. Infant car seats
and "car cots" cannot be installed on the
front passenger seat.
(c) consult the legislation in force in your
country before installing your child on this
seat.
(d) to install a child seat on a rear seat,
rear ward or for ward facing, move the front
seat for ward, then straighten the backrest to
allow enough room for the child seat and the
child's legs.
(e) When a rear ward facing child seat is
installed on the front passenger seat, the
passenger's airbag must be deactivated.
Otherwise, the child risks being seriously
injured or killed if the airbag is deployed.
When a for ward facing child seat is installed
on the front passenger seat, the passenger's
airbag must remain activate.
(f) A child seat with support leg must never be
installed on this passenger seat.
4
Comfort

96
208_en_Chap04_confort_ed01-2015

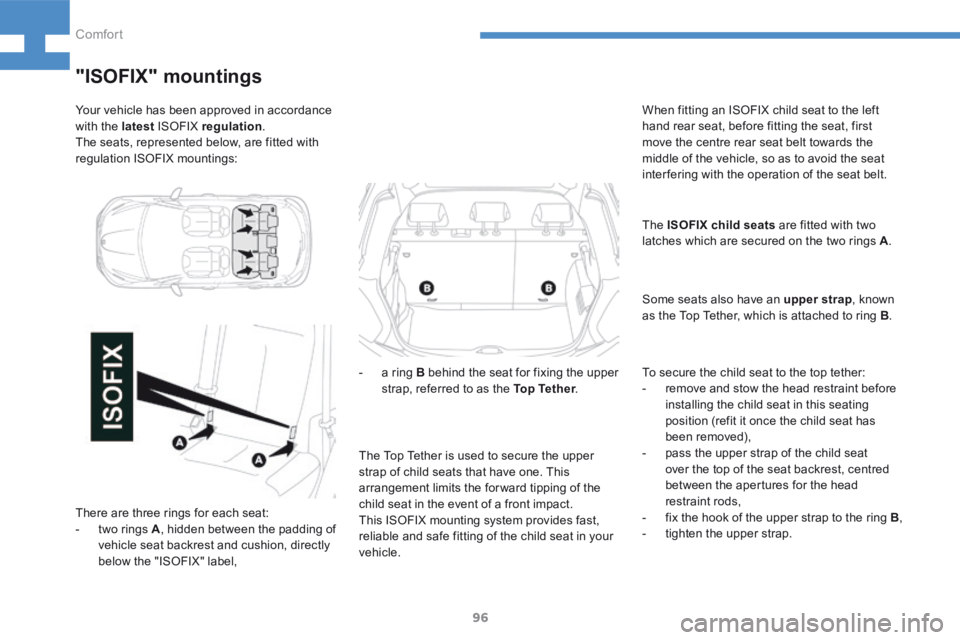

Your vehicle has been approved in accordance
with the latest ISOFIX regulation .
The seats, represented below, are fitted with
regulation ISOFIX mountings:
"ISOFIX" mountings
There are three rings for each seat:
- two rings A , hidden between the padding of
vehicle seat backrest and cushion, directly
below the "ISOFIX" label, The Top Tether is used to secure the upper
strap of child seats that have one. This
arrangement limits the forward tipping of the
child seat in the event of a front impact.
This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle. -
a ring B behind the seat for fixing the upper
strap, referred to as the Top Tether .When fitting an ISOFIX child seat to the left
hand rear seat, before fitting the seat, first
move the centre rear seat belt towards the
middle of the vehicle, so as to avoid the seat
interfering with the operation of the seat belt.
The ISOFIX child seats are fitted with two
latches which are secured on the two rings A
.
Some seats also have an upper strap , known
as the Top Tether, which is attached to ring B .
To secure the child seat to the top tether:
- remove and stow the head restraint before
installing the child seat in this seating
position (refit it once the child seat has
been removed),
- pass the upper strap of the child seat
over the top of the seat backrest, centred
between the apertures for the head
restraint rods,
- fix the hook of the upper strap to the ring B ,
- tighten the upper strap.
Comfort

97
208_en_Chap04_confort_ed01-2015

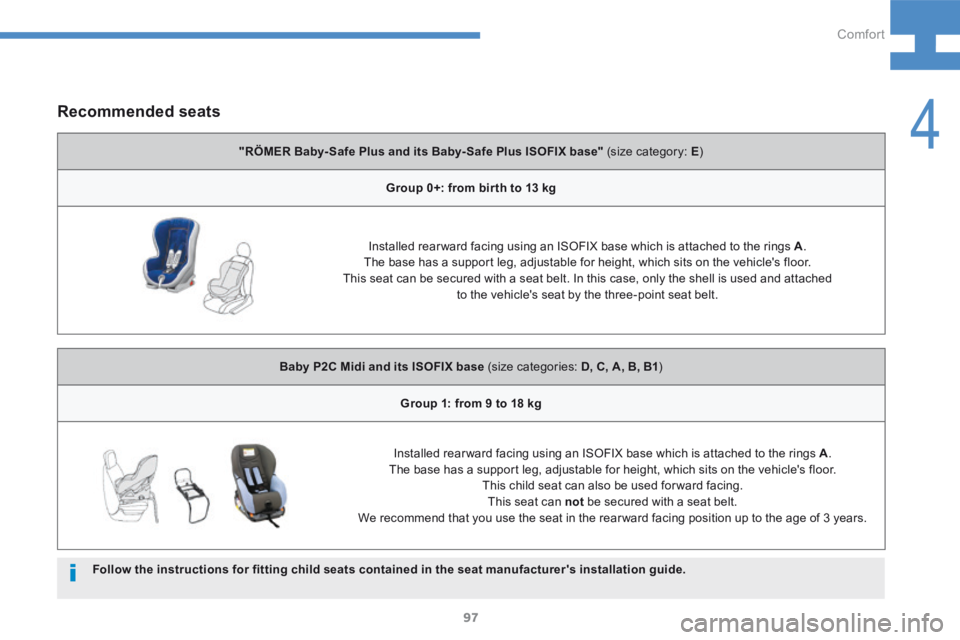

Recommended seats
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide."RÖMER Baby- Safe Plus and its Baby- Safe Plus ISOFIX base" (size category: E
)
Group 0+: from bir th to 13 kg
Installed rear ward facing using an ISOFIX base which is attached to the rings A .
The base has a support leg, adjustable for height, which sits on the vehicle's floor.
This seat can be secured with a seat belt. In this case, only the shell is used and attached to the vehicle's seat by the three-point seat belt.
Baby P2C Midi and its ISOFIX base (size categories: D, C, A, B, B1 )
Group 1: from 9 to 18 kg
Installed rear ward facing using an ISOFIX base which is attached to the rings A .
The base has a support leg, adjustable for height, which sits on the vehicle's floor. This child seat can also be used for ward facing.This seat can not be secured with a seat belt.
We recommend that you use the seat in the rear ward facing position up to the age of 3 years.
4
Comfort

98
208_en_Chap04_confort_ed01-2015

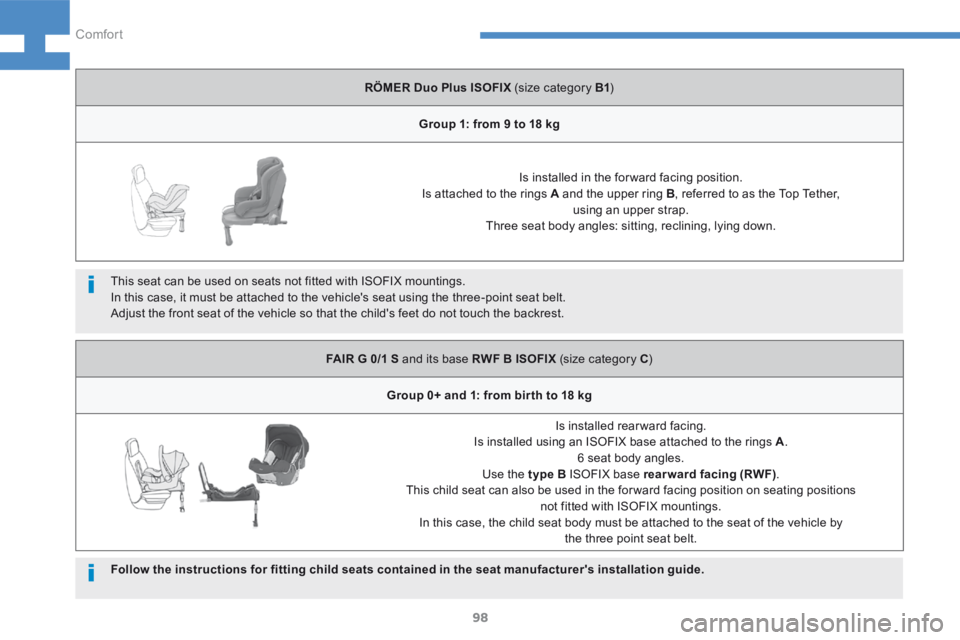

Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide. This seat can be used on seats not fitted with ISOFIX mountings.
In this case, it must be attached to the vehicle's seat using the three-point seat belt.
Adjust the front seat of the vehicle so that the child's feet do not touch the backrest.RÖMER Duo Plus ISOFIX (size category B1
)
Group 1: from 9 to 18 kg
Is installed in the forward facing position.
Is attached to the rings A and the upper ring B , referred to as the Top Tether,
using an upper strap.
Three seat body angles: sitting, reclining, lying down.
FAIR G 0/1 S and its base RWF B ISOFIX (size category C )
Group 0+ and 1: from bir th to 18 kg Is installed rearward facing.
Is installed using an ISOFIX base attached to the rings A .
6 seat body angles.
Use the type B ISOFIX base rearward facing (RWF) .
This child seat can also be used in the for ward facing position on seating positions not fitted with ISOFIX mountings.
In this case, the child seat body must be attached to the seat of the vehicle by the three point seat belt.
Comfort

99
208_en_Chap04_confort_ed01-2015

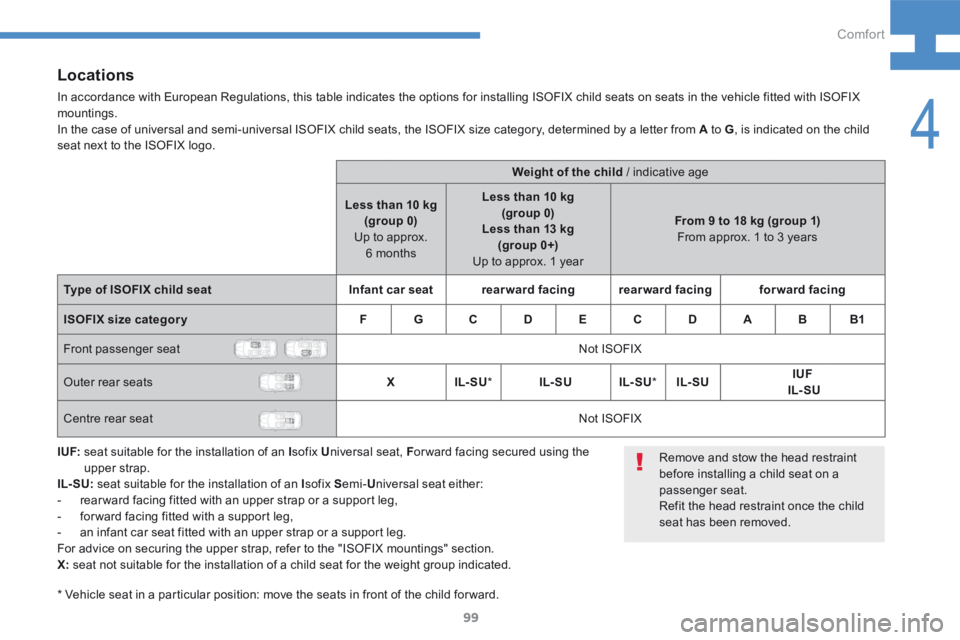

Locations
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX
mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G, is indicated on the child
seat next to the ISOFIX logo.
Weight of the child / indicative age
Less than 10 kg (group 0)
Up to approx. 6 months Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to approx. 1 year From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Infant car seatrearward facing rearward facing forward facing
ISOFIX size categor y FG CD EC DABB1
Front passenger seat Not ISOFIX
Outer rear seats XIL- SU* IL- SU IL- SU*IL- SU IUF

IL- SU
Centre rear seat Not ISOFIX
I UF: seat suitable for the installation of an I sofix Universal seat, F or ward facing secured using the
upper strap.
IL- SU: seat suitable for the installation of an I sofix Semi-Universal seat either:
- rear ward facing fitted with an upper strap or a support leg,
- for ward facing fitted with a support leg,
- an infant car seat fitted with an upper strap or a support leg.
For advice on securing the upper strap, refer to the "ISOFIX mountings" section.
X: seat not suitable for the installation of a child seat for the weight group indicated.
* Vehicle seat in a particular position: move the seats in front of the child for ward. Remove and stow the head restraint
before installing a child seat on a
passenger seat.
Refit the head restraint once the child
seat has been removed.
4
Comfort

100
208_en_Chap04_confort_ed01-2015

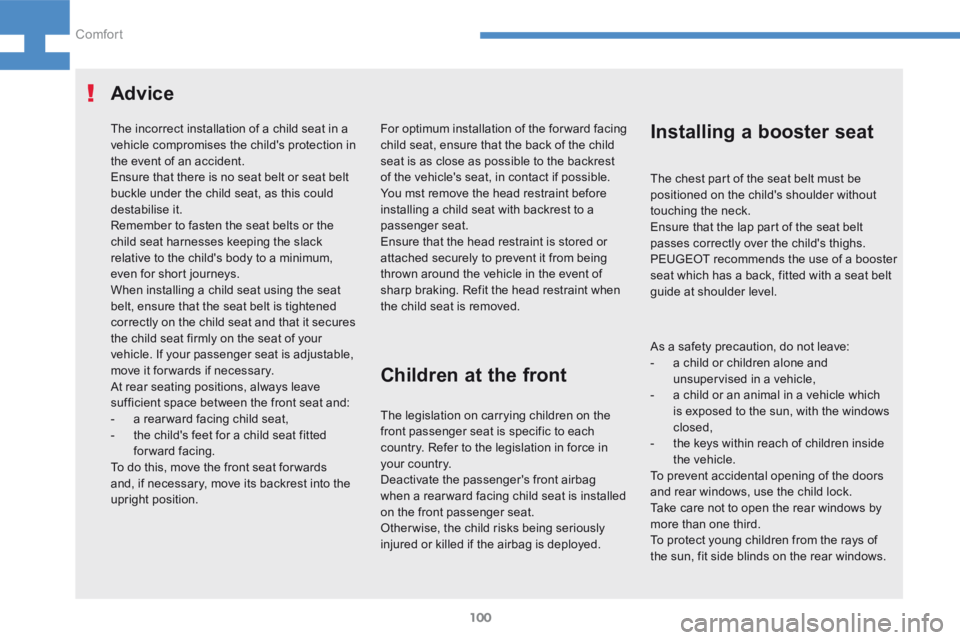

The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Ensure that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. If your passenger seat is adjustable,
move it for wards if necessary.
At rear seating positions, always leave
sufficient space between the front seat and:
- a rear ward facing child seat,
- the child's feet for a child seat fitted
forward facing.
To do this, move the front seat for wards
and, if necessary, move its backrest into the
upright position.
Advice
Children at the front
For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, in contact if possible.
You mst remove the head restraint before
installing a child seat with backrest to a
passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event of
sharp braking. Refit the head restraint when
the child seat is removed.
The legislation on carrying children on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger's front airbag
when a rear ward facing child seat is installed
on the front passenger seat.
Otherwise, the child risks being seriously
injured or killed if the airbag is deployed.Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
- a child or children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
Comfort

101
208_en_Chap04_confort_ed01-2015

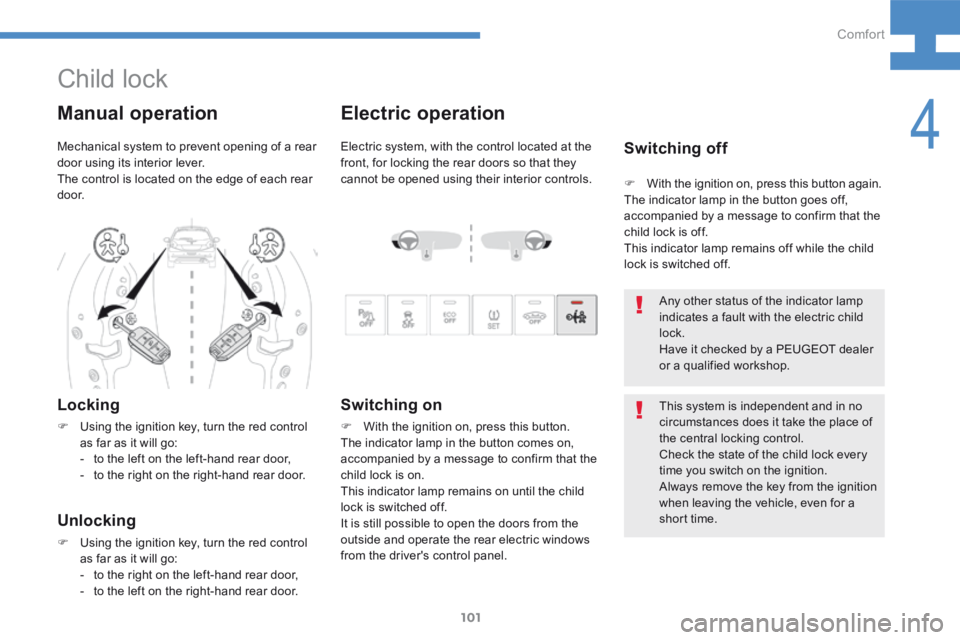

Electric operation
Electric system, with the control located at the
front, for locking the rear doors so that they
cannot be opened using their interior controls.
Switching on
F With the ignition on, press this button.
The indicator lamp in the button comes on,
accompanied by a message to confirm that the
child lock is on.
This indicator lamp remains on until the child
lock is switched off.
It is still possible to open the doors from the
outside and operate the rear electric windows
from the driver's control panel.
Switching off
Any other status of the indicator lamp
indicates a fault with the electric child
lock.
Have it checked by a PEUGEOT dealer
or a qualified workshop.
This system is independent and in no
circumstances does it take the place of
the central locking control.
Check the state of the child lock every
time you switch on the ignition.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
Child lock
Mechanical system to prevent opening of a rear
door using its interior lever.
The control is located on the edge of each rear
d o o r.
Locking
F Using the ignition key, turn the red control
as far as it will go:
- to the left on the left-hand rear door,
- to the right on the right-hand rear door.
Manual operation
F With the ignition on, press this button again.
The indicator lamp in the button goes off,
accompanied by a message to confirm that the
child lock is off.
This indicator lamp remains off while the child
lock is switched off.
Unlocking
F Using the ignition key, turn the red control
as far as it will go:
- to the right on the left-hand rear door,
- to the left on the right-hand rear door.
4
Comfort

102
208_en_Chap04_confort_ed01-2015

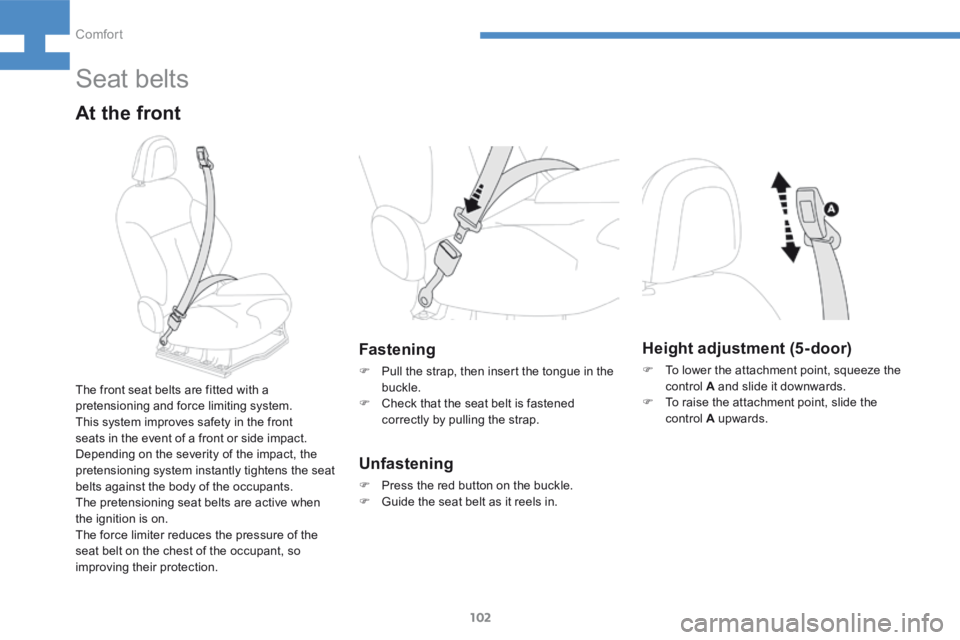

Seat belts
At the front
Fastening
F Pull the strap, then insert the tongue in the
buckle.
F Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
F Press the red button on the buckle.
F Guide the seat belt as it reels in.
The front seat belts are fitted with a
pretensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact, the
pretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant, so
improving their protection.
Height adjustment (5-door)
F
To lower the attachment point, squeeze the
control A and slide it downwards.
F To raise the attachment point, slide the
control A upwards.
Comfort
