2015 Peugeot 208 Owner's Manual - RHD (UK, Australia)

151
208_en_Chap06_Feux-Signalisations_ed01-2015
Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition has
been switched off makes the driver's exit easier
when the light is poor.
Manual guide-me-home
lighting
Switching on
F With the ignition off, "flash" the headlamps
using the lighting stalk.
F A further "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
Parking lamps
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F Within one minute of switching off the
ignition, operate the lighting control stalk
up or down depending on the traffic side
(for example: when parking on the left;
lighting control stalk upwards; the right
hand sidelamps are on).
Manual guide-me-home lighting is
also available from the remote control
lighting button (see the "Remote
control" section). This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the middle position or
switch on the ignition.
6
Lighting and signalling

152
208_en_Chap06_Feux-Signalisations_ed01-2015

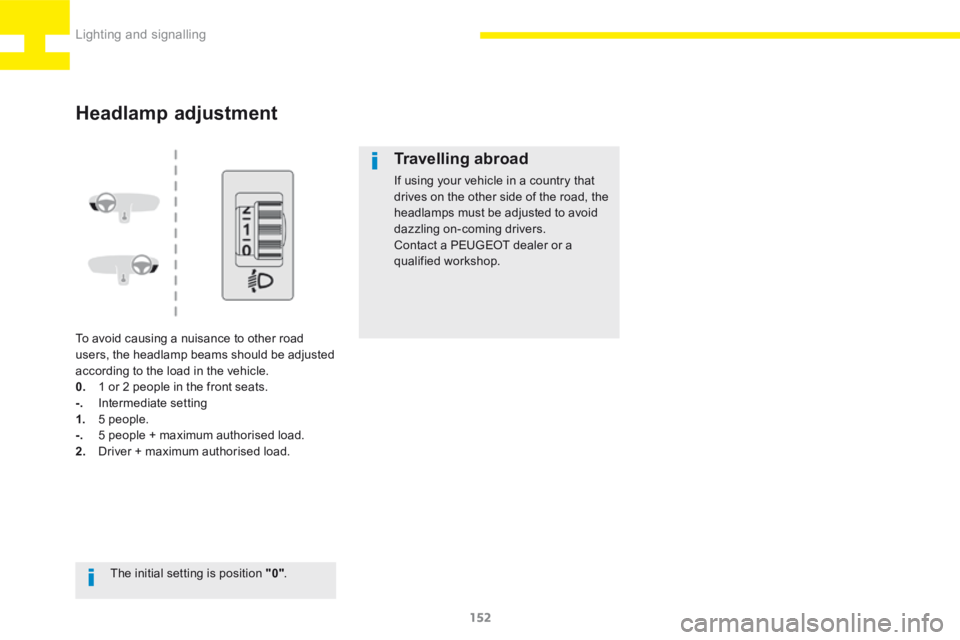

Headlamp adjustment
To avoid causing a nuisance to other road
users, the headlamp beams should be adjusted
according to the load in the vehicle.
0. 1 or 2 people in the front seats.
- . Intermediate setting
1. 5 people.
- . 5 people + maximum authorised load.
2. Driver + maximum authorised load.
The initial setting is position "0" .
Travelling abroad
If using your vehicle in a country that
drives on the other side of the road, the
headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a PEUGEOT dealer or a
qualified workshop.
Lighting and signalling

153
208_en_Chap06_Feux-Signalisations_ed01-2015
With dipped or main beams, this function
makes use of the beam from a front foglamp
to illuminate the inside of a bend, when the
vehicle speed is below 25 mph (approximately
40 km/h) (urban driving, winding road,
intersections, parking manoeuvres...).
Cornering lighting
With cornering lighting
Without cornering lighting
Operation
The system operates:
- when the corresponding direction indicator
is switched on,
or
- from a certain angle of rotation of the
steering wheel.
Programming
The system is activated or
deactivated in the vehicle
configuration menu.
The system is activated by default.
No operation
The system does not operate:
- below a certain angle of rotation of the
steering wheel,
- above 25 mph (40 km/h),
- when reverse gear is engaged.
6
Lighting and signalling

154
208_en_Chap06_Feux-Signalisations_ed01-2015

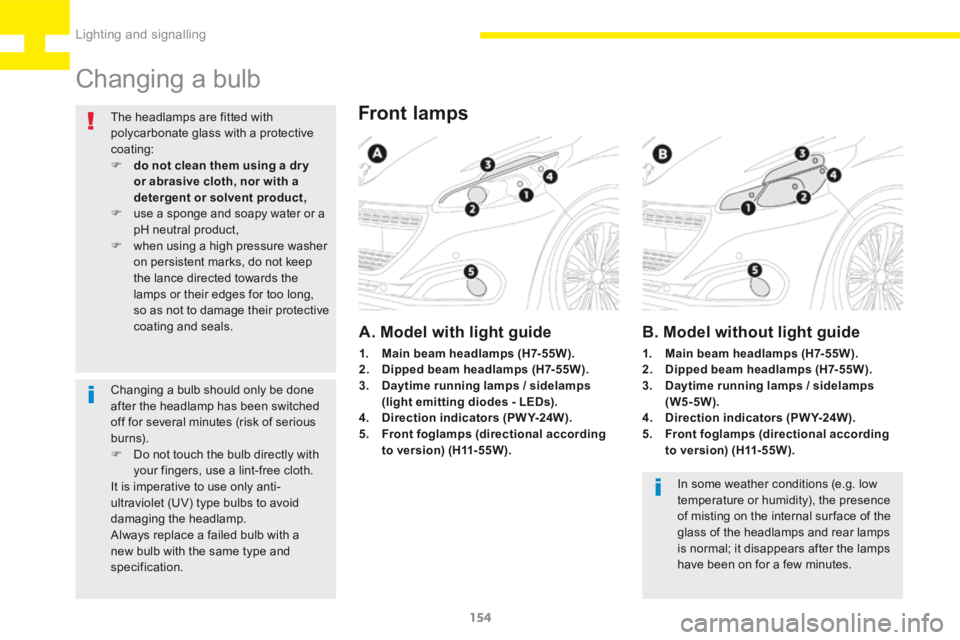

Changing a bulb
Front lamps
A. Model with light guide
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
do not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F use a sponge and soapy water or a
pH neutral product,
F when using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
B. Model without light guide
1. Main beam headlamps (H7-55W).
2. Dipped beam headlamps (H7-55W).
3. Daytime running lamps / sidelamps
(light emitting diodes - LEDs).
4. Direction indicators (PWY-24W).
5. Front foglamps (directional according
to version) (H11-55W). 1.
Main beam headlamps (H7-55W).
2. Dipped beam headlamps (H7-55W).
3. Daytime running lamps / sidelamps
(W5-5W).
4. Direction indicators (PWY-24W).
5. Front foglamps (directional according
to version) (H11-55W).
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
Do not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Lighting and signalling

155
208_en_Chap06_Feux-Signalisations_ed01-2015

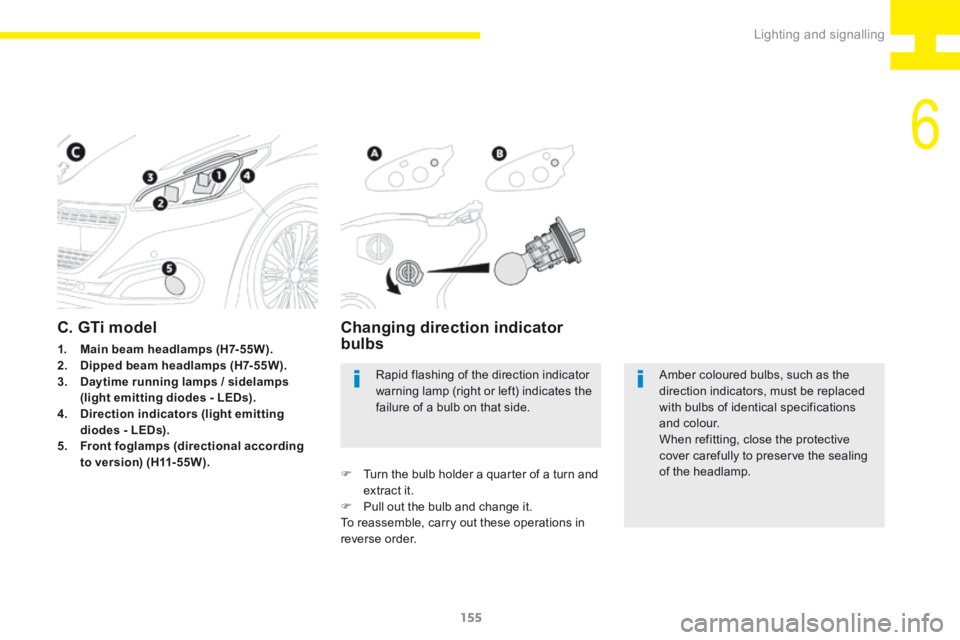

Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
When refitting, close the protective
cover carefully to preserve the sealing
of the headlamp.
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
Changing direction indicator
bulbs
F
Turn the bulb holder a quarter of a turn and
extract it.
F Pull out the bulb and change it.
To reassemble, carry out these operations in
reverse order.
C. GTi model
1. Main beam headlamps (H7-55W).
2. Dipped beam headlamps (H7-55W).
3. Daytime running lamps / sidelamps
(light emitting diodes - LEDs).
4. Direction indicators (light emitting
diodes - LEDs).
5. Front foglamps (directional according
to version) (H11-55W).
6
Lighting and signalling

156
208_en_Chap06_Feux-Signalisations_ed01-2015

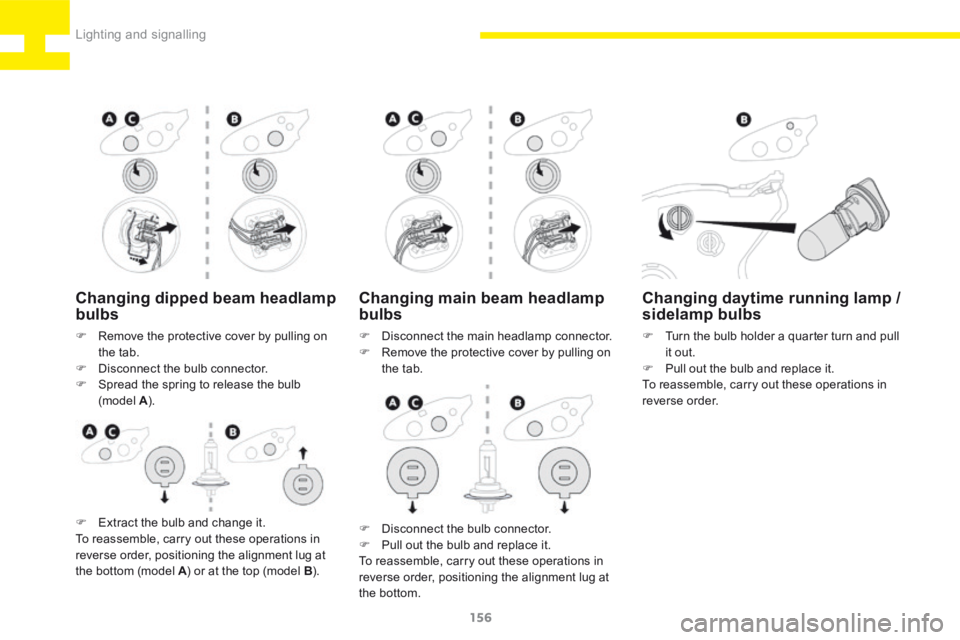

Changing main beam headlamp
bulbs
F Disconnect the main headlamp connector.
F Remove the protective cover by pulling on
the tab.
Changing daytime running lamp /
sidelamp bulbs
F Turn the bulb holder a quarter turn and pull
it out.
F Pull out the bulb and replace it.
To reassemble, carry out these operations in
reverse order.
F Disconnect the bulb connector.
F Pull out the bulb and replace it.
To reassemble, carry out these operations in
reverse order, positioning the alignment lug at
the bottom.
Changing dipped beam headlamp
bulbs
F Remove the protective cover by pulling on
the tab.
F Disconnect the bulb connector.
F Spread the spring to release the bulb
(model A ).
F Extract the bulb and change it.
To reassemble, carry out these operations in
reverse order, positioning the alignment lug at
the bottom (model A ) or at the top (model B ).
Lighting and signalling

157
208_en_Chap06_Feux-Signalisations_ed01-2015

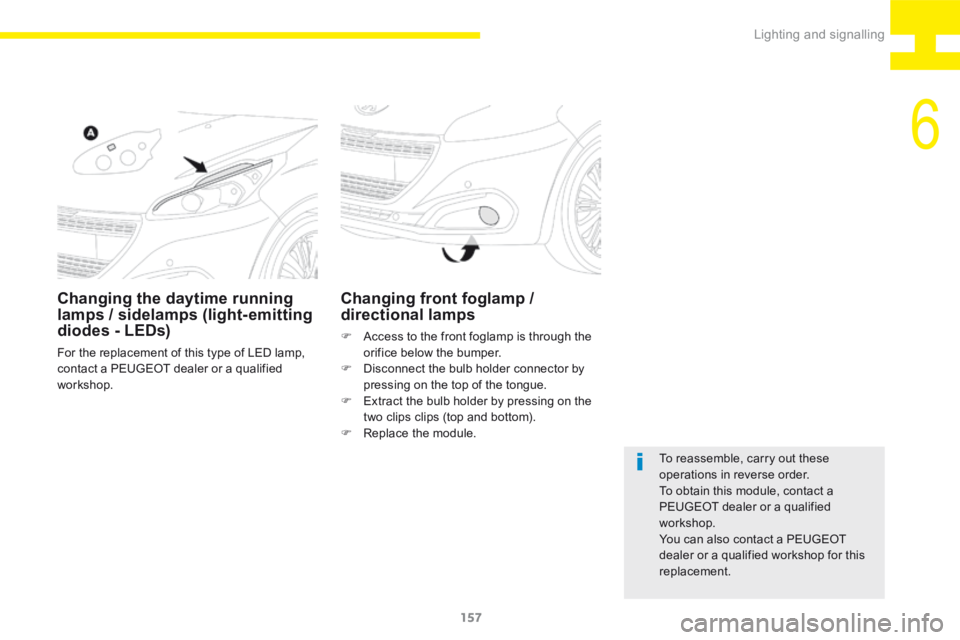

Changing the daytime running
lamps / sidelamps (light- emitting
diodes - LEDs)
For the replacement of this type of LED lamp,
contact a PEUGEOT dealer or a qualified
workshop.
Changing front foglamp /
directional lamps
F Access to the front foglamp is through the
orifice below the bumper.
F Disconnect the bulb holder connector by
pressing on the top of the tongue.
F Extract the bulb holder by pressing on the
two clips clips (top and bottom).
F Replace the module.
To reassemble, carry out these
operations in reverse order.
To obtain this module, contact a
PEUGEOT dealer or a qualified
workshop.
You can also contact a PEUGEOT
dealer or a qualified workshop for this
replacement.
6
Lighting and signalling

158
208_en_Chap06_Feux-Signalisations_ed01-2015

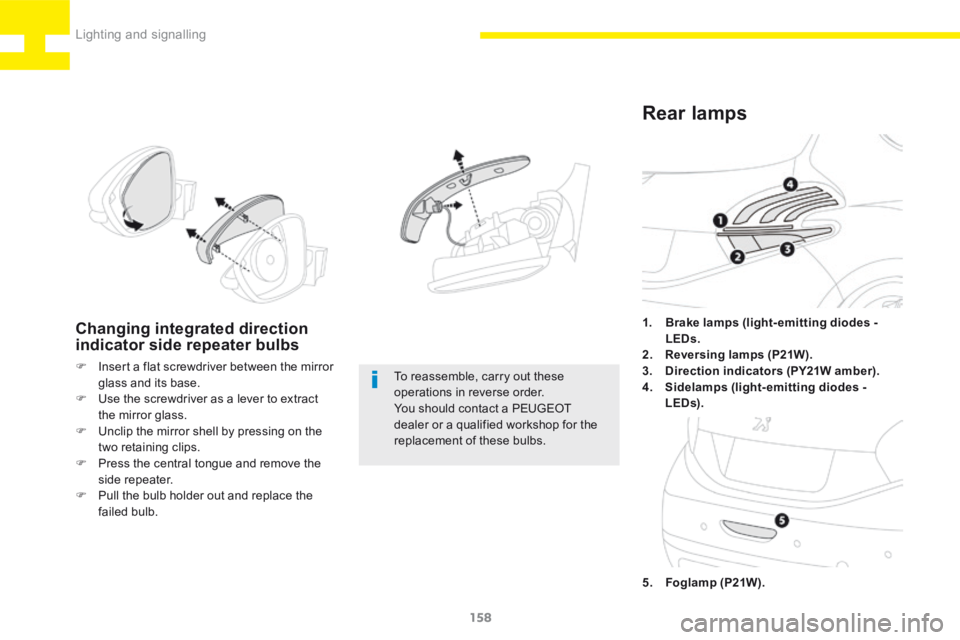

1. Brake lamps (light- emitting diodes -
LEDs.
2. Reversing lamps (P21W).
3. Direction indicators (PY21W amber).
4. Sidelamps (light-emitting diodes -
LEDs).
Rear lamps
5. Foglamp (P21W).
Changing integrated direction
indicator side repeater bulbs
F Insert a flat screwdriver between the mirror
glass and its base.
F Use the screwdriver as a lever to extract
the mirror glass.
F Unclip the mirror shell by pressing on the
two retaining clips.
F Press the central tongue and remove the
side repeater.
F Pull the bulb holder out and replace the
failed bulb. To reassemble, carry out these
operations in reverse order.
You should contact a PEUGEOT
dealer or a qualified workshop for the
replacement of these bulbs.
