2015 Peugeot 208 Owner's Manual - RHD (UK, Australia)

207
208_en_Chap08_Informations-pratiques_ed01-2015

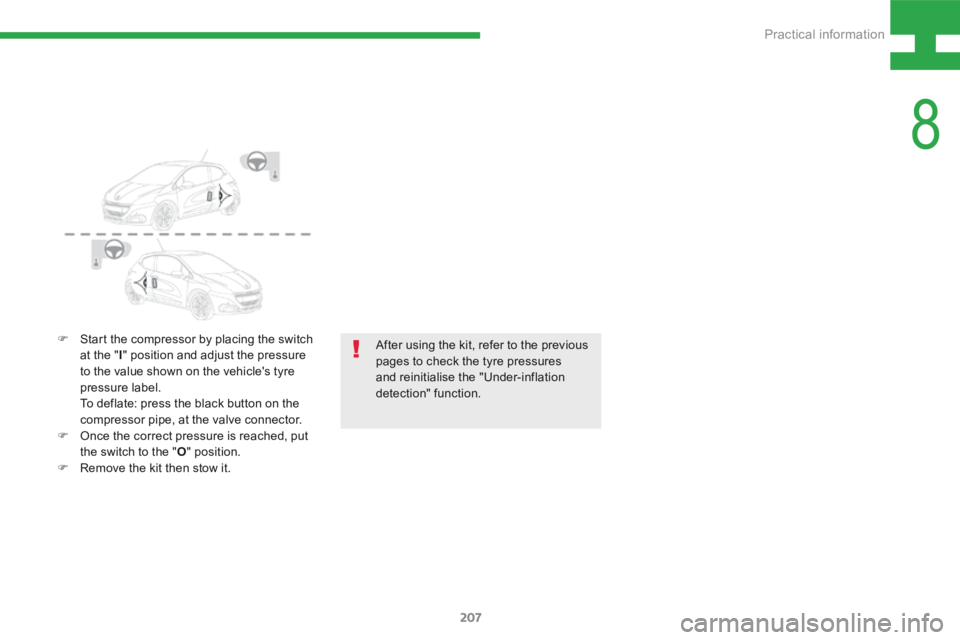

After using the kit, refer to the previous
pages to check the tyre pressures
and reinitialise the "Under-inflation
detection" function.
F
Start the compressor by placing the switch
at the " I" position and adjust the pressure
to the value shown on the vehicle's tyre
pressure label.
To deflate: press the black button on the
compressor pipe, at the valve connector.
F Once the correct pressure is reached, put
the switch to the " O" position.
F Remove the kit then stow it.
8
Practical information

208
208_en_Chap08_Informations-pratiques_ed01-2015
Spare wheel
The tools are installed in the boot under the
f l o o r.
To gain access to them:
F open the boot,
F lift the floor and remove it,
F remove the carrier box containing the tools.
Access to the tools
List of tools*
4. Socket for the security bolts.
For adapting the wheelbrace to the special
"security" bolts.
5. Towing eye.
See "Towing the vehicle".
Procedure for changing a wheel for the spare
wheel using the tools provided with the vehicle.
All of these tools are specific to your
vehicle and can vary according to the level
of equipment. Do not use them for other
purposes.
1. Wheelbrace.
For removing the wheel trim and removing
the wheel bolts.
2. Jack with integral handle.
For raising the vehicle.
3. "Bolt cover" tool.
For removing the bolt protectors (covers)
on alloy wheels.
* Depending on country of sale.
Practical information

209
208_en_Chap08_Informations-pratiques_ed01-2015
Wheel with trim
When refitting the wheel, refit the trim
starting by placing its notch facing the
valve and press around its edge with
the palm of your hand.
The spare wheel is installed in the boot under
t h e f l o o r.
According to country, the spare wheel may be
steel, alloy or of the "space-saver" type.
To gain access to it, refer to the paragraph
"Access to the tools" on the previous page.
Access to the spare wheel
Taking out the wheel
F Unscrew the yellow central bolt.
F Raise the spare wheel towards you from
the rear.
F Take the wheel out of the boot.
8
Practical information

210
208_en_Chap08_Informations-pratiques_ed01-2015

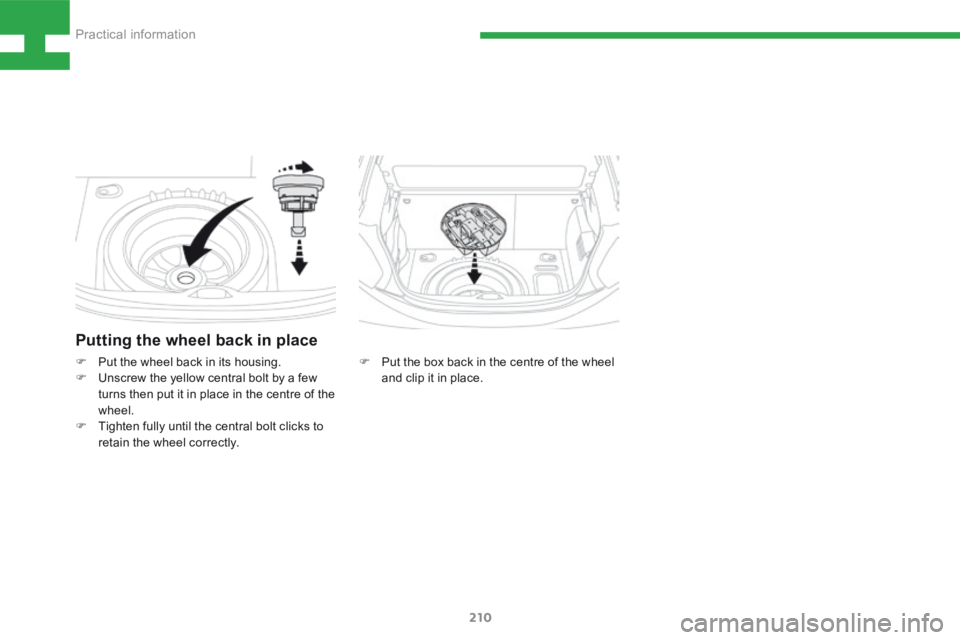

Putting the wheel back in place
F Put the box back in the centre of the wheel
and clip it in place.
F
Put the wheel back in its housing.
F Unscrew the yellow central bolt by a few
turns then put it in place in the centre of the
wheel.
F Tighten fully until the central bolt clicks to
retain the wheel correctly.
Practical information

211
208_en_Chap08_Informations-pratiques_ed01-2015

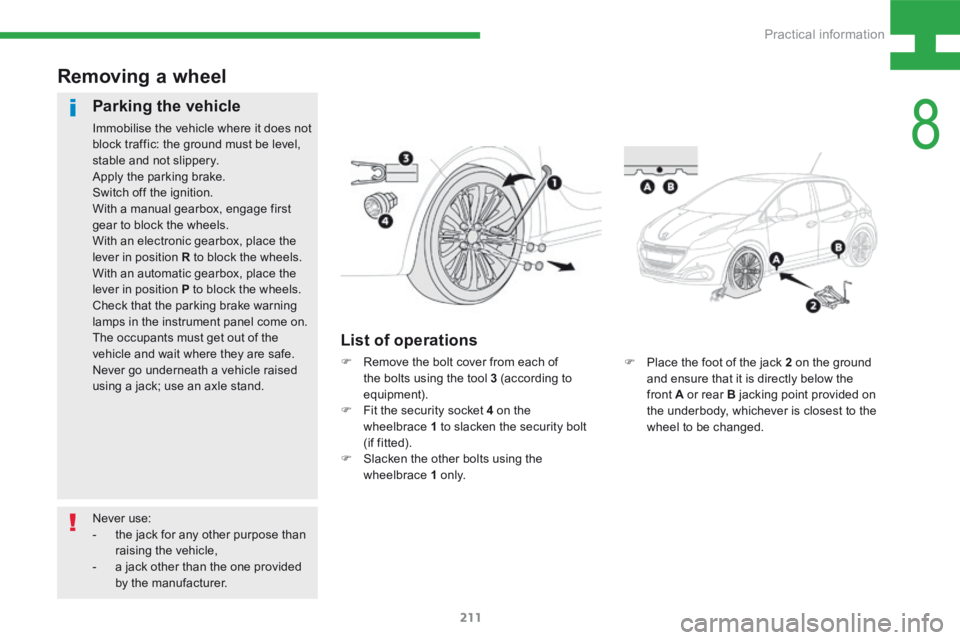

F Place the foot of the jack 2 on the ground
and ensure that it is directly below the
front A or rear B jacking point provided on
the underbody, whichever is closest to the
wheel to be changed.
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and not slippery.
Apply the parking brake.
Switch off the ignition.
With a manual gearbox, engage first
gear to block the wheels.
With an electronic gearbox, place the
lever in position R to block the wheels.
With an automatic gearbox, place the
lever in position P to block the wheels.
Check that the parking brake warning
lamps in the instrument panel come on.
The occupants must get out of the
vehicle and wait where they are safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.
List of operations
F Remove the bolt cover from each of
the bolts using the tool 3 (according to
equipment).
F Fit the security socket 4 on the
wheelbrace 1 to slacken the security bolt
(if fitted).
F Slacken the other bolts using the
wheelbrace 1 o n l y.
Never use:
- the jack for any other purpose than
raising the vehicle,
- a jack other than the one provided
by the manufacturer.
8
Practical information

212
208_en_Chap08_Informations-pratiques_ed01-2015

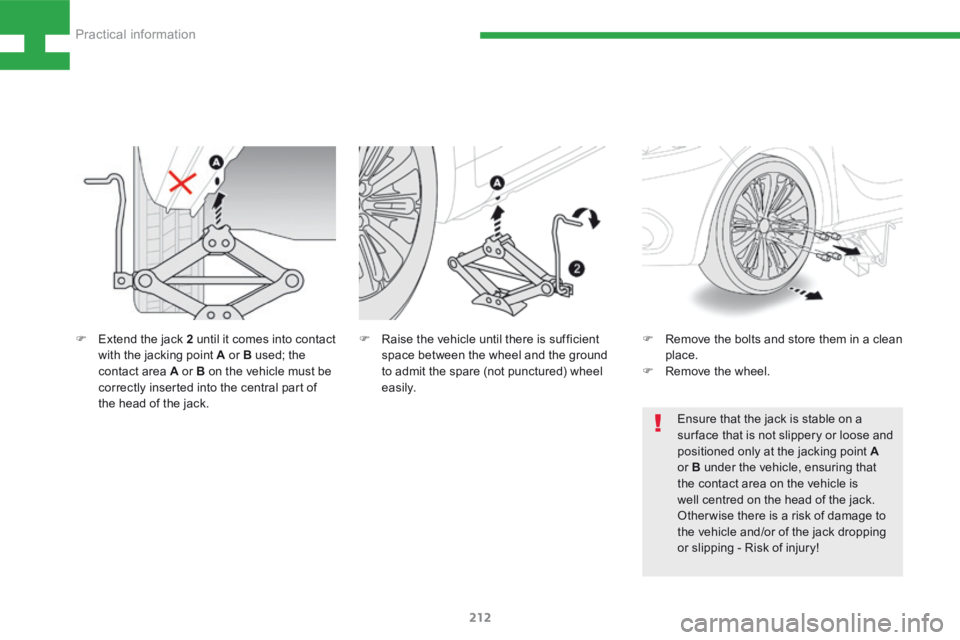

F Remove the bolts and store them in a clean
place.
F Remove the wheel.
F
Extend the jack 2 until it comes into contact
with the jacking point A or B used; the
contact area A or B on the vehicle must be
correctly inserted into the central part of
the head of the jack.
Ensure that the jack is stable on a
sur face that is not slippery or loose and
positioned only at the jacking point A
or B under the vehicle, ensuring that
the contact area on the vehicle is
well centred on the head of the jack.
Otherwise there is a risk of damage to
the vehicle and/or of the jack dropping
or slipping - Risk of injury!
F
Raise the vehicle until there is sufficient
space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.
Practical information

213
208_en_Chap08_Informations-pratiques_ed01-2015
Fitting a wheel
Fitting the "space-saver"
spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers do
not come into contact with the "space-
saver" spare wheel. The wheel is
secured by the conical shoulder of each
bolt (see drawing).
When refitting the alloy wheel, ensure
that the wheel bolt washers are clean
and in good condition.
After changing a wheel
To store the punctured wheel in the
boot correctly, first remove the central
c ove r.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a PEUGEOT dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
8
Practical information

214
208_en_Chap08_Informations-pratiques_ed01-2015

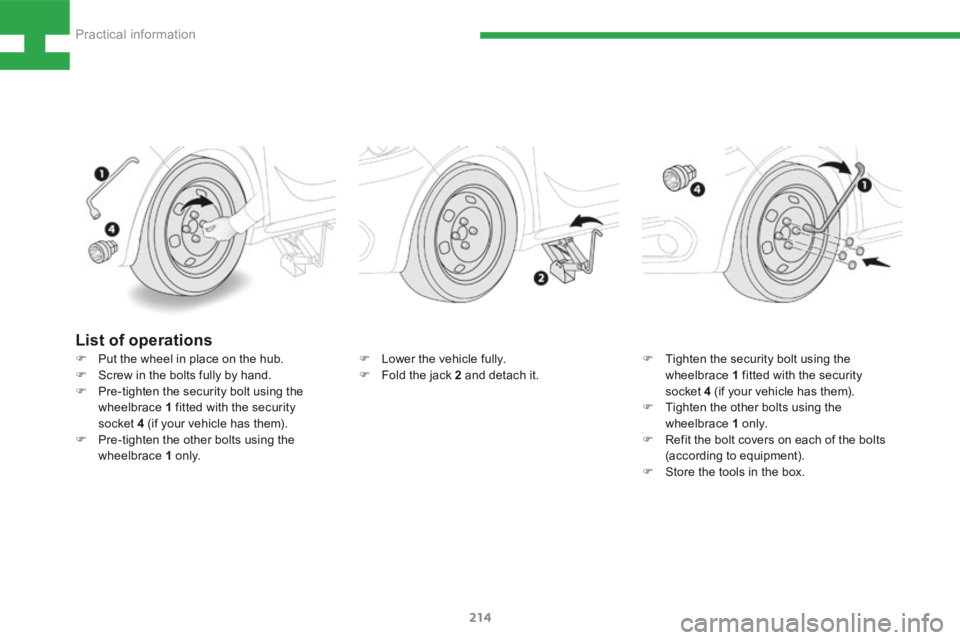

F Lower the vehicle fully.
F Fold the jack 2 and detach it. F
Tighten the security bolt using the
wheelbrace 1 fitted with the security
socket 4 (if your vehicle has them).
F Tighten the other bolts using the
wheelbrace 1 o n l y.
F Refit the bolt covers on each of the bolts
(according to equipment).
F Store the tools in the box.
List of operations
F Put the wheel in place on the hub.
F Screw in the bolts fully by hand.
F Pre-tighten the security bolt using the
wheelbrace 1 fitted with the security
socket 4 (if your vehicle has them).
F Pre-tighten the other bolts using the
wheelbrace 1 o n l y.
Practical information
