2015 Peugeot 208 Owner's Manual - RHD (UK, Australia)

71
208_en_Chap04_confort_ed01-2015
Advice
Digital air conditioning: use the automatic mode in preference by pressing the "AUTO" button.
I require...
Heating or Manual air conditioning
Air distribution Air flowRecirculation of interior air /
Intake of exterior air Temperature
Manual AC
HOT
COLD
DEMISTING
DEFROSTING
Interior settings
4
Comfort

72
208_en_Chap04_confort_ed01-2015
Demist - defrost
These markings on the control panel
indicate the control positions for
rapid demisting or defrosting of the
windscreen and side windows.
Manual air conditioning
With Stop & Start, when demisting has
been activated, the STOP mode is not
available.
Dual-zone digital air conditioning
Auto - Visibility programme
Switching on
Windscreen
Operation
F Press the "A /C " button again;
the indicator lamp in the button
goes off. F
Press the "visibility" button
again or on "AUTO" ; the
indicator lamp in the button goes
off and the indicator lamp in the
"AUTO" button comes on.
Switching on
F Put the air flow, temperature
and distribution controls to the
dedicated marked position. F
Press the " visibility" button to
demist or defrost the windscreen
and side windows as quickly as
possible.
Switching off
The system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
Switching off
The system reverts to the previous settings.
F
Press the "A /C " button for air
conditioning; the indicator lamp
in the button comes on.
Comfort

73
208_en_Chap04_confort_ed01-2015

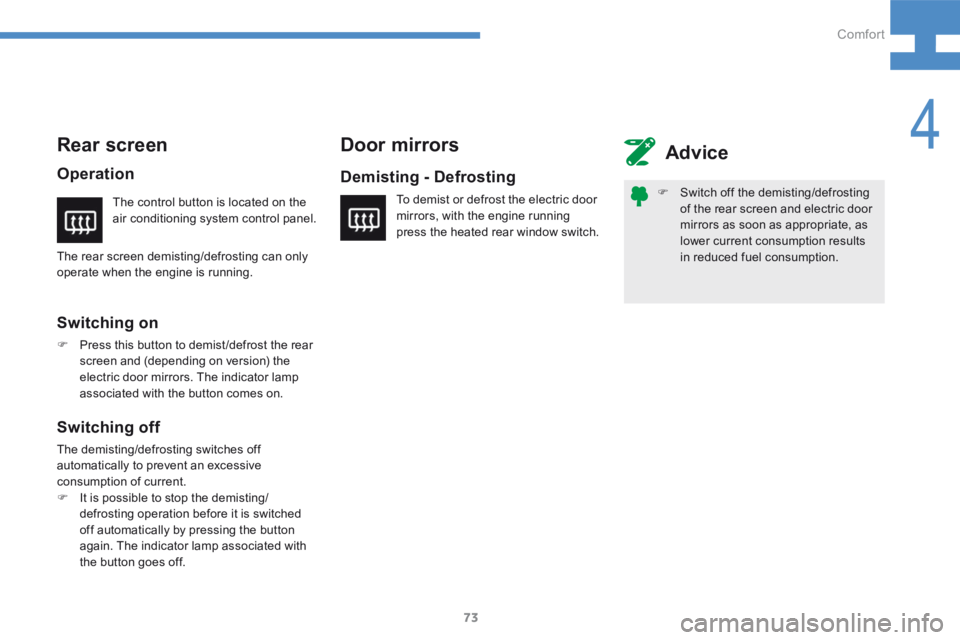

F Switch off the demisting/defrosting
of the rear screen and electric door
mirrors as soon as appropriate, as
lower current consumption results
in reduced fuel consumption.
Advice
Door mirrors
Demisting - Defrosting
To demist or defrost the electric door
mirrors, with the engine running
press the heated rear window switch.
Rear screen
Switching on
F
Press this button to demist /defrost the rear
screen and (depending on version) the
electric door mirrors. The indicator lamp
associated with the button comes on. The control button is located on the
air conditioning system control panel.
The rear screen demisting/defrosting can only
operate when the engine is running.
Operation
Switching off
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
F It is possible to stop the demisting/
defrosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated with
the button goes off.
4
Comfort

74
208_en_Chap04_confort_ed01-2015

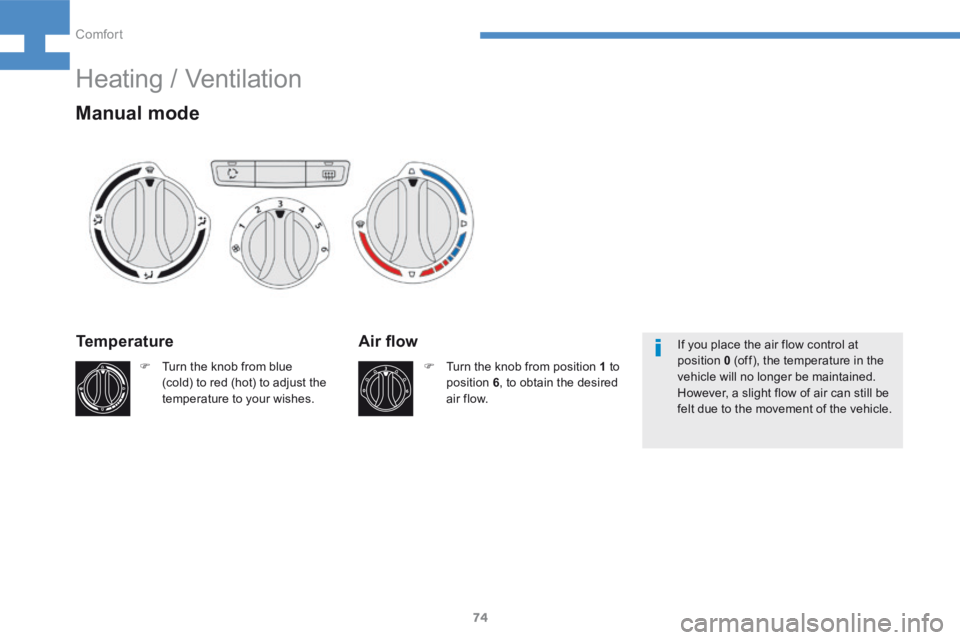

Temperature
F Turn the knob from blue
(cold) to red (hot) to adjust the
temperature to your wishes.
Air flow
F Turn the knob from position 1 to
position 6 , to obtain the desired
air f low. If you place the air flow control at
position 0 (off), the temperature in the
vehicle will no longer be maintained.
However, a slight flow of air can still be
felt due to the movement of the vehicle.
Heating / Ventilation
Manual mode
Comfort

75
208_en_Chap04_confort_ed01-2015
Recirculation of the air in the vehicle isolates
the passenger compartment from exterior
odours and fumes.
Return to the intake of exterior air as soon as
possible to avoid the risk of deterioration of air
quality and misting.
Air intake / Air recirculation
F Press the button to recirculate
the interior air: the indicator lamp
is on.
F Press the button again to allow the intake
of exterior air: the indicator lamp is off.
Adjusting the air distribution
Windscreen and side windows.
Windscreen, side windows and
footwells.
Footwells.
Centre and side air vents.
The air distribution can be
modulated by placing the knob at an
intermediate position.
4
Comfort

76
208_en_Chap04_confort_ed01-2015
Temperature
F To adjust the temperature, urn
the knob from blue (cold) to red
(hot) to suit your requirements.
Air flow
F To adjust the air flow, turn
the knob from position 1 to
position 6 to obtain a adequate
air flow for your comfort. If you put the air flow control in
position
0 (system off), the temperature
is no longer controlled. However,
a slight flow of air can still be felt,
resulting from the movement of the
vehicle.
Air conditioning
Manual mode
Comfort

77
208_en_Chap04_confort_ed01-2015
Air conditioning On / Off
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting
in winter, above 3 °C.
Switching on
F Press the "A /C " button, the button's
indicator lamp comes on.
Switching off
F Press the "A /C " button again, the button's
indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation). The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
The air conditioning does not operate
when the air flow adjustment control is
in position "0" .
To obtain cooled air more quickly, you can use
recirculation of interior air for a few moments.
Then return to fresh air intake.
Air distribution adjustment
Windscreen and side windows.
Windscreen, side windows and
footwells.
Footwells.
Central and side vents.
The air distribution can be adapted
by placing the dial in an intermediate
position. The recirculation of interior air insulates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the air quality and
the formation of mist.
Air intake / Air recirculation
F
Press the button to recirculate
the interior air: the indicator lamp
is on.
F Press the button again to allow fresh air
into the passenger compartment: the
indicator lamp is off.
4
Comfort

78
208_en_Chap04_confort_ed01-2015
A setting around 21 enables you to obtain an
optimum level of comfort. Depending on your
requirements, a setting between 18 and 24 is
usual.
In addition, it is recommended that you avoid a
left /right setting difference of more than 3.
Temperature
Adjustment
The driver and front passenger can each set
the temperature to suit their requirements.
The value indicated in the screen corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.F Push the button down (blue) to
reduce the value or up (red) to
increase it.
Dual-zone digital A /C
AUTO mode
Switching on When the engine is cold, the air flow will
only reach its optimum level gradually
to prevent too great a distribution of
c o l d a i r.
In cold weather, it favours the
distribution of warm air to the
windscreen, the side windows and the
footwells only.
Offers the best compromise between
a comfortable temperature and quiet
operation. Provides soft and quiet operation by
limiting air flow.
Provides strong and effective air flow.
F
Press the "AUTO" button
repeatedly. The indicator lamp
comes on at the first press; the
mode activated appears in the
digital air conditioning screen:
Automatic programme
Principle
Switching off
F Press the "empty fan" air flow
button until the fan symbol
disappears.
Comfort
