2015 Peugeot 208 Owner's Manual - RHD (UK, Australia)

143
208_en_Chap05_conduite_ed01-2015
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a PEUGEOT dealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
5
Driving

144
208_en_Chap06_Feux-Signalisations_ed01-2015
Direction indicators
F Lower the lighting control stalk fully when
moving to the left.
F Raise the lighting control stalk fully when
moving to the right.
Three flashes
Move the stalk briefly upwards or downwards,
without going beyond the point of resistance;
the corresponding direction indicators will flash
3 times.
If you forget to cancel the
direction indicators for more than
twenty seconds, the volume of the
audible signal will increase if the speed
is above 40 mph (60 km/h). This function can be used at any speed,
but it is particularly useful for changing
lane on fast roads.
Hazard warning lamps
Automatic operation
When braking in an emergency, depending
on the deceleration, the lamps come on
automatically.
They switch off automatically the first time you
accelerate.
F
You can also switch them off by pressing
the button.F
Press this button, all of the
direction indicators flash.
Visual warning with of all the direction
indicators flashing to alert other road users to a
vehicle breakdown, towing or accident.
They can operate with the ignition off.
Lighting and signalling

145
208_en_Chap06_Feux-Signalisations_ed01-2015
Lighting
Main lighting
The vehicle has various different lamps:
- sidelamps, to be seen,
- dipped beam headlamps to see without
dazzling other drivers,
- main beam headlamps to see clearly when
the road is clear,
- directional headlamps for improved
visibility when cornering.
Additional lighting
Other lamps are fitted to fulfil the requirements
of particular driving conditions:
- a rear foglamp to better signal the
presence of the vehicle in foggy conditions,
- front foglamps with cornering lighting,
- daytime running lamps to be seen during
t h e d ay,
- guide-me-home and welcome lighting for
leaving and entering to the vehicle.
Automatic lighting
functions
Various automatic lighting functions are also
available depending on options:
- guide-me-home lighting,
- cornering lighting,
- welcome lighting,
- daytime running lamps,
- automatic illumination of headlamps.
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
6
Lighting and signalling

146
208_en_Chap06_Feux-Signalisations_ed01-2015
Manual mode
Lighting off (ignition off) / Daytime
running lamps (engine running).
Sidelamps only.
Dipped or main beam headlamps.
Dipping the headlamps
Pull the stalk to switch the lighting between
dipped / main beam headlamps.
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Display
Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting
switched on.
Place the desired symbol against the marking.
Lighting and signalling

147
208_en_Chap06_Feux-Signalisations_ed01-2015

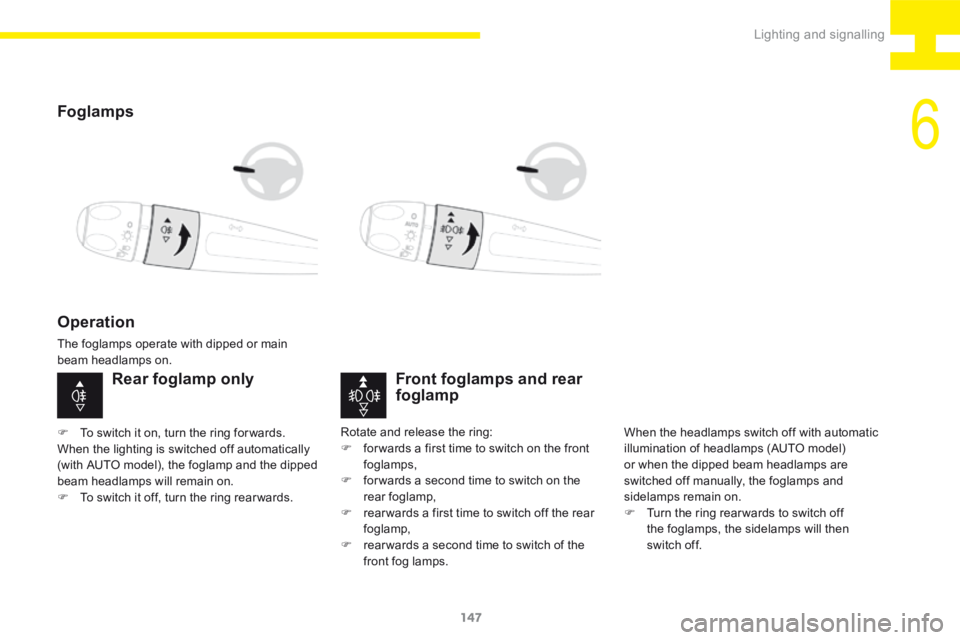

FoglampsFront foglamps and rear
foglamp
When the headlamps switch off with automatic
illumination of headlamps (AUTO model)
or when the dipped beam headlamps are
switched off manually, the foglamps and
sidelamps remain on.
F Turn the ring rear wards to switch off
the foglamps, the sidelamps will then
switch off.
Rotate and release the ring:
F
for wards a first time to switch on the front
foglamps,
F for wards a second time to switch on the
rear foglamp,
F rear wards a first time to switch off the rear
foglamp,
F rear wards a second time to switch of the
front fog lamps.
Rear foglamp only
F To switch it on, turn the ring for wards.
When the lighting is switched off automatically
(with AUTO model), the foglamp and the dipped
beam headlamps will remain on.
F To switch it off, turn the ring rear wards.
Operation
The foglamps operate with dipped or main
beam headlamps on.
6
Lighting and signalling

148
208_en_Chap06_Feux-Signalisations_ed01-2015
In good or rainy weather, both day
and night, the front foglamps and the
rear foglamp are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped beam headlamps manually
as the sunshine sensor may detect
sufficient light.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.Switching on the lamps
after the ignition is
switched off
To reactivate the lighting control, rotate
the ring to the "0" position - lamps off,
then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically after
a maximum duration of thirty minutes to
prevent discharging of the battery.
Switching off the lamps
when the ignition is
switched off
On switching off the ignition, all of the
lamps turn off immediately, except for
dipped beam if guide-me-home lighting
is activated.
Lighting and signalling

149
208_en_Chap06_Feux-Signalisations_ed01-2015
The sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver, when a low level of
ambient light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automatically.

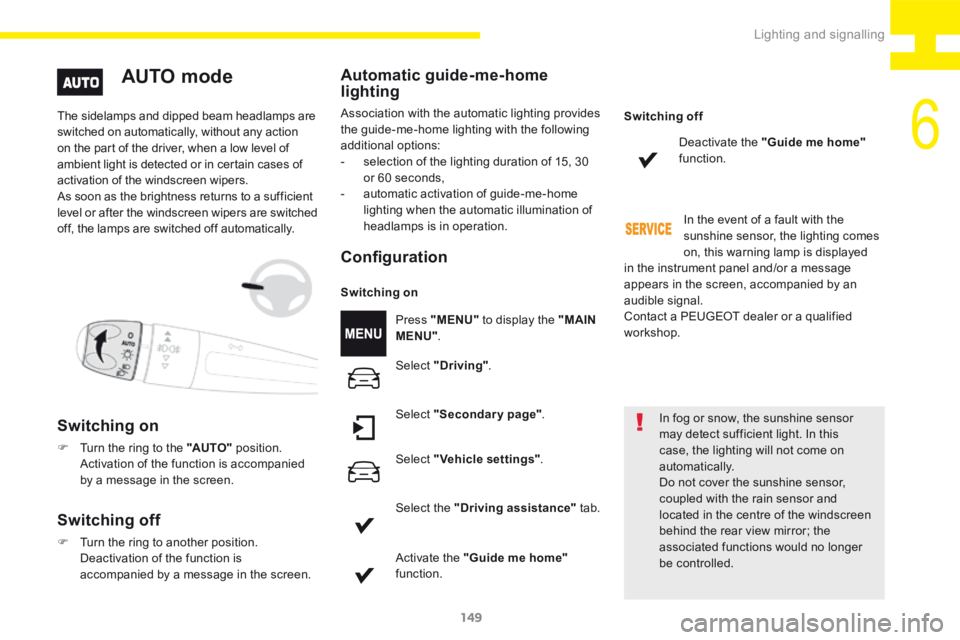

AUTO mode
Switching on
F Turn the ring to the "AUTO" position.
Activation of the function is accompanied
by a message in the screen.
Switching off
F Turn the ring to another position.
Deactivation of the function is
accompanied by a message in the screen.
Automatic guide-me-home
lighting
Association with the automatic lighting provides
the guide-me-home lighting with the following
additional options:
- selection of the lighting duration of 15, 30
or 60 seconds,
- automatic activation of guide-me-home
lighting when the automatic illumination of
headlamps is in operation. In the event of a fault with the
sunshine sensor, the lighting comes
on, this warning lamp is displayed
in the instrument panel and/or a message
appears in the screen, accompanied by an
audible signal.
Contact a PEUGEOT dealer or a qualified
workshop.
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.
Configuration
Press "MENU" to display the "MAIN
MENU" .
Select "Driving" .
Select "Secondary page" .
Select the "Driving assistance" tab.
Activate the "Guide me home"
function. Select "Vehicle settings" .Switching off
Switching on Deactivate the "Guide me home"

function.
6
Lighting and signalling

150
208_en_Chap06_Feux-Signalisations_ed01-2015

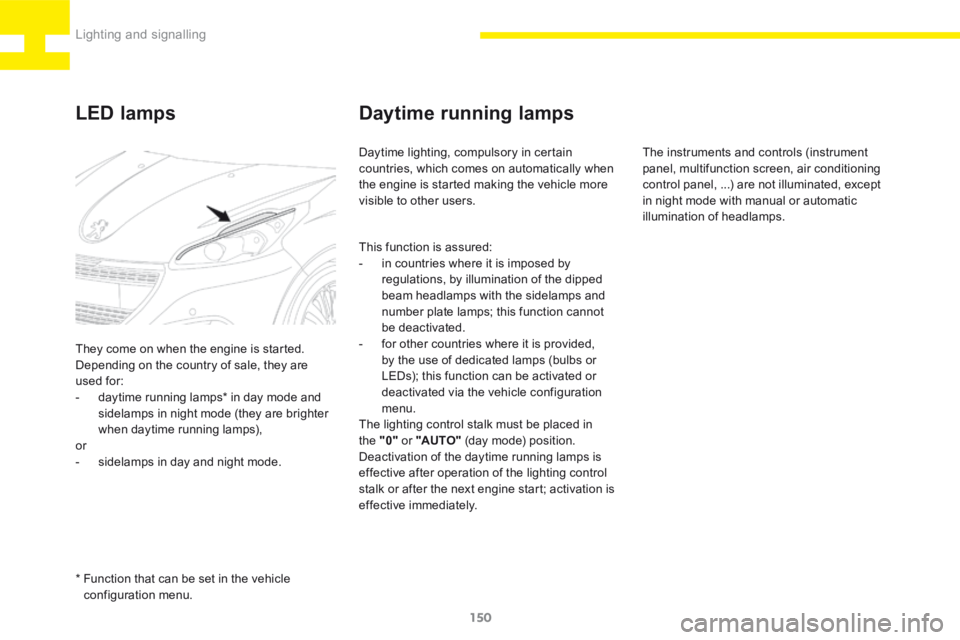

Daytime running lamps
Daytime lighting, compulsory in certain
countries, which comes on automatically when
the engine is started making the vehicle more
visible to other users.
LED lamps
They come on when the engine is started.
Depending on the country of sale, they are
used for:
- daytime running lamps* in day mode and
sidelamps in night mode (they are brighter
when daytime running lamps),
or
- sidelamps in day and night mode.
* Function that can be set in the vehicle
configuration menu. This function is assured:
-
in countries where it is imposed by
regulations, by illumination of the dipped
beam headlamps with the sidelamps and
number plate lamps; this function cannot
be deactivated.
- for other countries where it is provided,
by the use of dedicated lamps (bulbs or
LEDs); this function can be activated or
deactivated via the vehicle configuration
menu.
The lighting control stalk must be placed in
the "0" or "AUTO" (day mode) position.
Deactivation of the daytime running lamps is
effective after operation of the lighting control
stalk or after the next engine start; activation is
effective immediately. The instruments and controls (instrument
panel, multifunction screen, air conditioning
control panel, ...) are not illuminated, except
in night mode with manual or automatic
illumination of headlamps.
Lighting and signalling
