2015 NISSAN LEAF Navigation Manual


> (GLW    0RGHO 1DYL(9 @
LNH0011X

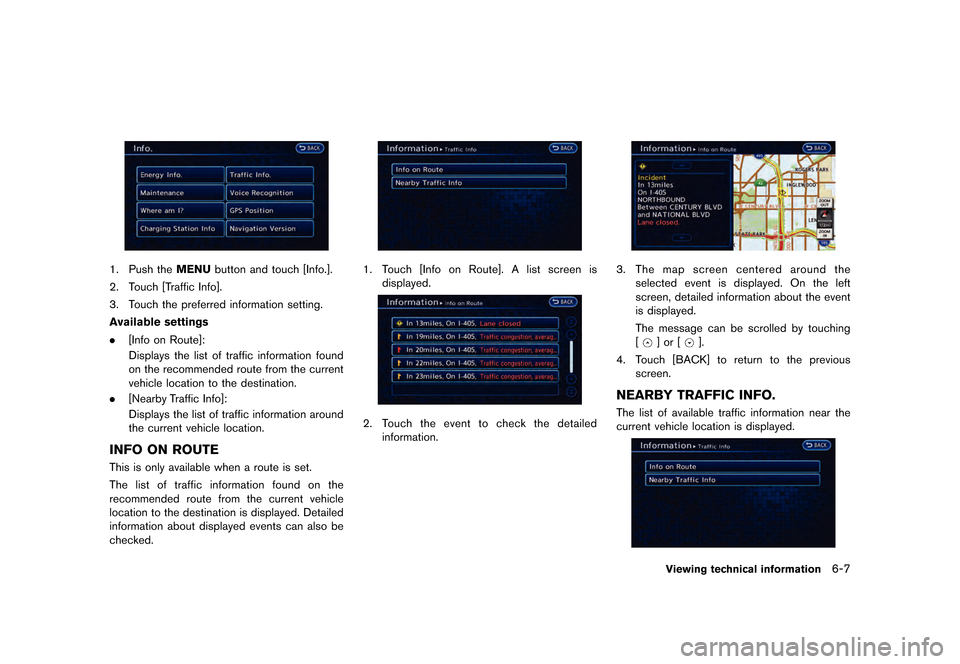

1. Push theMENUbutton and touch [Info.].
2. Touch [Traffic Info].
3. Touch the preferred information setting.
Available settings
. [Info on Route]:
Displays the list of traffic information found
on the recommended route from the current
vehicle location to the destination.
. [Nearby Traffic Info]:
Displays the list of traffic information around
the current vehicle location.
INFO ON ROUTEGUID-26F6B1D8-668A-40FF-88E4-FCB3FDB65FDEThis is only available when a route is set.
The list of traffic information found on the
recommended route from the current vehicle
location to the destination is displayed. Detailed
information about displayed events can also be
checked.
LNH0012X
1.Touch [Info on Route]. A list screen is
displayed.
LNH0013X
2.Touch the event to check the detailed
information.
LNH0014X
3.The map screen centered around the
selected event is displayed. On the left
screen, detailed information about the event
is displayed.
The message can be scrolled by touching
[
] or [].
4. Touch [BACK] to return to the previous screen.
NEARBY TRAFFIC INFO.GUID-A542A19F-7B72-4F87-A8E7-7A00E73E1A98The list of available traffic information near the
current vehicle location is displayed.
LNH0015X
Viewing technical information6-7
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
6-8Viewing technical information

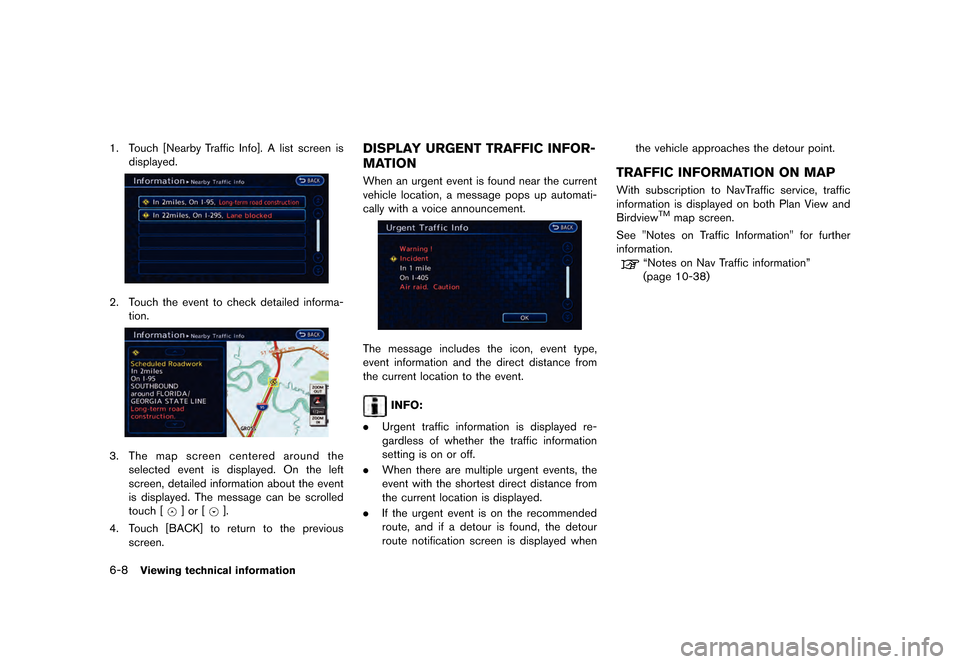

1. Touch [Nearby Traffic Info]. A list screen isdisplayed.
LNH0016X
2. Touch the event to check detailed informa-tion.
LNH0017X
3.The map screen centered around the
selected event is displayed. On the left
screen, detailed information about the event
is displayed. The message can be scrolled
touch [
] or [].
4. Touch [BACK] to return to the previous screen.
DISPLAY URGENT TRAFFIC INFOR-
MATION
GUID-922958E3-92B3-40A9-B2C0-B7954B24AC3DWhen an urgent event is found near the current
vehicle location, a message pops up automati-
cally with a voice announcement.
LNH0018X
The message includes the icon, event type,
event information and the direct distance from
the current location to the event.
INFO:
. Urgent traffic information is displayed re-
gardless of whether the traffic information
setting is on or off.
. When there are multiple urgent events, the
event with the shortest direct distance from
the current location is displayed.
. If the urgent event is on the recommended
route, and if a detour is found, the detour
route notification screen is displayed when the vehicle approaches the detour point.
TRAFFIC INFORMATION ON MAPGUID-AB3BF49A-86CB-4B03-A2B4-AA2AD7E31596With subscription to NavTraffic service, traffic
information is displayed on both Plan View and
Birdview
TMmap screen.
See "Notes on Traffic Information" for further
information.
ªNotes on Nav Traffic informationº
(page 10-38)
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
Screen informationGUID-114661F6-283A-48E6-A282-06966EFC0F99
LNH0019X
*1Traffic indicator:
Displays the reception condition of traffic infor-
mation transmitted from the provider.
Green: Reception condition is good.
Gray: Reception condition is poor.
No mark: Subscription to NavTraffic service is not
detected.
*2Road conditions
Free Flow:
(Green)
Moderate traffic:
(Yellow)
Heavy traffic:
(Red)
Section affected by serious traffic event:
(Purple)
*3Estimated travel time to destination calculated
taking traffic information on route info considera-
tion.
*4Traffic information icon:
If the route is not already set, all of the traffic
information icons on the map screen are dis-
played in color. When the route is already set, the
icons on the route are displayed in color, and the
icons outside the route are displayed in gray.
: Accident
: Closed road
: Information
: Road work
: Slippery road
: Weather
: Incident
Traffic information display and scale
levels
GUID-F241FEAF-60AD-42D5-BE0E-89F222F845D8
2D map and Birdview Map
5 miles 10 km
2 miles 4 km
1 mile 2 km
1/2 mile 1 km
1/4 mile 500 m
1/8 mile 200 m
1/16 mile 100 m
1/32 mile 50 m
1/64 mile 25 m
Viewing technical information6-9
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
6-10Viewing technical information
Checking detailed information for
traffic information icons on map
GUID-28EFD838-29AC-45EF-BC9E-086ABE9A3F5B
LNH0020X
1.Place the cross pointer over the traffic
information icon. The general description of
the icon is displayed.
2. Touch [Detail]. The screen for showing
detailed information for the traffic informa-
tion icon is displayed.
LNH0021X
3.The map screen centered around the
selected event is displayed. On the left
screen, detailed information about the event is displayed. You can scroll the message by
touching [
] or [].
4. Push the MAPbutton to return to the
current location map screen.
TRAFFIC INFORMATION SETTINGSGUID-6EFBBA9B-B2DE-4BB5-BA6A-8F97BE784DF6This displays or changes the settings for the
traffic information related functions.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
LNH0022X
3. Touch [Traffic Info Settings].
LNH0023X
4. Touch the preferred setting. The indicator for the selected setting illuminates.
Available settings
. [Use Traffic Info].:
Enables all traffic information related func-
tions.
. [Show Incidents on Map]:
Displays the traffic incidents (e.g., accident)
on the map screen.
. [Show Traffic Flow on Map]:
Displays the traffic flow with an arrow on the
map screen.
. [Traffic Announcement]:
Announces the traffic information event on
the route.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

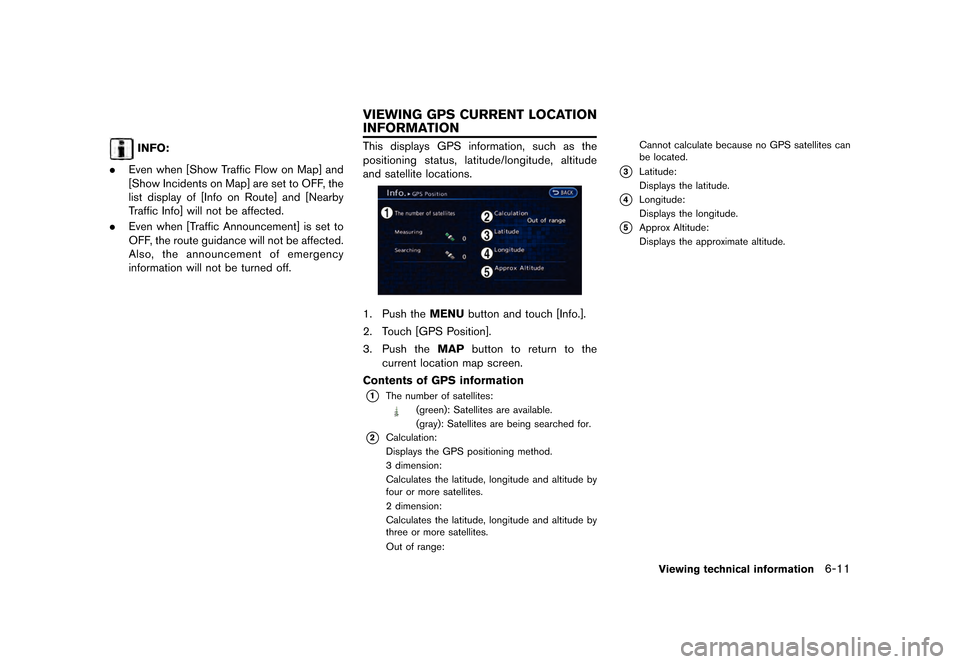

INFO:
. Even when [Show Traffic Flow on Map] and
[Show Incidents on Map] are set to OFF, the
list display of [Info on Route] and [Nearby
Traffic Info] will not be affected.
. Even when [Traffic Announcement] is set to
OFF, the route guidance will not be affected.
Also, the announcement of emergency
information will not be turned off.
GUID-E776263C-893E-44F9-BD26-9CE6B875D04DThis displays GPS information, such as the
positioning status, latitude/longitude, altitude
and satellite locations.
LNH0029X
1. Push the MENUbutton and touch [Info.].
2. Touch [GPS Position].
3. Push the MAPbutton to return to the
current location map screen.
Contents of GPS information
*1The number of satellites:
(green): Satellites are available.
(gray): Satellites are being searched for.
*2Calculation:
Displays the GPS positioning method.
3 dimension:
Calculates the latitude, longitude and altitude by
four or more satellites.
2 dimension:
Calculates the latitude, longitude and altitude by
three or more satellites.
Out of range: Cannot calculate because no GPS satellites can
be located.
*3Latitude:
Displays the latitude.
*4Longitude:
Displays the longitude.
*5Approx Altitude:
Displays the approximate altitude.
Viewing technical information6-11
VIEWING GPS CURRENT LOCATION
INFORMATION
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
6-12Viewing technical information
GUID-2286BD91-8259-4719-BA17-5CC144BF2D35This displays the map version information.
LNH0024X
1. Push theMENUbutton and touch [Info.].
2. Touch [Navigation Version].
3. Push the MAPbutton to return to the
current location map screen.
VIEWING NAVIGATION SYSTEM
VERSION INFORMATION
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

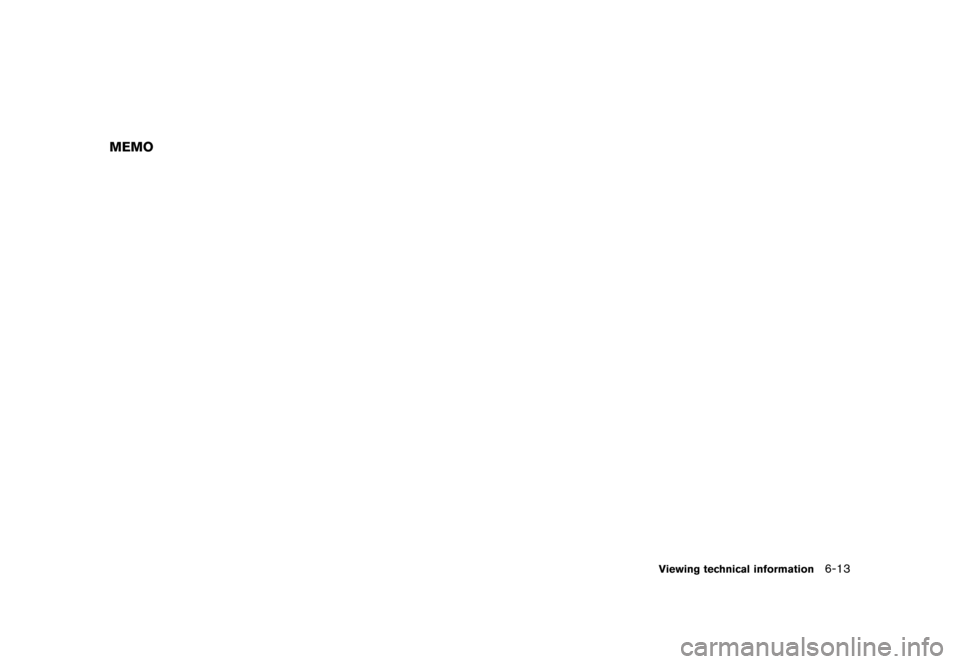

MEMO
Viewing technical information6-13
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
6-14Viewing technical information

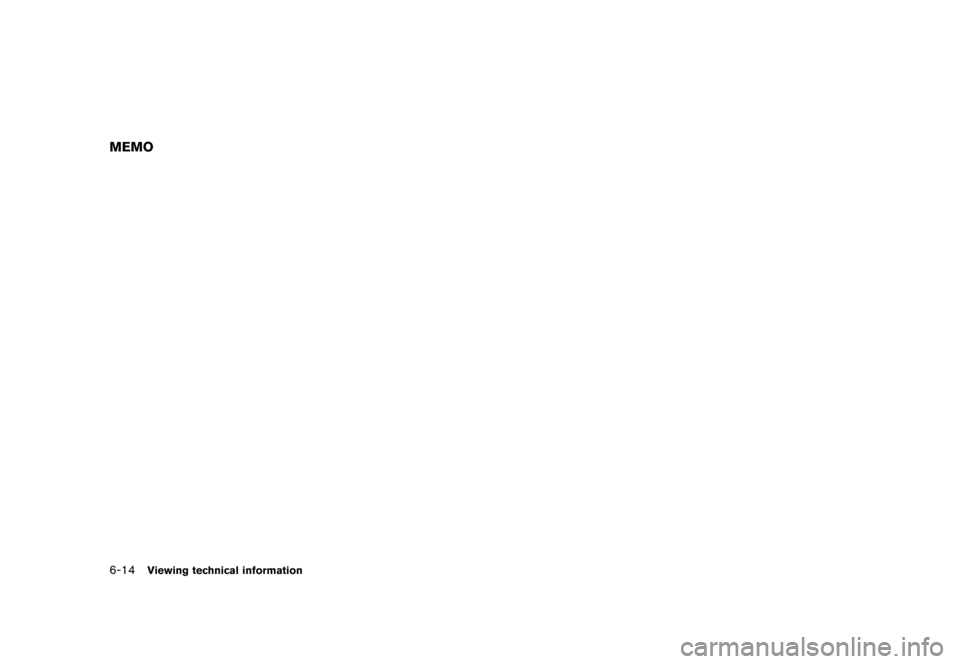

MEMO
