2015 NISSAN LEAF Navigation Manual


> (GLW    0RGHO 1DYL(9 @
GUID-F7A7E93C-1CA4-4F06-A2C8-03063B07BE78
LNC0090X
1. The system starts when the power switch ispushed to the ACC or ON position. The
start-up screen is displayed.
LNC0194X
2. Check the message that is displayed on thescreen and touch [OK].
Subject to the selected items, a different
indication may be displayed at subsequent
times. The set-up screen will be displayed
again after a given period of time.
INFO:
. The setting can be changed from [Vehicle
Data Transmission Setting] in CAR-
WINGS
TMsetting.
ªCARWINGSTMsettingsº (page 5-12)
. If you do not select [OK], vehicle data will
not be stored in the NISSAN CARWINGS
Data Center and you will not be able to
check it via the NISSAN Owner's Portal
Website.
Also, if [Share Vehicle Information] is set to
OFF, vehicle data will not be uploaded.
Make sure that this setting is ON.
When [Service Reminder] is set to ON,
communication with the NISSAN CARW-
INGS Data Center will be performed once
daily. NISSAN recommends that you set
[Service Reminder] to ON.
ªCARWINGSTMsettingsº (page 5-12)
NOTE:
. Navigation functions, audio, hands-free
phone, vehicle information display, etc.
can still be operated even if [Decline] is
touched. However, if the CARWINGS
TM
function is selected, the start-up screen
will be displayed again. .
If other buttons such as the MAP
button or MENU button etc., are
pressed without [OK] or [Decline] being
touched, the corresponding screen will
be displayed and operations can be
performed. However, if the CAR-
WINGS
TMfunction is selected, the
start-up screen will be displayed again.
Getting Started1-5
START-UP SCREEN
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
1-6Getting Started
GUID-96075C82-A5BC-42F2-A4C5-DF0BB2863C3F
LNC0197X
To ensure safe driving, some functions cannot
be operated or have limited operation while the
vehicle driving speed is above 5 mph (8 km/h) .
The on-screen text and keys for these restricted
functions will be "grayed-out" or muted and
cannot be selected while driving. In some cases,
a screen message will appear indicating a
restricted function.
Restricted functions while driving include:
.Character (letter and number) input screen
during destination entry (street address,
point of interest, phone number, freeway
entrance/exit, intersection, city center)
. Setting route condition after setting destina-
tion
. Scrolling and viewing of certain navigation
list
. Displaying detail information and touching
item on the information screen
. Adding/editing home location
. Adding/editing address book entries
. Editing current route
. Storing current position, information, desti-
nation
. Displaying charging station information
. Registering cellular phones
FUNCTIONS DISABLED WHILE
DRIVING
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

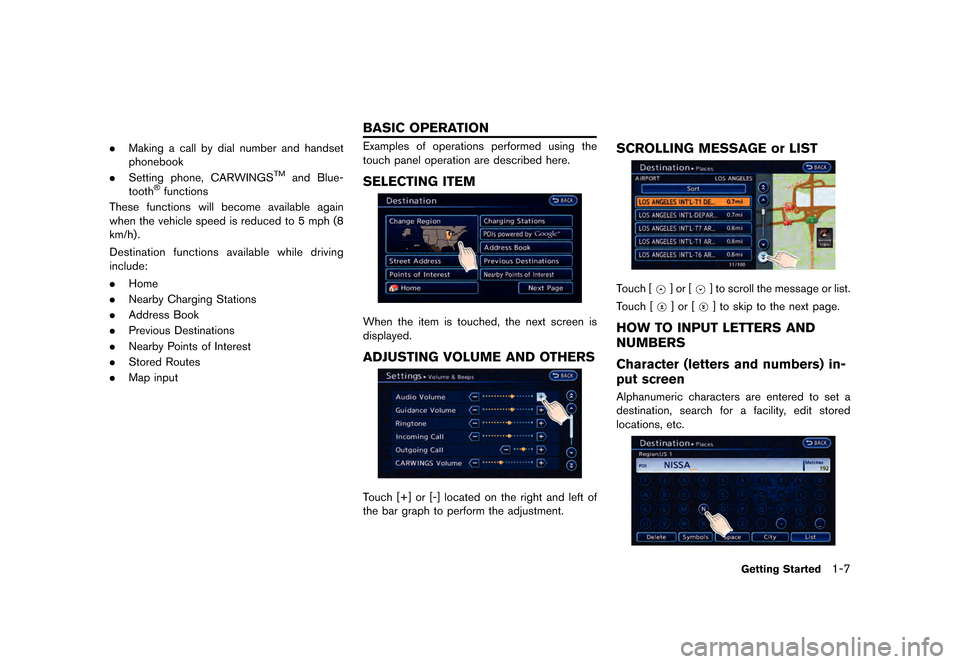

.Making a call by dial number and handset
phonebook
. Setting phone, CARWINGS
TMand Blue-
tooth


> (GLW    0RGHO 1DYL(9 @
1-8Getting Started
1. Touch a character on the displayed key-board. The selected character is entered.
LNC0010X
2. Touch [Delete] to delete the last characterentered.
Touch and hold [Delete] to delete all the
characters entered.
Touch [Space] to enter a space.
LNC0011X
3. After finishing the entry, touch [List].
INFO:
.The list screen appears automaticallywhen text has been entered and the
matching list items have been narrowed
down to a number that will fit on the
screen.
.Symbol keys are displayed by touching
[Symbols]. Alphabet keys are displayed
by touching [A-Z].
Phone number input screenGUID-FA3A6354-BEA7-42D7-ABE8-2275E8C496ADPerform the following procedure to enter a
number.
INFO:
Only the locations included in the map data
database can be searched for by a phone
number.
LNC0012X
1. Touch a number on the displayed keyboard. The selected number is entered.
LNC0013X
2. Touch [Delete] to delete the last numberentered.
Touch and hold [Delete] to delete all the
numbers entered.
LNC0014X
3. After finishing the entry, touch [List].
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
GUID-9A8A778F-3C53-402C-A590-0BE9454BF9A5This system allows you to set various functions
and check information on the screen that is
displayed by pushing each button located on the
control panel.
MAP SCREENGUID-1A4E9331-6885-465B-A6C3-0CF6C0525B3F
LNC0015X
When theMAPbutton is pushed, a map screen
where the vehicle position is centered is
displayed.
When the map is moved or the MAPbutton is
pushed while the menu screen is displayed, a
map indicating the current vehicle position is
displayed. Various useful information for driving
is shown on the map screen.
ªMap settingsº (page 3-3)
ZERO EMISSION MENU SCREENGUID-0C204352-25D9-4E12-8C94-043DA9090BE6
LND0153X
Push the(Zero Emission menu) button to
display the menu screen where several useful
functions for electric vehicle driving can be set.
Select a preferred menu and touch an item to be
set.
ª2. Unique EV functionsº
MENU SCREENGUID-D5BE891E-D0A0-4773-97BC-7492264EEE05
LNC0186X
When the MENUbutton is pushed, the menu
screen is displayed. Select a preferred menu
and touch an item to be set. Available options:
.
[Destination]:
There are several methods you can use to
set your destination. Understand the advan-
tages of each method and select the best
method for finding and setting your destina-
tion.
ªSetting destinationº (page 3-17)
. [Route]:
During route guidance, you can modify the
route conditions or confirm the route in-
formation. Set the appropriate route condi-
tion according to your purpose.
ªRoute guidanceº (page 3-39)
. [Info]:
This screen allows you to set or view various
information that is helpful for using the
vehicle safely and comfortably.
ª6. Viewing technical informationº
. [Settings]:
The system can be customized to make it
easier for you to use.
. [Phone]:
Useful functions for the Bluetooth


> (GLW    0RGHO 1DYL(9 @
1-10Getting Started
.[CARWINGS]:
Information feeds are displayed and settings
for CARWINGS
TMcan be performed.
ª5. CARWINGSTMº
STATUS SCREENGUID-C59D9F23-051C-4909-840F-9659DFB5FE6E
LNC0017X
Push the STATUS button to display the current
status of the navigation system.
Each time the STATUSbutton is pushed,
displayed information is switched in the order
of climate control, vehicle information and
navigation route information.
There are different status screens displayed
depending on various factors, such as the
currently active mode, whether a destination
has been set or not, etc.
FM´AM RADIO SCREENGUID-F18B130E-F474-4E1B-B8A7-AFA62A4EA4EC
LNC0018X
Push the FM´AMbutton to turn on the radio and
display the radio screen. Push the switch to
toggle the radio mode: AM?FM1?FM2.
ªFM-AM-SAT radio operationº (page 4-11)
SiriusXM SATELLITE RADIO
SCREEN
GUID-EDED61A6-8D25-4ADA-A44A-36AFCBA043FE
LNC0019X
Push the XMbutton to turn on the satellite radio
and display the SiriusXM Satellite Radio screen.
Push the switch to toggle the radio mode:
XM1?XM2?XM3.
ªFM-AM-SAT radio operationº (page 4-11)
CD´AUX SCREENGUID-50077224-4B9F-4058-BE80-9C925824B7C3
LNC0020X
Push the CD´AUXbutton to turn on the audio
system and display the audio screen. Push the
CD´AUX button to toggle the mode: iPod


> (GLW    0RGHO 1DYL(9 @

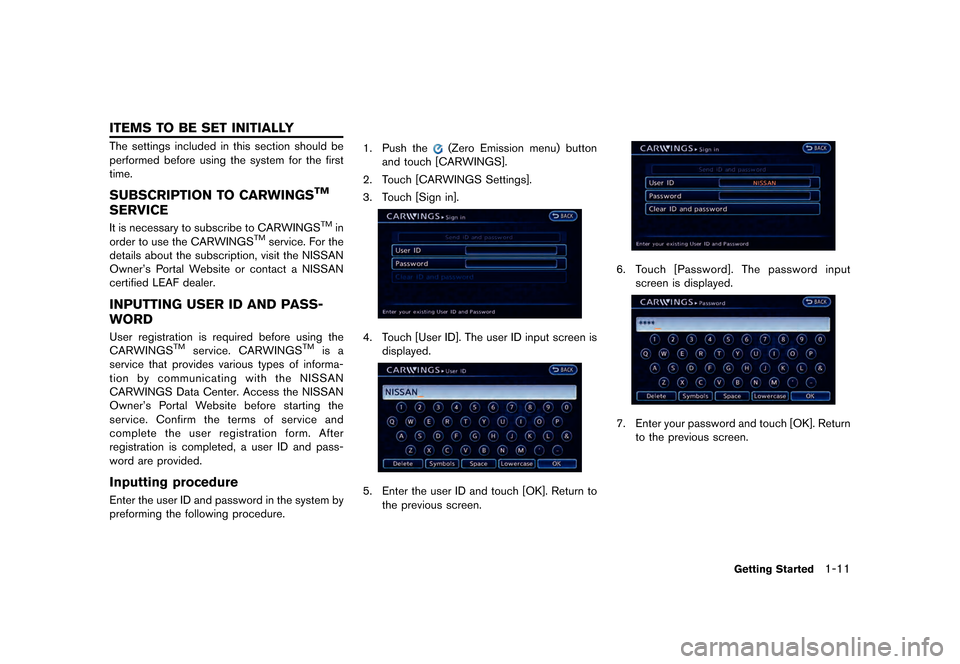

GUID-811B4F8E-8E41-435D-BA44-76204FB0B276The settings included in this section should be
performed before using the system for the first
time.
SUBSCRIPTION TO CARWINGSTM
SERVICEGUID-79859816-B70D-4DAD-AB81-2CEDA8C9C449It is necessary to subscribe to CARWINGSTMin
order to use the CARWINGSTMservice. For the
details about the subscription, visit the NISSAN
Owner's Portal Website or contact a NISSAN
certified LEAF dealer.
INPUTTING USER ID AND PASS-
WORD
GUID-E4FFEB78-D420-4E1D-8312-A4993AD0642DUser registration is required before using the
CARWINGSTMservice. CARWINGSTMis a
service that provides various types of informa-
tion by communicating with the NISSAN
CARWINGS Data Center. Access the NISSAN
Owner's Portal Website before starting the
service. Confirm the terms of service and
complete the user registration form. After
registration is completed, a user ID and pass-
word are provided.
Inputting procedureGUID-05073FE6-9D14-44B9-A85C-E3DA080DF2B3Enter the user ID and password in the system by
preforming the following procedure. 1. Push the
(Zero Emission menu) button
and touch [CARWINGS].
2. Touch [CARWINGS Settings].
3. Touch [Sign in].
LNC0023X
4. Touch [User ID]. The user ID input screen is displayed.
LNC0024X
5. Enter the user ID and touch [OK]. Return tothe previous screen.
LNC0093X
6.Touch [Password]. The password input
screen is displayed.
LNC0025X
7. Enter your password and touch [OK]. Return
to the previous screen.
Getting Started1-11
ITEMS TO BE SET INITIALLY
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
1-12Getting Started

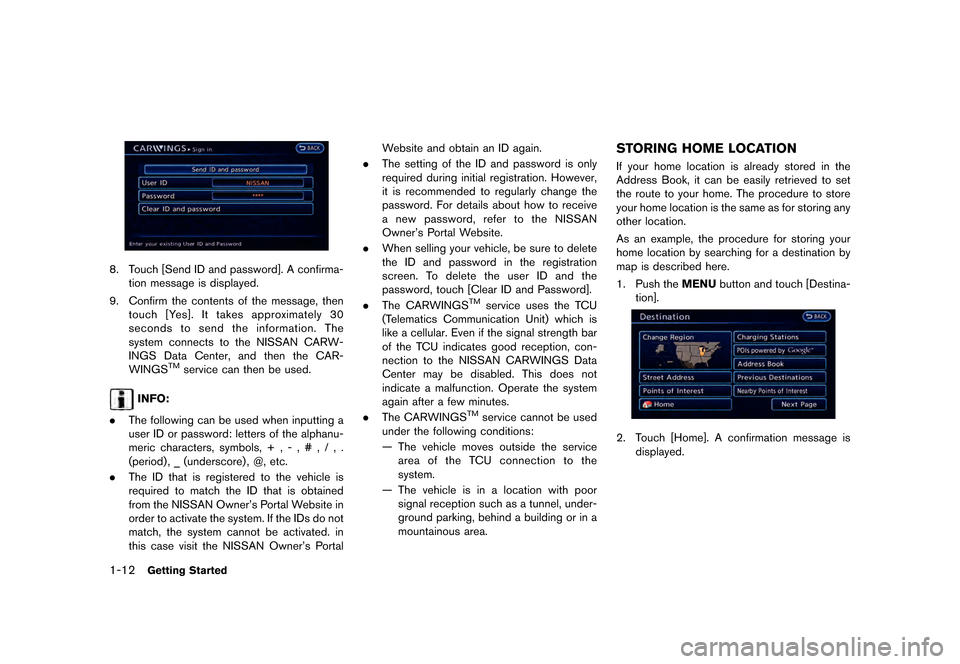

LNC0026X
8. Touch [Send ID and password]. A confirma-tion message is displayed.
9. Confirm the contents of the message, then touch [Yes]. It takes approximately 30
seconds to send the information. The
system connects to the NISSAN CARW-
INGS Data Center, and then the CAR-
WINGS
TMservice can then be used.
INFO:
. The following can be used when inputting a
user ID or password: letters of the alphanu-
meric characters, symbols, + , - , # , / , .
(period) , _ (underscore) , @, etc.
. The ID that is registered to the vehicle is
required to match the ID that is obtained
from the NISSAN Owner's Portal Website in
order to activate the system. If the IDs do not
match, the system cannot be activated. in
this case visit the NISSAN Owner's Portal Website and obtain an ID again.
. The setting of the ID and password is only
required during initial registration. However,
it is recommended to regularly change the
password. For details about how to receive
a new password, refer to the NISSAN
Owner's Portal Website.
. When selling your vehicle, be sure to delete
the ID and password in the registration
screen. To delete the user ID and the
password, touch [Clear ID and Password].
. The CARWINGS
TMservice uses the TCU
(Telematics Communication Unit) which is
like a cellular. Even if the signal strength bar
of the TCU indicates good reception, con-
nection to the NISSAN CARWINGS Data
Center may be disabled. This does not
indicate a malfunction. Operate the system
again after a few minutes.
. The CARWINGS
TMservice cannot be used
under the following conditions:
Ð The vehicle moves outside the service
area of the TCU connection to the
system.
Ð The vehicle is in a location with poor signal reception such as a tunnel, under-
ground parking, behind a building or in a
mountainous area.
STORING HOME LOCATIONGUID-18F9446E-22F6-4B69-B465-63E96AFC7E1DIf your home location is already stored in the
Address Book, it can be easily retrieved to set
the route to your home. The procedure to store
your home location is the same as for storing any
other location.
As an example, the procedure for storing your
home location by searching for a destination by
map is described here.
1. Push the MENUbutton and touch [Destina-
tion].
LNC0199X
2. Touch [Home]. A confirmation message is displayed.
