2015 NISSAN LEAF Navigation Manual


> (GLW    0RGHO 1DYL(9 @
iPod


> (GLW    0RGHO 1DYL(9 @
10-20Troubleshooting guide/General system information
SymptomPossible cause Possible solution

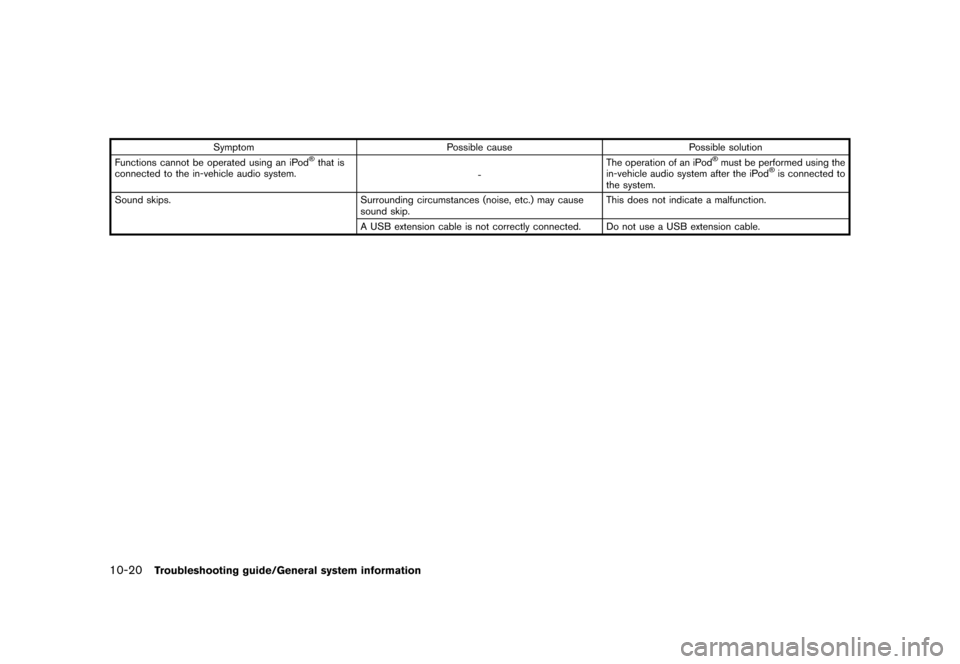

Functions cannot be operated using an iPod


> (GLW    0RGHO 1DYL(9 @

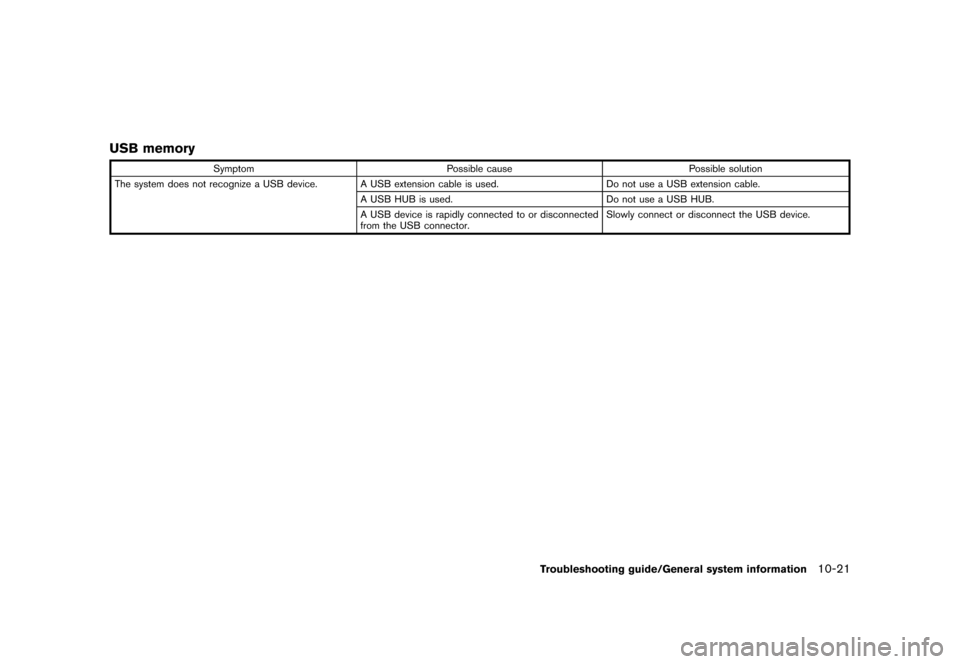

USB memoryGUID-9B58E82E-0419-4E45-A82E-F6C87CFB97F2
SymptomPossible cause Possible solution
The system does not recognize a USB device. A USB extension cable is used. Do not use a USB extension cable.
A USB HUB is used. Do not use a USB HUB.
A USB device is rapidly connected to or disconnected
from the USB connector. Slowly connect or disconnect the USB device.
Troubleshooting guide/General system information10-21
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
10-22Troubleshooting guide/General system information
Bluetooth


> (GLW    0RGHO 1DYL(9 @
BLUETOOTH


> (GLW    0RGHO 1DYL(9 @
10-24Troubleshooting guide/General system information
SymptomPossible cause Possible solution
The other party cannot hear your voice. The other
party can hear your voice, but it cracks or cuts out. The cellular phone is not connected.
Check the registration procedure, and then register the
cellular phone again.
The fan speed of the air conditioner is too fast. Decrease the fan speed of the air conditioner.
The ambient noise level is excessive. (For example:
heavy rain, construction sites, inside a tunnel, oncoming
vehicles, etc.) Close the windows to shut out ambient noise.
The noise generated by driving the vehicle is too loud. Reduce the vehicle speed, and then speak a command.
The incoming or outgoing voice level is too loud. Adjust the incoming or outgoing voice level properly.
The voice is cut out or noise is heard during a call. The wireless Bluetooth


> (GLW    0RGHO 1DYL(9 @
SymptomPossible cause Possible solution

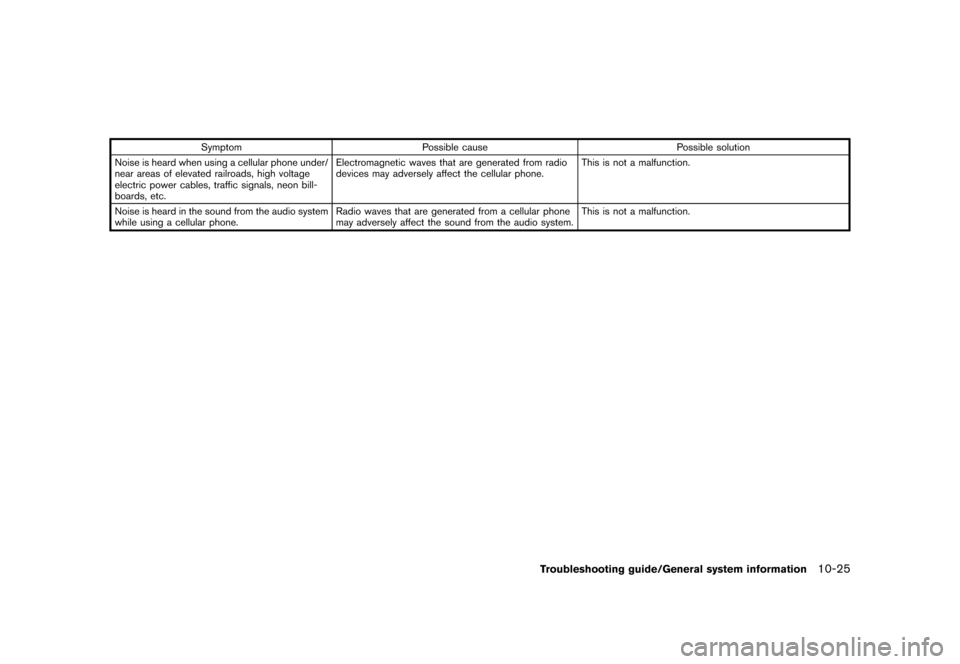

Noise is heard when using a cellular phone under/
near areas of elevated railroads, high voltage
electric power cables, traffic signals, neon bill-
boards, etc. Electromagnetic waves that are generated from radio
devices may adversely affect the cellular phone.
This is not a malfunction.
Noise is heard in the sound from the audio system
while using a cellular phone. Radio waves that are generated from a cellular phone
may adversely affect the sound from the audio system. This is not a malfunction.
Troubleshooting guide/General system information10-25
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
10-26Troubleshooting guide/General system information

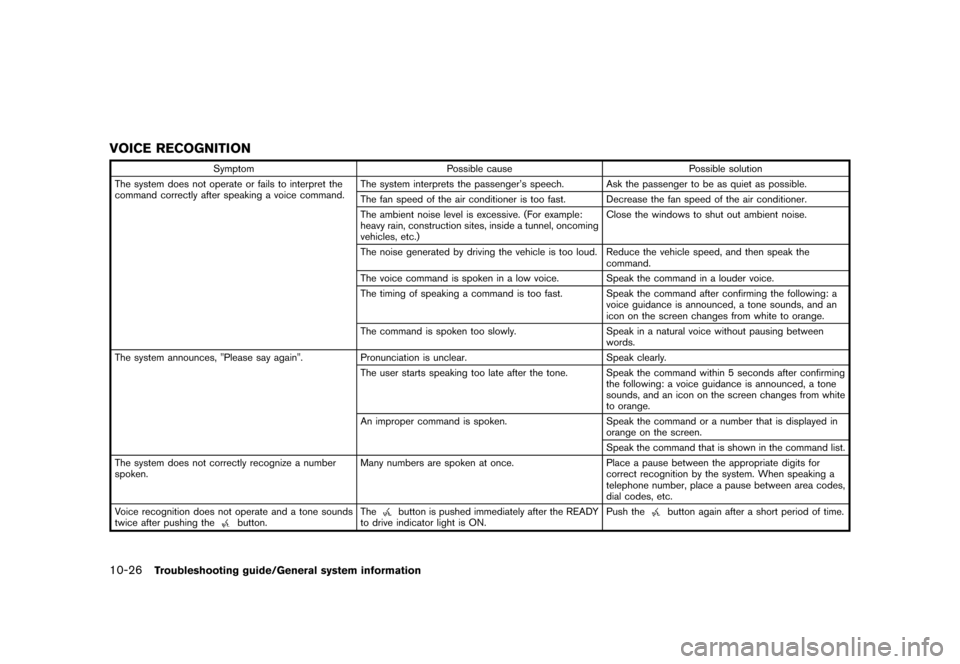

VOICE RECOGNITIONGUID-A8BC0EA8-7703-45A1-ACE6-B63B09F42786
SymptomPossible cause Possible solution
The system does not operate or fails to interpret the
command correctly after speaking a voice command. The system interprets the passenger's speech. Ask the passenger to be as quiet as possible.
The fan speed of the air conditioner is too fast. Decrease the fan speed of the air conditioner.
The ambient noise level is excessive. (For example:
heavy rain, construction sites, inside a tunnel, oncoming
vehicles, etc.)Close the windows to shut out ambient noise.
The noise generated by driving the vehicle is too loud. Reduce the vehicle speed, and then speak the command.
The voice command is spoken in a low voice. Speak the command in a louder voice.
The timing of speaking a command is too fast. Speak the command after confirming the following: a voice guidance is announced, a tone sounds, and an
icon on the screen changes from white to orange.
The command is spoken too slowly. Speak in a natural voice without pausing between
words.
The system announces, "Please say again". Pronunciation is unclear.Speak clearly.
The user starts speaking too late after the tone. Speak the command within 5 seconds after confirming the following: a voice guidance is announced, a tone
sounds, and an icon on the screen changes from white
to orange.
An improper command is spoken. Speak the command or a number that is displayed in
orange on the screen.
Speak the command that is shown in the command list.
The system does not correctly recognize a number
spoken. Many numbers are spoken at once.
Place a pause between the appropriate digits for
correct recognition by the system. When speaking a
telephone number, place a pause between area codes,
dial codes, etc.
Voice recognition does not operate and a tone sounds
twice after pushing the
button. Thebutton is pushed immediately after the READY
to drive indicator light is ON. Push thebutton again after a short period of time.
&RQGLWLRQ 1$0
