2015 NISSAN LEAF Navigation Manual


> (GLW    0RGHO 1DYL(9 @
INFO:

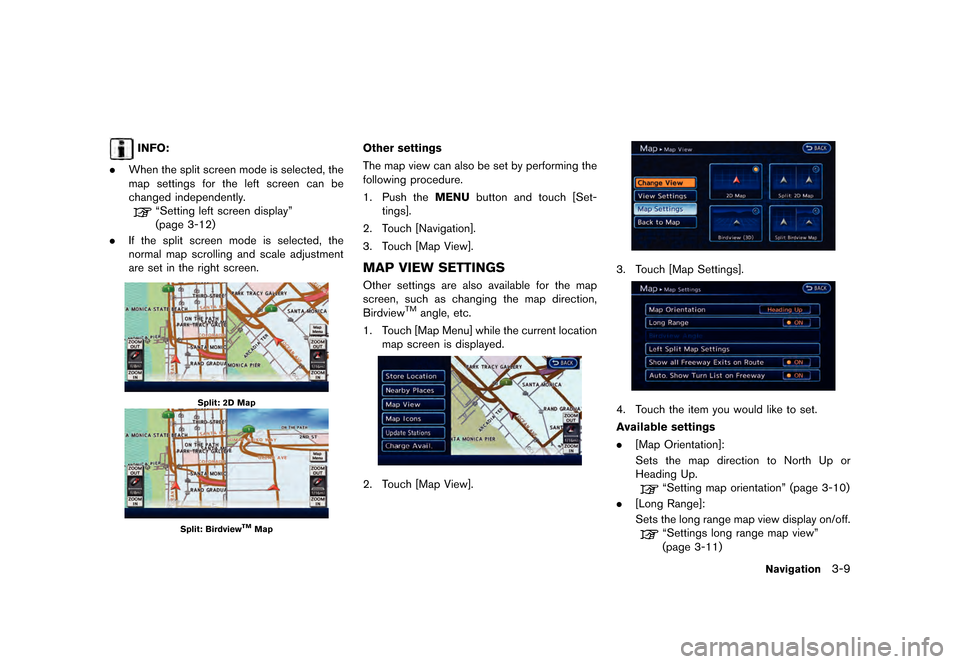

. When the split screen mode is selected, the
map settings for the left screen can be
changed independently.
ªSetting left screen displayº
(page 3-12)
. If the split screen mode is selected, the
normal map scrolling and scale adjustment
are set in the right screen.
LNE0020X
Split: 2D Map
LNE0021X
Split: BirdviewTMMap
Other settings
The map view can also be set by performing the
following procedure.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
3. Touch [Map View].
MAP VIEW SETTINGSGUID-1F6AA0DC-5FB8-4E2E-9C33-C843D820D840Other settings are also available for the map
screen, such as changing the map direction,
Birdview
TMangle, etc.
1. Touch [Map Menu] while the current location map screen is displayed.
LNE0900X
2. Touch [Map View].
LNE0025X
3. Touch [Map Settings].
LNE0026X
4. Touch the item you would like to set.
Available settings
.[Map Orientation]:
Sets the map direction to North Up or
Heading Up.
ªSetting map orientationº (page 3-10)
. [Long Range]:
Sets the long range map view display on/off.
ªSettings long range map viewº
(page 3-11)
Navigation3-9
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-10Navigation

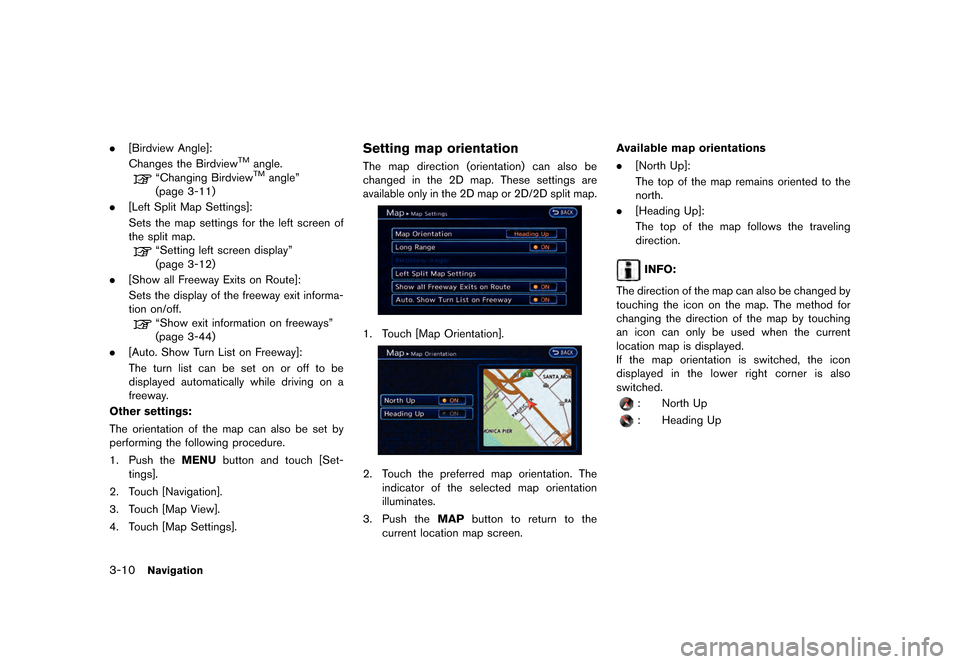

.[Birdview Angle]:
Changes the BirdviewTMangle.
ªChanging BirdviewTMangleº
(page 3-11)
. [Left Split Map Settings]:
Sets the map settings for the left screen of
the split map.
ªSetting left screen displayº
(page 3-12)
. [Show all Freeway Exits on Route]:
Sets the display of the freeway exit informa-
tion on/off.
ªShow exit information on freewaysº
(page 3-44)
. [Auto. Show Turn List on Freeway]:
The turn list can be set on or off to be
displayed automatically while driving on a
freeway.
Other settings:
The orientation of the map can also be set by
performing the following procedure.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
3. Touch [Map View].
4. Touch [Map Settings].
Setting map orientationGUID-6907F8CD-DCB2-4205-81BF-4506A0D2346FThe map direction (orientation) can also be
changed in the 2D map. These settings are
available only in the 2D map or 2D/2D split map.
LNE0027X
1. Touch [Map Orientation].
LNE0028X
2. Touch the preferred map orientation. The indicator of the selected map orientation
illuminates.
3. Push the MAPbutton to return to the
current location map screen. Available map orientations
.
[North Up]:
The top of the map remains oriented to the
north.
. [Heading Up]:
The top of the map follows the traveling
direction.
INFO:
The direction of the map can also be changed by
touching the icon on the map. The method for
changing the direction of the map by touching
an icon can only be used when the current
location map is displayed.
If the map orientation is switched, the icon
displayed in the lower right corner is also
switched.
: North Up
: Heading Up
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

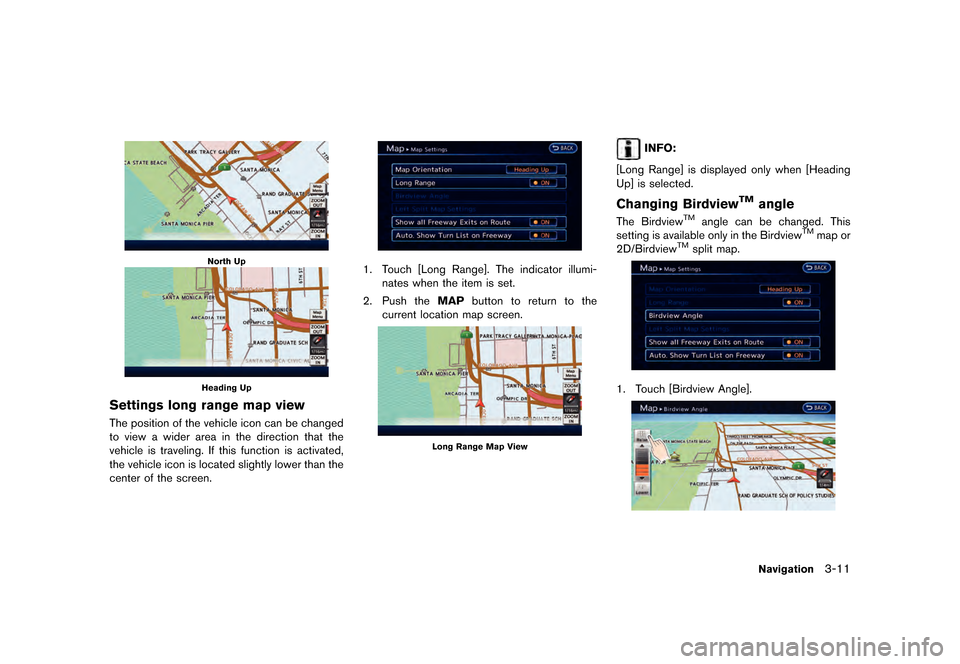

LNE0029X
North Up
LNE0030X
Heading Up
Settings long range map viewGUID-AD06E93E-1288-4273-B735-9CCB95F285DAThe position of the vehicle icon can be changed
to view a wider area in the direction that the
vehicle is traveling. If this function is activated,
the vehicle icon is located slightly lower than the
center of the screen.
LNE0031X
1. Touch [Long Range]. The indicator illumi-nates when the item is set.
2. Push the MAPbutton to return to the
current location map screen.
LNE0032X
Long Range Map View
INFO:
[Long Range] is displayed only when [Heading
Up] is selected.
Changing BirdviewTMangleGUID-9444E0D7-C761-4312-ADC0-D8943CE00959The BirdviewTMangle can be changed. This
setting is available only in the BirdviewTMmap or
2D/BirdviewTMsplit map.
LNE0033X
1. Touch [Birdview Angle].
LNE0034X
Navigation3-11
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-12Navigation

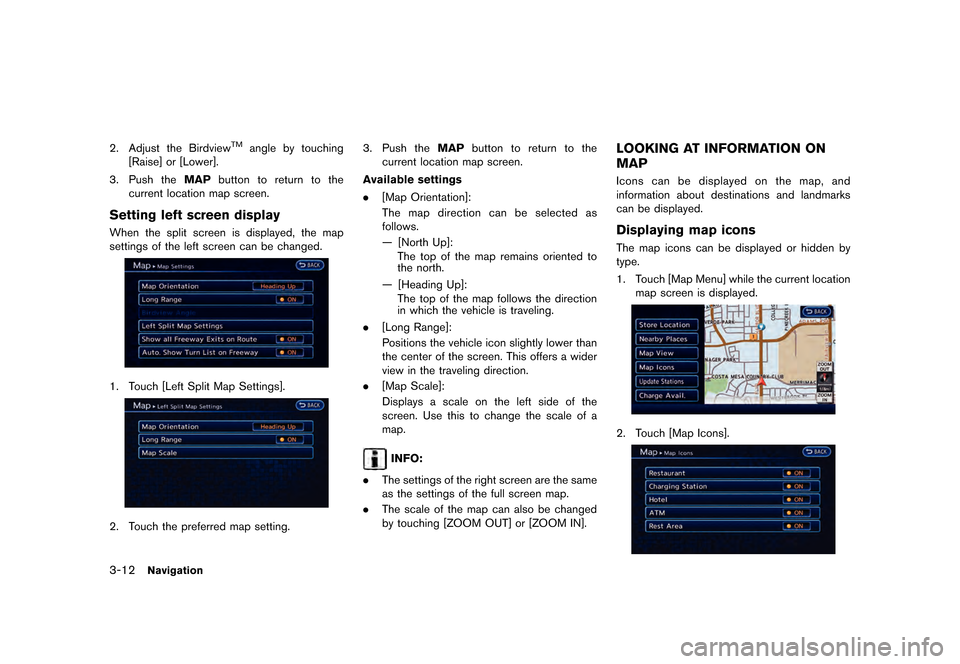

2. Adjust the BirdviewTMangle by touching
[Raise] or [Lower].
3. Push the MAPbutton to return to the
current location map screen.
Setting left screen displayGUID-5467CABB-4645-499E-89E4-2BBF621D3124When the split screen is displayed, the map
settings of the left screen can be changed.
LNE0035X
1. Touch [Left Split Map Settings].
LNE0036X
2. Touch the preferred map setting. 3.
Push the MAPbutton to return to the
current location map screen.
Available settings
. [Map Orientation]:
The map direction can be selected as
follows.
Ð [North Up]:
The top of the map remains oriented to
the north.
Ð [Heading Up]: The top of the map follows the direction
in which the vehicle is traveling.
. [Long Range]:
Positions the vehicle icon slightly lower than
the center of the screen. This offers a wider
view in the traveling direction.
. [Map Scale]:
Displays a scale on the left side of the
screen. Use this to change the scale of a
map.
INFO:
. The settings of the right screen are the same
as the settings of the full screen map.
. The scale of the map can also be changed
by touching [ZOOM OUT] or [ZOOM IN].
LOOKING AT INFORMATION ON
MAP
GUID-571EE76C-6CCB-4E21-8682-A57D3A386B15Icons can be displayed on the map, and
information about destinations and landmarks
can be displayed.
Displaying map iconsGUID-AA72987D-2743-4761-9338-7DED04C38996The map icons can be displayed or hidden by
type.
1. Touch [Map Menu] while the current location
map screen is displayed.
LNE0901X
2. Touch [Map Icons].
LNE0038X
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3. Touch the preferred icon. The indicator ofthe selected icon illuminates.
LNE0902X
4.Push the MAPbutton to return to the
current location map screen. The activated
icons are displayed on the map.
The following map items can be displayed.
: Restaurant
: Charging Station
: Hotel
: ATM
: Rest Area
INFO:
. The map icons are not displayed on the
map screen when the map scale is set
to 1/4 mile (500 m) or higher in the 2D
and Birdview
TMmap.
. If they are registered in the map data, the
brand icons will be displayed on the map
instead of the general map icons listed below.
Other settings
The map icons can also be set by performing the
following procedure.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
3. Touch [Map Icons].
Map scrolling informationGUID-7E953B13-E5EF-41C1-88FC-C5E9ABF8FE53Information about the location, on which the
center of the cross pointer is placed by scrolling
on the map, can be set to be displayed.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
LNE0040X
3. Touch [Others].
LNE0041X
4. Touch [Map Scrolling Information].
LNE0042X
5. Touch the preferred information item. The indicator of the selected information item
illuminates.
The following information items are available.
.[Address Book Icons]
.[Destination/Waypoint Icons]
.[Latitude/Longitude Info]
.[CARWINGS Icons]
Navigation3-13
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-14Navigation
LNE0043X
6.Push the MAPbutton to return to the
current location map screen. Move the cross
pointer to the set location to display the
information.
MAP MENU SCREENGUID-080293EE-4E11-442A-B0DE-6B8CBAA10CACTouch [Map Menu] while the current location
map screen or a scrolled map screen is
displayed to display the menu corresponding
to that screen.
This menu can be used to access helpful
functions quickly, such as setting a destination
and searching for points of interest nearby.
Current location map screenGUID-A99E8F50-38EF-445A-A5CA-704D8EFCA7C8
LNE0901X
If [Map Menu] is touched while the current
location map screen is displayed, the following
options are available.
. [Store Location]:
Stores the current vehicle location in the
Address Book. The stored location can be
retrieved as necessary to set it as a
destination (waypoint) .
ªStoring locationº (page 3-38)
. [Nearby Places]:
Searches for points of interest near the
current vehicle location, such as restaurants
and charging stations, etc.
ªFinding nearby Points of Interestº
(page 3-29)
. [Map View]:
Performs map operations such as the
switching of map type and the setting of
map orientation and scale.
ªMap settingsº (page 3-3)
. [Map Icons]:
Displays map icons of certain points of
interest (such as restaurants and charging
stations, etc.) on the map around the current
vehicle location.
ªDisplaying map iconsº (page 3-12)
. [Update Stations]:
Contact the NISSAN CARWINGS Data
Center to update charging station around
the current vehicle location.
ªUpdating charging station informa-
tionº (page 2-7)
. [Charge Avail.]:
This allows you to obtain the availability
information of charging stations via NISSAN
CARWINGS Data Center.
ªViewing from map menuº (page 2-7)
Scrolled location map screenGUID-1BAE5D18-5176-4DB5-9841-978304A6643DIf [Map Menu] is touched while a scrolled map
screen is displayed, the following options are
available.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
LNE0045X
.[New Dest.]:
Sets the destination to the map location
where [New Dest.] was touched. If a
destination is already set, the location will
be set as the new destination.
ªSetting point on mapº (page 3-36)
. [Add to Route]:
Sets the map location where [Add to Route]
was touched as the destination or a
waypoint. This is available only when a
suggested route is already set.
ªSetting destination or waypointº
(page 3-48)
. [Nearby Places]:
Searches for points of interest such as
restaurants and charging stations, etc. near
the location by scrolling the map.
ªFinding nearby Points of Interestº
(page 3-29) .
[Store Location]:
Store the map location where [Store loca-
tion] was touched in the Address Book. The
stored location can be retrieved to set it as a
destination or waypoint.
ªStoring locationº (page 3-38)
. [Update Stations]:
Contact the NISSAN CARWINGS Data
Center to update charging station around
the point of the cursor.
ªUpdating charging station informa-
tionº (page 2-7)
. [Delete]:
Deletes a destination, waypoint or stored
location. To delete, place the cross pointer
over the corresponding icon.
Navigation3-15
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-16Navigation
MAP SYMBOLSGUID-EBC19CB7-4FEE-471C-A328-FBDF3BA8C997This navigation system uses symbols to display facilities.
2-dimensional icons (Plan View)GUID-B222DA06-BDDC-476B-A65B-8ACA237E1427
LNE0628X
