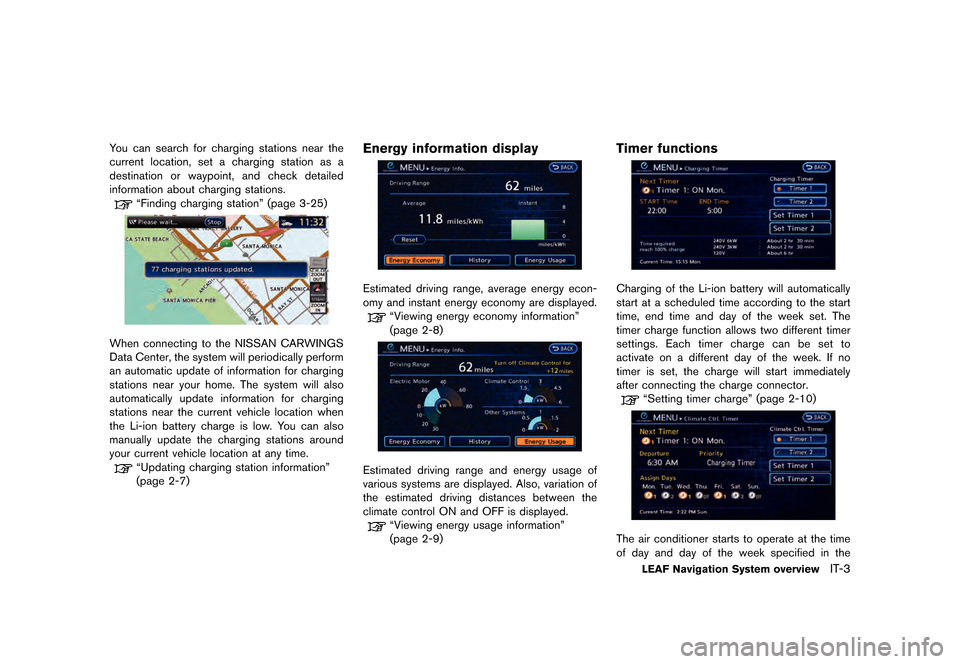

You can search for charging stations near the
current location, set a charging station as a
destination or waypoint, and check detailed
information about charging stations.
ªFinding charging stationº (page 3-25)
LNB0004X
When connecting to the NISSAN CARWINGS
Data Center, the system will periodically perform
an automatic update of information for charging
stations near your home. The system will also
automatically update information for charging
stations near the current vehicle location when
the Li-ion battery charge is low. You can also
manually update the charging stations around
your current vehicle location at any time.
ªUpdating charging station informationº
(page 2-7)
Energy information displayGUID-81B37644-41AB-483C-B9E7-278045443069
LNB0006X
Estimated driving range, average energy econ-
omy and instant energy economy are displayed.
ªViewing energy economy informationº
(page 2-8)
LNB0005X
Estimated driving range and energy usage of
various systems are displayed. Also, variation of
the estimated driving distances between the
climate control ON and OFF is displayed.
ªViewing energy usage informationº
(page 2-9)
Timer functionsGUID-9BEE7F55-9A24-49C3-BC86-959B8943CE3B
LND0212X
Charging of the Li-ion battery will automatically
start at a scheduled time according to the start
time, end time and day of the week set. The
timer charge function allows two different timer
settings. Each timer charge can be set to
activate on a different day of the week. If no
timer is set, the charge will start immediately
after connecting the charge connector.
ªSetting timer chargeº (page 2-10)
LNB0037X
The air conditioner starts to operate at the time
of day and day of the week specified in the
LEAF Navigation System overviewIT-3
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

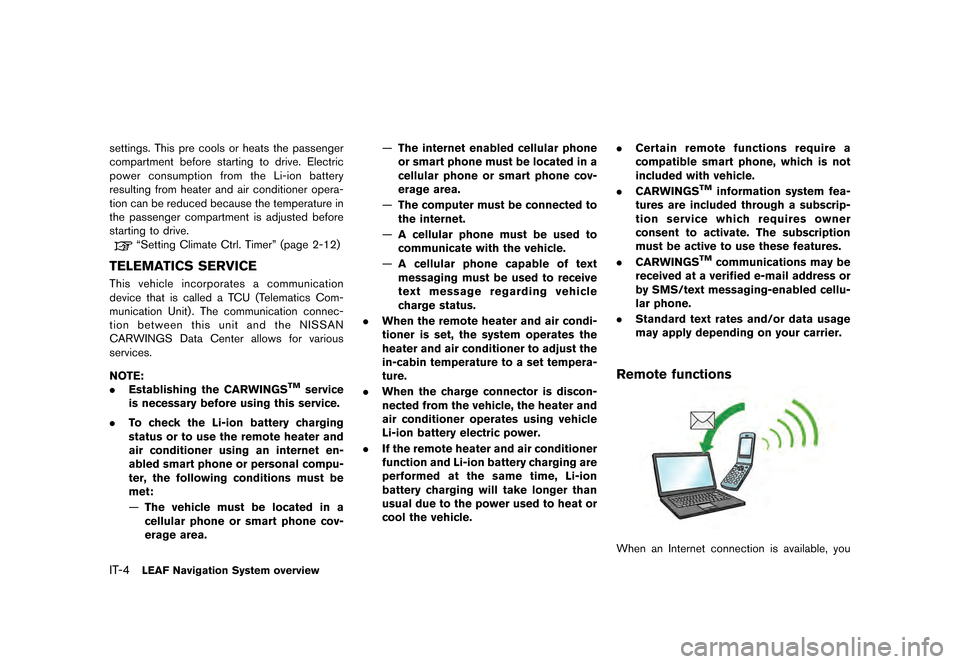

IT-4LEAF Navigation System overview
settings. This pre cools or heats the passenger
compartment before starting to drive. Electric
power consumption from the Li-ion battery
resulting from heater and air conditioner opera-
tion can be reduced because the temperature in
the passenger compartment is adjusted before
starting to drive.
ªSetting Climate Ctrl. Timerº (page 2-12)
TELEMATICS SERVICEGUID-83BF17CD-9518-4EAD-A43A-430AE307EBD7This vehicle incorporates a communication
device that is called a TCU (Telematics Com-
munication Unit) . The communication connec-
tion between this unit and the NISSAN
CARWINGS Data Center allows for various
services.
NOTE:
.Establishing the CARWINGS
TMservice
is necessary before using this service.
. To check the Li-ion battery charging
status or to use the remote heater and
air conditioner using an internet en-
abled smart phone or personal compu-
ter, the following conditions must be
met:
ÐThe vehicle must be located in a
cellular phone or smart phone cov-
erage area. Ð
The internet enabled cellular phone
or smart phone must be located in a
cellular phone or smart phone cov-
erage area.
Ð The computer must be connected to
the internet.
Ð A cellular phone must be used to
communicate with the vehicle.
Ð A cellular phone capable of text
messaging must be used to receive
text message regarding vehicle
charge status.
. When the remote heater and air condi-
tioner is set, the system operates the
heater and air conditioner to adjust the
in-cabin temperature to a set tempera-
ture.
. When the charge connector is discon-
nected from the vehicle, the heater and
air conditioner operates using vehicle
Li-ion battery electric power.
. If the remote heater and air conditioner
function and Li-ion battery charging are
performed at the same time, Li-ion
battery charging will take longer than
usual due to the power used to heat or
cool the vehicle. .
Certain remote functions require a
compatible smart phone, which is not
included with vehicle.
. CARWINGS
TMinformation system fea-
tures are included through a subscrip-
tion service which requires owner
consent to activate. The subscription
must be active to use these features.
. CARWINGS
TMcommunications may be
received at a verified e-mail address or
by SMS/text messaging-enabled cellu-
lar phone.
. Standard text rates and/or data usage
may apply depending on your carrier.
Remote functionsGUID-885EE742-03E5-4B2F-A435-557125B40724
LNB0009X
When an Internet connection is available, you
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

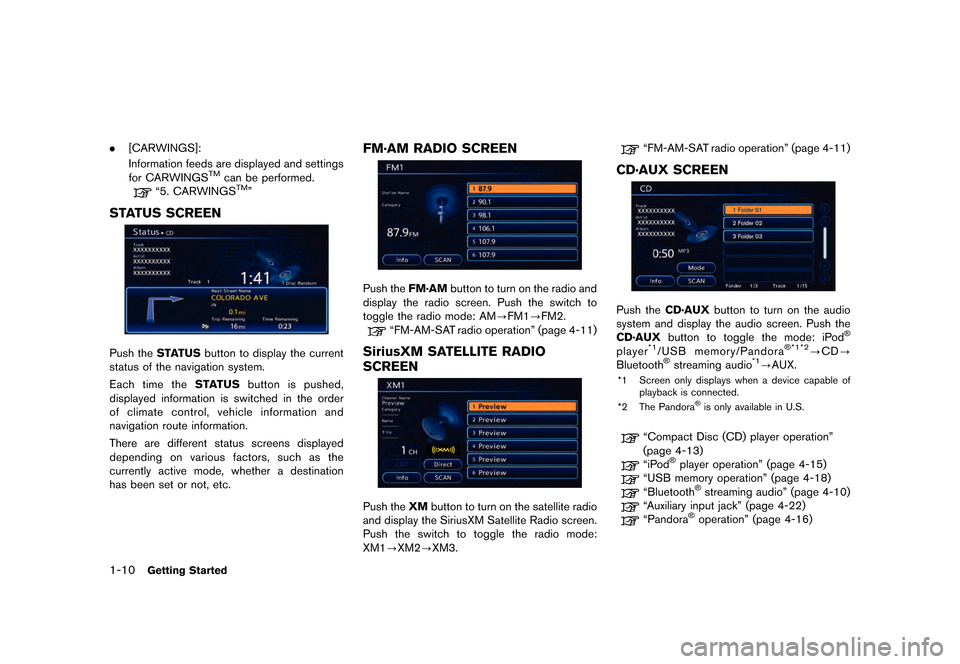

1-10Getting Started
.[CARWINGS]:
Information feeds are displayed and settings
for CARWINGS
TMcan be performed.
ª5. CARWINGSTMº
STATUS SCREENGUID-C59D9F23-051C-4909-840F-9659DFB5FE6E
LNC0017X
Push the STATUS button to display the current
status of the navigation system.
Each time the STATUSbutton is pushed,
displayed information is switched in the order
of climate control, vehicle information and
navigation route information.
There are different status screens displayed
depending on various factors, such as the
currently active mode, whether a destination
has been set or not, etc.
FM´AM RADIO SCREENGUID-F18B130E-F474-4E1B-B8A7-AFA62A4EA4EC
LNC0018X
Push the FM´AMbutton to turn on the radio and
display the radio screen. Push the switch to
toggle the radio mode: AM?FM1?FM2.
ªFM-AM-SAT radio operationº (page 4-11)
SiriusXM SATELLITE RADIO
SCREEN
GUID-EDED61A6-8D25-4ADA-A44A-36AFCBA043FE
LNC0019X
Push the XMbutton to turn on the satellite radio
and display the SiriusXM Satellite Radio screen.
Push the switch to toggle the radio mode:
XM1?XM2?XM3.
ªFM-AM-SAT radio operationº (page 4-11)
CD´AUX SCREENGUID-50077224-4B9F-4058-BE80-9C925824B7C3
LNC0020X
Push the CD´AUXbutton to turn on the audio
system and display the audio screen. Push the
CD´AUX button to toggle the mode: iPod


> (GLW    0RGHO 1DYL(9 @

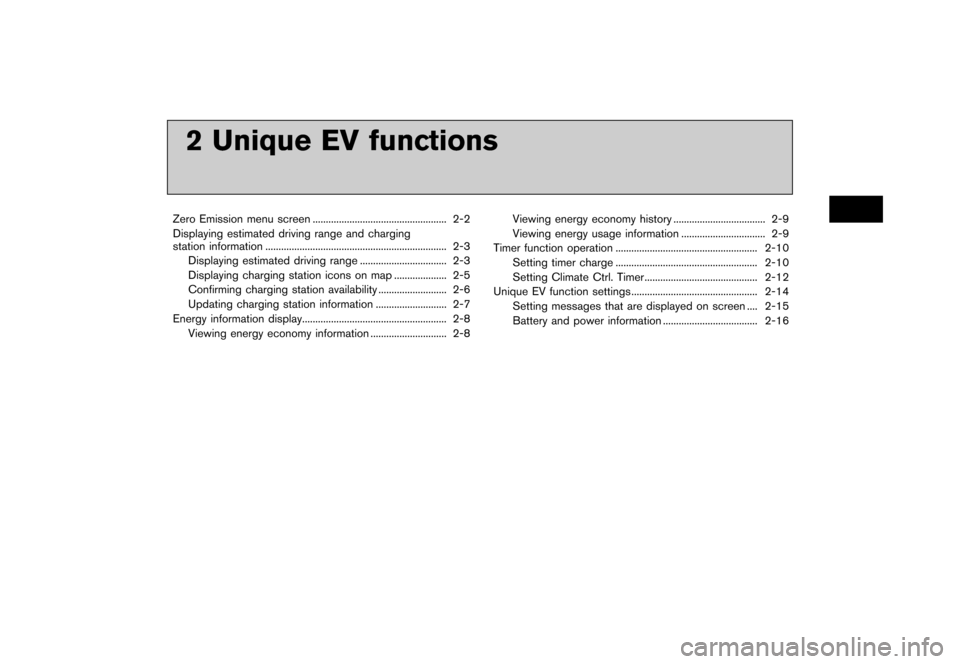

2 Unique EV functions
Zero Emission menu screen...
................................................... 2-2
Displaying estimated driving range and charging
station information ...
..................................................................... 2-3
Displaying estimated driving range ...
................................. 2-3
Displaying charging station icons on map ...
.................... 2-5
Confirming charging station availability ...
.......................... 2-6
Updating charging station information ...
........................... 2-7
Energy information display ...
....................................................... 2-8
Viewing energy economy information ...
............................. 2-8 Viewing energy economy history
...
................................... 2-9
Viewing energy usage information ...
................................ 2-9
Timer function operation ...
...................................................... 2-10
Setting timer charge ...
...................................................... 2-10
Setting Climate Ctrl. Timer ...
........................................... 2-12
Unique EV function settings ...
................................................ 2-14
Setting messages that are displayed on screen ...
.... 2-15
Battery and power information ...
.................................... 2-16
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

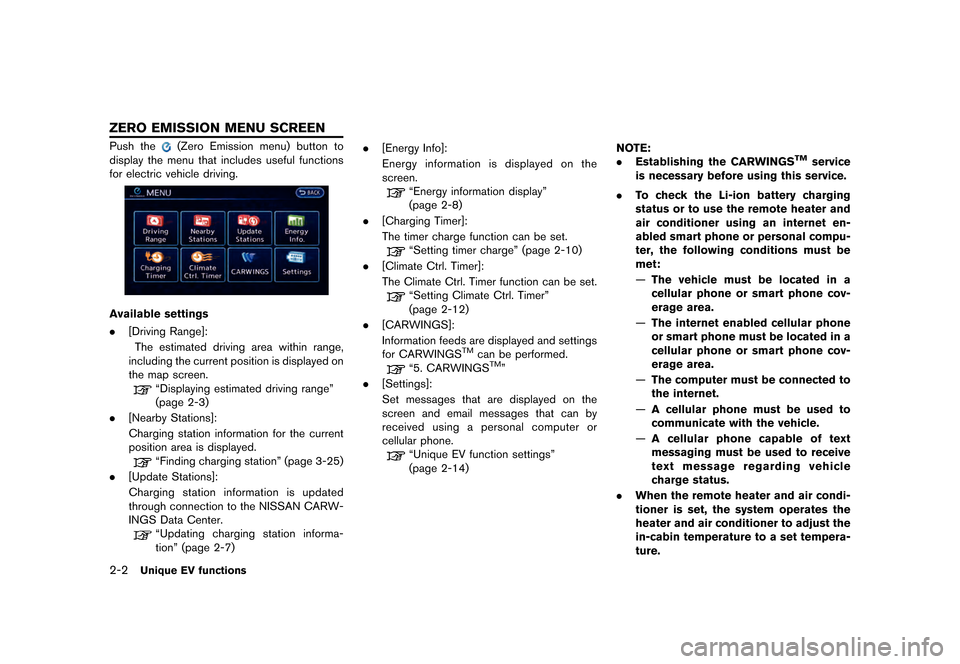

2-2Unique EV functions
GUID-C21D2150-F7F0-4C39-BE4B-58106A8753F0Push the(Zero Emission menu) button to
display the menu that includes useful functions
for electric vehicle driving.
LND0093X
Available settings
. [Driving Range]:
The estimated driving area within range,
including the current position is displayed on
the map screen.
ªDisplaying estimated driving rangeº
(page 2-3)
. [Nearby Stations]:
Charging station information for the current
position area is displayed.
ªFinding charging stationº (page 3-25)
. [Update Stations]:
Charging station information is updated
through connection to the NISSAN CARW-
INGS Data Center.
ªUpdating charging station informa-
tionº (page 2-7) .
[Energy Info]:
Energy information is displayed on the
screen.
ªEnergy information displayº
(page 2-8)
. [Charging Timer]:
The timer charge function can be set.
ªSetting timer chargeº (page 2-10)
. [Climate Ctrl. Timer]:
The Climate Ctrl. Timer function can be set.
ªSetting Climate Ctrl. Timerº
(page 2-12)
. [CARWINGS]:
Information feeds are displayed and settings
for CARWINGS
TMcan be performed.
ª5. CARWINGSTMº
. [Settings]:
Set messages that are displayed on the
screen and email messages that can by
received using a personal computer or
cellular phone.
ªUnique EV function settingsº
(page 2-14) NOTE:
.
Establishing the CARWINGS
TMservice
is necessary before using this service.
. To check the Li-ion battery charging
status or to use the remote heater and
air conditioner using an internet en-
abled smart phone or personal compu-
ter, the following conditions must be
met:
ÐThe vehicle must be located in a
cellular phone or smart phone cov-
erage area.
Ð The internet enabled cellular phone
or smart phone must be located in a
cellular phone or smart phone cov-
erage area.
Ð The computer must be connected to
the internet.
Ð A cellular phone must be used to
communicate with the vehicle.
Ð A cellular phone capable of text
messaging must be used to receive
text message regarding vehicle
charge status.
. When the remote heater and air condi-
tioner is set, the system operates the
heater and air conditioner to adjust the
in-cabin temperature to a set tempera-
ture.
ZERO EMISSION MENU SCREEN
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

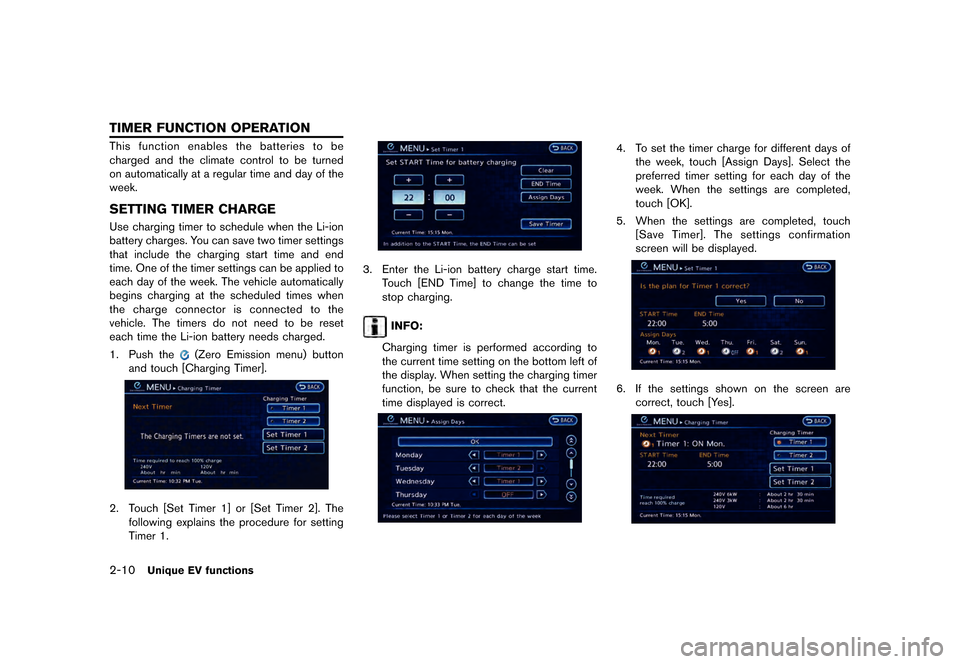

2-10Unique EV functions
GUID-76EF94D1-3F8C-4350-B32D-504536913217This function enables the batteries to be
charged and the climate control to be turned
on automatically at a regular time and day of the
week.
SETTING TIMER CHARGEGUID-5A729305-7710-4308-A8AF-8091F9CF58E3Use charging timer to schedule when the Li-ion
battery charges. You can save two timer settings
that include the charging start time and end
time. One of the timer settings can be applied to
each day of the week. The vehicle automatically
begins charging at the scheduled times when
the charge connector is connected to the
vehicle. The timers do not need to be reset
each time the Li-ion battery needs charged.
1. Push the
(Zero Emission menu) button
and touch [Charging Timer].
LND0213X
2. Touch [Set Timer 1] or [Set Timer 2]. The following explains the procedure for setting
Timer 1.
LND0210X
3. Enter the Li-ion battery charge start time.Touch [END Time] to change the time to
stop charging.
INFO:
Charging timer is performed according to
the current time setting on the bottom left of
the display. When setting the charging timer
function, be sure to check that the current
time displayed is correct.
LND0214X
4. To set the timer charge for different days of the week, touch [Assign Days]. Select the
preferred timer setting for each day of the
week. When the settings are completed,
touch [OK].
5. When the settings are completed, touch [Save Timer]. The settings confirmation
screen will be displayed.
LND0211X
6. If the settings shown on the screen arecorrect, touch [Yes].
LND0212X
TIMER FUNCTION OPERATION
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

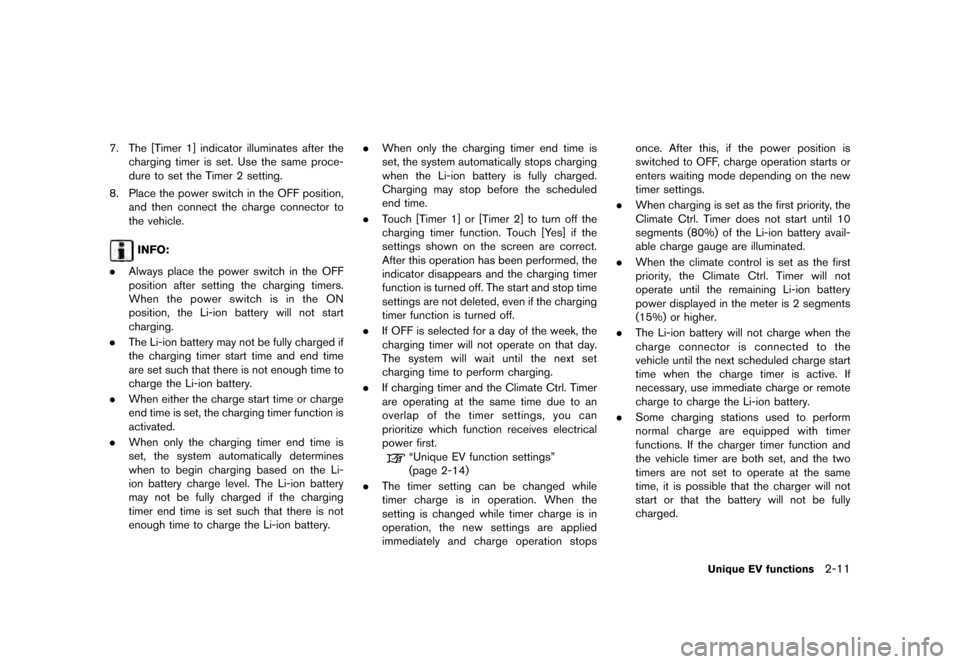

7. The [Timer 1] indicator illuminates after thecharging timer is set. Use the same proce-
dure to set the Timer 2 setting.
8. Place the power switch in the OFF position, and then connect the charge connector to
the vehicle.
INFO:
. Always place the power switch in the OFF
position after setting the charging timers.
When the power switch is in the ON
position, the Li-ion battery will not start
charging.
. The Li-ion battery may not be fully charged if
the charging timer start time and end time
are set such that there is not enough time to
charge the Li-ion battery.
. When either the charge start time or charge
end time is set, the charging timer function is
activated.
. When only the charging timer end time is
set, the system automatically determines
when to begin charging based on the Li-
ion battery charge level. The Li-ion battery
may not be fully charged if the charging
timer end time is set such that there is not
enough time to charge the Li-ion battery. .
When only the charging timer end time is
set, the system automatically stops charging
when the Li-ion battery is fully charged.
Charging may stop before the scheduled
end time.
. Touch [Timer 1] or [Timer 2] to turn off the
charging timer function. Touch [Yes] if the
settings shown on the screen are correct.
After this operation has been performed, the
indicator disappears and the charging timer
function is turned off. The start and stop time
settings are not deleted, even if the charging
timer function is turned off.
. If OFF is selected for a day of the week, the
charging timer will not operate on that day.
The system will wait until the next set
charging time to perform charging.
. If charging timer and the Climate Ctrl. Timer
are operating at the same time due to an
overlap of the timer settings, you can
prioritize which function receives electrical
power first.
ªUnique EV function settingsº
(page 2-14)
. The timer setting can be changed while
timer charge is in operation. When the
setting is changed while timer charge is in
operation, the new settings are applied
immediately and charge operation stops once. After this, if the power position is
switched to OFF, charge operation starts or
enters waiting mode depending on the new
timer settings.
. When charging is set as the first priority, the
Climate Ctrl. Timer does not start until 10
segments (80%) of the Li-ion battery avail-
able charge gauge are illuminated.
. When the climate control is set as the first
priority, the Climate Ctrl. Timer will not
operate until the remaining Li-ion battery
power displayed in the meter is 2 segments
(15%) or higher.
. The Li-ion battery will not charge when the
charge connector is connected to the
vehicle until the next scheduled charge start
time when the charge timer is active. If
necessary, use immediate charge or remote
charge to charge the Li-ion battery.
. Some charging stations used to perform
normal charge are equipped with timer
functions. If the charger timer function and
the vehicle timer are both set, and the two
timers are not set to operate at the same
time, it is possible that the charger will not
start or that the battery will not be fully
charged.
Unique EV functions2-11
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

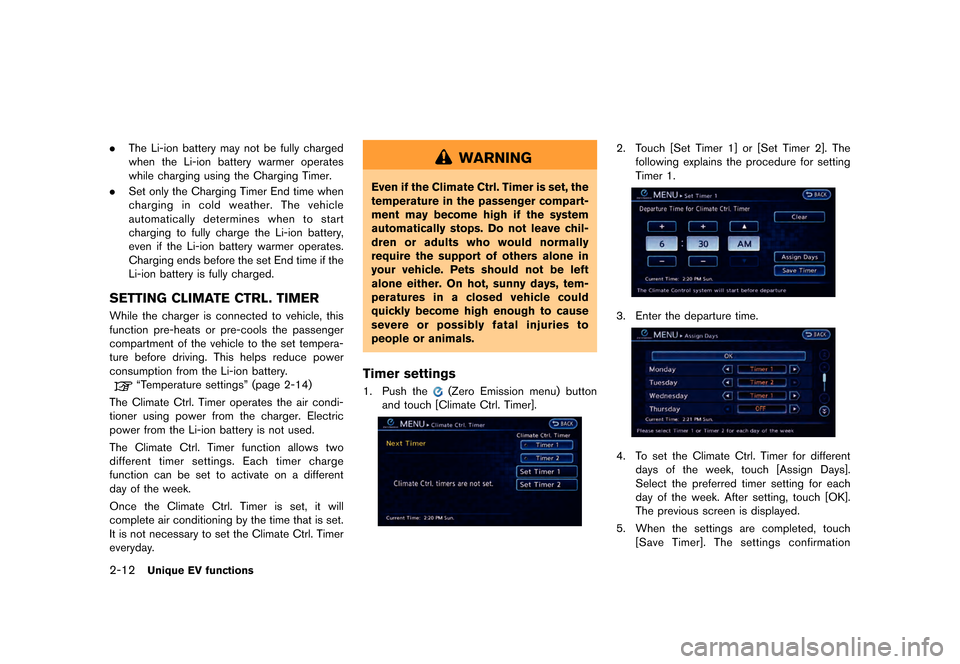

2-12Unique EV functions
.The Li-ion battery may not be fully charged
when the Li-ion battery warmer operates
while charging using the Charging Timer.
. Set only the Charging Timer End time when
charging in cold weather. The vehicle
automatically determines when to start
charging to fully charge the Li-ion battery,
even if the Li-ion battery warmer operates.
Charging ends before the set End time if the
Li-ion battery is fully charged.
SETTING CLIMATE CTRL. TIMERGUID-B26518E0-1D61-476C-BA29-80FA3CBC3944While the charger is connected to vehicle, this
function pre-heats or pre-cools the passenger
compartment of the vehicle to the set tempera-
ture before driving. This helps reduce power
consumption from the Li-ion battery.
ªTemperature settingsº (page 2-14)
The Climate Ctrl. Timer operates the air condi-
tioner using power from the charger. Electric
power from the Li-ion battery is not used.
The Climate Ctrl. Timer function allows two
different timer settings. Each timer charge
function can be set to activate on a different
day of the week.
Once the Climate Ctrl. Timer is set, it will
complete air conditioning by the time that is set.
It is not necessary to set the Climate Ctrl. Timer
everyday.
WARNING
Even if the Climate Ctrl. Timer is set, the
temperature in the passenger compart-
ment may become high if the system
automatically stops. Do not leave chil-
dren or adults who would normally
require the support of others alone in
your vehicle. Pets should not be left
alone either. On hot, sunny days, tem-
peratures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
Timer settingsGUID-09A12233-D1ED-43B2-937D-C4264026AEB11. Push the(Zero Emission menu) button
and touch [Climate Ctrl. Timer].
LND0095X
2. Touch [Set Timer 1] or [Set Timer 2]. The following explains the procedure for setting
Timer 1.
LND0097X
3. Enter the departure time.
LND0132X
4. To set the Climate Ctrl. Timer for differentdays of the week, touch [Assign Days].
Select the preferred timer setting for each
day of the week. After setting, touch [OK].
The previous screen is displayed.
5. When the settings are completed, touch [Save Timer]. The settings confirmation
&RQGLWLRQ 1$0
