4. Enter the address and message..[Address]:Enter the address where you would like
to send a message.
Choose an input method from [Quick
Dial]/[Phonebook]/[Call History]/[Enter
Number by keypad].
.[Message]:Enter the message.
Select [Fixed Text] or [Custom Text] and
choose a message from the displayed
list.
LNI0137X
5. Confirm the contents of the message then touch [Send].
Reading a received text messageGUID-6E8733FE-E012-43E9-9801-EF19066E89CC
When a new text message is received:
1.When a text message is received, the
screen will switch to the incoming message
screen. 2. To have a received message read aloud,
touch [Read], or push the
button on
the steering wheel.
After checking a received message, touch
[Ignore], or push the
button on the
steering wheel.
3. To end operation, touch [Exit] or push the
button on the steering wheel.
To reply to a received message, touch
[Reply] or push the
on the steering
wheel.
From the history list:
1. Press the phone
button on the steering
wheel.
2. Touch [Text Message] and then select a text message from the list.
LNI0140X
3. The text message is displayed. Followingitems are available from the text message
screen:
.[Prev.]:
Returns to the previous message.
.[Next]:Displays to the next message.
.[Play]:Reads a text message.
.[Call]:
Makes a call.
.[Reply]:Creates a reply message.
.[Exit]:
Exits the text message.
PHONE SETTINGSGUID-113ACEB2-74B1-46EA-92C5-7C0462E956E7The Bluetooth


> (GLW    0RGHO 1DYL(9 @
7-10Bluetooth


> (GLW    0RGHO 1DYL(9 @
LNI0153X
6. Touch [Yes].
LNI0154X
7. When a PIN code appears on the screen,operate the connected cellular phone to
enter the PIN code. The downloading
procedure of the cellular phone varies
according to each cellular phone. See the
cellular phone Owner's Manual for the
details.
Deleting phone informationGUID-57D24F70-D43C-45C8-97D0-A5CAA19DCE2D1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Phone & CARWINGS].
3. Touch [Phone].
LNI0136X
4. Touch [Delete Phone Information].
LNI0155X
5. Touch the preferred item for deletion. A confirmation message is displayed. Items that can be deleted
.[Quick Dial]:
Deletes all or one of the phone number in
the Quick Dial.
.[Call History]:All or each of the calls listed in the
outgoing and incoming call history will be
deleted. Additionally, the calls can be
deleted after sorting by outgoing or
incoming call history.
.[Phonebook]:Deletes all or one of the phone numbers
in the downloaded Phonebook.
.[All Phone Information]:
Deletes all stored phone information
(Quick Dials, call logs and downloaded
phonebooks) .
LNI0026X
6. Confirm the contents of the message, then touch [Yes].
Bluetooth


> (GLW    0RGHO 1DYL(9 @
7-12Bluetooth


> (GLW    0RGHO 1DYL(9 @
GUID-8818FE89-929B-445D-A49C-7EC1615585A6When installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode is
highly recommended. Exercise ex-
treme caution at all times so full
attention may be given to vehicle
operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, consult a NISSAN certi-
fied LEAF dealer.
Bluetooth


> (GLW    0RGHO 1DYL(9 @
7-14Bluetooth


> (GLW    0RGHO 1DYL(9 @

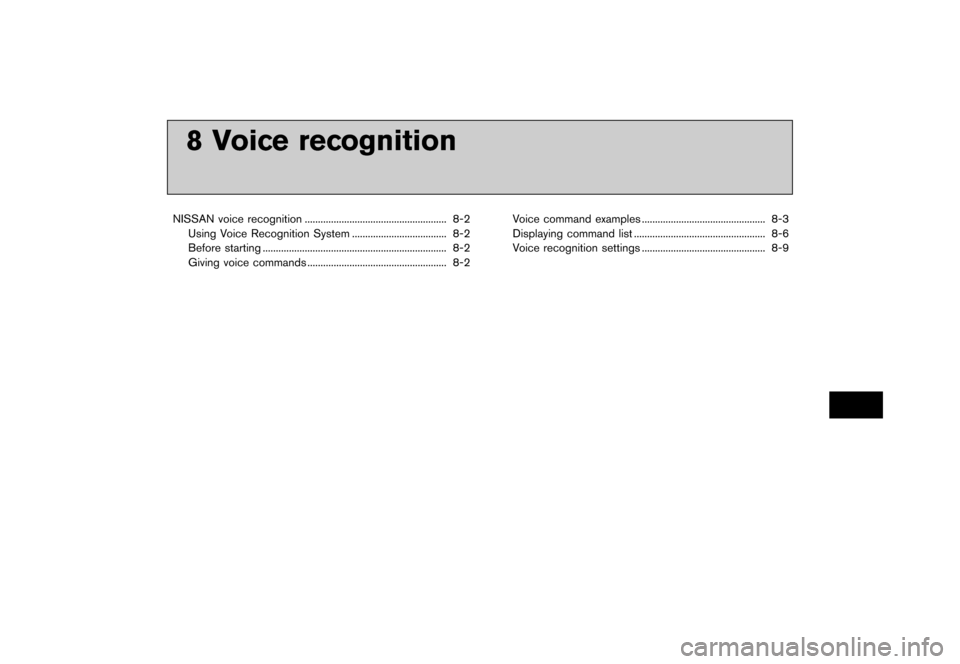

8 Voice recognition
NISSAN voice recognition...
...................................................... 8-2
Using Voice Recognition System ...
.................................... 8-2
Before starting ...
...................................................................... 8-2
Giving voice commands ...
..................................................... 8-2 Voice command examples
...
............................................... 8-3
Displaying command list ...
.................................................. 8-6
Voice recognition settings ...
............................................... 8-9
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
8-2Voice recognition
GUID-FAF38580-C669-4F26-B8D0-7EC58692FC6D
USING VOICE RECOGNITION SYS-
TEM
GUID-1C8F749E-4AF3-47FE-9FE0-7B0B8B8AF458
InitializationGUID-60C8EC21-9C96-4FBC-A946-5937BAB414ECWhen the power switch is pushed to the ON
position, Voice Recognition is initialized, which
takes a few seconds. When completed, the
system is ready to accept voice commands. If
the
button on the steering wheel is pushed
before the initialization completes, the display
will show the message: "Loading Voice Recog-
nition system. Please wait...".
BEFORE STARTINGGUID-17B90F0D-2C92-4147-8CBB-60019E6215D6To get the best recognition performance from
Voice Recognition, observe the following items.
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.) , which may prevent
the system from correctly recognizing the
voice commands.
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
GIVING VOICE COMMANDSGUID-B79272C7-32FE-481D-B7B3-A50FF427C81A1. Push thebutton located on the steering
wheel.
LNK0042X
2. A list of commands appears on the screen, and the system provides the voice menu
prompt.
3. After the tone sounds and the icon on the screen changes from
to, speak a
command.
4. Continue to follow the voice menu prompts and speak after the tone sounds until the
preferred operation is completed.
Operating tipsGUID-5EBE1C81-7EAE-4A5C-8323-F92B58DC3259.Speak a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Follow the prompts given by the system. .
If the command is not accepted, the system
announces, ªPlease say againº. Repeat the
command in a clear voice.
. Push the
button once to return to the
previous screen.
. To cancel the command, push and hold the
button or thebutton on the steering
wheel. The message, ªVoice recognition is
canceledº will be announced.
. To adjust the volume of the system feed-
back, push the -
+button on the
steering wheel or use the audio system
volume control knob while the system is
making an announcement.
Voice Prompt Interrupt:
Push the
button on the steering wheel to
stop the voice prompt and give the command at
once. Remember to wait for the tone before
speaking.
How to speak numbersGUID-71FDCB5E-F8C6-44F6-B150-DA7EA47CDF74NISSAN Voice Recognition requires the user to
a certain speak numbers in a certain way when
giving voice commands. Refer to the following
examples.
General rule:
Only single digits 0 (zero) to 9 can be used. (For
example, if speaking 500, "five zero zero" can be
NISSAN VOICE RECOGNITION
