6-6Viewing technical information

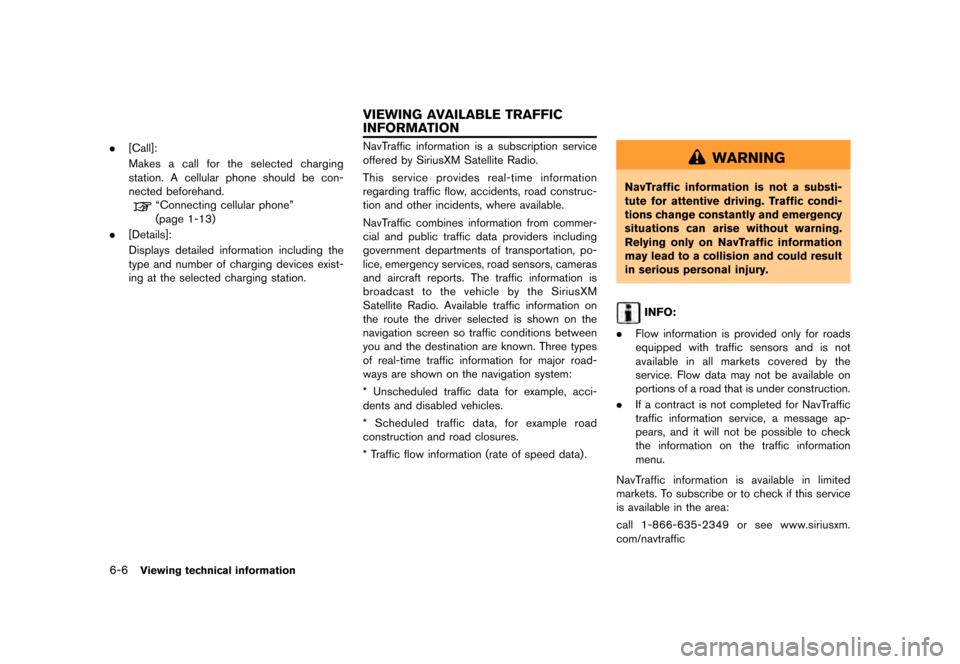

.[Call]:
Makes a call for the selected charging
station. A cellular phone should be con-
nected beforehand.
ªConnecting cellular phoneº
(page 1-13)
. [Details]:
Displays detailed information including the
type and number of charging devices exist-
ing at the selected charging station.
GUID-C3CED98E-C094-4510-B148-64D1ABD9EAF1NavTraffic information is a subscription service
offered by SiriusXM Satellite Radio.
This service provides real-time information
regarding traffic flow, accidents, road construc-
tion and other incidents, where available.
NavTraffic combines information from commer-
cial and public traffic data providers including
government departments of transportation, po-
lice, emergency services, road sensors, cameras
and aircraft reports. The traffic information is
broadcast to the vehicle by the SiriusXM
Satellite Radio. Available traffic information on
the route the driver selected is shown on the
navigation screen so traffic conditions between
you and the destination are known. Three types
of real-time traffic information for major road-
ways are shown on the navigation system:
* Unscheduled traffic data for example, acci-
dents and disabled vehicles.
* Scheduled traffic data, for example road
construction and road closures.
* Traffic flow information (rate of speed data) .WARNING
NavTraffic information is not a substi-
tute for attentive driving. Traffic condi-
tions change constantly and emergency
situations can arise without warning.
Relying only on NavTraffic information
may lead to a collision and could result
in serious personal injury.
INFO:
. Flow information is provided only for roads
equipped with traffic sensors and is not
available in all markets covered by the
service. Flow data may not be available on
portions of a road that is under construction.
. If a contract is not completed for NavTraffic
traffic information service, a message ap-
pears, and it will not be possible to check
the information on the traffic information
menu.
NavTraffic information is available in limited
markets. To subscribe or to check if this service
is available in the area:
call 1-866-635-2349 or see www.siriusxm.
com/navtraffic
VIEWING AVAILABLE TRAFFIC
INFORMATION
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

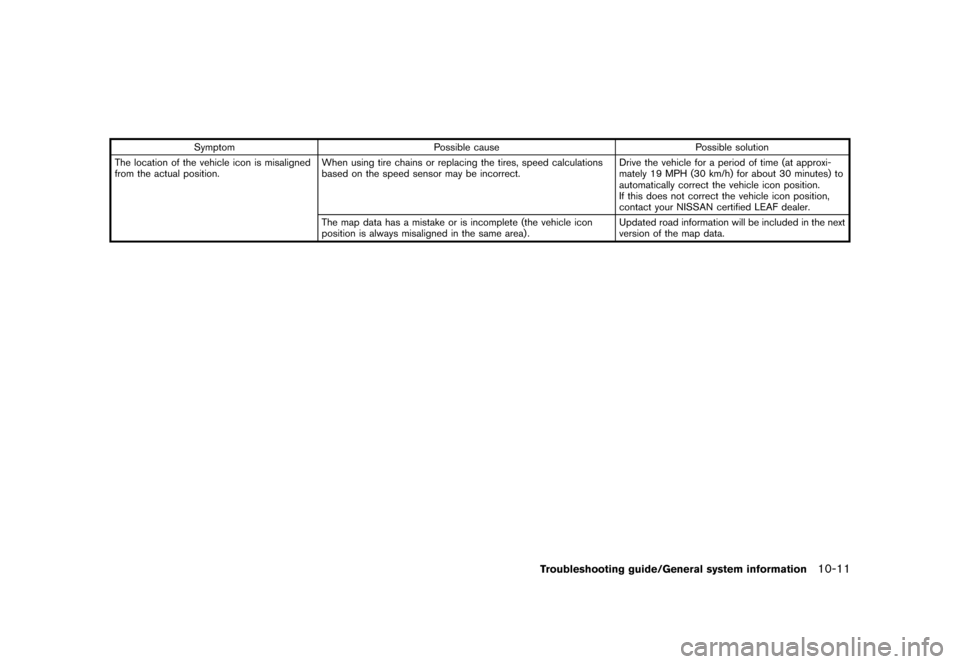

SymptomPossible cause Possible solution
The location of the vehicle icon is misaligned
from the actual position. When using tire chains or replacing the tires, speed calculations
based on the speed sensor may be incorrect. Drive the vehicle for a period of time (at approxi-
mately 19 MPH (30 km/h) for about 30 minutes) to
automatically correct the vehicle icon position.
If this does not correct the vehicle icon position,
contact your NISSAN certified LEAF dealer.
The map data has a mistake or is incomplete (the vehicle icon
position is always misaligned in the same area) . Updated road information will be included in the next
version of the map data.
Troubleshooting guide/General system information10-11
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
GUID-53E79F5D-9AE6-4984-955E-CB2A39EB4D66

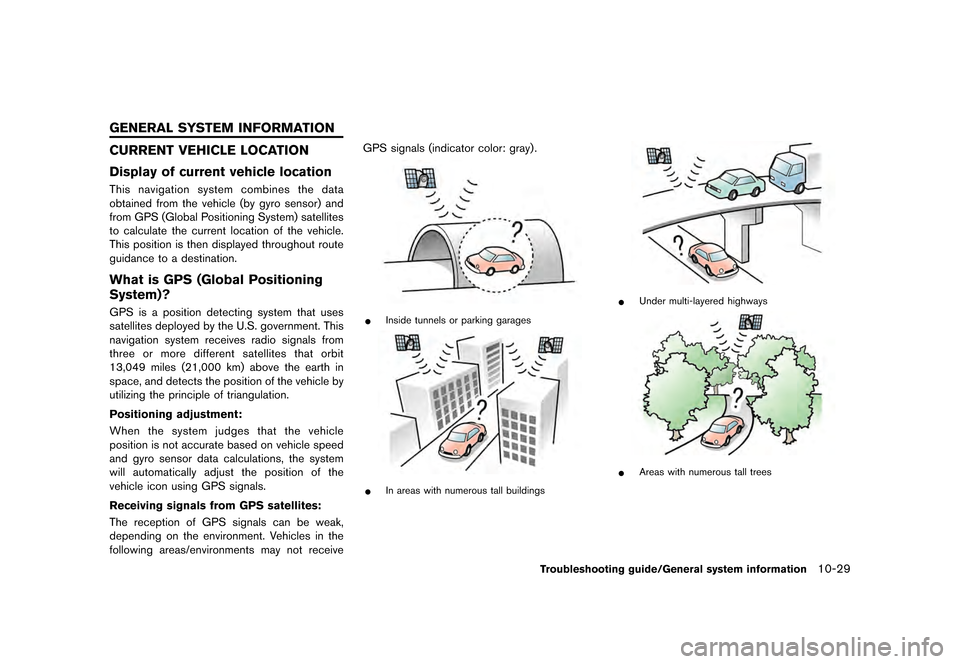

CURRENT VEHICLE LOCATIONGUID-3DB2B298-7959-42E7-A529-EBC2E6E1A510
Display of current vehicle locationGUID-AC334D4E-00C5-4F0B-889E-D50DC5D61202This navigation system combines the data
obtained from the vehicle (by gyro sensor) and
from GPS (Global Positioning System) satellites
to calculate the current location of the vehicle.
This position is then displayed throughout route
guidance to a destination.
What is GPS (Global Positioning
System)?
GUID-A33AD639-F86B-4DA8-B59E-2726CD899634GPS is a position detecting system that uses
satellites deployed by the U.S. government. This
navigation system receives radio signals from
three or more different satellites that orbit
13,049 miles (21,000 km) above the earth in
space, and detects the position of the vehicle by
utilizing the principle of triangulation.
Positioning adjustment:
When the system judges that the vehicle
position is not accurate based on vehicle speed
and gyro sensor data calculations, the system
will automatically adjust the position of the
vehicle icon using GPS signals.
Receiving signals from GPS satellites:
The reception of GPS signals can be weak,
depending on the environment. Vehicles in the
following areas/environments may not receiveGPS signals (indicator color: gray) .INI0121
*Inside tunnels or parking garages
INI0122
*In areas with numerous tall buildings
INI0123
*Under multi-layered highways
INI0124
*Areas with numerous tall trees
Troubleshooting guide/General system information10-29
