.When the charge connector is discon-
nected from the vehicle, the heater and
air conditioner operates using vehicle
Li-ion battery electric power.
. If the remote heater and air conditioner
function and Li-ion battery charging are
performed at the same time, Li-ion
battery charging will take longer than
usual due to the power used to heat or
cool the vehicle.
. Certain remote functions require a
compatible smart phone, which is not
included with vehicle.
. CARWINGS
TMinformation system fea-
tures are included through a subscrip-
tion service which requires owner
consent to activate. The subscription
must be active to use these features.
. CARWINGS
TMcommunications may be
received at a verified e-mail address or
by SMS/text messaging-enabled cellu-
lar phone.
. Standard text rates and/or data usage
may apply depending on your carrier.
GUID-DBBF191F-7227-4E71-9B89-F63596487267The estimated driving range and charging
station information are displayed on the map
screen.
CAUTION
Charging station information may not
be detailed in all areas or reflect current
charging station locations. For up to
date information about charging sta-
tions, such as business hours or char-
ging equipment, NISSAN recommends
that you directly access the information
on your own. Additionally, always check
the Li-ion battery available charge and
set a reasonable driving schedule.
DISPLAYING ESTIMATED DRIVING
RANGE
GUID-5A1FA606-E63E-4FD2-B18B-1B94796BA6B3The estimated driving range including the
current position or the destination is displayed
on the map screen depending on the charging
status of the vehicle. A destination or a waypoint
can be set on this screen.
INFO:
The estimated driving range map shows the
predicted area the vehicle can reach on the
basis of the estimated driving range that is
indicated in the meter. Driving habits, the actual
road environment (hills, etc.) , and traffic condi-
tions (traffic jams, etc.) will affect the actual
available range.
The Driving Range screen is displayed by
performing the following procedure.
. Push the
button on the steering wheel.
. Push the
(Zero Emission menu) button
and touch [Driving Range].
INFO:
Models with Li-ion battery warmer:
The estimated driving range will increase or
decrease when the air conditioner, heater or Li-
ion battery warmer is turned on or off, or the
vehicle is shifted between D (Drive) and ECO, or
when any other accessory is turned on or off
based on driving.
Unique EV functions2-3
DISPLAYING ESTIMATED DRIVING
RANGE AND CHARGING STATION
INFORMATION
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
2-4Unique EV functions

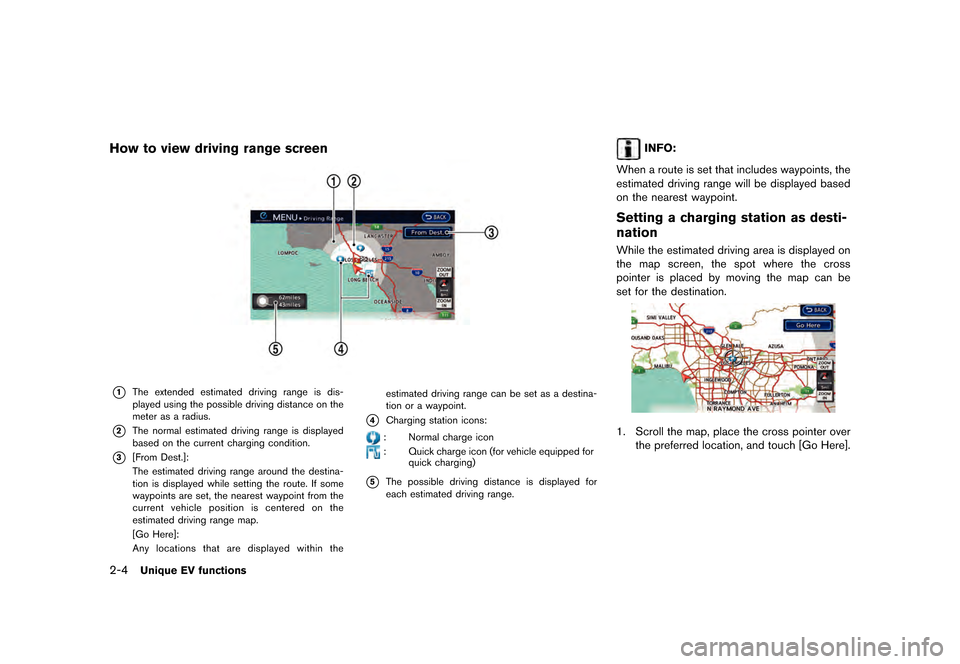

How to view driving range screenGUID-9CC93CF9-571E-484A-91DA-AD2F565D5B7F
LND0002X
*1The extended estimated driving range is dis-
played using the possible driving distance on the
meter as a radius.
*2The normal estimated driving range is displayed
based on the current charging condition.
*3[From Dest.]:
The estimated driving range around the destina-
tion is displayed while setting the route. If some
waypoints are set, the nearest waypoint from the
current vehicle position is centered on the
estimated driving range map.
[Go Here]:
Any locations that are displayed within theestimated driving range can be set as a destina-
tion or a waypoint.
*4Charging station icons:
: Normal charge icon
: Quick charge icon (for vehicle equipped for
quick charging)
*5The possible driving distance is displayed for
each estimated driving range.
INFO:
When a route is set that includes waypoints, the
estimated driving range will be displayed based
on the nearest waypoint.
Setting a charging station as desti-
nation
GUID-CF4689EA-B384-433B-9945-41E58188B38DWhile the estimated driving area is displayed on
the map screen, the spot where the cross
pointer is placed by moving the map can be
set for the destination.
LND0003X
1. Scroll the map, place the cross pointer over the preferred location, and touch [Go Here].
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
LND0004X

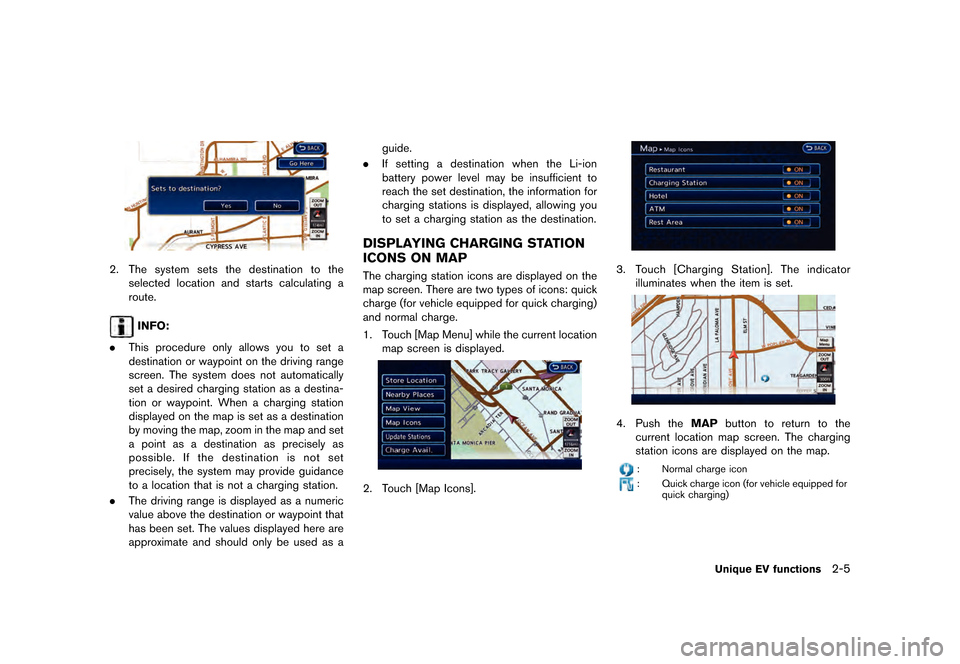

2.The system sets the destination to the
selected location and starts calculating a
route.
INFO:
. This procedure only allows you to set a
destination or waypoint on the driving range
screen. The system does not automatically
set a desired charging station as a destina-
tion or waypoint. When a charging station
displayed on the map is set as a destination
by moving the map, zoom in the map and set
a point as a destination as precisely as
possible. If the destination is not set
precisely, the system may provide guidance
to a location that is not a charging station.
. The driving range is displayed as a numeric
value above the destination or waypoint that
has been set. The values displayed here are
approximate and should only be used as a guide.
. If setting a destination when the Li-ion
battery power level may be insufficient to
reach the set destination, the information for
charging stations is displayed, allowing you
to set a charging station as the destination.
DISPLAYING CHARGING STATION
ICONS ON MAP
GUID-CB3356B9-BB71-4E7B-9B36-35EC618E6E12The charging station icons are displayed on the
map screen. There are two types of icons: quick
charge (for vehicle equipped for quick charging)
and normal charge.
1. Touch [Map Menu] while the current location
map screen is displayed.
LNE0900X
2. Touch [Map Icons].
LNE0038X
3.Touch [Charging Station]. The indicator
illuminates when the item is set.
LND0006X
4.Push the MAPbutton to return to the
current location map screen. The charging
station icons are displayed on the map.
: Normal charge icon
: Quick charge icon (for vehicle equipped for quick charging)
Unique EV functions2-5
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
2-6Unique EV functions
LNB0038X
INFO:
When a charging icon on the map is touched, a
pop-up screen will appear.
. Touch [Go Here] to set the destination.
. Touch [Place Info] to display charging
station information.
Other settings
The charging station icon can be also set by
performing the following procedure.
1. Push the
(Zero Emission menu) button
and touch [Settings].
2. Touch [Map icons for charging stations].
or
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation]. 3. Touch [Map Icons].
INFO:
. The map icons are not displayed on the map
screen when the map scale is set to 1/4 mile
(500 m) or higher in the 2D map and the
Birdview
TMmap.
. Display of icons for charging stations
registered in the address book cannot be
removed using this procedure.
ªShow Icon on Mapº (page 3-63)
CONFIRMING CHARGING STATION
AVAILABILITY
GUID-9D465F37-4939-4C10-BAA5-9FCD9B6F45BDIt is possible to confirm the availability of
charging stations via the NISSAN CARWINGS
Data Center. This allows you to reduce the time
spent waiting to charge.
Viewing from Zero Emission buttonGUID-525FF801-0E56-4CCA-A9FF-65B69B60CF7F1. Push the(Zero Emission menu) button
and touch [CARWINGS].
2. Touch [Charging Availability].
LNE0920X
3. Select the area for searching for charging station locations.
.[Near Current Location]:
Displays a list of charging stations that
are near the current vehicle location.
.[Near Destination]:
Displays a list of charging stations that
are near the destination, when a destina-
tion has been set.
.[Near Scroll Position]:Displays a list of charging stations that
are near the cursor when the map has
been moved.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
LNE0921X

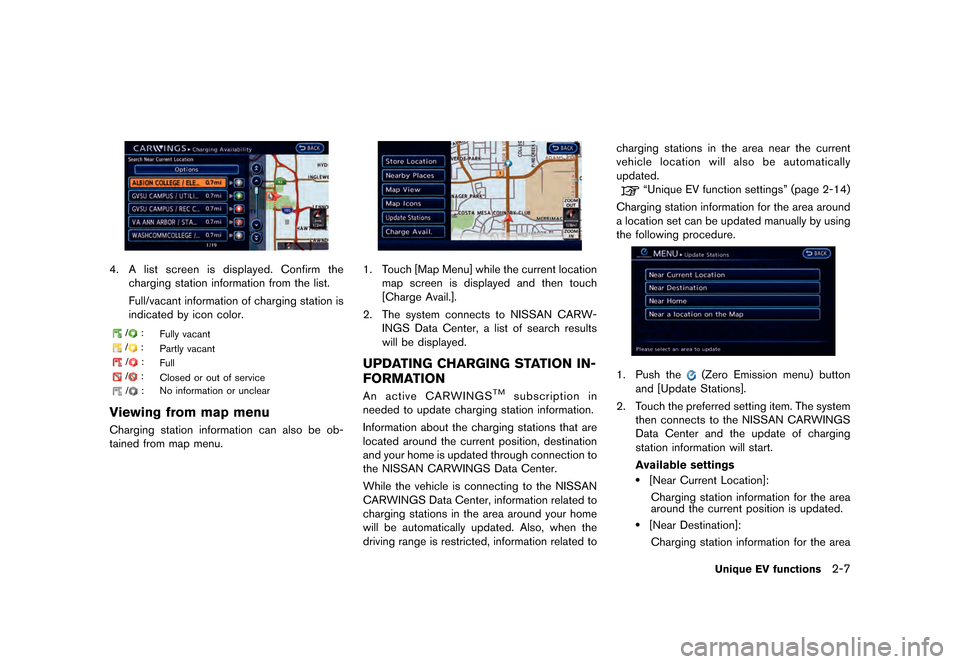

4.A list screen is displayed. Confirm the
charging station information from the list.
Full/vacant information of charging station is
indicated by icon color.
/:
Fully vacant
/: Partly vacant
/:Full
/: Closed or out of service
/: No information or unclear
Viewing from map menuGUID-454D0275-393C-490B-9B21-2C5B70BF4E53Charging station information can also be ob-
tained from map menu.
LNE0901X
1. Touch [Map Menu] while the current location
map screen is displayed and then touch
[Charge Avail.].
2. The system connects to NISSAN CARW- INGS Data Center, a list of search results
will be displayed.
UPDATING CHARGING STATION IN-
FORMATION
GUID-70CEE977-F138-4ECE-B639-15E8F3F2BEA3An active CARWINGSTMsubscription in
needed to update charging station information.
Information about the charging stations that are
located around the current position, destination
and your home is updated through connection to
the NISSAN CARWINGS Data Center.
While the vehicle is connecting to the NISSAN
CARWINGS Data Center, information related to
charging stations in the area around your home
will be automatically updated. Also, when the
driving range is restricted, information related to charging stations in the area near the current
vehicle location will also be automatically
updated.
ªUnique EV function settingsº (page 2-14)
Charging station information for the area around
a location set can be updated manually by using
the following procedure.
LND0007X
1. Push the(Zero Emission menu) button
and [Update Stations].
2. Touch the preferred setting item. The system then connects to the NISSAN CARWINGS
Data Center and the update of charging
station information will start.
Available settings
.[Near Current Location]:
Charging station information for the area
around the current position is updated.
.[Near Destination]:
Charging station information for the area
Unique EV functions2-7
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
2-8Unique EV functions
around the destination is updated.
.[Near Home]:Charging station information for the area
around your home is updated. Registra-
tion of your home in the Address Book is
necessary before using this item.
ªStoring home locationº
(page 1-12)
.[Near a location on the Map]:Charging station information for the area
where the cross pointer is placed by
moving the map is updated.
LND0008X
3. When [Stop] is touched while updating
information, connection to the NISSAN
CARWINGS Data Center is disconnected.
INFO:
If communication with the NISSAN CARW-
INGS Data Center is disconnected due to
poor signal reception, a message will be
displayed. Touch [Yes] to restart the down-
load.
4. When the update is completed, a message is displayed.
GUID-21881F25-3D34-4510-9A98-89C3567CC056Energy economy and energy usage information
are displayed.
VIEWING ENERGY ECONOMY IN-
FORMATION
GUID-805ADB13-E973-45A3-B975-0A4C9928C3D4Estimated driving range, average energy econ-
omy and instant energy economy are displayed.
1. Push the
(Zero Emission menu) button.
2. Touch [Energy Info].
3. Touch [Energy Economy].
LND0010X
*1Driving Range:
The possible driving distance based on the
current charging status is displayed.
*2Average:
The average energy economy from the previous
to the next resets is displayed.
*3Instant:
The system shows the distance that the vehicle
can travel using 1kWh.
ENERGY INFORMATION DISPLAY
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
*4[Reset]:
Touch [Reset] to reset the average energy
economy. After resetting the average energy
economy, it is stored in the history.
INFO:
Battery power is generated and stored by the
cooperative regenerative brake while driving.
When this occurs, the instant value will be
displayed as the maximum. The maximum value
will be displayed until the generated power is
consumed.
VIEWING ENERGY ECONOMY HIS-
TORY
GUID-FB423C15-39A9-43F5-97ED-E09A9CA96D60The previous 10 histories of the average energy
economy are displayed.
1. Push the
(Zero Emission menu) button.
2. Touch [Energy Info].
3. Touch [History].
LND0011X
*1Driving Range:
The possible driving distance based on the
current charging status is displayed.
*2Previous Reset Intervals:
The average energy economy history is displayed
from along with the average for previous Reset-
to-Reset period.
*3Current Period:
The average energy economy from the previous
to the next resets is displayed.
VIEWING ENERGY USAGE INFOR-
MATION
GUID-A263CDDB-8264-497D-AEFC-B5D2F6A8025DEstimated driving range and energy usage of
various systems are displayed.
1. Push the
(Zero Emission menu) button.
2. Touch [Energy Info].
LND0012X
*1Driving Range:
The possible driving distance based on the
current charging status is displayed.
*2Variation of the possible driving distances be-
tween the climate control ON and OFF is
displayed.
*3Electric Motor:
Energy usage by the motor and regenerated
energy are displayed.
*4Climate Control:
Energy usage by the climate control function is
displayed.
*5Other Systems:
Energy usage by other equipment (headlights,
windshield wiper, etc.) is displayed.
Unique EV functions2-9
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
2-10Unique EV functions
GUID-76EF94D1-3F8C-4350-B32D-504536913217This function enables the batteries to be
charged and the climate control to be turned
on automatically at a regular time and day of the
week.
SETTING TIMER CHARGEGUID-5A729305-7710-4308-A8AF-8091F9CF58E3Use charging timer to schedule when the Li-ion
battery charges. You can save two timer settings
that include the charging start time and end
time. One of the timer settings can be applied to
each day of the week. The vehicle automatically
begins charging at the scheduled times when
the charge connector is connected to the
vehicle. The timers do not need to be reset
each time the Li-ion battery needs charged.
1. Push the
(Zero Emission menu) button
and touch [Charging Timer].
LND0213X
2. Touch [Set Timer 1] or [Set Timer 2]. The following explains the procedure for setting
Timer 1.
LND0210X
3. Enter the Li-ion battery charge start time.Touch [END Time] to change the time to
stop charging.
INFO:
Charging timer is performed according to
the current time setting on the bottom left of
the display. When setting the charging timer
function, be sure to check that the current
time displayed is correct.
LND0214X
4. To set the timer charge for different days of the week, touch [Assign Days]. Select the
preferred timer setting for each day of the
week. When the settings are completed,
touch [OK].
5. When the settings are completed, touch [Save Timer]. The settings confirmation
screen will be displayed.
LND0211X
6. If the settings shown on the screen arecorrect, touch [Yes].
LND0212X
TIMER FUNCTION OPERATION
&RQGLWLRQ 1$0
