2015 NISSAN LEAF Navigation Manual


> (GLW    0RGHO 1DYL(9 @
INFO:
The stored route includes only locations (desti-
nation and waypoints) and route calculation
conditions, not the route itself. Therefore, when
the destination is set using a stored route, a
different route may be suggested if the current
vehicle location is different from the one when
the route was stored.
Adding destination or waypointGUID-64FE064C-91B6-4DF2-9502-FFC30B666095Before starting route guidance, destinations
and/or waypoints can be added. A total of 6
destinations or waypoints can be set.
1. Touch [Add Way Pt.].
LNE0105X
2. Set additional destinations or waypoints. The method of searching for a location is the
same as the one for a destination.
ªSetting destinationº (page 3-17)
LNE0244X
3. Touch [Add to Route].
LNE0106X
4. Touch [Add Destination] or [Add Waypoint].
LNE0107X
5. The system starts calculating a route thatincludes the added destination or waypoint.
When the calculation is finished, the route is
displayed.
INFO:
.If a waypoint was added, [More Routes]cannot be selected.
.If a destination was added, the priordestination becomes a waypoint.
ABOUT ROUTE GUIDANCEGUID-FD5538DC-DAD3-4D25-9388-EEEB98B01107After setting the route, select [Start] to begin
route guidance.
Throughout route guidance, the system navi-
gates you through the guide points using visual
and voice guidance.
CAUTION
. The navigation system's visual and
voice guidance is for reference pur-
poses only. The contents of the
guidance may be inappropriate de-
pending on the situation.
. Follow all traffic regulations when
driving along the suggested route
(e.g., one-way traffic) .
Navigation3-41
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

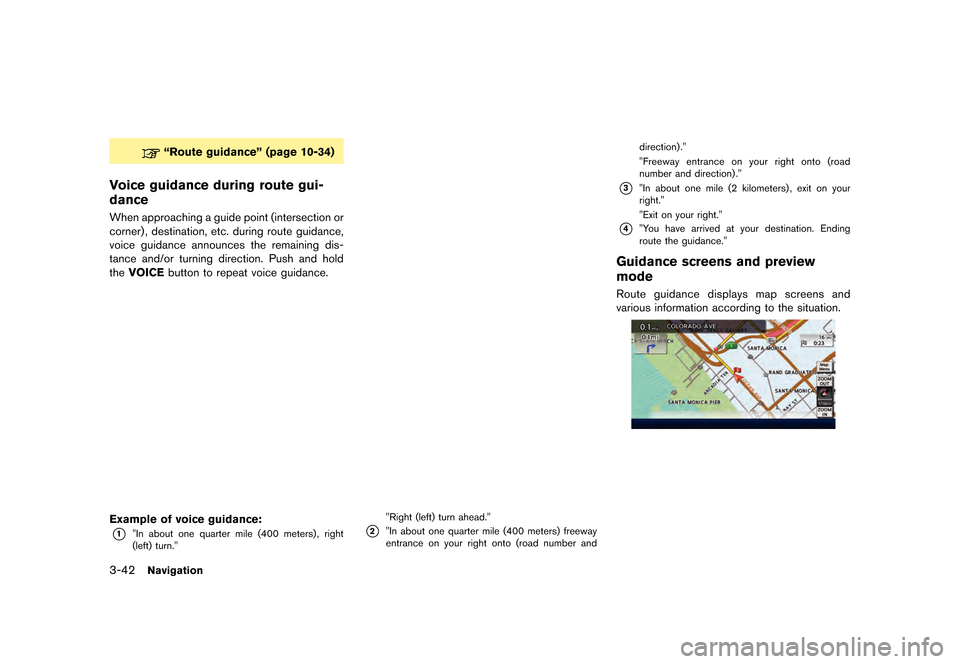

3-42Navigation
ªRoute guidanceº (page 10-34)
Voice guidance during route gui-
dance
GUID-B9542D5E-9818-4B43-8BA0-4E1F33E37BDBWhen approaching a guide point (intersection or
corner) , destination, etc. during route guidance,
voice guidance announces the remaining dis-
tance and/or turning direction. Push and hold
theVOICE button to repeat voice guidance.
INI0119
Example of voice guidance:
*1"In about one quarter mile (400 meters) , right
(left) turn." "Right (left) turn ahead."*2"In about one quarter mile (400 meters) freeway
entrance on your right onto (road number anddirection) ."
"Freeway entrance on your right onto (road
number and direction) ."
*3"In about one mile (2 kilometers) , exit on your
right."
"Exit on your right."
*4"You have arrived at your destination. Ending
route the guidance."
Guidance screens and preview
mode
GUID-1EC15C97-38ED-4C88-9336-8B6A6573F8DERoute guidance displays map screens and
various information according to the situation.
LNE0112X
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
Enlarged intersection view:
LNE0113X
When approaching a guide point, the system
automatically changes to the split screen and
shows an enlarged view of the intersection on
the left screen. To switch to the full screen mode
while the enlarged intersection view is dis-
played, push theMAPbutton. Pushing the
MAP button again displays the enlarged inter-
section view. Junction guidance:
LNE0114X
While driving on a freeway, when the vehicle is
approximately 1 mile (approximately 2 km) from a
junction, the system automatically switches to
the split screen and displays an enlarged view of
the junction on the left screen. After passing the
junction, the system automatically returns to the
full screen mode. To switch to the full screen
mode while the enlarged junction view is
displayed, push the
MAPbutton. Pushing the
MAP button again displays the enlarged junc-
tion view. Turn list:
LNE0115X
Depending on the setting, the system can
constantly display the split screen and show
the turn list on the left screen. When approach-
ing a guide point, the left screen automatically
switches to an enlarged view of the intersection.
To switch to the full screen mode, push the
MAP
button. Pushing the MAPbutton again
displays the turn list.
GUIDANCE SCREEN SETTINGSGUID-42B56FA1-7B98-44F1-BC40-014EF5BDBC53The guidance screen can be displayed at all
times even when the vehicle is located away
from the guide point. Various types of screens
can be set.
Split screen settingsGUID-6FFF7521-6286-4DF6-884B-0E9101ECFB85The display setting on the left-hand side screen
shown during route guidance can be changed.
Navigation3-43
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

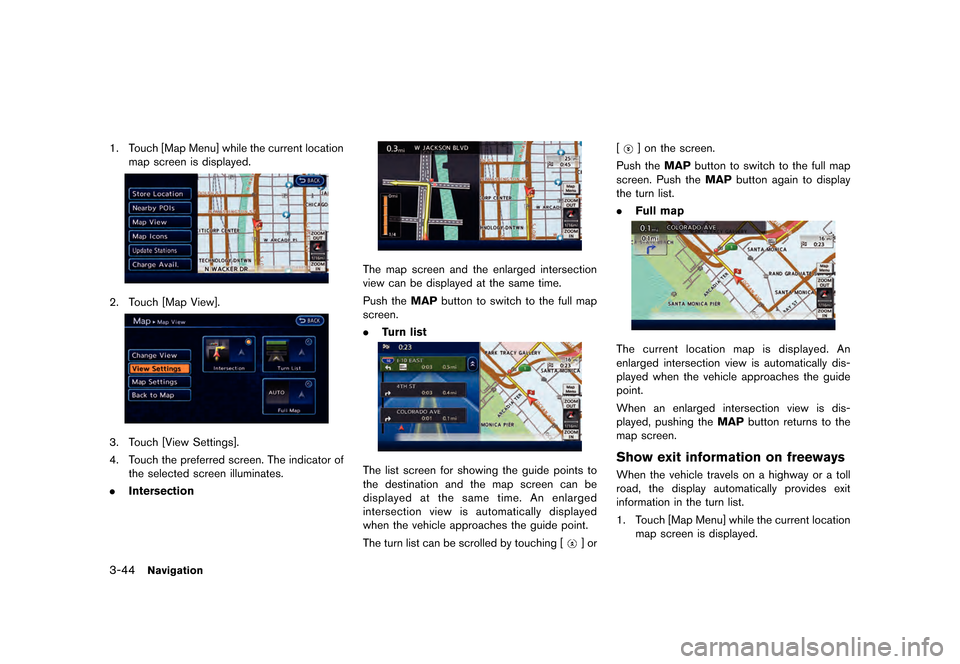

3-44Navigation
1. Touch [Map Menu] while the current locationmap screen is displayed.
LNE0930X
2. Touch [Map View].
LNE0931X
3. Touch [View Settings].
4. Touch the preferred screen. The indicator ofthe selected screen illuminates.
. Intersection
LNE0932X
The map screen and the enlarged intersection
view can be displayed at the same time.
Push the MAPbutton to switch to the full map
screen.
. Turn list
LNE0119X
The list screen for showing the guide points to
the destination and the map screen can be
displayed at the same time. An enlarged
intersection view is automatically displayed
when the vehicle approaches the guide point.
The turn list can be scrolled by touching [
] or [
] on the screen.
Push the MAPbutton to switch to the full map
screen. Push the MAPbutton again to display
the turn list.
. Full map
LNE0120X
The current location map is displayed. An
enlarged intersection view is automatically dis-
played when the vehicle approaches the guide
point.
When an enlarged intersection view is dis-
played, pushing the MAPbutton returns to the
map screen.
Show exit information on freewaysGUID-B9EFEE0B-9D82-4FCA-8BED-AEEC5111CA62When the vehicle travels on a highway or a toll
road, the display automatically provides exit
information in the turn list.
1. Touch [Map Menu] while the current location map screen is displayed.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
2. Touch [Map View].
LNE0121X
3. Touch [Map Settings].
LNE0122X
4. Touch [Show all Freeway Exits on Route].The indicator illuminates when the item is
set.
5. Push the MAPbutton to return to the
current location map screen. Showing freeway exit information:
LNE0123X
When [Show all Freeway Exits on Route] is set
to ON and the route includes the freeway or toll
road, all exits along the route which have exit
information will be shown in the turn list. The exit
information is shown as icons.
Selecting a waypoint from the exit infor-
mation list:
When exit information is displayed on the turn
list, a waypoint to a facility located near the
freeway exit can be set as a waypoint. The
facility categories that are not shown with an
icon cannot be selected.
LNE0124X
1. Touch the exit where the exit information
icon is displayed. The category list screen is
displayed.
LNE0125X
2. Touch the landmark category. The list screenfor showing facilities located near the free-
way exit is displayed.
Navigation3-45
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-46Navigation
INFO:
The facility categories that are not shown
with an icon cannot be selected.
LNE0126X
3. Touch the preferred facility for the waypoint.
LNE0127X
4. The waypoint is set, and the route search is performed.
ªProcedures after setting routeº
(page 3-39)
ROUTE SCREENGUID-A1C01E8A-570A-408B-B0D8-CEBD91E269C3
WARNING
Always stop the vehicle in a safe
location before modifying the route
conditions. Modifying the route condi-
tions while driving may cause an acci-
dent.
During route guidance, the route conditions can
be modified and the route information can be
confirmed. Set route conditions according to
personal preference.
LNE0128X
1. Push the MENUbutton and touch [Route].
2. Touch the item you would like to set. Available settings
.
[Cancel Route]/[Resume Route]:
Cancels the current route guidance. A
canceled route can also be reactivated. If
the suggested route is canceled, [Cancel
Route] changes to [Resume Route].
ªCanceling/reactivating routeº
(page 3-47)
. [Edit/Add to Route]:
Edit or add a destination or waypoints to the
route that is already set.
ªEditing routeº (page 3-48)
. [Route Info]:
Confirm the route by the route information or
simulation. The confirmed route can also be
stored.
ªConfirming routeº (page 3-52)
. [Guidance Settings]:
Activates or deactivates route, voice gui-
dance and/or traffic announcement and
adjust the volume level of voice guidance.
ªVoice guidance settingsº (page 3-53)
. [Recalculate]:
Manually search for the route again after
changing the search condition and have the
system calculate a route.
ªRecalculating routeº (page 3-53)
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
.[Detour]:
A detour of a specified distance can be
calculated.
ªSetting detour routeº (page 3-54)
. [Traffic Detour]:
Manually search for an alternative detour
route taking the traffic information into
consideration.
ªSearching for detour route using
traffic informationº (page 3-54)
. [Route Settings]:
Changes the route calculation conditions
anywhere along the route.
ªSetting conditions for route calcula-
tionº (page 3-55)
CANCELING/REACTIVATING ROUTEGUID-F0E753E6-2BCC-422E-BB9A-092A60D0B94DA route that is already set can be canceled at
any time. If a route is deleted, the destination
and waypoints are also canceled.
It is also possible to reactivate a canceled route.
Canceling routeGUID-086F3226-CA14-42DF-993B-18135E2E63231. Push the MENUbutton and touch [Route].
LNE0129X
2. Touch [Cancel Route]. A confirmation mes-
sage is displayed.
LNE0130X
3. Touch [Yes]. The route is canceled alongwith the destination and waypoints.
Reactivating routeGUID-B506AD63-896C-4E7F-9A94-5D3E67911B7C1. Push the MENUbutton and touch [Route].
LNE0131X
2.Touch [Resume Route]. A confirmation
message is displayed.
LNE0132X
3. Touch [Yes]. The canceled route is reacti-
vated.
Navigation3-47
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-48Navigation
INFO:
If a new route is set, the canceled route cannot
be reactivated.
EDITING ROUTEGUID-0CFA5674-26DB-4DBD-94B4-07D1D137A60E
LNE0133X
1. Push the MENUbutton and touch [Route].
2. Touch [Edit/Add to Route].
3. Touch the preferred condition.
4. After finishing the setting, touch [Calculate]. The system will recalculate the routes. After
the route search is completed, the display
will automatically return to the current
location map screen.
Available settings
*1Adds a destination.ªSetting destination or waypointº
(page 3-48)
*2Current destination:
Changes or deletes the destination.
ªEditing/deleting destination or waypointº (page 3-49)
*3Condition for calculating a route to the destina-
tion:
Changes the conditions for calculating a route to
the destination.
ªChanging route calculation conditionsº
(page 3-51)
*4Adds a waypoint.ªSetting destination or waypointº
(page 3-48)
*5Current waypoint:
Changes or deletes the waypoint.
ªEditing/deleting destination or waypointº
(page 3-49)
*6Condition for calculating a route to a waypoint:
Changes the conditions for calculating a route to
a waypoint.
ªChanging route calculation conditionsº
(page 3-51)
*7[Calculate]:
Manually search for the route again after chan-
ging the search conditions and have the system
calculate a route.
ªChanging route calculation conditionsº
(page 3-51)
INFO:
Added waypoints and search conditions will not
be taken into consideration for the route
calculation until [Calculate] is touched.
Setting destination or waypointGUID-0BB2FCA4-907D-47E4-BFE0-38F304C36A5CA destination or waypoint can be added to the
route that has already been set. A total of 6
destinations or waypoints can be set.
1. Push the MENUbutton and touch [Route].
2. Touch [Edit/Add to Route].
LNE0134X
3. Touch [Add Destination] or [Add Waypoint]. If [Add Destination] is selected, the current
destination changes to a waypoint.
&RQGLWLRQ 1$0
