You can search for charging stations near the
current location, set a charging station as a
destination or waypoint, and check detailed
information about charging stations.
ªFinding charging stationº (page 3-25)
LNB0004X
When connecting to the NISSAN CARWINGS
Data Center, the system will periodically perform
an automatic update of information for charging
stations near your home. The system will also
automatically update information for charging
stations near the current vehicle location when
the Li-ion battery charge is low. You can also
manually update the charging stations around
your current vehicle location at any time.
ªUpdating charging station informationº
(page 2-7)
Energy information displayGUID-81B37644-41AB-483C-B9E7-278045443069
LNB0006X
Estimated driving range, average energy econ-
omy and instant energy economy are displayed.
ªViewing energy economy informationº
(page 2-8)
LNB0005X
Estimated driving range and energy usage of
various systems are displayed. Also, variation of
the estimated driving distances between the
climate control ON and OFF is displayed.
ªViewing energy usage informationº
(page 2-9)
Timer functionsGUID-9BEE7F55-9A24-49C3-BC86-959B8943CE3B
LND0212X
Charging of the Li-ion battery will automatically
start at a scheduled time according to the start
time, end time and day of the week set. The
timer charge function allows two different timer
settings. Each timer charge can be set to
activate on a different day of the week. If no
timer is set, the charge will start immediately
after connecting the charge connector.
ªSetting timer chargeº (page 2-10)
LNB0037X
The air conditioner starts to operate at the time
of day and day of the week specified in the
LEAF Navigation System overviewIT-3
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
IT-4LEAF Navigation System overview
settings. This pre cools or heats the passenger
compartment before starting to drive. Electric
power consumption from the Li-ion battery
resulting from heater and air conditioner opera-
tion can be reduced because the temperature in
the passenger compartment is adjusted before
starting to drive.
ªSetting Climate Ctrl. Timerº (page 2-12)
TELEMATICS SERVICEGUID-83BF17CD-9518-4EAD-A43A-430AE307EBD7This vehicle incorporates a communication
device that is called a TCU (Telematics Com-
munication Unit) . The communication connec-
tion between this unit and the NISSAN
CARWINGS Data Center allows for various
services.
NOTE:
.Establishing the CARWINGS
TMservice
is necessary before using this service.
. To check the Li-ion battery charging
status or to use the remote heater and
air conditioner using an internet en-
abled smart phone or personal compu-
ter, the following conditions must be
met:
ÐThe vehicle must be located in a
cellular phone or smart phone cov-
erage area. Ð
The internet enabled cellular phone
or smart phone must be located in a
cellular phone or smart phone cov-
erage area.
Ð The computer must be connected to
the internet.
Ð A cellular phone must be used to
communicate with the vehicle.
Ð A cellular phone capable of text
messaging must be used to receive
text message regarding vehicle
charge status.
. When the remote heater and air condi-
tioner is set, the system operates the
heater and air conditioner to adjust the
in-cabin temperature to a set tempera-
ture.
. When the charge connector is discon-
nected from the vehicle, the heater and
air conditioner operates using vehicle
Li-ion battery electric power.
. If the remote heater and air conditioner
function and Li-ion battery charging are
performed at the same time, Li-ion
battery charging will take longer than
usual due to the power used to heat or
cool the vehicle. .
Certain remote functions require a
compatible smart phone, which is not
included with vehicle.
. CARWINGS
TMinformation system fea-
tures are included through a subscrip-
tion service which requires owner
consent to activate. The subscription
must be active to use these features.
. CARWINGS
TMcommunications may be
received at a verified e-mail address or
by SMS/text messaging-enabled cellu-
lar phone.
. Standard text rates and/or data usage
may apply depending on your carrier.
Remote functionsGUID-885EE742-03E5-4B2F-A435-557125B40724
LNB0009X
When an Internet connection is available, you
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
can use a personal computer or an Internet-
enabled smart phone to check the battery status
and operate battery charging or the heater/air
conditioner remotely from another location.
Battery status check:
The status of the battery can be checked using
your personal computer or a internet enabled
smart phone even if you are not in the vehicle.
You may also choose to have SMS messages
(text messages) sent to a cellular phone.
Unplugged status, Charge status:
By registering frequently used charging stations,
notifications can be sent to your personal
computer or cellular phone email address to
inform you when the charging connector is
disconnected or charging is stopped mid-
charge at those locations.
Remote charge, Remote climate control:
Remote activation of battery charging or climate
control can be set using your personal computer
or a internet enabled smart phone.
Li-ion battery warmer status:
When ambient temperature is low, the Li-ion
battery warmer operates automatically.
Notifications will be sent to the e-mail address
you have registered on the NISSAN CARW-
INGS Data Center the following conditions inorder to remind you to connect the charging
connector.
.
Approximately 5 minutes after the Li-ion
battery warmer starts operating while the
power switch is in the OFF position and the
charging cable is not connected to the
vehicle.
. Approximately 5 minutes after the Li-ion
battery warmer stops operating due to low
remaining Li-ion battery power while the
power switch is in the OFF position and the
charging cable is not connected to the
vehicle.
NOTE:
. The remaining Li-ion battery power
lowers gradually while the Li-ion bat-
tery warmer is operating without con-
necting the charging connector.
. When the remaining Li-ion battery
power lowers, the Li-ion battery war-
mer stops operating. When this occurs,
the Li-ion battery temperature lowers
gradually, and as a result the EV
system may be disabled.Navigation Telematics (CAR-
WINGSTMservice)GUID-AE9D9BC3-84F3-41B7-9FA0-1786ADB897BB
LNB0052X
When the system connects to the NISSAN
CARWINGS Data Center, charging station
information will be automatically updated and
you can receive useful information for driving
your vehicle.
Automatic update of charging stations:
The information for the charging stations that is
recorded in the map data is automatically
updated.
All Information Feeds:
Convenient information for driving such as
weather and traffic information, ECO information
shared with the LEAF users, etc. is provided.
Favorites:
When the information of an Internet site is
selected and it is stored in the page that is
specially established in the NISSAN Owner's
LEAF Navigation System overviewIT-5
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
IT-6LEAF Navigation System overview
Portal Website, the information is converted into
an appropriate format via the NISSAN CARW-
INGS Data Center and provided for use in the
vehicle. The content of the information is
automatically read out. For the registration
method of information data, visit the NISSAN
Owner's Portal Website.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
1 Getting Started
Control buttons and functions...
................................................ 1-2
Control panel ...
........................................................................\
1-2
Steering wheel switches ...
.................................................... 1-4
USB connector and Auxiliary input jack ...
........................ 1-4
Start-up screen ...
........................................................................\
.. 1-5
Functions disabled while driving ...
............................................ 1-6
Basic operation ...
........................................................................\
.. 1-7
Selecting item ...
....................................................................... 1-7
Adjusting volume and others ...
............................................ 1-7
Scrolling message or list ...
................................................... 1-7
How to input letters and numbers ...
.................................. 1-7
Viewing display screens ...
........................................................... 1-9
Map screen ...
........................................................................\
.... 1-9
Zero Emission menu screen ...
............................................. 1-9 Menu screen
...
....................................................................... 1-9
Status screen ...
................................................................... 1-10
FM´AM radio screen ...
....................................................... 1-10
SiriusXM Satellite Radio screen ...
................................. 1-10
CD´AUX screen ...
............................................................... 1-10
Items to be set initially ...
.......................................................... 1-11
Subscription to CARWINGS
TMservice ...
.................... 1-11
Inputting user ID and password ...
................................. 1-11
Storing home location ...
................................................... 1-12
Connecting cellular phone ...
........................................... 1-13
Display adjustment ...
......................................................... 1-14
Volume settings ...
............................................................... 1-16
Clock settings ...
.................................................................. 1-16
Language and unit settings ...
.......................................... 1-17
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
1-2Getting Started
GUID-A9E6F207-4B16-4522-84EB-16B8F6F3D435
LNC0185X

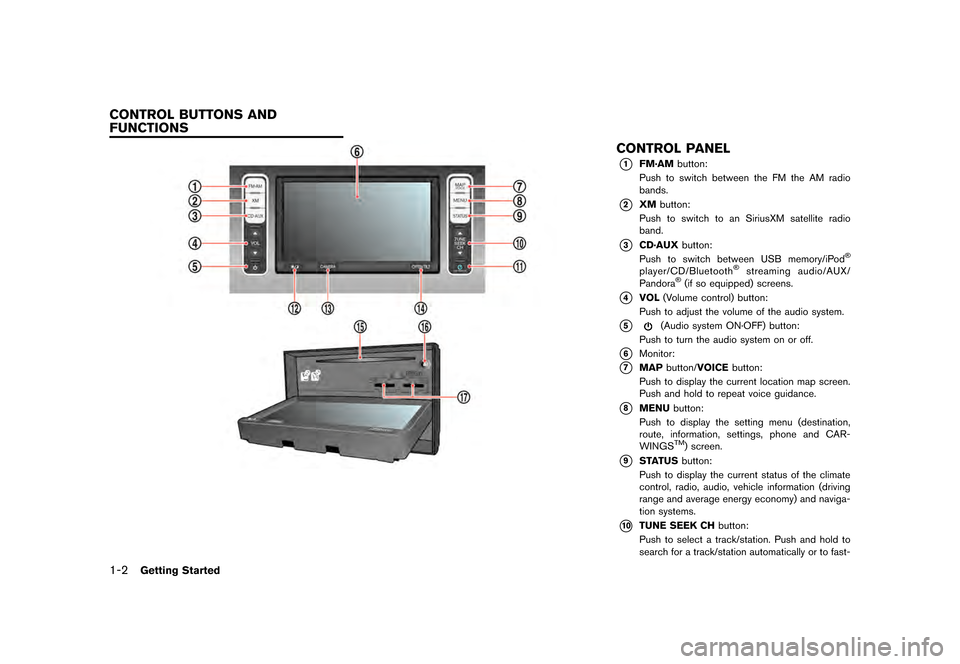

CONTROL PANELGUID-F61A5004-3170-4638-BADF-9BE57D108E56*1FM´AMbutton:
Push to switch between the FM the AM radio
bands.
*2XM button:
Push to switch to an SiriusXM satellite radio
band.
*3CD´AUX button:
Push to switch between USB memory/iPod


> (GLW    0RGHO 1DYL(9 @
forward/rewind when listening to music.
*11(Zero Emission menu) button:
Push to display the menu screen where several
useful functions for electric vehicle driving are
available.
*12(Day/Night) button:
Push to switch between the day screen (bright)
and the night screen (dark) . Push and hold to turn
off the display. Push again to turn on the display.
*13CAMERA button (if so equipped):
Push to switch to the Around View Monitor
screen.
ª9. Monitor systemº
*14OPEN/TILT button:
Push to open the monitor to access the CD slot
and the SD card slot. Push and hold to adjust the
monitor angle.
*15CD slot
*16(CD eject) button:
Push to eject a CD.
*17SD card slot:
Remove the cover to access the SD card slot.
Insert an SD card. Push the inserted SD card in
and release it to eject the SD card from the slot.
An SD card containing map data is provided with
the vehicle and is inserted in the right hand slot of
the system. To transfer the data, insert an SD
card in the left side slot.
ªTransferring information to/from address
bookº (page 3-70)
NOTE:
Do not remove the SD card containing map
data that is inserted in the right-hand slot.
When this SD card containing map data is
removed the navigation system will not
operate. If the SD card containing map
data is accidentally removed, after rein-
serting the SD card containing map data
into the right-hand slot, place the power
switch in the OFF position and then place
back in the ON position again.
INFO:
. Never remove the SD card while the monitor
is opening or closing or the angle of the
monitor is being adjusted. Doing so may
damage or deform the SD card.
. Never insert foreign objects such as coins
into the SD card slot. Doing so may result in
a malfunction of the device.
. Be careful not to drop the cover for the SD
card slot into the gap of the monitor. Doing
so may result in a malfunction of the device.
. Do not apply overload to the SD card when
inserting it to the slot. Doing so may result in
a malfunction of the device. .
The SD card may be hot when it is removed
from the device. This does not indicate a
malfunction.
Opening/Closing monitorGUID-5EA31989-EF80-4583-A6DD-2A7730FC07B1
LNC0002X
Open the monitor to insert/eject a CD or an SD
card.
CAUTION
.Be careful not to pinch your hand or
fingers while the monitor is moving
to its open or closed position. This
may cause injury to your hand or
fingers.
. Do not force the monitor to open or
close. Doing so may damage the
monitor.
Getting Started1-3
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

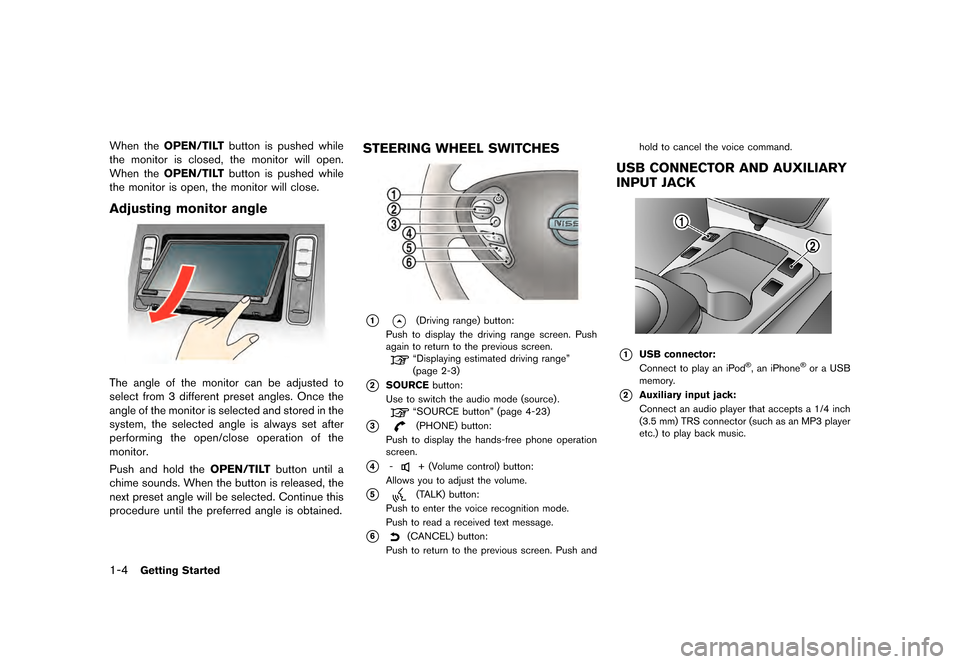

1-4Getting Started
When theOPEN/TILT button is pushed while
the monitor is closed, the monitor will open.
When the OPEN/TILT button is pushed while
the monitor is open, the monitor will close.
Adjusting monitor angleGUID-70250B88-1870-4B52-8413-DA98961B27D8
LNC0003X
The angle of the monitor can be adjusted to
select from 3 different preset angles. Once the
angle of the monitor is selected and stored in the
system, the selected angle is always set after
performing the open/close operation of the
monitor.
Push and hold the OPEN/TILTbutton until a
chime sounds. When the button is released, the
next preset angle will be selected. Continue this
procedure until the preferred angle is obtained.
STEERING WHEEL SWITCHESGUID-1B7CD1C1-5D48-4964-8816-2649513B59D0
LNC0004X
*1(Driving range) button:
Push to display the driving range screen. Push
again to return to the previous screen.
ªDisplaying estimated driving rangeº
(page 2-3)
*2SOURCE button:
Use to switch the audio mode (source) .
ªSOURCE buttonº (page 4-23)
*3(PHONE) button:
Push to display the hands-free phone operation
screen.
*4-+ (Volume control) button:
Allows you to adjust the volume.
*5(TALK) button:
Push to enter the voice recognition mode.
Push to read a received text message.
*6(CANCEL) button:
Push to return to the previous screen. Push and hold to cancel the voice command.
USB CONNECTOR AND AUXILIARY
INPUT JACK
GUID-E9AC7D61-BCC2-48F6-87C6-43CA8EAE0D5D
LNC0005X
*1USB connector:
Connect to play an iPod
