2015 NISSAN LEAF Navigation Manual


> (GLW    0RGHO 1DYL(9 @
Storing stations/channelsGUID-E7F91FC1-C573-4847-8D40-29FB8FEED54B12 stations/channels can be set for the FM band
(6 each for FM1 and FM2) , 18 for SiriusXM
Satellite Radio (6 each for XM1, XM2 and XM3)
and 6 stations can be set for the AM band.
1. Choose the radio band pushing theFM´AM
button or XMbutton.
2. Tune to the preferred station/channel push- ing the TUNE SEEK CH button.
3. Touch and hold one of the preset lists to register the chosen broadcasting station or
channel.
COMPACT DISC (CD) PLAYER OP-
ERATION
GUID-A28D720F-2D75-4FE8-83A3-198D5B21527C
LNF0005X
Playing CDGUID-E9F7A408-A3A7-4940-9CF2-ACB80C4DF3881. Push the power switch to the ACC or ONposition.
2. Push the OPEN/TILTbutton to open the
monitor.
3. Insert a Compact Disc (CD) into the slot with the label side facing up. The CD will be
guided automatically into the slot and start
playing.
After loading a CD, the number of tracks on
the CD and the play time will appear on the
display.
If the radio is already operating, it will
automatically turn off and the CD will play.
If the system has been turned off while a CD
was playing, pushing the
button will
start the CD.
Do not use 3.1 in (8 cm) discs.
LNF0006X
Ejecting CD:
1. Push the OPEN/TILTbutton to open the
monitor.
2. When the
button is pushed with a CD
loaded, the CD will be ejected.
When this button is pushed while a CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect it.
Also, the monitor will be closed automati-
cally.
Audio system4-13
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

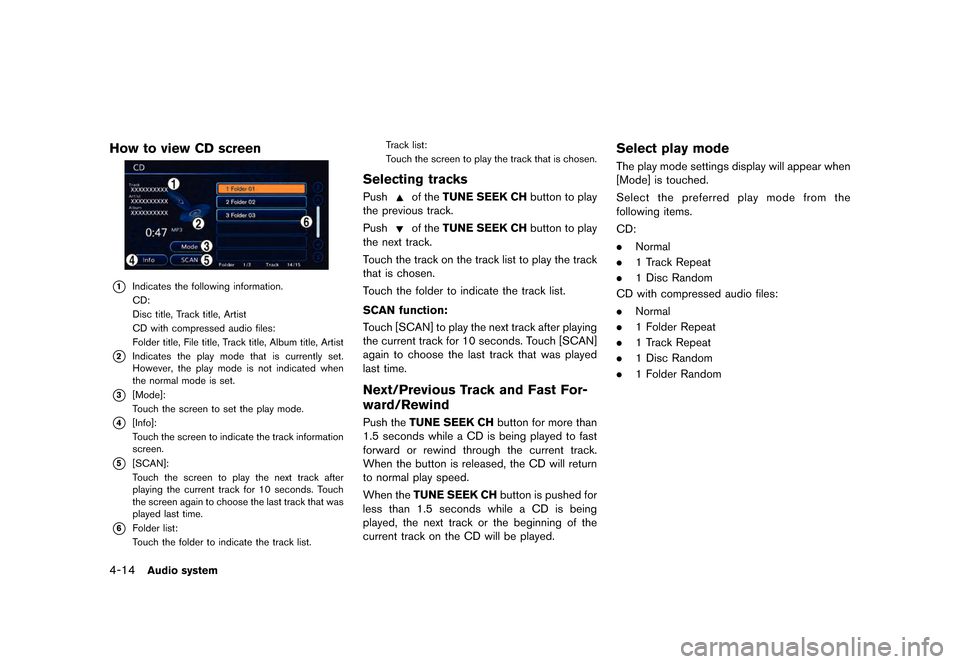

4-14Audio system
How to view CD screenGUID-E902B692-E481-4875-91FE-430C4B4967C6
LNF0007X
*1Indicates the following information.
CD:
Disc title, Track title, Artist
CD with compressed audio files:
Folder title, File title, Track title, Album title, Artist
*2Indicates the play mode that is currently set.
However, the play mode is not indicated when
the normal mode is set.
*3[Mode]:
Touch the screen to set the play mode.
*4[Info]:
Touch the screen to indicate the track information
screen.
*5[SCAN]:
Touch the screen to play the next track after
playing the current track for 10 seconds. Touch
the screen again to choose the last track that was
played last time.
*6Folder list:
Touch the folder to indicate the track list.Track list:
Touch the screen to play the track that is chosen.
Selecting tracksGUID-AC124133-2B61-4ACC-809C-1D2E1DA399C3Pushof the
TUNE SEEK CH button to play
the previous track.
Push
of the TUNE SEEK CH button to play
the next track.
Touch the track on the track list to play the track
that is chosen.
Touch the folder to indicate the track list.
SCAN function:
Touch [SCAN] to play the next track after playing
the current track for 10 seconds. Touch [SCAN]
again to choose the last track that was played
last time.
Next/Previous Track and Fast For-
ward/Rewind
GUID-D99019FC-CB68-4A13-AD47-6FAE9BF26A75Push the TUNE SEEK CH button for more than
1.5 seconds while a CD is being played to fast
forward or rewind through the current track.
When the button is released, the CD will return
to normal play speed.
When the TUNE SEEK CH button is pushed for
less than 1.5 seconds while a CD is being
played, the next track or the beginning of the
current track on the CD will be played.
Select play modeGUID-462595EE-9EEB-47F0-9730-2DF0DCAC98A5The play mode settings display will appear when
[Mode] is touched.
Select the preferred play mode from the
following items.
CD:
. Normal
. 1 Track Repeat
. 1 Disc Random
CD with compressed audio files:
. Normal
. 1 Folder Repeat
. 1 Track Repeat
. 1 Disc Random
. 1 Folder Random
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
iPod


> (GLW    0RGHO 1DYL(9 @

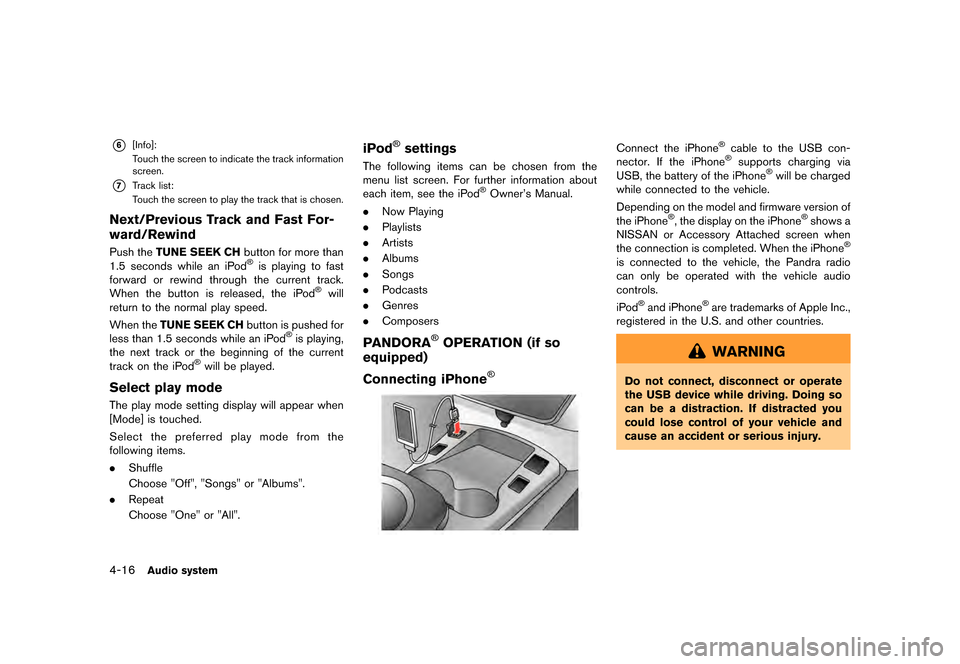

4-16Audio system
*6[Info]:
Touch the screen to indicate the track information
screen.
*7Track list:
Touch the screen to play the track that is chosen.
Next/Previous Track and Fast For-
ward/Rewind
GUID-AB2678DB-05B1-49B4-8510-57E99A714391Push theTUNE SEEK CH button for more than
1.5 seconds while an iPod


> (GLW    0RGHO 1DYL(9 @

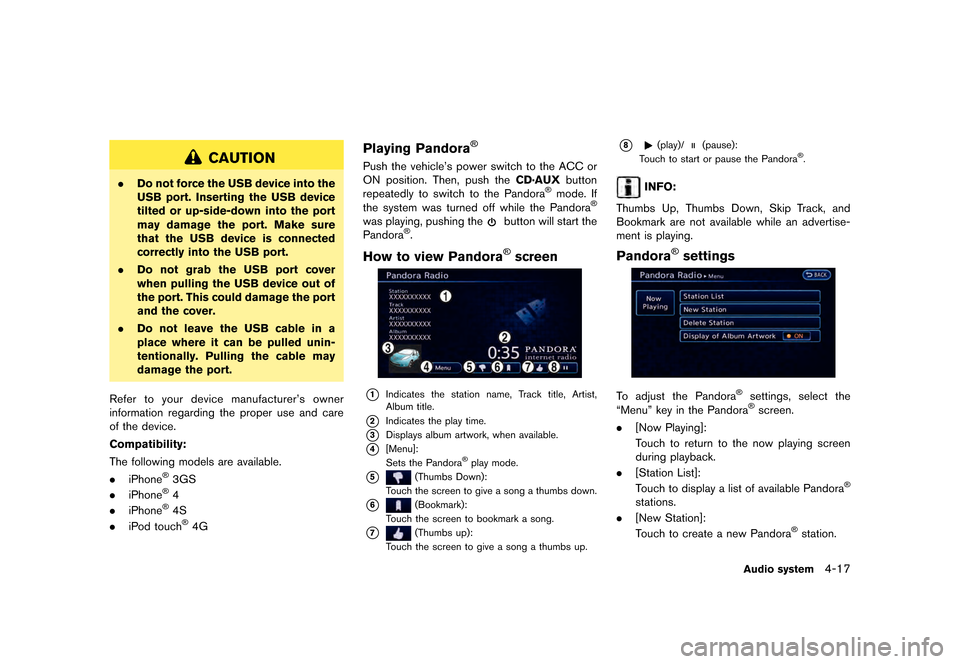

CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover
when pulling the USB device out of
the port. This could damage the port
and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
Compatibility:
The following models are available.
. iPhone


> (GLW    0RGHO 1DYL(9 @

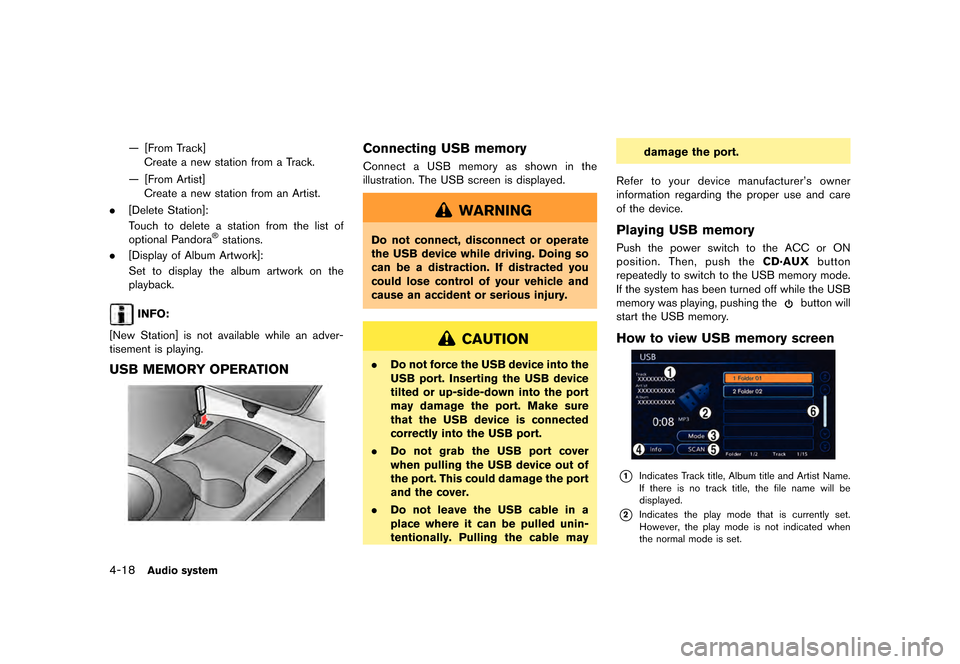

4-18Audio system
Ð [From Track]Create a new station from a Track.
Ð [From Artist] Create a new station from an Artist.
. [Delete Station]:
Touch to delete a station from the list of
optional Pandora


> (GLW    0RGHO 1DYL(9 @
*3[Mode]:
The play mode setting display will appear when
[Mode] is touched.
*4[Info]:
Touch the screen to indicate the track information
screen.
*5[SCAN]:
Touch to play the next track after playing the
current track for 10 seconds. Touch again to
choose the last track that was played last time.
*6Folder list:
Touch the folder to indicate the track list.
Track list:
Touch the screen to play the track that is chosen.
Selecting tracksGUID-862588E4-8C79-4035-A221-A6B5BA877E9EPushof theTUNE SEEK CH button to play
the previous track.
Push
of the TUNE SEEK CH button to play
the next track.
Touch the track on the track list to play the track
that is chosen.
Touch the folder to indicate the track list.
SCAN function:
Touch [SCAN] to play the next track after playing
the current track for 10 seconds. Touch [SCAN]
again to choose the last track that was played
last time.
Next/Previous File and Fast For-
ward/Rewind
GUID-E977EB45-7BEA-4101-8271-D7B673F98EE9Push the TUNE SEEK CH button for more than
1.5 seconds while a USB memory is being
played to fast forward or rewind though the
current track.
When the TUNE SEEK CH button is released,
the USB memory will return to normal play
speed.
When the TUNE SEEK CH button is pushed for
less than 1.5 seconds while a USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
Select play modeGUID-E3DB5454-DBEE-420A-A679-EDA24F02FD8FThe play mode setting display will appear when
[Mode] is selected.
Select the preferred play mode from the
following items.
. Normal
. 1 Folder Repeat
. 1 Track Repeat
. All Random
. 1 Folder Random
BLUETOOTH


> (GLW    0RGHO 1DYL(9 @
4-20Audio system
Regulatory informationGUID-8A5804E2-2DFA-4F0E-BDCA-F37F6A4AFE93
FCC Regulatory information:
.CAUTION: To maintain compliance with
FCC's RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
. Operation is subject to the following two
conditions:
Ð This device may not cause interference
and
Ð This device must accept any interfer- ence, including interference that may
cause undesired operation of the device
IC Regulatory information:
. Operation is subject to the following two
conditions:
Ð This device may not cause interference,
and
Ð This device must accept any interfer- ence, including interference that may
cause undesired operation of the device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth
