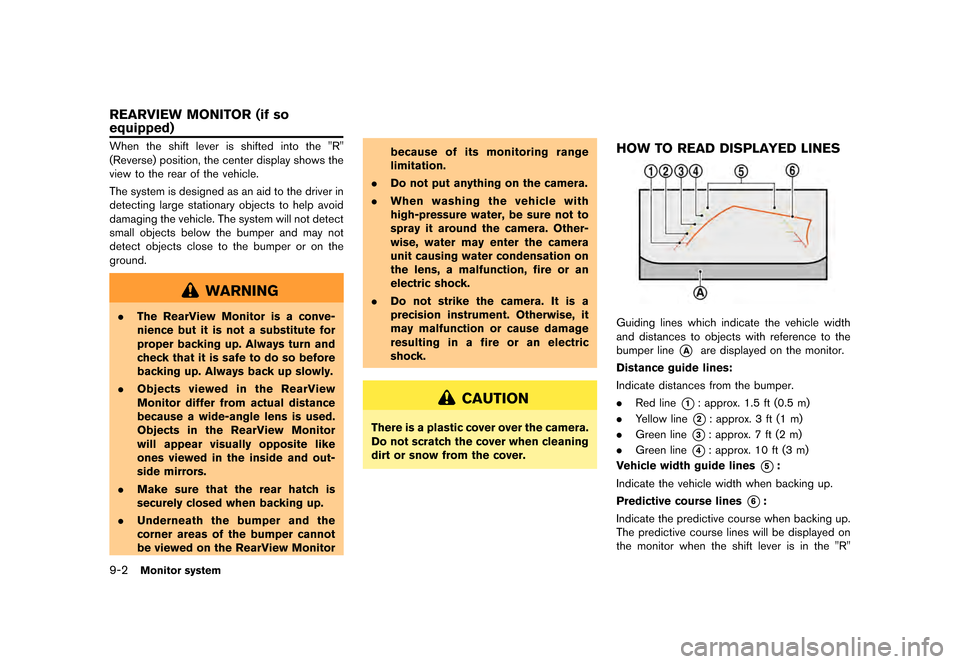

9-2Monitor system
GUID-9889CA9D-8797-4DA7-B771-207B147B4B33When the shift lever is shifted into the "R"
(Reverse) position, the center display shows the
view to the rear of the vehicle.
The system is designed as an aid to the driver in
detecting large stationary objects to help avoid
damaging the vehicle. The system will not detect
small objects below the bumper and may not
detect objects close to the bumper or on the
ground.
WARNING
.The RearView Monitor is a conve-
nience but it is not a substitute for
proper backing up. Always turn and
check that it is safe to do so before
backing up. Always back up slowly.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
Objects in the RearView Monitor
will appear visually opposite like
ones viewed in the inside and out-
side mirrors.
. Make sure that the rear hatch is
securely closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor because of its monitoring range
limitation.
. Do not put anything on the camera.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
CAUTION
There is a plastic cover over the camera.
Do not scratch the cover when cleaning
dirt or snow from the cover.
HOW TO READ DISPLAYED LINESGUID-4043E995-FDA2-4EC7-95A4-83851EC424E2
LNL0001X
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Predictive course lines
*6:
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the shift lever is in the "R"
REARVIEW MONITOR (if so
equipped)
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

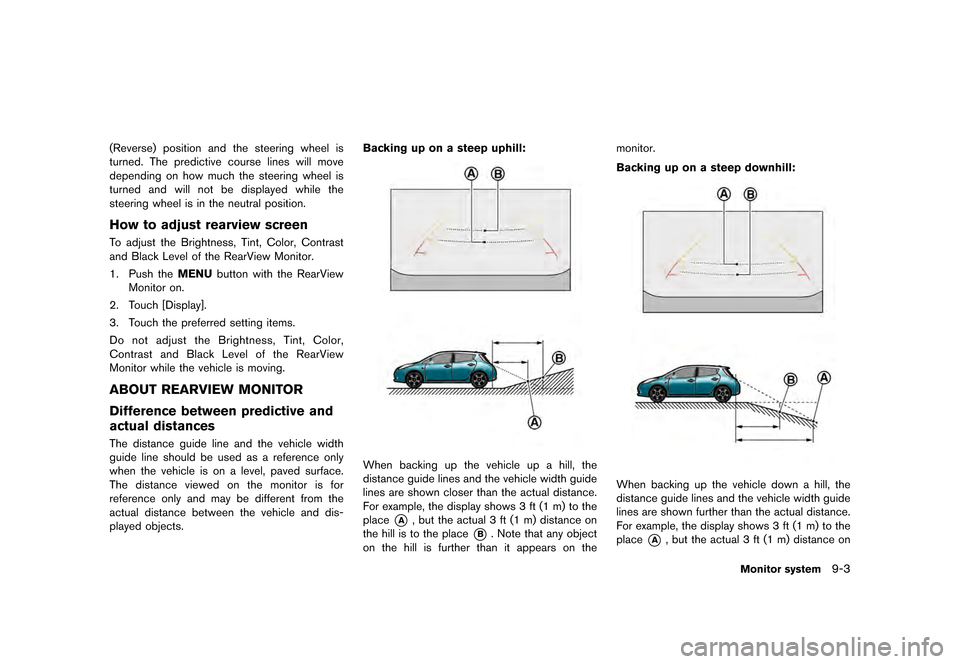

(Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
How to adjust rearview screenGUID-75E9A75A-D094-4D28-A1C5-CED9B4070873To adjust the Brightness, Tint, Color, Contrast
and Black Level of the RearView Monitor.
1. Push theMENUbutton with the RearView
Monitor on.
2. Touch [Display].
3. Touch the preferred setting items.
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the RearView
Monitor while the vehicle is moving.
ABOUT REARVIEW MONITORGUID-F1A5FC86-7306-42C4-BAAE-6C20770A0FCA
Difference between predictive and
actual distances
GUID-0B788328-52CC-4C74-8090-06C1E7654880The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface.
The distance viewed on the monitor is for
reference only and may be different from the
actual distance between the vehicle and dis-
played objects. Backing up on a steep uphill:LNL0002X
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is to the place
*B. Note that any object
on the hill is further than it appears on the monitor.
Backing up on a steep downhill:
LNL0003X
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
Monitor system9-3
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
Ð Drive the vehicle on a straightroad for more than 5 minutes.
. When the steering wheel is turned
with the power switch in the ACC
position, the predictive course lines
may be displayed incorrectly.
. The distance guide line and the
vehicle width guide line should be
used as a reference only when the
vehicle is on a level paved surface.
The distance viewed on the monitor
is for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. When backing up the vehicle up a
hill, objects viewed in the monitor
are further than they appear. When
backing up the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. Use the
inside mirror or glance over your
shoulder to properly judge dis-
tances to other objects. The vehicle width and predictive course
lines are wider than the actual width and
course.

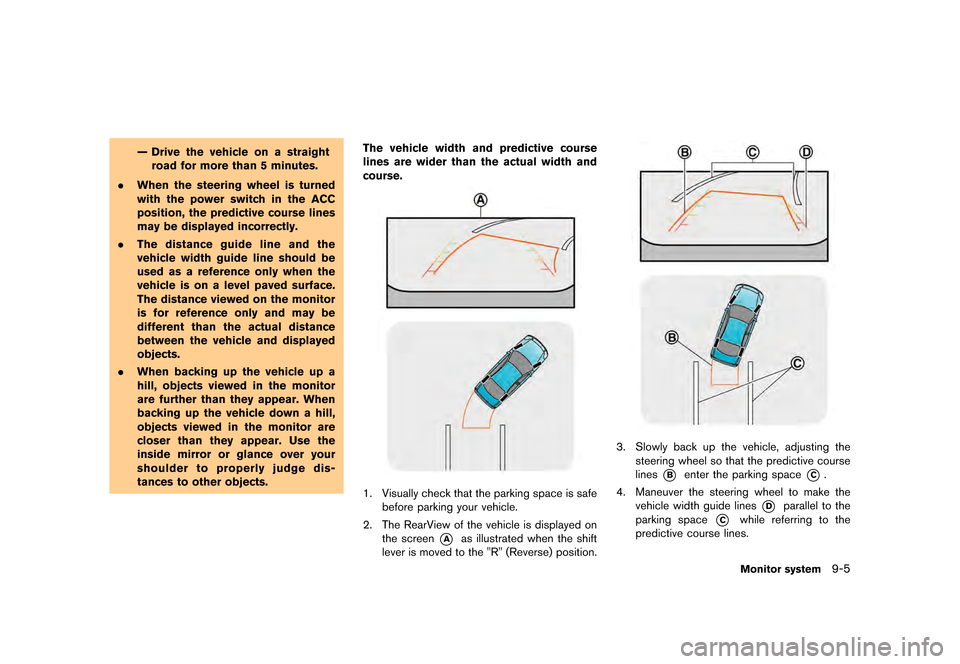

LNL0006X
1. Visually check that the parking space is safe
before parking your vehicle.
2. The RearView of the vehicle is displayed on the screen
*Aas illustrated when the shift
lever is moved to the "R" (Reverse) position.
LNL0007X
3. Slowly back up the vehicle, adjusting the steering wheel so that the predictive course
lines
*Benter the parking space*C.
4. Maneuver the steering wheel to make the vehicle width guide lines
*Dparallel to the
parking space
*Cwhile referring to the
predictive course lines.
Monitor system9-5
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
9-8Monitor system

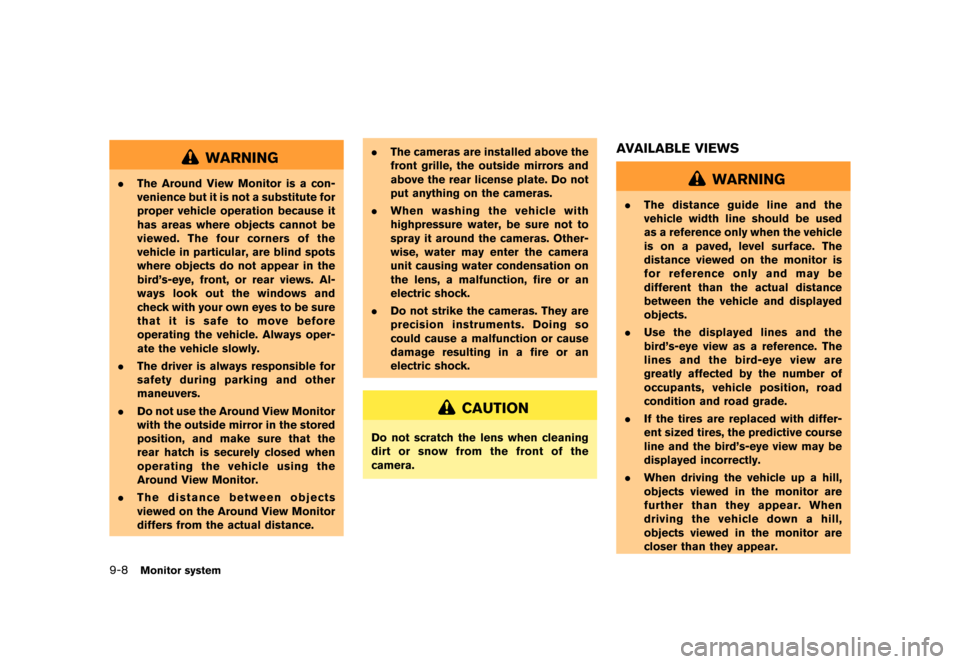

WARNING
.The Around View Monitor is a con-
venience but it is not a substitute for
proper vehicle operation because it
has areas where objects cannot be
viewed. The four corners of the
vehicle in particular, are blind spots
where objects do not appear in the
bird's-eye, front, or rear views. Al-
ways look out the windows and
check with your own eyes to be sure
that it is safe to move before
operating the vehicle. Always oper-
ate the vehicle slowly.
. The driver is always responsible for
safety during parking and other
maneuvers.
. Do not use the Around View Monitor
with the outside mirror in the stored
position, and make sure that the
rear hatch is securely closed when
operating the vehicle using the
Around View Monitor.
. The distance between objects
viewed on the Around View Monitor
differs from the actual distance. .
The cameras are installed above the
front grille, the outside mirrors and
above the rear license plate. Do not
put anything on the cameras.
. When washing the vehicle with
highpressure water, be sure not to
spray it around the cameras. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the cameras. They are
precision instruments. Doing so
could cause a malfunction or cause
damage resulting in a fire or an
electric shock.
CAUTION
Do not scratch the lens when cleaning
dirt or snow from the front of the
camera.
AVAILABLE VIEWSGUID-C662ED35-9F3E-42A6-95BC-2D54B0AF9B98
WARNING
.The distance guide line and the
vehicle width line should be used
as a reference only when the vehicle
is on a paved, level surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. Use the displayed lines and the
bird's-eye view as a reference. The
lines and the bird-eye view are
greatly affected by the number of
occupants, vehicle position, road
condition and road grade.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line and the bird's-eye view may be
displayed incorrectly.
. When driving the vehicle up a hill,
objects viewed in the monitor are
further than they appear. When
driving the vehicle down a hill,
objects viewed in the monitor are
closer than they appear.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
.Use the mirrors or actually look to
properly judge distances to other
objects.
The vehicle width and predictive course lines are
wider than the actual width and course.

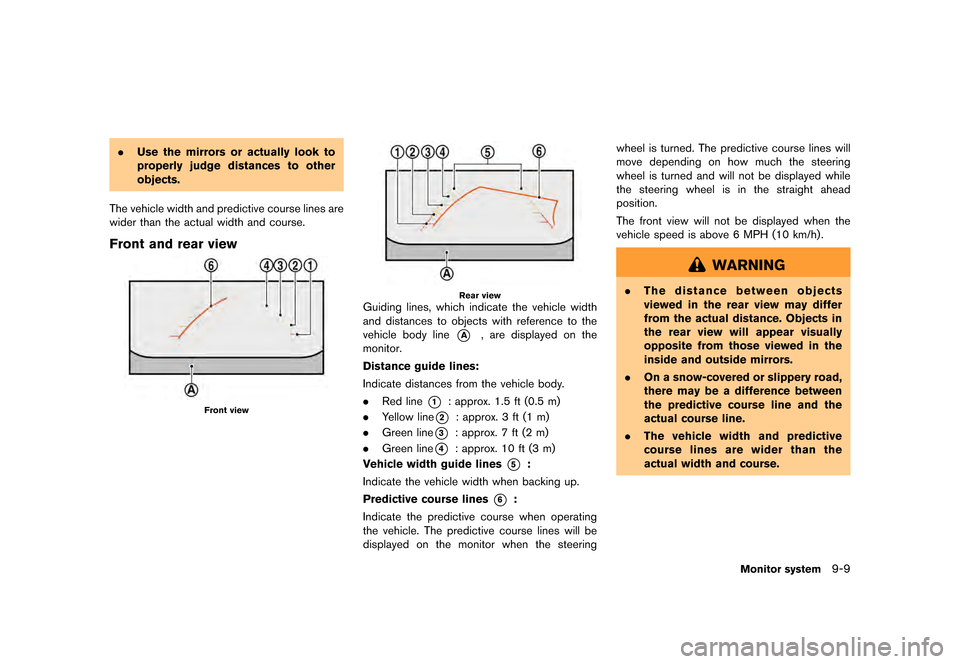

Front and rear viewGUID-CB5D3ED8-055A-4717-AEB8-2D30BC53DA9B
LNL0038X
Front view
LNL0001X
Rear viewGuiding lines, which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
*A, are displayed on the
monitor.
Distance guide lines:
Indicate distances from the vehicle body.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Predictive course lines
*6:
Indicate the predictive course when operating
the vehicle. The predictive course lines will be
displayed on the monitor when the steering wheel is turned. The predictive course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the straight ahead
position.
The front view will not be displayed when the
vehicle speed is above 6 MPH (10 km/h) .
WARNING
.
The distance between objects
viewed in the rear view may differ
from the actual distance. Objects in
the rear view will appear visually
opposite from those viewed in the
inside and outside mirrors.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. The vehicle width and predictive
course lines are wider than the
actual width and course.
Monitor system9-9
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
9-10Monitor system
NOTE:
When the monitor displays the front view
and the steering wheel turns about 90
degrees or less from the neutral position,
both the right and left predictive course
lines
*6are displayed. When the steering
wheel turns about 90 degrees or more, a
predictive course line is displayed only on
the opposite side of the turn.

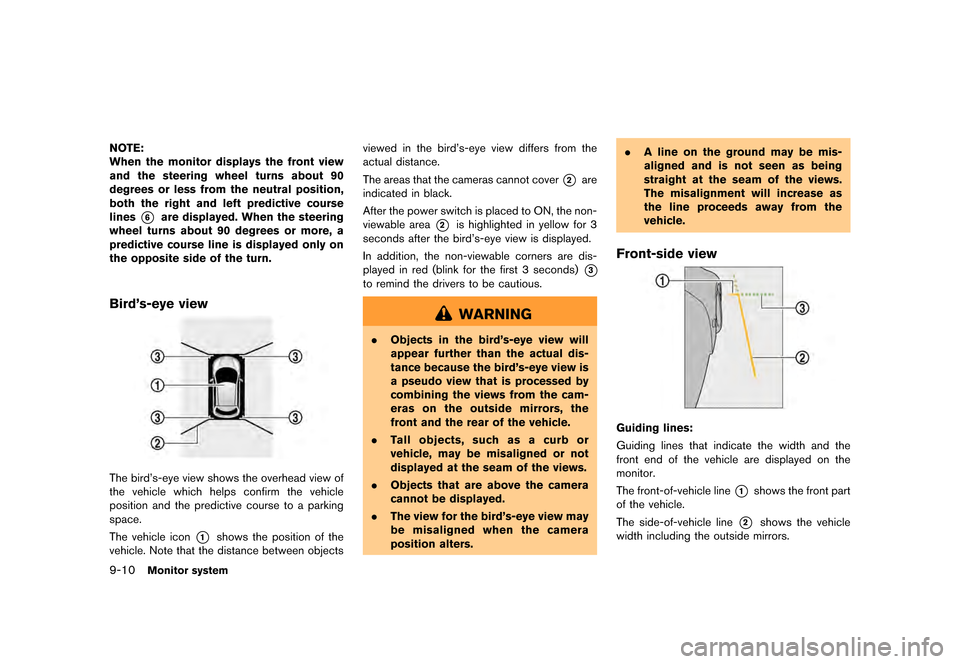

Bird's-eye viewGUID-832E41F8-D30E-4A0F-954B-E35B381377F3
LNL0039X
The bird's-eye view shows the overhead view of
the vehicle which helps confirm the vehicle
position and the predictive course to a parking
space.
The vehicle icon
*1shows the position of the
vehicle. Note that the distance between objects viewed in the bird's-eye view differs from the
actual distance.
The areas that the cameras cannot cover
*2are
indicated in black.
After the power switch is placed to ON, the non-
viewable area
*2is highlighted in yellow for 3
seconds after the bird's-eye view is displayed.
In addition, the non-viewable corners are dis-
played in red (blink for the first 3 seconds)
*3
to remind the drivers to be cautious.
WARNING
. Objects in the bird's-eye view will
appear further than the actual dis-
tance because the bird's-eye view is
a pseudo view that is processed by
combining the views from the cam-
eras on the outside mirrors, the
front and the rear of the vehicle.
. Tall objects, such as a curb or
vehicle, may be misaligned or not
displayed at the seam of the views.
. Objects that are above the camera
cannot be displayed.
. The view for the bird's-eye view may
be misaligned when the camera
position alters. .
A line on the ground may be mis-
aligned and is not seen as being
straight at the seam of the views.
The misalignment will increase as
the line proceeds away from the
vehicle.
Front-side viewGUID-95358EE8-3115-4612-B0C7-BF3EBF8310A6
LNL0040X
Guiding lines:
Guiding lines that indicate the width and the
front end of the vehicle are displayed on the
monitor.
The front-of-vehicle line
*1shows the front part
of the vehicle.
The side-of-vehicle line
*2shows the vehicle
width including the outside mirrors.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

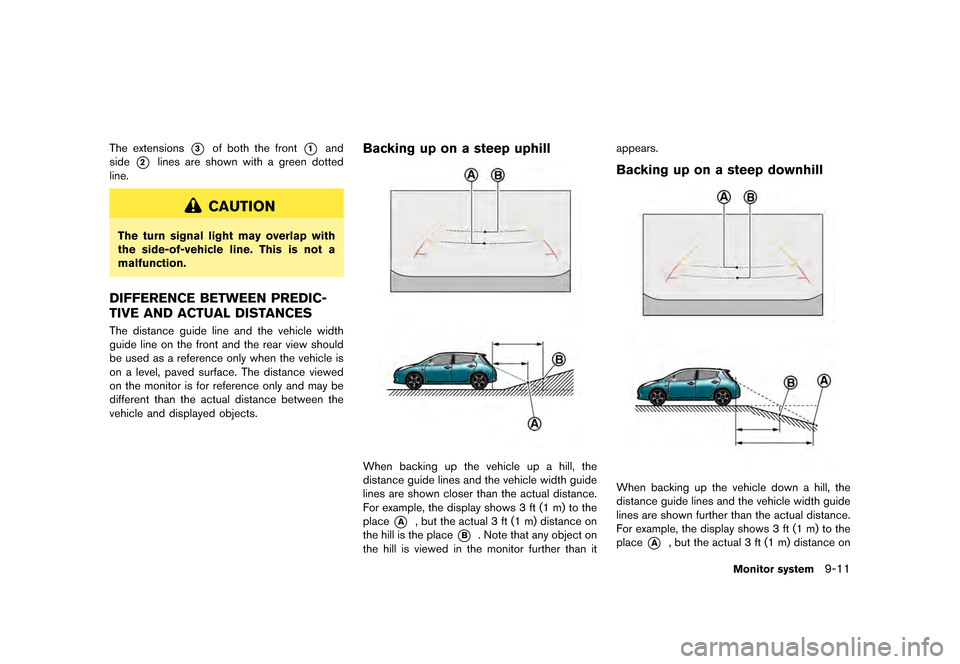

The extensions*3of both the front*1and
side
*2lines are shown with a green dotted
line.
CAUTION
The turn signal light may overlap with
the side-of-vehicle line. This is not a
malfunction.
DIFFERENCE BETWEEN PREDIC-
TIVE AND ACTUAL DISTANCES
GUID-C3885770-F5BE-4A36-ABB8-3B99DBEE9F77The distance guide line and the vehicle width
guide line on the front and the rear view should
be used as a reference only when the vehicle is
on a level, paved surface. The distance viewed
on the monitor is for reference only and may be
different than the actual distance between the
vehicle and displayed objects.
Backing up on a steep uphillGUID-50B7C10E-365B-4D94-B633-E57787B7E571
LNL0002X
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
the hill is viewed in the monitor further than it appears.
Backing up on a steep downhillGUID-AFD641F0-86C2-48D2-A49C-AA5FCF5C6D2D
LNL0003X
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
Monitor system9-11
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

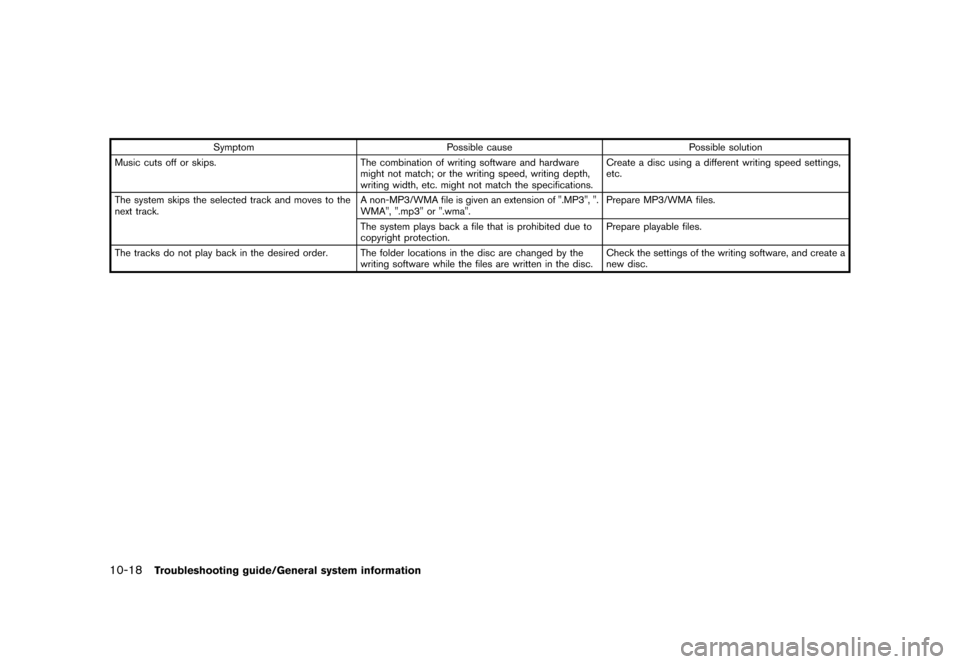

10-18Troubleshooting guide/General system information
SymptomPossible cause Possible solution
Music cuts off or skips. The combination of writing software and hardware
might not match; or the writing speed, writing depth,
writing width, etc. might not match the specifications.Create a disc using a different writing speed settings,
etc.
The system skips the selected track and moves to the
next track. A non-MP3/WMA file is given an extension of ".MP3", ".
WMA", ".mp3" or ".wma".Prepare MP3/WMA files.
The system plays back a file that is prohibited due to
copyright protection. Prepare playable files.
The tracks do not play back in the desired order. The folder locations in the disc are changed by the writing software while the files are written in the disc.Check the settings of the writing software, and create a
new disc.
&RQGLWLRQ 1$0
