2015 NISSAN LEAF Navigation Manual


> (GLW    0RGHO 1DYL(9 @

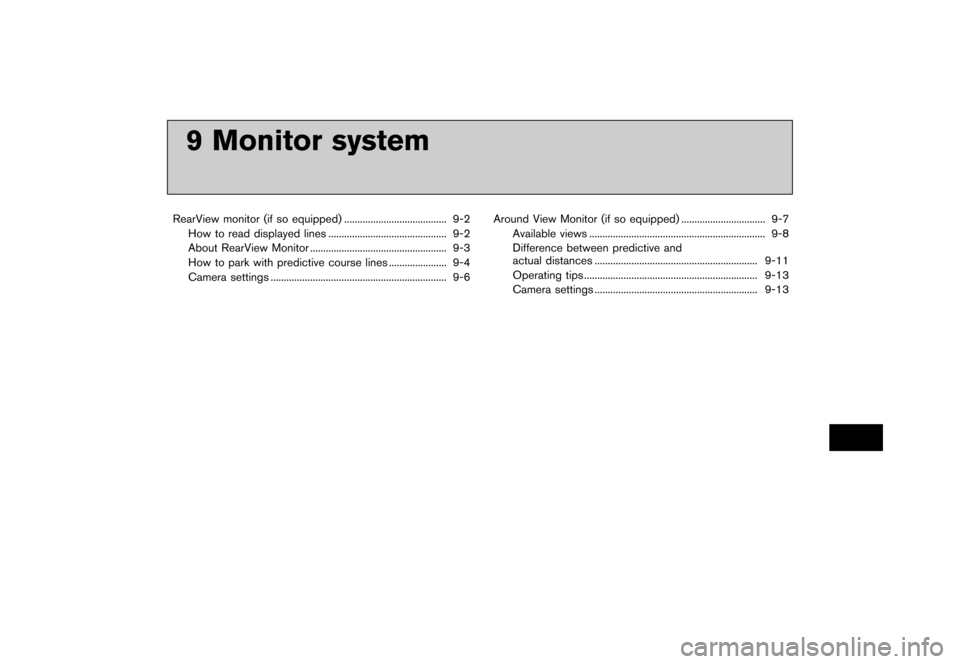

9 Monitor system
RearView monitor (if so equipped)...
....................................... 9-2
How to read displayed lines ...
............................................. 9-2
About RearView Monitor ...
.................................................... 9-3
How to park with predictive course lines ...
...................... 9-4
Camera settings ...
................................................................... 9-6 Around View Monitor (if so equipped)
...
................................ 9-7
Available views ...
................................................................... 9-8
Difference between predictive and
actual distances ...
.............................................................. 9-11
Operating tips ...
.................................................................. 9-13
Camera settings ...
.............................................................. 9-13
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
9-2Monitor system
GUID-9889CA9D-8797-4DA7-B771-207B147B4B33When the shift lever is shifted into the "R"
(Reverse) position, the center display shows the
view to the rear of the vehicle.
The system is designed as an aid to the driver in
detecting large stationary objects to help avoid
damaging the vehicle. The system will not detect
small objects below the bumper and may not
detect objects close to the bumper or on the
ground.
WARNING
.The RearView Monitor is a conve-
nience but it is not a substitute for
proper backing up. Always turn and
check that it is safe to do so before
backing up. Always back up slowly.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
Objects in the RearView Monitor
will appear visually opposite like
ones viewed in the inside and out-
side mirrors.
. Make sure that the rear hatch is
securely closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor because of its monitoring range
limitation.
. Do not put anything on the camera.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
CAUTION
There is a plastic cover over the camera.
Do not scratch the cover when cleaning
dirt or snow from the cover.
HOW TO READ DISPLAYED LINESGUID-4043E995-FDA2-4EC7-95A4-83851EC424E2
LNL0001X
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Predictive course lines
*6:
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the shift lever is in the "R"
REARVIEW MONITOR (if so
equipped)
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
(Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
How to adjust rearview screenGUID-75E9A75A-D094-4D28-A1C5-CED9B4070873To adjust the Brightness, Tint, Color, Contrast
and Black Level of the RearView Monitor.
1. Push theMENUbutton with the RearView
Monitor on.
2. Touch [Display].
3. Touch the preferred setting items.
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the RearView
Monitor while the vehicle is moving.
ABOUT REARVIEW MONITORGUID-F1A5FC86-7306-42C4-BAAE-6C20770A0FCA
Difference between predictive and
actual distances
GUID-0B788328-52CC-4C74-8090-06C1E7654880The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface.
The distance viewed on the monitor is for
reference only and may be different from the
actual distance between the vehicle and dis-
played objects. Backing up on a steep uphill:LNL0002X
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is to the place
*B. Note that any object
on the hill is further than it appears on the monitor.
Backing up on a steep downhill:
LNL0003X
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
Monitor system9-3
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
9-4Monitor system

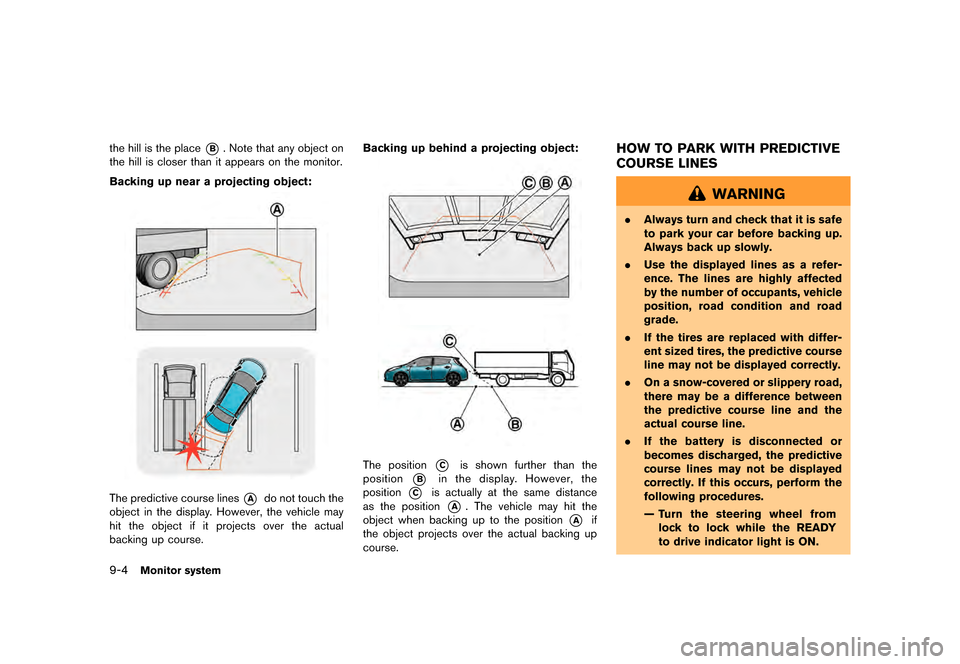

the hill is the place*B. Note that any object on
the hill is closer than it appears on the monitor.
Backing up near a projecting object:
LNL0004X
The predictive course lines*Ado not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course. Backing up behind a projecting object:
LNL0005X
The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual backing up
course.
HOW TO PARK WITH PREDICTIVE
COURSE LINES
GUID-98CEE8C3-518C-4157-97AF-634616A645F5
WARNING
. Always turn and check that it is safe
to park your car before backing up.
Always back up slowly.
. Use the displayed lines as a refer-
ence. The lines are highly affected
by the number of occupants, vehicle
position, road condition and road
grade.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line may not be displayed correctly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. If the battery is disconnected or
becomes discharged, the predictive
course lines may not be displayed
correctly. If this occurs, perform the
following procedures.
Ð Turn the steering wheel from
lock to lock while the READY
to drive indicator light is ON.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
Ð Drive the vehicle on a straightroad for more than 5 minutes.
. When the steering wheel is turned
with the power switch in the ACC
position, the predictive course lines
may be displayed incorrectly.
. The distance guide line and the
vehicle width guide line should be
used as a reference only when the
vehicle is on a level paved surface.
The distance viewed on the monitor
is for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. When backing up the vehicle up a
hill, objects viewed in the monitor
are further than they appear. When
backing up the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. Use the
inside mirror or glance over your
shoulder to properly judge dis-
tances to other objects. The vehicle width and predictive course
lines are wider than the actual width and
course.
LNL0006X
1. Visually check that the parking space is safe
before parking your vehicle.
2. The RearView of the vehicle is displayed on the screen
*Aas illustrated when the shift
lever is moved to the "R" (Reverse) position.
LNL0007X
3. Slowly back up the vehicle, adjusting the steering wheel so that the predictive course
lines
*Benter the parking space*C.
4. Maneuver the steering wheel to make the vehicle width guide lines
*Dparallel to the
parking space
*Cwhile referring to the
predictive course lines.
Monitor system9-5
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
9-6Monitor system

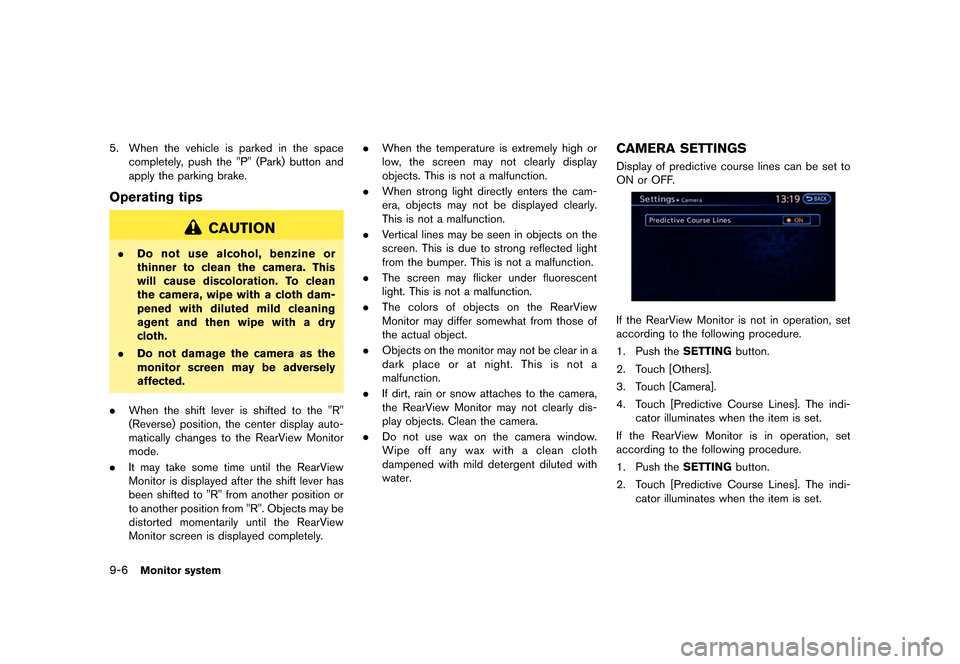

5. When the vehicle is parked in the spacecompletely, push the "P" (Park) button and
apply the parking brake.
Operating tipsGUID-4C323C9D-72F4-4F74-99E8-7794B687A670
CAUTION
.Do not use alcohol, benzine or
thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth dam-
pened with diluted mild cleaning
agent and then wipe with a dry
cloth.
. Do not damage the camera as the
monitor screen may be adversely
affected.
. When the shift lever is shifted to the "R"
(Reverse) position, the center display auto-
matically changes to the RearView Monitor
mode.
. It may take some time until the RearView
Monitor is displayed after the shift lever has
been shifted to "R" from another position or
to another position from "R". Objects may be
distorted momentarily until the RearView
Monitor screen is displayed completely. .
When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
. When strong light directly enters the cam-
era, objects may not be displayed clearly.
This is not a malfunction.
. Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
. The screen may flicker under fluorescent
light. This is not a malfunction.
. The colors of objects on the RearView
Monitor may differ somewhat from those of
the actual object.
. Objects on the monitor may not be clear in a
dark place or at night. This is not a
malfunction.
. If dirt, rain or snow attaches to the camera,
the RearView Monitor may not clearly dis-
play objects. Clean the camera.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.
CAMERA SETTINGSGUID-04653E83-3580-4329-AA92-B800DBD922DDDisplay of predictive course lines can be set to
ON or OFF.
LNL0019X
If the RearView Monitor is not in operation, set
according to the following procedure.
1. Push the SETTINGbutton.
2. Touch [Others].
3. Touch [Camera].
4. Touch [Predictive Course Lines]. The indi- cator illuminates when the item is set.
If the RearView Monitor is in operation, set
according to the following procedure.
1. Push the SETTINGbutton.
2. Touch [Predictive Course Lines]. The indi- cator illuminates when the item is set.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

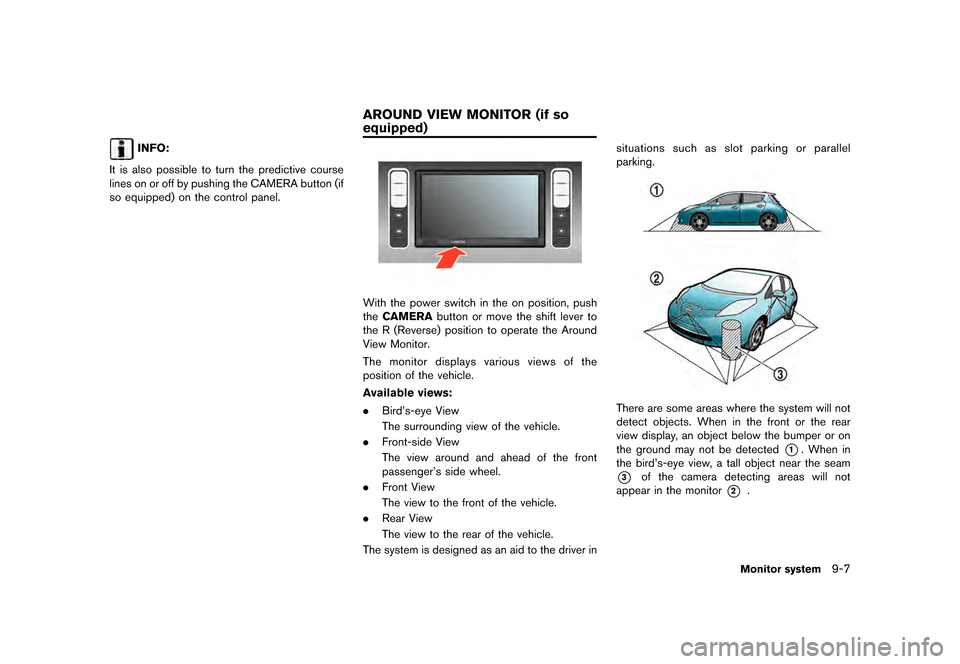

INFO:
It is also possible to turn the predictive course
lines on or off by pushing the CAMERA button (if
so equipped) on the control panel.
GUID-F9E28E7A-8F56-48E7-B035-E73F1D4B5336
LNL0036X
With the power switch in the on position, push
the CAMERA button or move the shift lever to
the R (Reverse) position to operate the Around
View Monitor.
The monitor displays various views of the
position of the vehicle.
Available views:
. Bird's-eye View
The surrounding view of the vehicle.
. Front-side View
The view around and ahead of the front
passenger's side wheel.
. Front View
The view to the front of the vehicle.
. Rear View
The view to the rear of the vehicle.
The system is designed as an aid to the driver in situations such as slot parking or parallel
parking.
LNL0046X
There are some areas where the system will not
detect objects. When in the front or the rear
view display, an object below the bumper or on
the ground may not be detected
*1. When in
the bird's-eye view, a tall object near the seam
*3of the camera detecting areas will not
appear in the monitor
*2.
Monitor system9-7
AROUND VIEW MONITOR (if so
equipped)
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
9-8Monitor system
WARNING
.The Around View Monitor is a con-
venience but it is not a substitute for
proper vehicle operation because it
has areas where objects cannot be
viewed. The four corners of the
vehicle in particular, are blind spots
where objects do not appear in the
bird's-eye, front, or rear views. Al-
ways look out the windows and
check with your own eyes to be sure
that it is safe to move before
operating the vehicle. Always oper-
ate the vehicle slowly.
. The driver is always responsible for
safety during parking and other
maneuvers.
. Do not use the Around View Monitor
with the outside mirror in the stored
position, and make sure that the
rear hatch is securely closed when
operating the vehicle using the
Around View Monitor.
. The distance between objects
viewed on the Around View Monitor
differs from the actual distance. .
The cameras are installed above the
front grille, the outside mirrors and
above the rear license plate. Do not
put anything on the cameras.
. When washing the vehicle with
highpressure water, be sure not to
spray it around the cameras. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the cameras. They are
precision instruments. Doing so
could cause a malfunction or cause
damage resulting in a fire or an
electric shock.
CAUTION
Do not scratch the lens when cleaning
dirt or snow from the front of the
camera.
AVAILABLE VIEWSGUID-C662ED35-9F3E-42A6-95BC-2D54B0AF9B98
WARNING
.The distance guide line and the
vehicle width line should be used
as a reference only when the vehicle
is on a paved, level surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. Use the displayed lines and the
bird's-eye view as a reference. The
lines and the bird-eye view are
greatly affected by the number of
occupants, vehicle position, road
condition and road grade.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line and the bird's-eye view may be
displayed incorrectly.
. When driving the vehicle up a hill,
objects viewed in the monitor are
further than they appear. When
driving the vehicle down a hill,
objects viewed in the monitor are
closer than they appear.
&RQGLWLRQ 1$0
