MONITOR SYSTEMGUID-DE38966F-3237-4C0C-9DD6-E33DA7FAB126

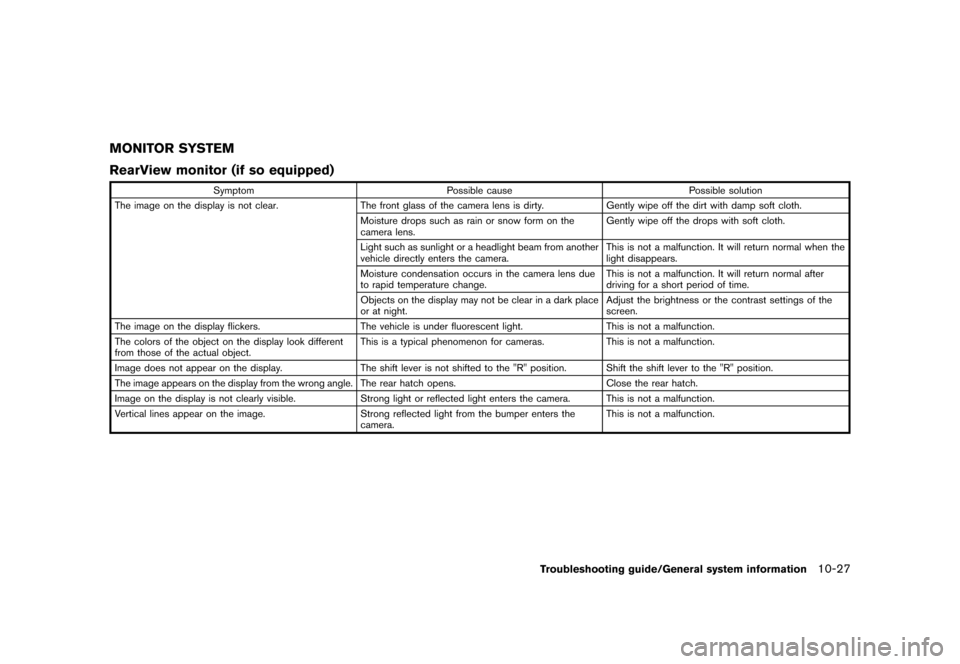

RearView monitor (if so equipped)GUID-A56DACCE-043B-4C24-9764-0622D94A05FB
SymptomPossible cause Possible solution
The image on the display is not clear. The front glass of the camera lens is dirty.Gently wipe off the dirt with damp soft cloth.
Moisture drops such as rain or snow form on the
camera lens. Gently wipe off the drops with soft cloth.
Light such as sunlight or a headlight beam from another
vehicle directly enters the camera. This is not a malfunction. It will return normal when the
light disappears.
Moisture condensation occurs in the camera lens due
to rapid temperature change. This is not a malfunction. It will return normal after
driving for a short period of time.
Objects on the display may not be clear in a dark place
or at night. Adjust the brightness or the contrast settings of the
screen.
The image on the display flickers. The vehicle is under fluorescent light.This is not a malfunction.
The colors of the object on the display look different
from those of the actual object. This is a typical phenomenon for cameras.
This is not a malfunction.
Image does not appear on the display. The shift lever is not shifted to the "R" position. Shift the shift lever to the "R" position.
The image appears on the display from the wrong angle. The rear hatch opens. Close the rear hatch.
Image on the display is not clearly visible. Strong light or reflected light enters the camera. This is not a malfunction.
Vertical lines appear on the image. Strong reflected light from the bumper enters the
camera.This is not a malfunction.
Troubleshooting guide/General system information10-27
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
10-28Troubleshooting guide/General system information

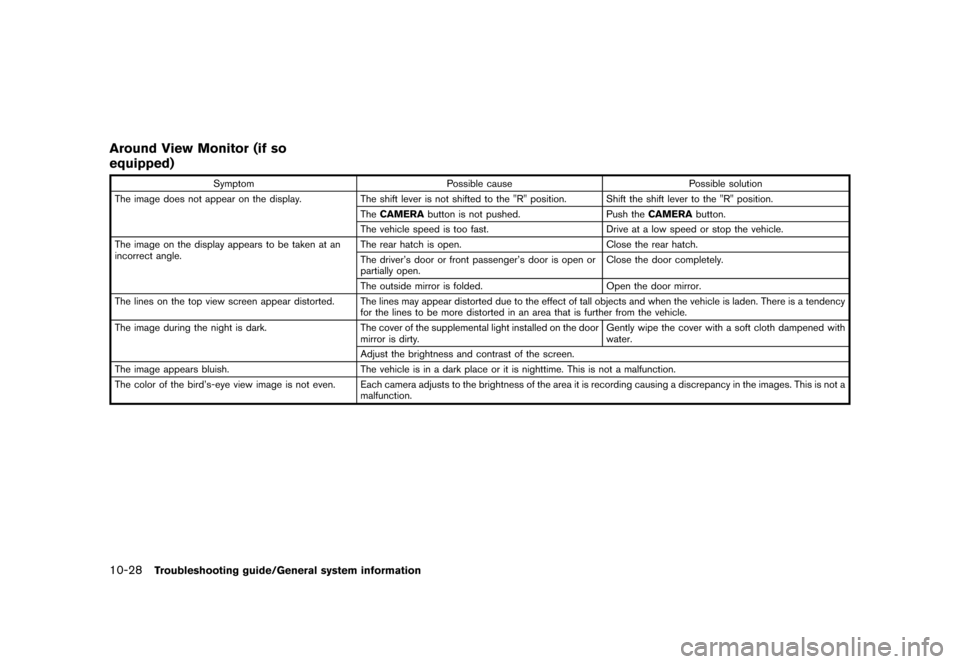

Around View Monitor (if so
equipped)
GUID-FB8D3C19-3019-46C9-A6CE-06E9022FD943
SymptomPossible cause Possible solution
The image does not appear on the display. The shift lever is not shifted to the "R" position. Shift the shift lever to the "R" position.
TheCAMERA button is not pushed. Push theCAMERA button.
The vehicle speed is too fast. Drive at a low speed or stop the vehicle.
The image on the display appears to be taken at an
incorrect angle. The rear hatch is open.
Close the rear hatch.
The driver's door or front passenger's door is open or
partially open. Close the door completely.
The outside mirror is folded. Open the door mirror.
The lines on the top view screen appear distorted. The lines may appear distorted due to the effect of tall objects and when the vehicle is laden. There is a tendency for the lines to be more distorted in an area that is further from the vehicle.
The image during the night is dark. The cover of the supplemental light installed on the door
mirror is dirty.Gently wipe the cover with a soft cloth dampened with
water.
Adjust the brightness and contrast of the screen.
The image appears bluish. The vehicle is in a dark place or it is nighttime. This is not a malfunction.
The color of the bird's-eye view image is not even. Each camera adjusts to the brightness of the area it is recording causing a discrepancy in the images. This is not a malfunction.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
GUID-53E79F5D-9AE6-4984-955E-CB2A39EB4D66
CURRENT VEHICLE LOCATIONGUID-3DB2B298-7959-42E7-A529-EBC2E6E1A510
Display of current vehicle locationGUID-AC334D4E-00C5-4F0B-889E-D50DC5D61202This navigation system combines the data
obtained from the vehicle (by gyro sensor) and
from GPS (Global Positioning System) satellites
to calculate the current location of the vehicle.
This position is then displayed throughout route
guidance to a destination.
What is GPS (Global Positioning
System)?
GUID-A33AD639-F86B-4DA8-B59E-2726CD899634GPS is a position detecting system that uses
satellites deployed by the U.S. government. This
navigation system receives radio signals from
three or more different satellites that orbit
13,049 miles (21,000 km) above the earth in
space, and detects the position of the vehicle by
utilizing the principle of triangulation.
Positioning adjustment:
When the system judges that the vehicle
position is not accurate based on vehicle speed
and gyro sensor data calculations, the system
will automatically adjust the position of the
vehicle icon using GPS signals.
Receiving signals from GPS satellites:
The reception of GPS signals can be weak,
depending on the environment. Vehicles in the
following areas/environments may not receiveGPS signals (indicator color: gray) .INI0121
*Inside tunnels or parking garages
INI0122
*In areas with numerous tall buildings
INI0123
*Under multi-layered highways
INI0124
*Areas with numerous tall trees
Troubleshooting guide/General system information10-29
GENERAL SYSTEM INFORMATION
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
10-30Troubleshooting guide/General system information
INI0253

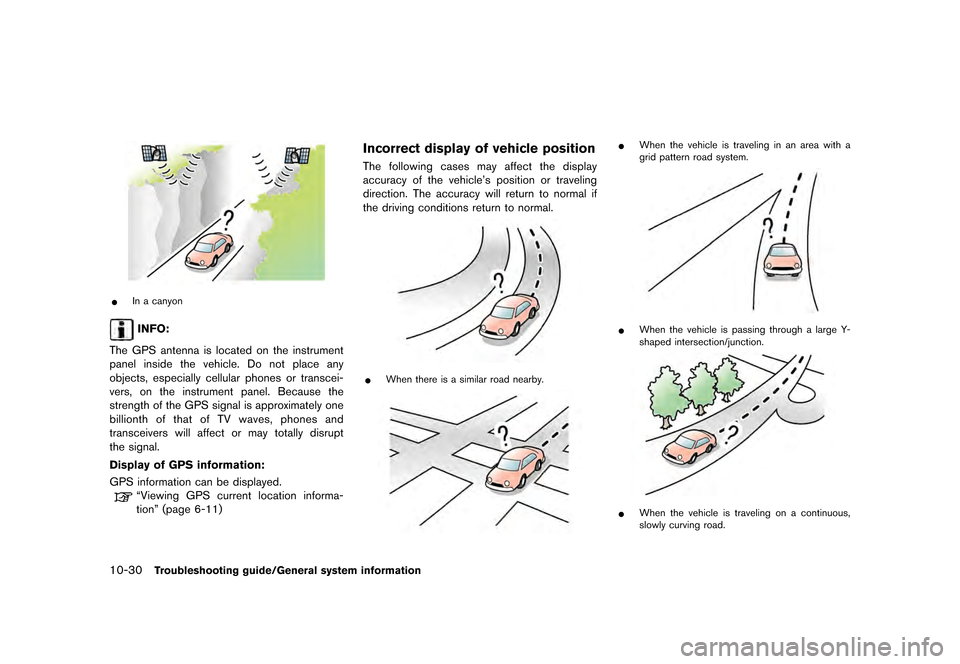

*In a canyon
INFO:
The GPS antenna is located on the instrument
panel inside the vehicle. Do not place any
objects, especially cellular phones or transcei-
vers, on the instrument panel. Because the
strength of the GPS signal is approximately one
billionth of that of TV waves, phones and
transceivers will affect or may totally disrupt
the signal.
Display of GPS information:
GPS information can be displayed.
ªViewing GPS current location informa-
tionº (page 6-11)
Incorrect display of vehicle positionGUID-B4EC1A08-66C4-4494-8E5E-6CB5C47F02B9The following cases may affect the display
accuracy of the vehicle's position or traveling
direction. The accuracy will return to normal if
the driving conditions return to normal.
INI0125
*When there is a similar road nearby.
INI0126
*When the vehicle is traveling in an area with a
grid pattern road system.
INI0127
*When the vehicle is passing through a large Y-
shaped intersection/junction.
INI0128
*When the vehicle is traveling on a continuous,
slowly curving road.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
INI0129

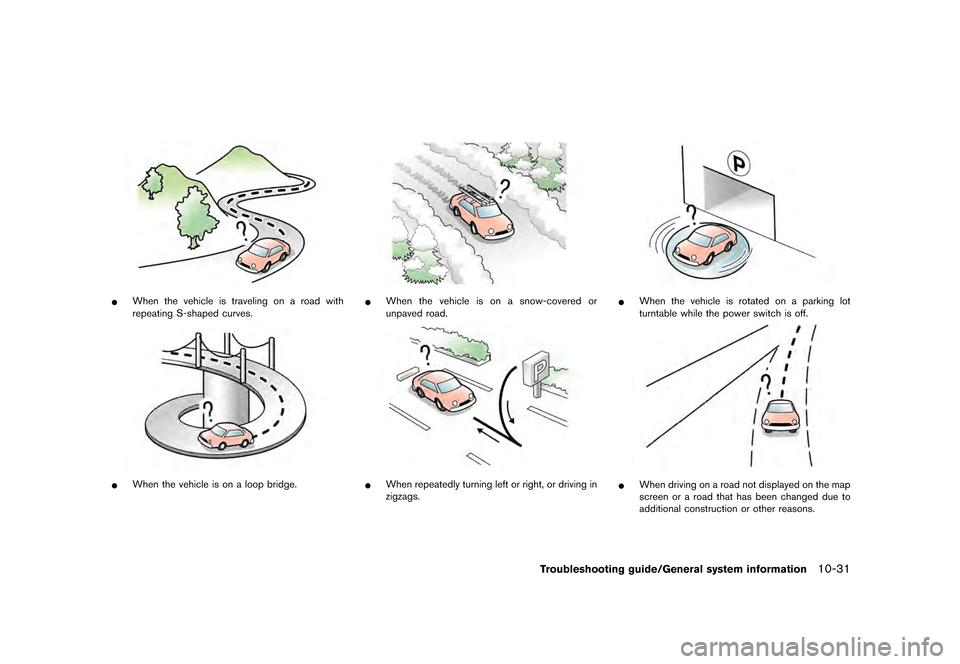

*When the vehicle is traveling on a road with
repeating S-shaped curves.
INI0130
*When the vehicle is on a loop bridge.
INI0131
*When the vehicle is on a snow-covered or
unpaved road.
INI0132
*When repeatedly turning left or right, or driving in
zigzags.
INI0133
*When the vehicle is rotated on a parking lot
turntable while the power switch is off.
INI0134
*When driving on a road not displayed on the map
screen or a road that has been changed due to
additional construction or other reasons.
Troubleshooting guide/General system information10-31
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
10-32Troubleshooting guide/General system information
INI0124
*When the GPS positioning accuracy is low.
INFO:
. The vehicle icon may be misaligned when
starting the vehicle just after the READY to
drive indicator light is ON.
. The vehicle icon may also be misaligned if
different sized tires or tire chains are
installed.
. The system has a function that automatically
corrects the vehicle icon position when it is
misaligned from the actual position.
. Vehicle position correction by GPS may not
function when the vehicle is stopped.
. If the vehicle icon position does not return to
normal even after driving for a while, correct
the vehicle icon position manually.
ªAdjusting current vehicle locationº (page 3-75)
Detailed Map Coverage Areas
(MCA) for navigation system
GUID-A7515219-FB6B-4303-A8B1-B6FF7C9DABCDThis system is designed to help guiding to the
destination, and it also performs other functions
as outlined in this manual. However, the system
must be used safely and properly. Information
concerning road conditions, traffic signs and the
availability of services may not always be up-to-
date. The system is not a substitute for safe,
proper and legal driving.
Map data covers select metropolitan areas in the
United States and Canada.
Map data includes two types of areas: ªDetailed
coverage areasº providing all detailed road data
and other areas showing ªMain roads onlyº.
INFO:
Detailed map data is not available in many areas
and is generally limited to select major metro-
politan areas.
When gray road is displayed on mapGUID-B4E64482-6BC5-421A-8E74-FD830C019E3A. When you are driving on a road displayed in
gray after the vehicle has deviated from the
suggested route during route guidance,
automatic rerouting may not start immedi-
ately. .
The navigation system does not provide
route guidance for roads displayed in dark
green. Therefore, if the destination is set on
a road displayed in dark green, the enlarged
map display will return to the ordinary map
screen at some point on a suggested route
that is near the destination. Also, voice
guidance will stop at some point on a
suggested route that is near the destination.
. Places information and street names near
roads displayed in gray may not be con-
tained in the map data.
ROUTE CALCULATIONGUID-EE073CB3-3FAF-4421-BD08-BF04F3C95D6B.There may be cases where carpool lanes are
included on a suggested route when the
automatic rerouting function is activated,
even if the ªUse Time Restricted Roadsº is
turned off.
ªSetting conditions for route calcula-
tionº (page 3-55)
. The navigation system does not provide
route guidance for roads displayed in dark
green.
. If the destination is set on a dark green road,
the enlarged map display will switch to the
ordinary map screen at some point and
suggest a route that is near the destination.
The distance and direction to the endpoint
of the suggested route will be displayed in
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
the lower right corner of the screen. Also, at
this time, voice guidance will announce,
ªThe route to the destination includes roads
through incomplete map areas. Voice gui-
dance will not be provided in these areas.º
When approaching the endpoint of the
suggested route, voice guidance will an-
nounce, ªEntering the road with incomplete
map data. Use the direction arrow and
distance information to proceed to your
destination.º
To reach the destination, refer to the map
screen. Always follow actual roads and
regulations and drive safely.
. The suggested route may not be the short-
est, nor are other circumstances such as
traffic jams considered.
. Because of the inevitable difference in road
conditions and circumstances between the
time you use this system and the time the
information was produced for the map data,
there may be discrepancies in roads and
regulations. In such cases, follow the actual
information available.
. During route calculation, the map will not
scroll, however the vehicle icon will move
with the actual vehicle's movement. .
During route calculation, buttons such as
theMAP button and the MENUbutton will
be disabled.
. In some cases, after the calculation is
complete, the calculated route may not be
immediately displayed.
. Waypoints that have been passed will be
disregarded by rerouting calculation.
. If you scroll the map while the suggested
route is being drawn, it may take more time
to finish drawing.
. If waypoints are set, the system calculates
multiple routes between waypoints simulta-
neously, and the following may result.
Ð If one section between waypoints cannot
be calculated, none of the route will be
displayed.
Ð The route may not connect completely at some waypoints.
Ð The route may require a U-turn close to some waypoints.
. Route calculation may not be completed in
the following cases.
Ð If there is no main road within a range of
1.5 miles (2.5 km) from the vehicle, a
message saying so will appear on the
screen. Try recalculating when the vehi-
cle is closer to a main road. Ð If there is no main road within a range of
1.5 miles (2.5 km) from the destination or
waypoint, a message saying so will
appear on the screen. Try setting the
location closer to a main road.
Ð If the vehicle is too close to the destina- tion or if there are no roads to the
destination, a message saying so will
appear on the screen.
Ð If it is impossible to reach the destination or waypoints because of traffic regula-
tions, etc.
Ð If the only route to reach the destination or waypoints is extremely complicated.
. The following may occur when the route is
displayed.
Ð If you calculate a route on a main road,
the starting point of the route may not
exactly match the current vehicle loca-
tion.
Ð The endpoint of the route may not exactly match the destination.
Ð If you calculate a route on a main road, the system may display a route from
another main road. This may be because
the position of the vehicle icon is not
accurate. In this case, park the vehicle in
a safe location and reset the vehicle icon,
or continue driving to see if the position
Troubleshooting guide/General system information10-33
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
10-34Troubleshooting guide/General system information
of the vehicle icon is automatically
adjusted before recalculating the route.
Ð There are cases in which the system shows an indirect route to reach the
destination or waypoints, if you set them
from stored or facility information. In
order to correct this, you must be careful
about the traffic direction, especially
when lanes with different travel directions
are shown separately, such as inter-
changes and service areas.
Ð This system makes no distinction be- tween limited traffic control and total
control (blockage) . It may show an
indirect route even if the road is usable.
Ð Even if the freeway preference is set to OFF, a route that uses the freeway may
be suggested.
Ð Even if the ferry preference is set to OFF, a route that uses a ferry line may be
suggested.
Ð Ferry lines, excluding those that are only for pedestrians, bicycles and motor-
cycles, are stored in this system. Take
into consideration the travel time required
and operational condition before decid-
ing whether to use them or not.ROUTE GUIDANCEGUID-D4460D59-8C4D-4A28-8361-F3C3C250F896
INFO:
The system will only announce street names
when the system language is set to English.
Street names are not announced when the
system is set to FrancË ais (French) .
Basics of voice guidanceGUID-D2B260D5-6CB0-48D2-B54D-66BD13AD9397Voice guidance announces which direction to
turn when approaching an intersection in which
a turn is necessary.
INFO:
. There may be some cases in which voice
guidance and actual road conditions do not
correspond. This may occur because of
discrepancies between the actual road and
the information on the map data, or it is due
to the vehicle's speed.
. In case voice guidance does not correspond
to the actual road conditions, follow the
information obtained from traffic signs or
notices on the road.
. Route guidance provided by the navigation
system does not take carpool lane driving
into consideration, especially when carpool
lanes are separated from other road lanes.
Directions provided and distances
to guide points
GUID-5384B826-AF3F-4803-AEE0-F26A41C42241Directions will differ, depending on the road
type.
INFO:
Distances may vary, depending on the vehicle
speed.
Notification of intersection on ordinary
road:
INI0135
1. "In about one quarter mile (400 meters) , right (left) turn."
2. "Right (left) turn ahead."
&RQGLWLRQ 1$0
