2015 NISSAN LEAF Navigation Manual


> (GLW    0RGHO 1DYL(9 @
used, but "five hundred" cannot.)
Examples:
1-800-662-6200
"One eight zero zero six six two six two zero
zero"
Improving Recognition of Phone numbers:
Recognition of phone numbers can be improved
by speaking the phone number in 3 groups of
numbers. For example, to call 800-662-6200,
speak "Eight Zero Zero" first, and the system will
then ask to speak the next three digits. Then,
speak "Six Six Two". After recognition, the
system will then ask to speak the last 4 digits.
Speak, "Six Two Zero Zero". Using this method
of phone number digit entry can improve
recognition performance.
INFO:
For best recognition, speak "zero" for the
number "0" and "oh" for the letter "o".
VOICE COMMAND EXAMPLESGUID-FEA9D0CB-EA44-4D59-9DB9-7F46FBC7218BTo use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands.
As examples, some additional basic operations
that can be performed by voice commands are
described here.
Example 1: Setting destination by
address book
GUID-996570AA-7F37-41B2-BDB3-5D2457F8F76B1. Push thebutton located on the steering
wheel.
LNK0042X
2. The system announces, "Would you like to access Phone, Navigation, Zero Emission or
CARWINGS?".
3. Speak "Navigation".
LNK0048X
4. Speak "Address Book".
LNK0004X
5. Voice feedback will be provided when the command is accepted, and the list of
address book is displayed.
6. After the tone sounds and the icon on the screen changes again, speak "Two".
Voice recognition8-3
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
8-4Voice recognition
LNK0005X
7. Voice feedback will be provided when thecommand is accepted, and the system
starts calculating a route to the selected
location.
Example 2: Placing call to phone
number 800-662-6200
GUID-6CFAE30B-5975-4B25-A176-E9513A94590F1. Push thebutton located on the steering
wheel.
LNK0042X
2. The system announces, "Would you like to access Phone, Navigation, Zero Emission or
CARWINGS?". 3. Speak "Phone".
LNK0049X
4. Speak "Dial Number".
LNK0008X
5. Speak "800".
LNK0009X
6. The system announces, "Please say either
the next three digits, dial, or say change
number". Speak "662".
LNK0010X
7. The system announces, "Please say the last
four digits or say change number". Speak
"6200".
LNK0011X
8. The system announces, "Dial or ChangeNumber?". Speak "Dial".
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
LNK0012X
9. The system makes a call to 800-662-6200.
INFO:
. If the area code is not required, speaking
"800-662-6200" (10 continuous digits) or
"662-6200" (7 continuous digits) is accep-
table. However the 3-3-4 digit grouping is
recommended for improved recognition.
ªHow to speak numbersº (page 8-2)
. The NISSAN voice recognition system is not
limited to recognizing phone numbers of
only 7 or 10 digits. To dial a number in a
format other than the 3-3-4 digit grouping,
use the "International Call" command.
. If "Change Number" is spoken during phone
number entry, the system will automatically
request that the number be repeated using
the 3-3-4 format. In this case please speak
the area code first and then follow the
prompts. Do not add a "1" in front of the area code when speaking phone numbers.
. If the system does not recognize a voice
command, please try repeating the com-
mand using a natural voice. Speaking too
slowly or too loudly may further decrease
recognition performance.
Example 3: Placing international call
to phone number 011-81-111-222-
333
GUID-68459D75-0A33-40C2-8482-782A3FFFA8BF1. Push thebutton located on the steering
wheel.
LNK0042X
2. The system announces, "Would you like to access Phone, Navigation, Zero Emission or
CARWINGS?".
3. Speak "Phone".
LNK0049X
4. Speak "International Call".
LNK0015X
5. Speak "01181111222333".
LNK0016X
Voice recognition8-5
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
8-6Voice recognition

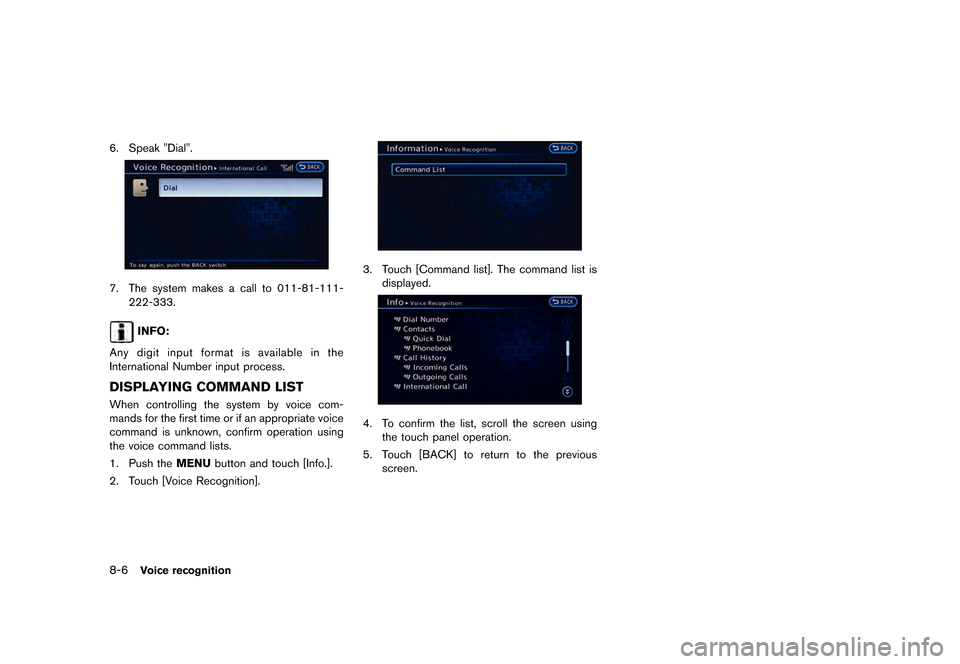

6. Speak "Dial".
LNK0017X
7. The system makes a call to 011-81-111-222-333.
INFO:
Any digit input format is available in the
International Number input process.
DISPLAYING COMMAND LISTGUID-CCEC32FB-D592-41C8-9108-1642A4118F00When controlling the system by voice com-
mands for the first time or if an appropriate voice
command is unknown, confirm operation using
the voice command lists.
1. Push the MENUbutton and touch [Info.].
2. Touch [Voice Recognition].
LNK0018X
3. Touch [Command list]. The command list is displayed.
LNK0050X
4. To confirm the list, scroll the screen usingthe touch panel operation.
5. Touch [BACK] to return to the previous screen.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
Command ListGUID-2DE5C214-7FBF-426E-BF07-1526B4DDCA38The words inJUBMJDTare variable.
Phone Command:
Command Action
Dial Number Makes a call to a spoken phone number.
Contacts Phonebook Makes a call to a contact that is stored in the cellular phone.
Quick Dial Makes a call to a contact that is stored in the Quick Dial.
Call History Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Text Message Read Text Reads e-mail text messages.
Send Text Sends e-mail text messages.
Call OBNF Makes a call to a contact that is stored in Phonebook. Please say ªCallº followed by a stored name.
Navigation Command:
Command Action
Home Sets a route to your home location.
Address (if so equipped) Searches for a location by the street address specified, and sets a route.
Points of Interest (if so equipped) Sets a route to a facility near the current vehicle location.
Address Book Sets a route to a location stored in the Address Book.
Previous Destinations Sets a route to a previously entered destination.
Voice recognition8-7
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
8-8Voice recognition

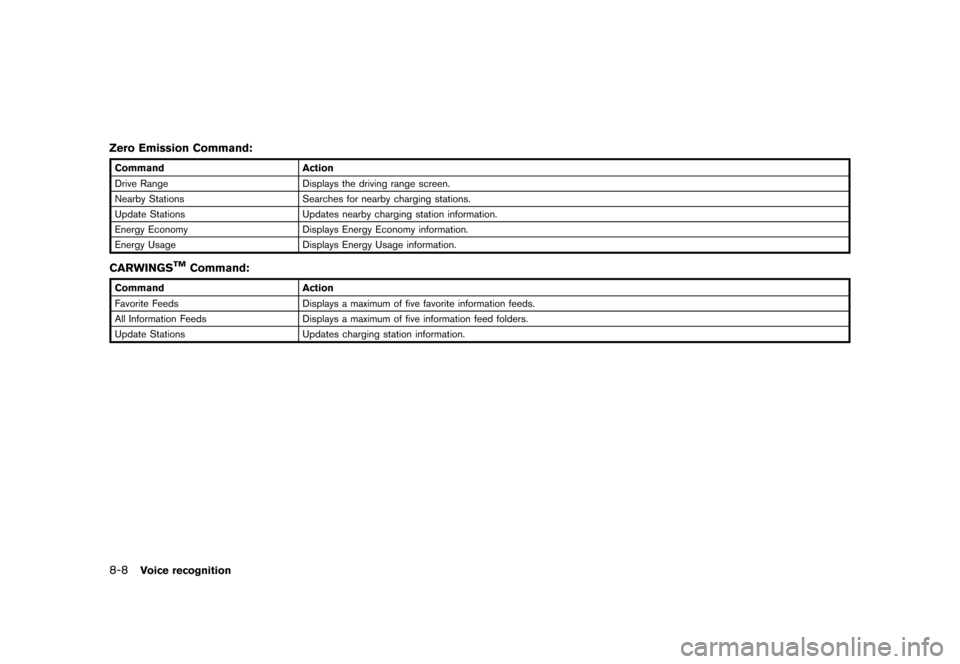

Zero Emission Command:
CommandAction
Drive Range Displays the driving range screen.
Nearby Stations Searches for nearby charging stations.
Update Stations Updates nearby charging station information.
Energy Economy Displays Energy Economy information.
Energy Usage Displays Energy Usage information.
CARWINGSTMCommand:
CommandAction
Favorite Feeds Displays a maximum of five favorite information feeds.
All Information Feeds Displays a maximum of five information feed folders.
Update Stations Updates charging station information.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

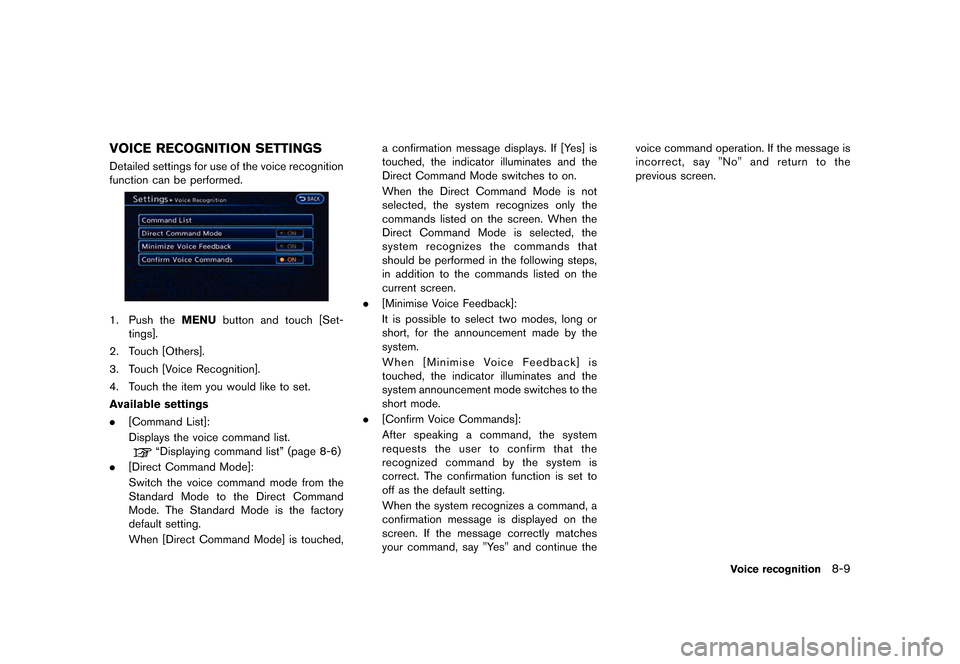

VOICE RECOGNITION SETTINGSGUID-67D614E7-55A6-4EA8-BDE1-5FF2EFEB3D40Detailed settings for use of the voice recognition
function can be performed.
LNK0020X
1. Push theMENUbutton and touch [Set-
tings].
2. Touch [Others].
3. Touch [Voice Recognition].
4. Touch the item you would like to set.
Available settings
. [Command List]:
Displays the voice command list.
ªDisplaying command listº (page 8-6)
. [Direct Command Mode]:
Switch the voice command mode from the
Standard Mode to the Direct Command
Mode. The Standard Mode is the factory
default setting.
When [Direct Command Mode] is touched, a confirmation message displays. If [Yes] is
touched, the indicator illuminates and the
Direct Command Mode switches to on.
When the Direct Command Mode is not
selected, the system recognizes only the
commands listed on the screen. When the
Direct Command Mode is selected, the
system recognizes the commands that
should be performed in the following steps,
in addition to the commands listed on the
current screen.
. [Minimise Voice Feedback]:
It is possible to select two modes, long or
short, for the announcement made by the
system.
When [Minimise Voice Feedback] is
touched, the indicator illuminates and the
system announcement mode switches to the
short mode.
. [Confirm Voice Commands]:
After speaking a command, the system
requests the user to confirm that the
recognized command by the system is
correct. The confirmation function is set to
off as the default setting.
When the system recognizes a command, a
confirmation message is displayed on the
screen. If the message correctly matches
your command, say "Yes" and continue the voice command operation. If the message is
incorrect, say "No" and return to the
previous screen.
Voice recognition8-9
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
8-10Voice recognition

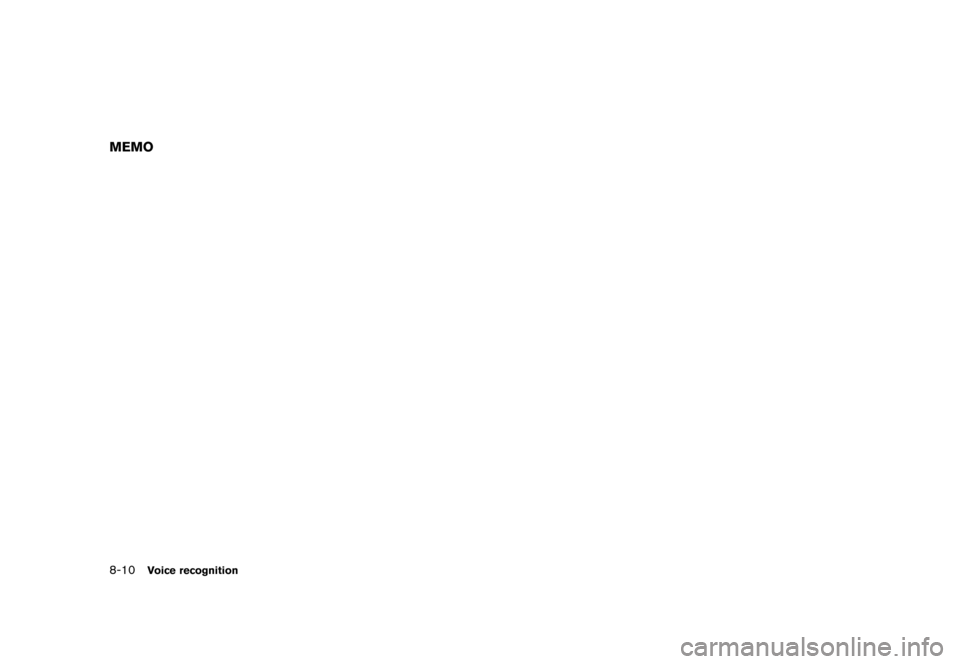

MEMO
