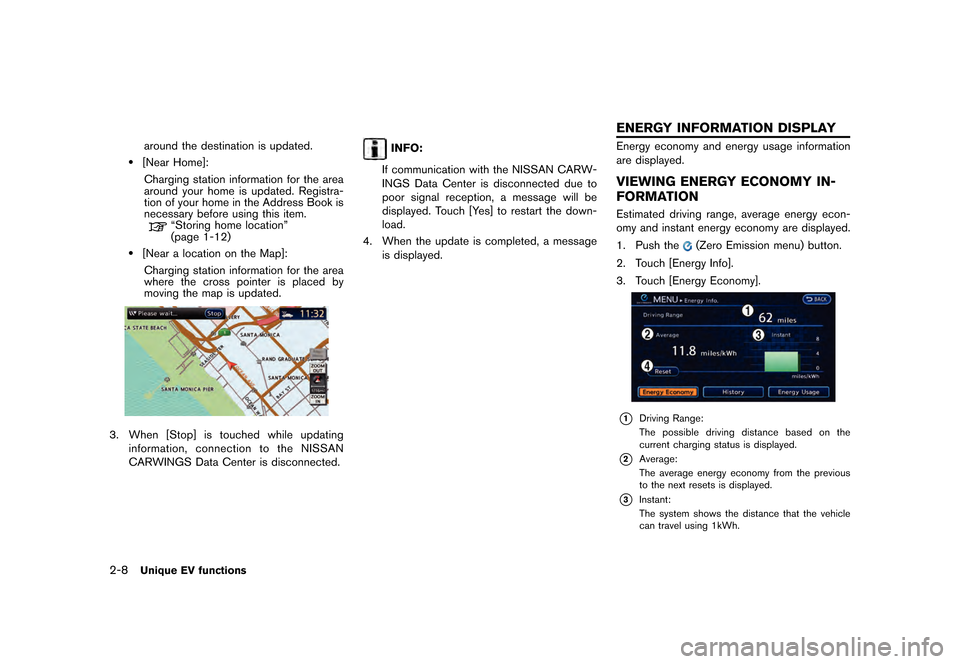

2-8Unique EV functions
around the destination is updated.
.[Near Home]:Charging station information for the area
around your home is updated. Registra-
tion of your home in the Address Book is
necessary before using this item.
ªStoring home locationº
(page 1-12)
.[Near a location on the Map]:Charging station information for the area
where the cross pointer is placed by
moving the map is updated.
LND0008X
3. When [Stop] is touched while updating
information, connection to the NISSAN
CARWINGS Data Center is disconnected.
INFO:
If communication with the NISSAN CARW-
INGS Data Center is disconnected due to
poor signal reception, a message will be
displayed. Touch [Yes] to restart the down-
load.
4. When the update is completed, a message is displayed.
GUID-21881F25-3D34-4510-9A98-89C3567CC056Energy economy and energy usage information
are displayed.
VIEWING ENERGY ECONOMY IN-
FORMATION
GUID-805ADB13-E973-45A3-B975-0A4C9928C3D4Estimated driving range, average energy econ-
omy and instant energy economy are displayed.
1. Push the
(Zero Emission menu) button.
2. Touch [Energy Info].
3. Touch [Energy Economy].
LND0010X
*1Driving Range:
The possible driving distance based on the
current charging status is displayed.
*2Average:
The average energy economy from the previous
to the next resets is displayed.
*3Instant:
The system shows the distance that the vehicle
can travel using 1kWh.
ENERGY INFORMATION DISPLAY
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
2-10Unique EV functions
GUID-76EF94D1-3F8C-4350-B32D-504536913217This function enables the batteries to be
charged and the climate control to be turned
on automatically at a regular time and day of the
week.
SETTING TIMER CHARGEGUID-5A729305-7710-4308-A8AF-8091F9CF58E3Use charging timer to schedule when the Li-ion
battery charges. You can save two timer settings
that include the charging start time and end
time. One of the timer settings can be applied to
each day of the week. The vehicle automatically
begins charging at the scheduled times when
the charge connector is connected to the
vehicle. The timers do not need to be reset
each time the Li-ion battery needs charged.
1. Push the
(Zero Emission menu) button
and touch [Charging Timer].
LND0213X
2. Touch [Set Timer 1] or [Set Timer 2]. The following explains the procedure for setting
Timer 1.
LND0210X
3. Enter the Li-ion battery charge start time.Touch [END Time] to change the time to
stop charging.
INFO:
Charging timer is performed according to
the current time setting on the bottom left of
the display. When setting the charging timer
function, be sure to check that the current
time displayed is correct.
LND0214X
4. To set the timer charge for different days of the week, touch [Assign Days]. Select the
preferred timer setting for each day of the
week. When the settings are completed,
touch [OK].
5. When the settings are completed, touch [Save Timer]. The settings confirmation
screen will be displayed.
LND0211X
6. If the settings shown on the screen arecorrect, touch [Yes].
LND0212X
TIMER FUNCTION OPERATION
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
2-12Unique EV functions
.The Li-ion battery may not be fully charged
when the Li-ion battery warmer operates
while charging using the Charging Timer.
. Set only the Charging Timer End time when
charging in cold weather. The vehicle
automatically determines when to start
charging to fully charge the Li-ion battery,
even if the Li-ion battery warmer operates.
Charging ends before the set End time if the
Li-ion battery is fully charged.
SETTING CLIMATE CTRL. TIMERGUID-B26518E0-1D61-476C-BA29-80FA3CBC3944While the charger is connected to vehicle, this
function pre-heats or pre-cools the passenger
compartment of the vehicle to the set tempera-
ture before driving. This helps reduce power
consumption from the Li-ion battery.
ªTemperature settingsº (page 2-14)
The Climate Ctrl. Timer operates the air condi-
tioner using power from the charger. Electric
power from the Li-ion battery is not used.
The Climate Ctrl. Timer function allows two
different timer settings. Each timer charge
function can be set to activate on a different
day of the week.
Once the Climate Ctrl. Timer is set, it will
complete air conditioning by the time that is set.
It is not necessary to set the Climate Ctrl. Timer
everyday.
WARNING
Even if the Climate Ctrl. Timer is set, the
temperature in the passenger compart-
ment may become high if the system
automatically stops. Do not leave chil-
dren or adults who would normally
require the support of others alone in
your vehicle. Pets should not be left
alone either. On hot, sunny days, tem-
peratures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
Timer settingsGUID-09A12233-D1ED-43B2-937D-C4264026AEB11. Push the(Zero Emission menu) button
and touch [Climate Ctrl. Timer].
LND0095X
2. Touch [Set Timer 1] or [Set Timer 2]. The following explains the procedure for setting
Timer 1.
LND0097X
3. Enter the departure time.
LND0132X
4. To set the Climate Ctrl. Timer for differentdays of the week, touch [Assign Days].
Select the preferred timer setting for each
day of the week. After setting, touch [OK].
The previous screen is displayed.
5. When the settings are completed, touch [Save Timer]. The settings confirmation
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
2-14Unique EV functions
indicator lights do not change if the Li-ion
battery warmer operates at the same time as
the above features. See LEAF Owner's
Manual for details of the charging status
indicator lights.
Temperature settingsGUID-9B356E3B-B867-4913-A3C2-5CAD103A07461. Push the(Zero Emission menu) button.
Touch [Settings].
LND0206X
2. Touch [Timer/Remote - Set Climate Temp].
LND0159M
3. Set the temperature and touch [OK].
INFO:
. The temperature in the passenger compart-
ment may not be comfortable if entering the
vehicle too soon before or too long after the
scheduled time of departure.
. Air conditioning is limited to the capacity of
the electric power when the charge con-
nector is connected. Therefore, the tem-
perature may not reach the set temperature
due to limitations in air conditioning perfor-
mance, if ambient temperature is excessively
high or low, or if the charge connector is
connected to a 120 V plug outlet.
. The Climate Ctrl. Timer operates the climate
control function so that a comfortable
temperature is provided in the passenger
compartment at the scheduled time of
departure. The climate control is set to stop
at the scheduled time of departure.
GUID-45546D98-9301-4718-A8CD-61E807476D68An active CARWINGSTMsubscription is
needed to remotely check charge status, battery
status, use remote charging, remote start Heat
and cooling and to receive e-mails/text mes-
sages.
LND0206X
1. Push the(Zero Emission menu) button
and Touch [Settings].
2. Touch the item you want to set.
Available settings
. [Battery & Power Alerts]:
When an indicator light located in the meter
illuminates, messages are displayed and
actions are provided on the navigation
screen.
ªSetting messages that are displayed
on screenº (page 2-15)
. [Charging Messages]:
Sends a notification to a preset e-mail
address. This notification includes the
charge connector status and the charge
UNIQUE EV FUNCTION SETTINGS
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

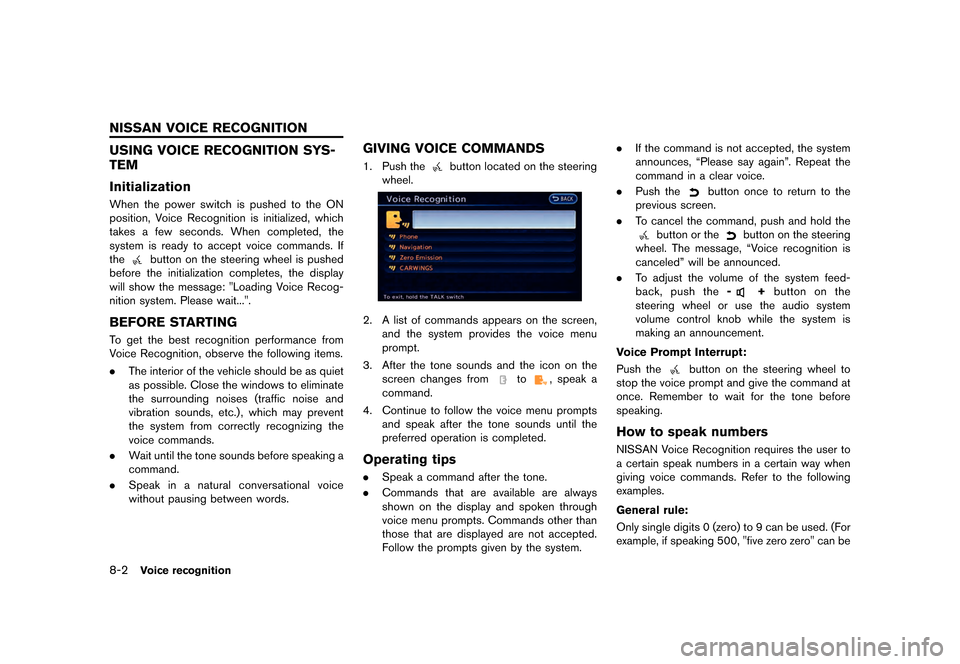

8-2Voice recognition
GUID-FAF38580-C669-4F26-B8D0-7EC58692FC6D
USING VOICE RECOGNITION SYS-
TEM
GUID-1C8F749E-4AF3-47FE-9FE0-7B0B8B8AF458
InitializationGUID-60C8EC21-9C96-4FBC-A946-5937BAB414ECWhen the power switch is pushed to the ON
position, Voice Recognition is initialized, which
takes a few seconds. When completed, the
system is ready to accept voice commands. If
the
button on the steering wheel is pushed
before the initialization completes, the display
will show the message: "Loading Voice Recog-
nition system. Please wait...".
BEFORE STARTINGGUID-17B90F0D-2C92-4147-8CBB-60019E6215D6To get the best recognition performance from
Voice Recognition, observe the following items.
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.) , which may prevent
the system from correctly recognizing the
voice commands.
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
GIVING VOICE COMMANDSGUID-B79272C7-32FE-481D-B7B3-A50FF427C81A1. Push thebutton located on the steering
wheel.
LNK0042X
2. A list of commands appears on the screen, and the system provides the voice menu
prompt.
3. After the tone sounds and the icon on the screen changes from
to, speak a
command.
4. Continue to follow the voice menu prompts and speak after the tone sounds until the
preferred operation is completed.
Operating tipsGUID-5EBE1C81-7EAE-4A5C-8323-F92B58DC3259.Speak a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Follow the prompts given by the system. .
If the command is not accepted, the system
announces, ªPlease say againº. Repeat the
command in a clear voice.
. Push the
button once to return to the
previous screen.
. To cancel the command, push and hold the
button or thebutton on the steering
wheel. The message, ªVoice recognition is
canceledº will be announced.
. To adjust the volume of the system feed-
back, push the -
+button on the
steering wheel or use the audio system
volume control knob while the system is
making an announcement.
Voice Prompt Interrupt:
Push the
button on the steering wheel to
stop the voice prompt and give the command at
once. Remember to wait for the tone before
speaking.
How to speak numbersGUID-71FDCB5E-F8C6-44F6-B150-DA7EA47CDF74NISSAN Voice Recognition requires the user to
a certain speak numbers in a certain way when
giving voice commands. Refer to the following
examples.
General rule:
Only single digits 0 (zero) to 9 can be used. (For
example, if speaking 500, "five zero zero" can be
NISSAN VOICE RECOGNITION
