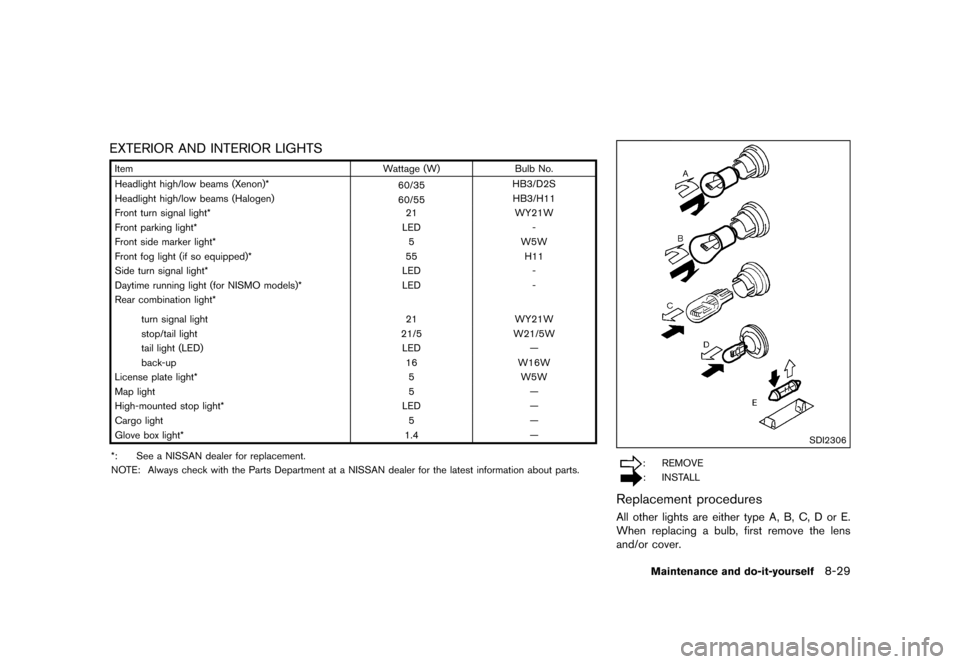

EXTERIOR ANDINTERIOR LIGHTS
GUID-61BB D601-FAE2-461C- 81CD-A4009E 8538F6
Item Wattage (W) BulbNo.
Headlight high/lowbeams(Xenon)*
60/35HB3/D2S
Headlight high/lowbeams(Halogen)
60/55HB3/H11
Front turnsignal light* 21WY21W
Front parking light* LED-
Front sidemarker light* 5W5W
Front foglight (ifso equipped)* 55H11
Side turnsignal light* LED-
Daytime runninglight(forNISMO models)* LED-
Rear combination light*
turn signal light 21WY21W
stop/tail light 21/5W21/5W
tail light (LED) LEDÐ
back -up 16W16W
License platelight* 5W5W
Map light 5Ð
High-mounted stoplight* LEDÐ
Cargo light 5Ð
Glove boxlight* 1.4Ð
*: SeeaNISSAN dealerforreplacement.
NO TE: Always checkwiththeParts Department ataNISSAN dealerforthe latest information about
parts.
SDI2306
: REMOVE
: INST ALL
Replacement procedures
GUID-FD 1940F8-D0C C-49B0-9D9B-69150AD59693
All other lights areeither typeA,B, C, Dor E.
When replacing abulb, firstremove thelens
and/or cover.
Maintenance anddo-it-yo urself
8-29
&RQGLWLRQ


> (GLW   0RGHO )'@
8-30
Maintenance anddo-it-yours elf
SDI2391

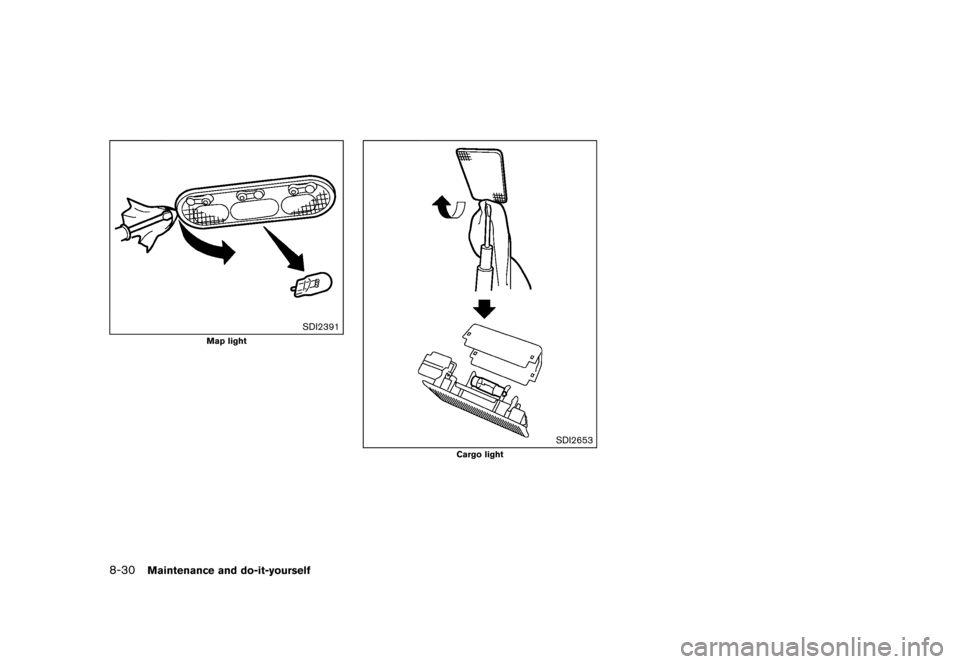

Map light
SDI2653
Cargo light
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-F6BA51 01-9D22-47BE-BE64-1 C192428380D
If you have aflat tire, seeªFlat tireº(P.6-3) .
TIRE PRESSURE
GUID-98529D 2F-C4E4-455A-AAA8-E A803AC65B2 4
Tire Pressure Monitoring System(TPMS)
GUID-D6 EF18B1-2442 -473D-A573-60D459 B74FC7
This vehicle isequipped withtheTire Pressure
Monitoring System(TPMS).It monitors tire
pressure ofall tires except thespare. When
the low tirepressure warninglightislit, and the
CHECK TIREPRES (pressure) warningmes-
sage isdisplayed inthe vehicle information
display ,one ormore ofyour tires issignificantly
under-inflated.
The TPMS willactivate onlywhen thevehicle is
driven atspeeds above16MPH (25km/h) .
Also, thissystem maynotdetect asudden drop
in tire pressure (forexample aflat tire while
driving) .
For more details, seeªLow tirepressure warning
lightº (P.2-15) ,ªTire Pressure Monitoring Sys-
tem (TPMS)º (P.5-3) andªTire Pressure Mon-
itoring System (TPMS)º (P.6-3) .
Tire inflation pressure
GUID-C576 45B5-E413-4FCA-B110 -F118428A3D6F
Check thepressure ofthe tires (including
the spare) oftenandalways priortolong
distance trips.Therecommended tire
pressure specifications areshown onthe
Tire and Loading Information labelunder
the ªCold TirePressureº heading.TheTire and
Loading Information labelisaffixed to
the driver sidecenter pillar.Tirepressures
should bechecked regularlybecause:
.
Most tiresnaturally loseairover time.
.
Tires canlose airsuddenly whendriven
over potholes orother objects orifthe
vehicle strikesacurb while parking.
The tirepressures shouldbechecked
when thetires arecold. Thetires are
considered COLDafterthevehicle has
been parked for3or more hours, ordriven
less than 1mile (1.6km)atmoderate
speeds.
Incorrect tirepressure, includingun-
der inflation, mayadversely affecttire
life and vehicle handling.
WARNING
.
Improperly inflatedtirescanfail
suddenly andcause anaccident.
.
The Gross Vehicle Weight rating
(GVWR) islocated onthe F.M .V.
S.S./C .M.V.S.S. certification la-
bel. The vehicle weightcapacity
is indicated onthe Tire and Loading
Information label.Do
not load yourvehicle beyond
this capacity. Overloading your
vehicle mayresult inreduced
tire life, unsafe operating condi-
tions duetopremature tirefail-
ure, orunfavorable handling
characteristic sand could also
lead toaserious accident. Load-
ing beyond thespecified capa-
city may also result infailure of
other vehicle components.
.
Before takingalong trip,or
whenever youheavily loadyour
vehicle, useatire pressure
gauge toensure thatthetire
pressures areatthe specified
level.
.
For additional information re-
garding tires,refertoªImportant
Tire Safety Informationº (US)or
ªTire Safety Informationº (Cana-
da) inthe Warranty Information
Booklet.
Maintenance anddo-it-yo urself
8-31
WHEELS ANDTIRES
&RQGLWLRQ


> (GLW   0RGHO )'@
8-32
Maintenance anddo-it-yours elf
SDI2503

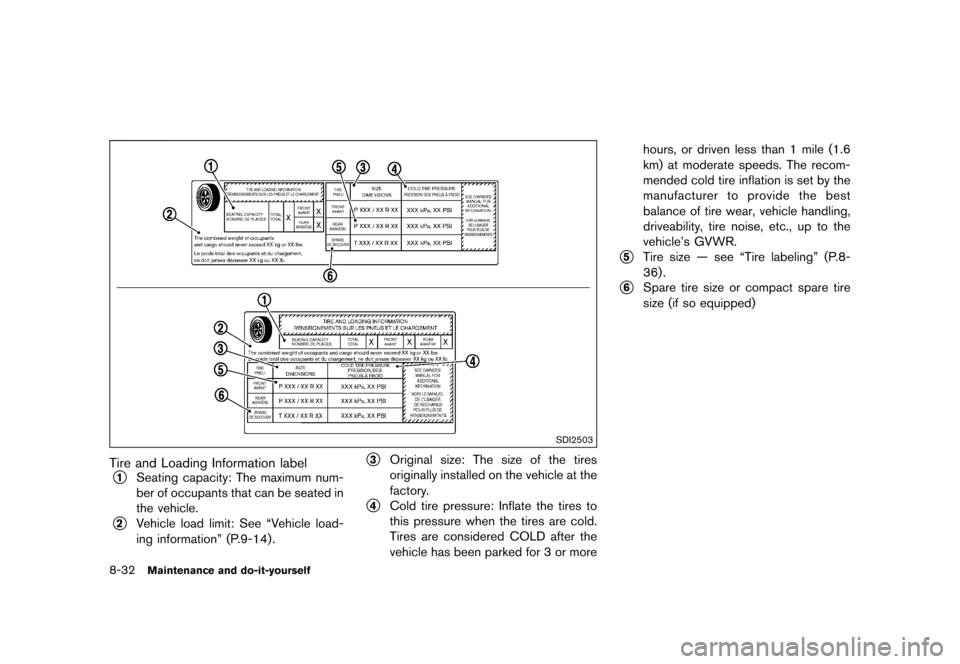

Tire and Loading Information label
GUID-FEE 83069-6E19-4 32C-A83E-475D9C859728
*
1
Seating capacity: Themaximum num-
ber ofoccupants thatcanbeseated in
the vehicle.
*
2
V ehicle loadlimit: SeeªVehicle load-
ing informationº (P.9-14) .
*
3
Original size:Thesize ofthe tires
originally installedonthe vehicle atthe
factory .
*
4
Cold tirepressure: Inflatethetires to
this pressure whenthetires arecold.
Tires areconsidered COLDafterthe
vehicle hasbeen parked for3or more hours,
ordriven lessthan 1mile (1.6
km) atmoderate speeds.Therecom-
mended coldtireinflation isset bythe
manufacturer toprovide thebest
balance oftire wear, vehicle handling,
driveability ,tire noise, etc.,uptothe
vehicle's GVWR.
*
5
Tire size Ðsee ªTire labelingº (P.8-
36) .
*
6
Spare tiresize orcompact sparetire
size (ifso equipped)
&RQGLWLRQ


> (GLW   0RGHO )'@
SDI1949
Checking thetire pressure
GUID-EAF7 4098-BED3 -48BE-BFDE-9B3D9F2 41441
1. Remove thevalve stemcapfrom the
tire.
2.
Press thepressure gaugesquarely onto
the valve stem. Donot press toohard or
force thevalve stemsideways, orair will
escape. Ifthe hissing soundofair
escaping fromthetire isheard while
checking thepressure, reposition the
gauge toeliminate thisleakage.
3.
Remove thegauge.
4.
Read thetirepressure onthe gauge
stem andcompare itto the specifica- tion
shown onthe Tire andLoading
Information label.
5.
Add airtothe tireasneeded. Iftoo
much airisadded, pressthecore ofthe
valve stembriefly withthetipofthe
gauge stemtorelease pressure. Re-
check thepressure andadd orrelease
air asneeded.
6.
Install thevalve stemcap.
7.
Check thepressure ofall other tires,
including thespare.
Maintenance anddo-it-yo urself
8-33
&RQGLWLRQ


> (GLW   0RGHO )'@
8-34
Maintenance anddo-it-yours elf

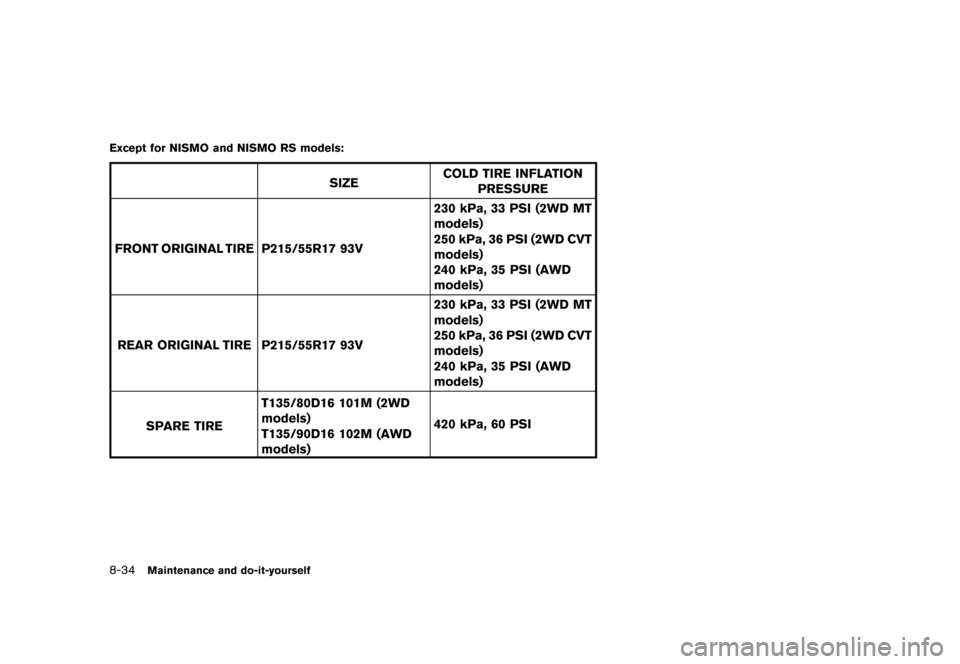

Except forNISMO andNISMO RSmodels:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
SIZE COLD
TIREINFLA TION
PRESSURE
FRONT ORIGINAL TIREP215/55R17 93V 230
kPa, 33PSI (2WD MT
models)
250 kPa, 36PSI (2WD CVT
models)
240 kPa, 35PSI (AWD
models)
REAR ORIGINAL TIREP215/55R17 93V 230
kPa, 33PSI (2WD MT
models)
250 kPa, 36PSI (2WD CVT
models)
240 kPa, 35PSI (AWD
models)
SP ARE TIRE T135/80D16
101M(2WD
models)
T135/90D16 102M(AWD
models) 420
kPa, 60PSI
&RQGLWLRQ


> (GLW   0RGHO )'@

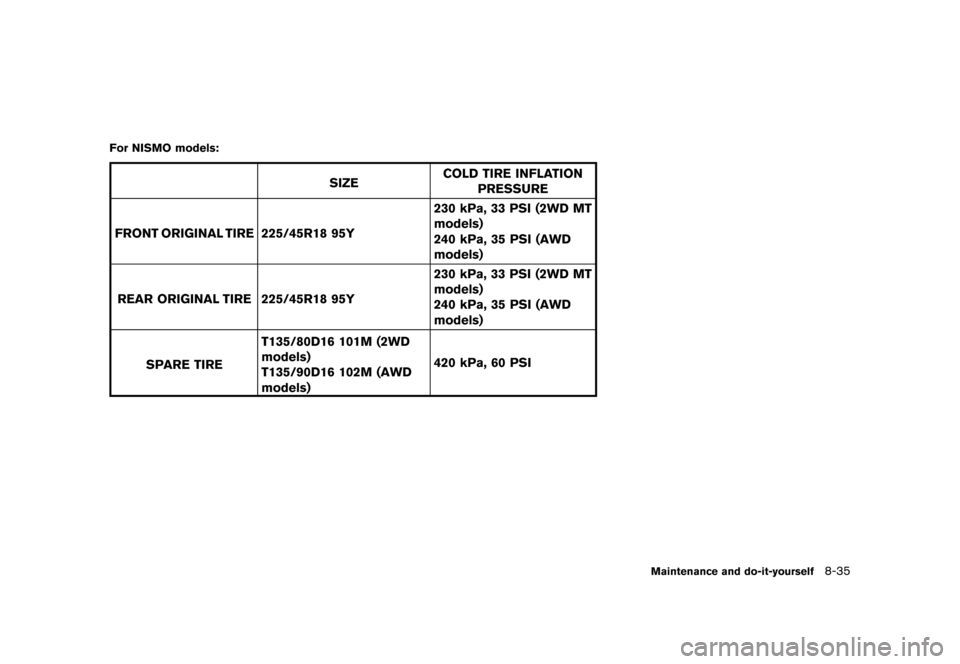

For NISMO models:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
SIZE COLD
TIREINFLA TION
PRESSURE
FRONT ORIGINAL TIRE225/45R18 95Y 230
kPa, 33PSI (2WD MT
models)
240 kPa, 35PSI (AWD
models)
REAR ORIGINAL TIRE225/45R18 95Y 230
kPa, 33PSI (2WD MT
models)
240 kPa, 35PSI (AWD
models)
SP ARE TIRE T135/80D16
101M(2WD
models)
T135/90D16 102M(AWD
models) 420
kPa, 60PSI
Maintenance anddo-it-yo urself
8-35
&RQGLWLRQ


> (GLW   0RGHO )'@
8-36
Maintenance anddo-it-yours elf

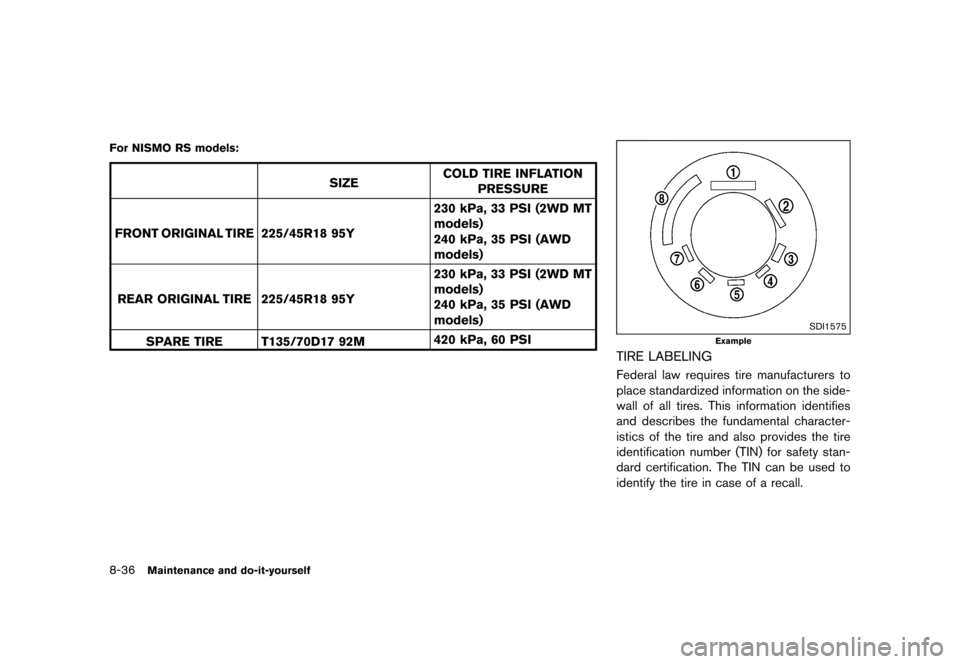

For NISMO RSmodels:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
SIZE COLD
TIREINFLA TION
PRESSURE
FRONT ORIGINAL TIRE225/45R18 95Y 230
kPa, 33PSI (2WD MT
models)
240 kPa, 35PSI (AWD
models)
REAR ORIGINAL TIRE225/45R18 95Y 230
kPa, 33PSI (2WD MT
models)
240 kPa, 35PSI (AWD
models)
SP ARE TIRE T135/70D17 92M 420
kPa, 60
PSI
SDI1575
Example
TIRE LABELING
GUID-D46 46EC6-4D80-4946-8 BC2-0B5C8 BADB595
Federal lawrequires tiremanufacturers to
place standardized informationonthe side-
wall ofall tires. Thisinformation identifies
and describes thefundamental character-
istics ofthe tire and also provides thetire
identification number(TIN)forsafety stan-
dard certification. TheTINcan beused to
identify thetireincase ofarecall.
