6. Ifthe fuse isopen
*
A
, replace itwith anew
fuse
*
B
.
7. Ifanew fuse alsoopens, havetheelectrical
system checked andrepaired byaNISSAN
dealer.
The holder
*
4
also contains thefuses. For
checking and/orreplacing, seeaNISSAN
dealer.
SDI2642
Fusible links
GUID-0B 3A4B09-B2 AB-4E3F-A956-B422F7712949
If any electrical equipment doesnotoperate and
the fuses areingood condition, checkthe
fusible linksinthe holders
*
1
and
*
2
. If any of
these fusible linksaremelted, replace onlywith
genuine NISSAN parts.
For checking andreplacing thefusible linksin
the holders
*
2
, see aNISSAN dealer.
Maintenance anddo-it-yo urself
8-21
&RQGLWLRQ


> (GLW   0RGHO )'@
8-22
Maintenance anddo-it-yours elf
JVM0478X

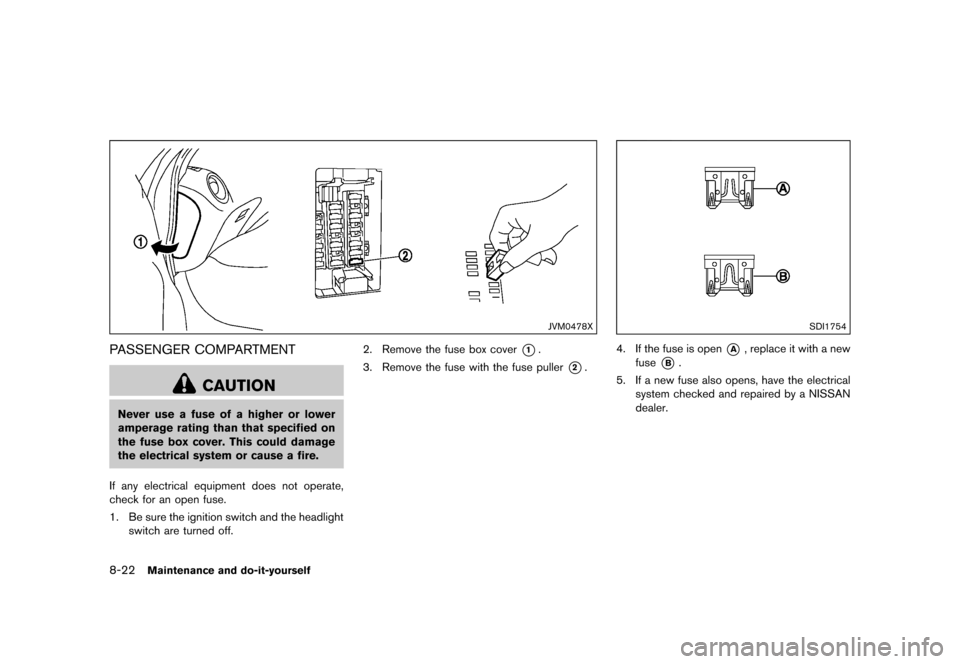

P ASSENGER COMPARTMENT
GUID-30 474EE2-71 D7-442B-B F9A-11059678694D
CAUTION
Never useafuse ofahigher orlower
amperage ratingthanthatspecified on
the fuse boxcover. Thiscould damage
the electrical systemorcause afire.
If any electrical equipment doesnotoperate,
check foranopen fuse.
1. Besure theignition switchandtheheadlight
switch areturned off. 2.
Remove thefuse boxcover
*
1
.
3. Remove thefuse withthefuse puller
*
2
.
SDI1754
4. Ifthe fuse isopen
*
A
, replace itwith anew
fuse
*
B
.
5. Ifanew fuse alsoopens, havetheelectrical
system checked andrepaired byaNISSAN
dealer.
&RQGLWLRQ


> (GLW   0RGHO )'@
SDI2705
Extended storagefuseswitch (ifso
equipped)
GUID-7EE1 D234-C9B0 -4378-9F56-2 EAE0BD5CAB4
T o reduce batterydrain,theextended storage
fuse switch comes fromthefactory switched off.
Prior todelivery ofyour vehicle, theswitch is
pushed in(switched on)and should always
remain on.
If the extended storagefuseswitch isnot
pushed in(switched on),the meter maydisplay
a warning message. SeeªExtended storagefuse
warning messageº (P.2-7) .
If any electrical equipment doesnotoperate,
remove theextended storagefuseswitch and
check foranopen fuse. NO
TE:
If the extended storagefuseswitch mal-
functions orifthe fuse isopen, itis not
necessary toreplace theswitch. Inthis
case, remove theextended storagefuse
switch andreplace itwith anew fuse ofthe
same rating.
How toremove theextended storagefuse
switch:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
1. To remove theextended storagefuseswitch,
be sure theignition switchisin the OFF or
L OCK position.
2. Besure theheadlight switchisin the OFF
position.
3. Remove thefuse boxcover.
4. Pinch thestorage fuseswitch andpullitin
the direction illustrated.
GUID-E0 3C12AE-52 04-44DA-8C9 2-75FB6768F780
CAUTION
Be careful nottoallow children to
swallow thebattery andremoved parts.
Maintenance anddo-it-yo urself
8-23
INTELLIGE NTKEY BATTER Y
REPLACEM ENT
&RQGLWLRQ


> (GLW   0RGHO )'@
8-24
Maintenance anddo-it-yours elf
SDI2451
Replace thebattery inthe Intelligent Key as
follows:
1. Remove themechanical keyfrom theIn-
telligent Key .
2. Insert asmall screwdriver intotheslitofthe
corner andtwist itto separate theupper part
from thelower part.Useacloth toprotect the
casing.
3. Replace thebattery withanew one.
Recommended battery:
CR2025 orequivalent
.
Do not touch theinternal circuitand
electric terminals asdoing socould
cause amalfunction.
.
Hold thebattery bythe edges. Holding
the battery acrossthecontact pointswill
seriously depletethestorage capacity.
.
Make surethatthe+side faces the
bottom ofthe
case.
SDI2452
4. Align thetips ofthe upper andlower parts
*
1
, and then push them together
*
2
until it
is securely closed.
5. Operate thebuttons tocheck itsoperation.
See aNISSAN dealerifyou need anyassistance
for replacement.
FCC Notice:
For USA:
This device complies withPart15ofthe
FCC Rules. Operation issubject tothe
following twoconditions: (1)This device
may notcause harmful interference, and
(2) this device mustaccept anyinterfer-
ence received, including interference that
&RQGLWLRQ


> (GLW   0RGHO )'@
may cause undesired operation.
Note: Changes ormodifications notex-
pressly approved bythe party responsible
for compliance couldvoidtheuser's
authority tooperate theequipment.
For Canada:
This device complies withIndustry Canada
licence-exempt RSSstandard(s) .Opera-
tion issubject tothe following twocondi-
tions: (1)this device maynotcause
interference, and(2)this device must
accept anyinterference, includinginterfer-
ence thatmay cause undesired operation
of the device.
Maintenance anddo-it-yo urself
8-25
&RQGLWLRQ


> (GLW   0RGHO )'@
8-26
Maintenance anddo-it-yours elf
GUID-23FC8 0BC-9A5D-4CDF-AF41 -4375212E 36BD
JVM0505X

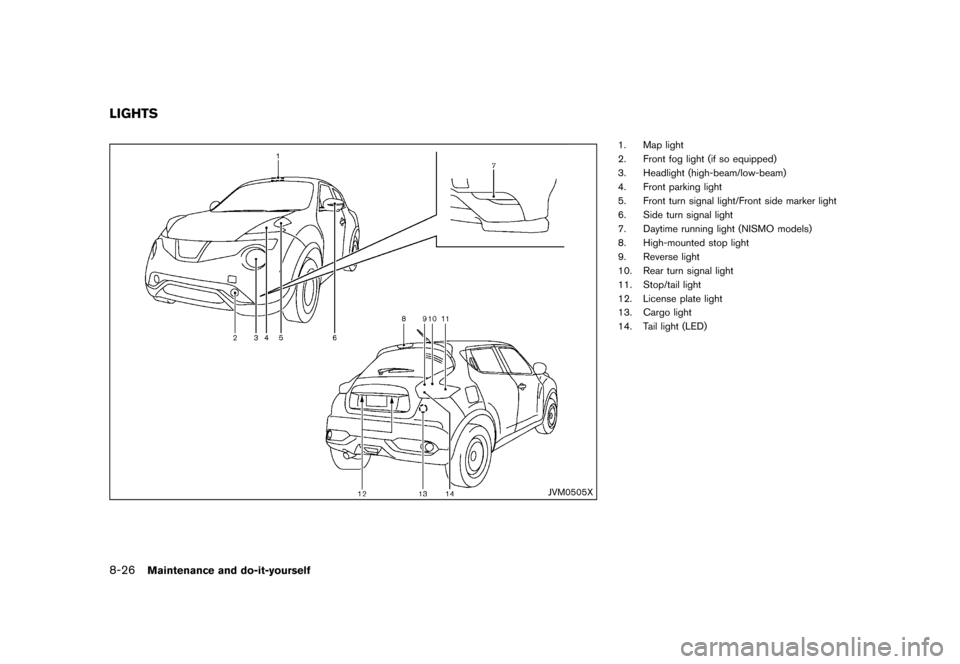

1. Maplight
2. Front foglight (ifso equipped)
3. Headlight (high-beam/low-beam)
4. Front parking light
5. Front turnsignal light/Front sidemarker light
6. Sideturnsignal light
7. Daytime runninglight(NISMO models)
8. High-mounted stoplight
9. Reverse light
10. Rearturnsignal light
11. Stop/tail light
12. License platelight
13. Cargo light
14. Tail light (LED)
LIGHTS
&RQGLWLRQ


> (GLW   0RGHO )'@

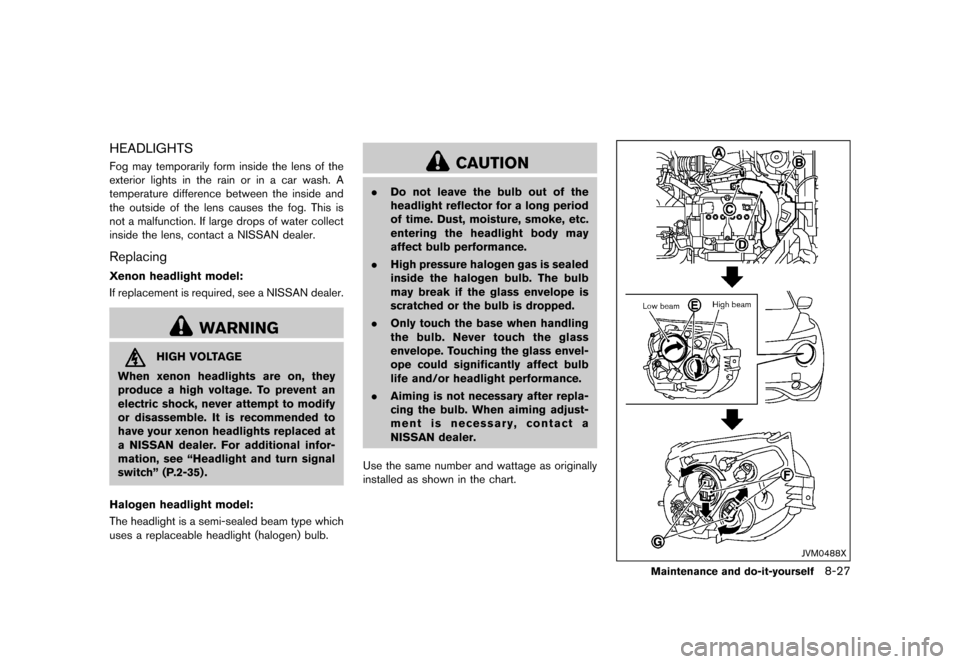

HEADLIGH TS
GUID-231 5F15B-21C2-4 8E3-B4D6-114A3540E8 D5
Fog may temporarily forminside thelens ofthe
exterior lightsinthe rain orinacar wash. A
temperature differencebetweentheinside and
the outside ofthe lens causes thefog. This is
not amalfunction. Iflarge drops ofwater collect
inside thelens, contact aNISSAN dealer.
Replacing
GUID-E80 2D82D-AE31 -4C67-BD7D-36FB0F025F80
X enon headlight model:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
If replacement isrequired, seeaNISSAN dealer.
WARNING
HIGH VOLTAGE
When xenon headlights areon,they
produce ahigh voltage. To prevent an
electric shock,neverattempt tomodify
or disassemble. Itis recommended to
have yourxenon headlights replacedat
a NISSAN dealer.Foradditional infor-
mation, seeªHeadlight andturn signal
switchº (P.2-35) .
Halogen headlight model:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
The headlight isasemi-sealed beamtypewhich
uses areplaceable headlight(halogen) bulb.
CAUTION
. Do not leave thebulb outofthe
headlight reflectorforalong period
of time. Dust, moisture, smoke,etc.
entering theheadlight bodymay
affect bulbperformance.
. High pressure halogengasissealed
inside thehalogen bulb.Thebulb
may break ifthe glass envelope is
scratched orthe bulb isdropped.
. Only touch thebase when handling
the bulb. Never touchtheglass
envelope. Touching theglass envel-
ope could significantly affectbulb
life and/or headlight performance.
. Aiming isnot necessary afterrepla-
cing thebulb. When aiming adjust-
ment isnecessary, contacta
NISSAN dealer.
Use thesame number andwattage asoriginally
installed asshown inthe
chart.
JVM0488X
Maintenance anddo-it-yo urself
8-27
&RQGLWLRQ


> (GLW   0RGHO )'@
8-28
Maintenance anddo-it-yours elf

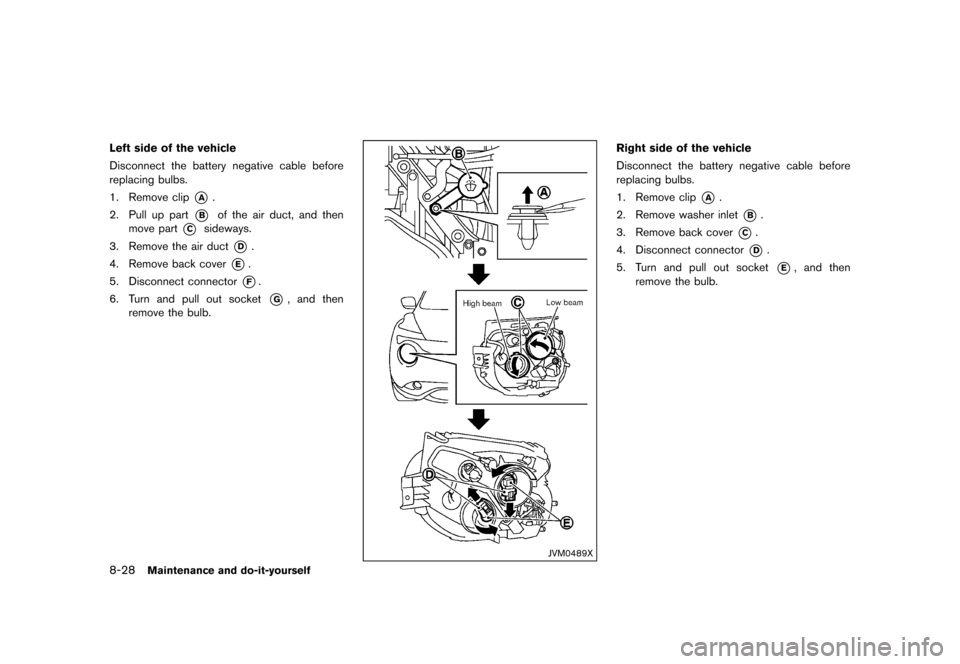

Left side ofthe vehicle
Disconnect thebattery negative cablebefore
replacing bulbs.
1. Remove clip
*
A
.
2. Pull uppart
*
B
of the airduct, andthen
move part
*
C
sideways.
3. Remove theairduct
*
D
.
4. Remove backcover
*
E
.
5. Disconnect connector
*
F
.
6. Turn and pulloutsocket
*
G
, and then
remove the
bulb.
JVM0489X
Right sideofthe vehicle
Disconnect thebattery negative cablebefore
replacing bulbs.
1. Remove clip
*
A
.
2. Remove washerinlet
*
B
.
3. Remove backcover
*
C
.
4. Disconnect connector
*
D
.
5. Turn and pulloutsocket
*
E
, and then
remove thebulb.
