2015 NISSAN JUKE Owners Manual


> (GLW   0RGHO )'@
. The light blinks inyellow whenthedoor is
closed withtheIntelligent Key left outside
the vehicle andtheignition switchinthe
ACC orON position. Makesurethatthe
Intelligent Key isinside thevehicle.
. The light blinks ingreen whentheIntelligent
K ey battery isrunning outofpower. Replace
the battery withanew one. (See ªIntelligent
K ey battery replacementº (P.8-23) .)
. The light illuminates inyellow whenitwarns
of amalfunction withIntelligent Key system.
If the warning lightilluminates inyellow whilethe
engine isstopped, itmay beimpossible tostart
the engine. Ifthe light comes onwhile theengine
is running, youcan drive thevehicle. However in
these cases, contact aNISSAN dealerforrepair
as soon aspossible.
Low fuelwarning light
GUID-07 84D1EC-08F8- 48E5-8112-AC14204A8 2C8
This light illuminates whenthefuel inthe tank is
getting low.Refuel assoon asitis convenient,
preferably beforethefuel gauge reaches the0
(empty) position.
There willbeasmall reserve offuel
remaining inthe tank when thefuel gauge
reaches the0position.
Low tirepressure warninglight
GUID-CE4F 38F6-4622-4 692-88BA-0B 338FB86AAF
Y our vehicle isequipped withaTire Pressure
Monitoring System(TPMS) thatmonitors thetire
pressure ofall tires except thespare.
The lowtirepressure warninglightwarns oflow
tire pressure orindicates thattheTPMS isnot
functioning properly.
After theignition switchisplaced inthe ON
position, thislight illuminates forabout 1second
and turns off.
Low tirepressure warning:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
If the vehicle isbeing driven withlowtire
pressure, thewarning lightwillilluminate. A
CHECK TIREPRES (pressure) warningmes-
sage isalso displayed inthe vehicle information
display .
When thelow tirepressure warninglight
illuminates, youshould stopandadjust thetire
pressure tothe recommended COLDtire
pressure shownonthe Tire andLoading
Information label.Thelowtirepressure warning
light does notautomatically turnoffwhen thetire
pressure isadjusted. Afterthetireisinflated to
the recommended pressure,thevehicle mustbe
driven atspeeds above16MPH (25km/h) to
activate theTPMS andturn offthe low tire
pressure warninglight.Useatire pressure
gauge tocheck thetirepressure. The
lowtirepressure warninglightremains
illuminated untilthetires areinflated tothe
recommended COLDtirepressure. TheCHECK
TIRE PRES warning message isdisplayed each
time theignition switchisplaced inthe ON
position aslong asthe low tirepressure warning
light remains illuminated.
For additional information, seeªCheck tire
pressure warningmessageº (P.2-7) ,ªTire Pres-
sure Monitoring System(TPMS)º (P.5-3) and
ªTire Pressure Monitoring System(TPMS)º (P.6-
3) .
TPMS malfunction:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
If the TPMS isnot functioning properly,the low
tire pressure warninglightwillflash forapproxi-
mately 1minute whentheignition switchis
placed inthe ON position. Thelight willremain
on after 1minute. TheCHECK TIREPRES
warning message isnot displayed ifthe low tire
pressure warninglightilluminates toindicate a
TPMS malfunction. Havethesystem checked by
a NISSAN dealer.
For additional information, seeªTire Pressure
Monitoring System(TPMS)º (P.5-3) .
Instrume ntsand controls
2-15
&RQGLWLRQ


> (GLW   0RGHO )'@
2-16
Instrument sand controls
WARNING
. Ifthe light does notilluminate with
the ignition switchplaced inthe ON
position, havethevehicle checked
by aNISSAN dealerassoon as
possible.
. Ifthe light illuminates whiledriving,
avoid sudden steering maneuvers or
abrupt braking, reducevehicle
speed, pulloffthe road toasafe
location andstop thevehicle as
soon aspossible. Drivingwithun-
der-inflated tiresmaypermanently
damage thetires andincrease the
likelihood oftire failure. Serious
vehicle damage couldoccurand
may lead toan accident andcould
result inserious personal injury.
Check thetire pressure forallfour
tires. Adjust thetire pressure tothe
recommended COLDtirepressure
shown onthe Tire andLoading
Information labeltoturn thelow
tire pressure warninglightOFF.If
the light stillilluminates whiledriv-
ing after adjusting thetire pressure,
a tire may beflat. Ifyou have aflat
tire, replace itwith aspare tireas soon
aspossible.
. When aspare tireismounted ora
wheel isreplaced, theTPMS willnot
function andthelow tirepressure
warning lightwillflash forapproxi-
mately 1minute. Thelight will
remain onafter 1minute. Contact
your NISSAN dealerassoon as
possible fortire replacement and/
or system resetting.
. Replacing tireswiththose notori-
ginally specified byNISSAN could
affect theproper operation ofthe
TPMS.
CAUTION
. The TPMS isnot asubstitute forthe
regular tirepressure check.Besure
to check thetire pressure regularly.
. Ifthe vehicle isbeing driven at
speeds ofless than 16MPH (25
km/h) ,the TPMS maynotoperate
correctly.
. Besure toinstall thespecified size
of tires tothe four wheels correctly.
Low washer fluidwarning light
(Canada only)
GUID-ADABB 354-FD0A-4635-ABE1-7 FD833E3E73 4
This light illuminates whenthewasher fluidisat
a low level. Addwasher fluidasnecessary .(See
ªWindow washerfluidº(P.8-12) .)
P position selecting warninglight
GUID-2CE9 58E5-DAA1-48FB-A4F0-B 392F12FCD77
The warning lightblinks inred when theignition
switch ispushed tostop theengine withthe
shift lever inany position excepttheP(Park)
position.
If this warning appears, movetheshift lever to
the P(Park) position orpush theignition switch
to the ON position.
An inside warning chimewillalso sound.
See ªIntelligent Key systemº (P.3-6) .
Seat beltwarning light
GUID-91E 8D2F7-3908 -4392-874C- F4665FD344E7
The light andchime remind youtofasten seat
belts. Thelight illuminates whenevertheignition
switch isplaced inthe ON position, andwill
remain illuminated untilthedriver's seatbeltis
fastened. Atthe same time,thechime willsound
for about 6seconds unlessthedriver's seatbelt
is securely fastened.
The seat beltwarning lightforthe front
passenger willilluminate ifthe seat beltisnot
&RQGLWLRQ


> (GLW   0RGHO )'@
fastened whenthefront passenger's seatis
occupied. Forabout 5seconds aftertheignition
switch isin the ON position, thesystem does
not activate thewarning lightforthe front
passenger.
See ªSeat beltsº (P.1-10) forprecautions on
seat beltusage.
Supplemental airbag warning light
GUID-94 669243-23 39-4D53-AF 63-5FF94E523E50
After placing theignition switchinthe ON
position, thesupplemental airbag warning light
will illuminate. Thesupplemental airbag warning
light willturn offafter about 7seconds ifthe
supplemental frontairbag andsupplemental
side airbag, curtain side-impact airbag systems
and/or pretensioner seatbeltareoperational.
If any ofthe following conditions occur,thefront
air bag, sideairbag, curtain airbag and
pretensioner systemsneedservicing andyour
vehicle mustbetaken toyour nearest NISSAN
dealer.
. The supplemental airbag warning light
remains onafter approximately 7seconds.
. The supplemental airbag warning light
flashes intermittently .
. The supplemental airbag warning lightdoes
not illuminate atall.
Unless checked andrepaired, theSupplemental
Restraint Systemsand/orthepretensioners maynot
function properly.
For additional information, seeªSupplemental
restraint systemº(P.1-38) .
WARNING
If the supplemental airbag warning
light ison, itcould mean thatthefront
air bag, sideairbag, curtain airbag
and/or pretensioner systemswillnot
operate inan accident. To help avoid
injury toyourself orothers, haveyour
vehicle checked byaNISSAN dealeras
soon aspossible.
V ehicle Dynamic Control(VDC)
warning light
GUID-85 CB9D57-F B85-4B51- B25F-D3B66 99FF654
When theignition switchisin the ªONº position,
the Vehicle Dynamic Control(VDC)warning
light illuminates andthen turns off.
The light willblink when theVehicle Dynamic
Control (VDC)system orthe traction control
system isoperating, thusalerting thedriver that
the vehicle isnearing itstraction limits.Theroad
surface maybeslippery .
If the VDC warning lightilluminates whilethe
VDC system ison, this light alerts thedriver tothe
fact that theVDC system's fail-safemodeis
operating, forexample theVDC system maynot
be functioning properly.Have thesystem
checked byaNISSAN dealer.Ifa malfunction
occurs inthe system, theVDC system function
will becanceled butthevehicle isstill driveable.
For additional information, seeªVehicle Dynamic
Control (VDC)systemº (P.5-37) ofthis manual.
INDICA TOR LIGHTS
GUID-1E B9AC97-06B 3-4B85-A8DE-4194674FC 033
All-Wheel Drive(AWD) indicator
light (AWD model)
GUID-2CD1 DBFF-7E1B-4E8B-81ED -33ED676273AC
When theignition switchisin the ªONº position,
the All-Wheel Drive(AWD) indicator light
illuminates andthen turns off.
When selecting AWD mode whiletheengine is
running, theAWD indicator lightilluminates.
(See ªAll-Wheel Drive(AWD)º (P.5-29) .)
All-Wheel Drive(AWD-V) indicator
light (AWD model)
GUID-8C90 48F9-278F- 4025-8E3B-A286975CA A94
When selecting AWD-V modewhiletheengine
is running, theAWD-V indicator lightilluminates.
(See ªAll-Wheel Drive(AWD)º (P.5-29) .)
Instrume ntsand controls
2-17
&RQGLWLRQ


> (GLW   0RGHO )'@
2-18
Instrument sand controls

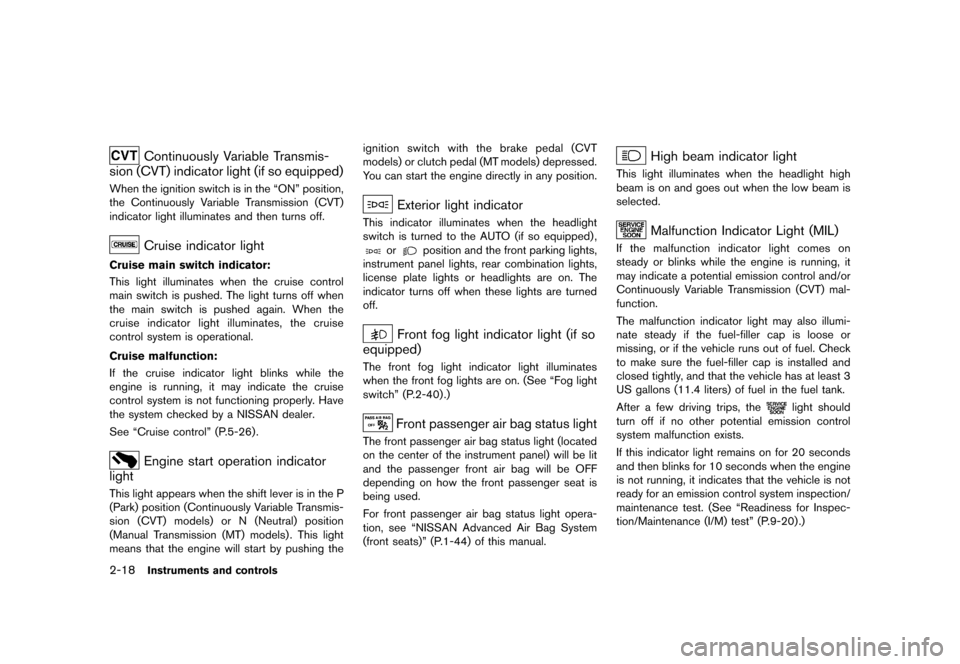

Continuousl yVariable Transmis-
sion (CVT) indicator light(ifso equipped)
GUID-895 13D09-6B B2-4811-B 6B0-1034600 701FF
When theignition switchisin the ªONº position,
the Continuously Variable Transmission (CVT)
indicator lightilluminates andthen turns off.
Cruise indicator light
GUID-986 5425F-C26 6-446A-895C -23335FF057AB
Cruise mainswitch indicator:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
This light illuminates whenthecruise control
main switch ispushed. Thelight turns offwhen
the main switch ispushed again.When the
cruise indicator lightilluminates, thecruise
control system isoperational.
Cruise malfunction:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
If the cruise indicator lightblinks whilethe
engine isrunning, itmay indicate thecruise
control system isnot functioning properly.Have
the system checked byaNISSAN dealer.
See ªCruise controlº (P.5-26) .
Engine startoperation indicator
light
GUID-1D3C 34B9-B054-4 186-8E35-F8A348777616
This light appears whentheshift lever isin the P
(Park) position (Continuously Variable Transmis-
sion (CVT) models) orN(Neutral) position
(Manual Transmission (MT)models) .This light
means thattheengine willstart bypushing theignition
switchwiththebrake pedal (CVT
models) orclutch pedal(MTmodels) depressed.
Y ou can start theengine directly inany position.
Exterior lightindicator
GUID-B9 DA9F59-94 DD-479E-A4ED-F9B323 7B5784
This indicator illuminates whentheheadlight
switch isturned tothe AUT O(ifso equipped)
,
or
position andthefront parking lights,
instrument panellights, rearcombination lights,
license platelights orheadlights areon.The
indicator turnsoffwhen these lightsareturned
off.
Front foglight indicator light(ifso
equipped)
GUID-ECA 6061B-E0DA-42FF-A86 7-06F30FCFAD0D
The front foglight indicator lightilluminates
when thefront foglights areon.(See ªFoglight
switchº (P.2-40) .)
Front passenger airbag status light
GUID-D78418 1C-CA8B-4A88-9F16-5 8F3364EFA8A
The front passenger airbag status light(located
on the center ofthe instrument panel)willbelit
and thepassenger frontairbag willbeOFF
depending onhow thefront passenger seatis
being used.
For front passenger airbag status lightopera-
tion, seeªNISSAN Advanced AirBag System
(front seats)º (P.1-44) ofthis manual.
High beam indicator light
GUID-84 9B231E-AF 14-45BE-A78 8-A0C55B5A4 C93
This light illuminates whentheheadlight high
beam ison and goes outwhen thelow beam is
selected.
Malfunction IndicatorLight(MIL)
GUID-105F7 DF5-6121-4E F4-AFAC-8D8C4 31A8A2E
If the malfunction indicatorlightcomes on
steady orblinks whiletheengine isrunning, it
may indicate apotential emission controland/or
Continuously Variable Transmission (CVT)mal-
function.
The malfunction indicatorlightmayalso illumi-
nate steady ifthe fuel-filler capisloose or
missing, orifthe vehicle runsoutoffuel. Check
to make surethefuel-filler capisinstalled and
closed tightly,and that thevehicle hasatleast 3
US gallons (11.4liters) offuel inthe fuel tank.
After afew driving trips,the
light should
turn offifno other potential emission control
system malfunction exists.
If this indicator lightremains onfor 20 seconds
and then blinks for10 seconds whentheengine
is not running, itindicates thatthevehicle isnot
ready foranemission controlsystem inspection/
maintenance test.(See ªReadiness forInspec-
tion/Maintenance (I/M)testº(P.9-20) .)
&RQGLWLRQ


> (GLW   0RGHO )'@
Operation:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
The malfunction indicatorlightwillcome onin
one oftwo ways:
. Malfunction indicatorlightilluminated steady
Ð An emission controlsystem and/orCVT
malfunction hasbeen detected. Checkthe
fuel-filler capifthe LOOSE FUELCAP
warning message isdisplayed onthe twin
trip odometer. Ifthe fuel-filler capisloose or
missing, tightenorinstall thecap and
continue todrive thevehicle. The
light
should turnoffafter afew driving trips.Ifthe
light does notturn offafter afew driving
trips, havethevehicle inspected bya
NISSAN dealer.You do not need tohave
your vehicle towedtothe dealer.
. Malfunction indicatorlightblinking ÐAn
engine misfirehasbeen detected whichmay
damage theemission controlsystem.
T o reduce oravoid emission controlsystem
damage:
1) Do not drive atspeeds above45MPH
(72 km/h) .
2) Avoid hardacceleration ordeceleration.
3) Avoid steepuphillgrades.
4) Ifpossible, reducetheamount ofcargo
being hauled ortowed.
The malfunction indicatorlightmaystop
blinking andremain on. Have
thevehicle inspected byaNISSAN
dealer. You do not need tohave yourvehicle
towed tothe dealer.
CAUTION
Continued vehicleoperation without
having theemission controlsystem
and/or CVTsystem checked andre-
paired asnecessary couldleadtopoor
driveability, reducedfueleconomy, and
possible damagetothe emission con-
trol system.
Security indicator light
GUID-5B BF01E2-313 5-4B2A-BA68-00E15944E42A
The light blinks whentheignition switchisin the
ACC, OFForLOCK position. Thisfunction
indicates thesecurity systemequipped onthe
vehicle isoperational.
If the security systemismalfunctioning, thislight
will remain onwhile theignition switchisin the
ON position. Foradditional information, see
ªSecurity systemsº(P.2-29) .
T urn signal/hazard indicatorlights
GUID-93 8BCB58-C7D 0-4656-B2E2-A3F2D5 C472C5
The light flashes whentheturn signal switch
lever orhazard switchisturned on.
V ehicle Dynamic Control(VDC)off
indicator light
GUID-BB D2CFDF-748 6-4847-A2BC-6E1274 44B584
When theignition switchisin the ªONº position,
the Vehicle Dynamic Control(VDC)offindicator
light illuminates andthen turns off.
The light comes onwhen theVehicle Dynamic
Control (VDC)offswitch ispushed toOFF .This
indicates thattheVDC system andtraction
control system arenot operating.
AUDIBLE REMINDERS
GUID-429 04A1A-6A75 -4B8C-8F34-6D9818D 98A82
K ey reminder chime
GUID-32 BD73EC-E7A4 -4435-A048-B7769B71 7D08
A chime willsound ifthe driver sidedoor is
opened whiletheignition switchispushed to
the ACC position.
Make suretheignition switchispushed tothe
OFF position, andtake theIntelligent Key with
you when leaving thevehicle.
Instrume ntsand controls
2-19
&RQGLWLRQ


> (GLW   0RGHO )'@

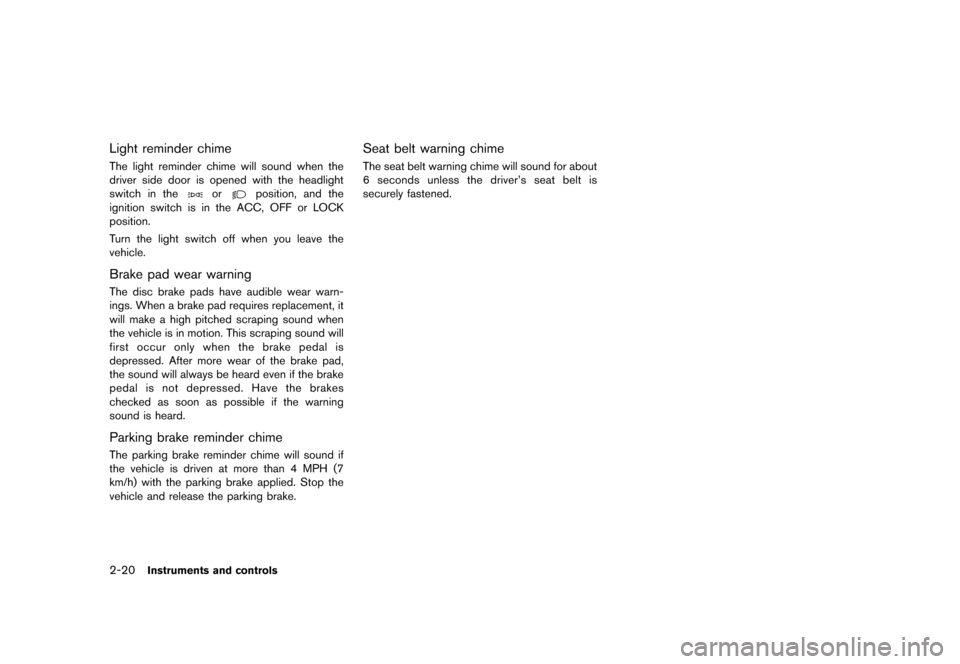

2-20
Instrument sand controls
Light reminder chime
GUID-721 68721-DFA8-448A-9 61A-A3FACAB0A 8E3
The light reminder chimewillsound whenthe
driver sidedoor isopened withtheheadlight
switch inthe
or
position, andthe
ignition switchisin the ACC, OFForLOCK
position.
T urn thelight switch offwhen youleave the
vehicle.
Brake padwear warning
GUID-EF 2EB7E0-B2 27-4E63-9D C8-B730CC1 3FB1B
The disc brake padshaveaudible wearwarn-
ings. When abrake padrequires replacement, it
will make ahigh pitched scraping soundwhen
the vehicle isin motion. Thisscraping soundwill
first occur onlywhen thebrake pedalis
depressed. Aftermore wearofthe brake pad,
the sound willalways beheard evenifthe brake
pedal isnot depressed. Havethebrakes
checked assoon aspossible ifthe warning
sound isheard.
Parking brakereminder chime
GUID-885 3279F-1AD 6-47C7-B9A8 -09A67EC2B7BE
The parking brakereminder chimewillsound if
the vehicle isdriven atmore than4MPH (7
km/h) withtheparking brakeapplied. Stopthe
vehicle andrelease theparking brake.
Seat beltwarning chime
GUID-F9 E8997E-7A8 8-4D30-B477- C791A79F8575
The seat beltwarning chimewillsound forabout
6 seconds unlessthedriver's seatbeltis
securely fastened.
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-F75DC 192-4AA8-4A55-AE59-5 9A76A90EBC4
The Integrated ControlSystemislocated below
the audio system ornavigation system(ifso
equipped) .Two Integrated ControlSystem
modes canbeselected: Drivemode and
Climate Controlmode.
Depending onwhich Integrated ControlSystem
mode isselected (DrivemodeorClimate
Control mode),the screen display andsome
button functions willchange.
. Drive mode
In the Drive mode, threetypes ofdriving
modes canbeselected: NORMAL, SPORT
and ECO. SeeªDrive modeº (P.5-21) .In
addition, whileinthe Drive mode, SETUP,
Drive information andECO information can
be displayed andadjusted. SeeªDrive
modeº (P.2-21) .
. Climate Controlmode
In the Climate Controlmode,theclimate
control canbeset and adjusted. See
ª Automatic airconditioner (withIntegrated
Control System)º (P.4-29) .
DRIVE MODE
GUID-801 8E7B4-28B9 -4333-857E-2A3D1B7D 7F1B
When theDrive mode select button ispressed,
the display andbuttons appearas
shown.
SIC4623
1. Drive mode select button
2. SETUP button
3. Drive mode NORMAL button
4. Drive mode SPORT button
5. Drive mode ECObutton
6. Display screen
7. Drive information button 8.
ECO information button
9. ENTER button/Selection dial
Instrume ntsand controls
2-21
INTEGRA TEDCONTROL SY STEM (if
so equippe d)
&RQGLWLRQ


> (GLW   0RGHO )'@

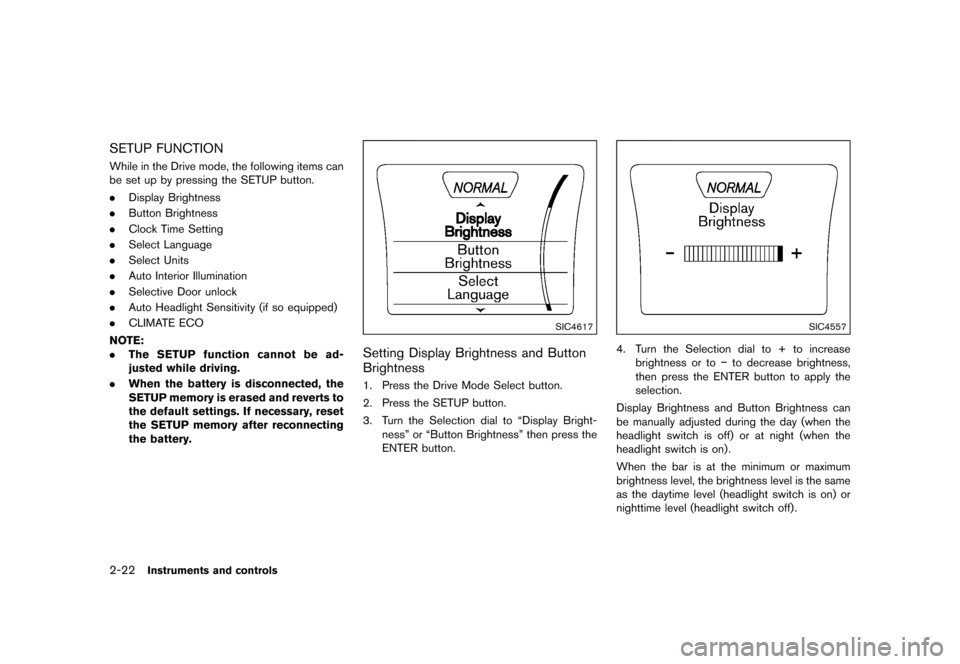

2-22
Instrument sand controls
SETUP FUNCTION
GUID-5B5DB B47-0C64-4C41-8AF1-4 43319848F1A
While inthe Drive mode, thefollowing itemscan
be set upbypressing theSETUP button.
. Display Brightness
. Button Brightness
. Clock TimeSetting
. Select Language
. Select Units
. Auto Interior Illumination
. Selective Doorunlock
. Auto Headlight Sensitivity (ifso equipped)
. CLIMA TEECO
NO TE:
. The SETUP function cannotbead-
justed whiledriving.
. When thebattery isdisconnected, the
SETUP memory iserased andreverts to
the default settings. Ifnecessary, reset
the SETUP memory afterreconnecting
the
battery.
SIC4617
Setting Display Brightness andButton
Brightness
GUID-27E 9F256-C04 B-4006-9271-055B95871748
1. Press theDrive Mode Select button.
2. Press theSETUP button.
3. Turn theSelection dialtoªDisplay Bright-
nessº orªButton Brightnessº thenpress the
ENTER
button.
SIC4557
4. Turn theSelection dialto+to increase
brightness orto
