2015 NISSAN JUKE Owners Manual


> (GLW   0RGHO )'@
SCE0947
The spare tireislocated underthecargo floor
board.
Loosen theclamp
*
2
and remove thespacer
*
1
and take outthespare tire.
Jacking upthe vehicle andremoving the
damaged tire
GUID-9D4 83FCD-A1F 1-4D38-AB5 2-601B804B7 6EC
WARNING
. Never getunder thevehicle whileit
is supported onlybythe jack. Ifitis
necessary towork under thevehicle,
support itwith safety stands.
. Use only thejack provided withyour
vehicle tolift the vehicle. Donot use
the jack provided withyour vehicle
on other vehicles. Thejack isde-
signed forlifting onlyyour vehicle
during atire change.
. Use thecorrect jack-up points.
Never useanyother partofthe
vehicle forjack support.
. Never jackupthe vehicle morethan
necessary.
. Never useblocks onorunder the
jack.
. Donot start orrun theengine while
vehicle ison the jack, asitmay
cause thevehicle tomove. Thisis
especially trueforvehicles with
limited slipdifferentials. .
Do not allow passengers tostay in
the vehicle whileitis on the jack.
Carefully readthecaution labelattached
to the jack body andthefollowing instruc-
tions.
In case ofemergency
6-5
&RQGLWLRQ


> (GLW   0RGHO )'@
6-6
In case ofemergency

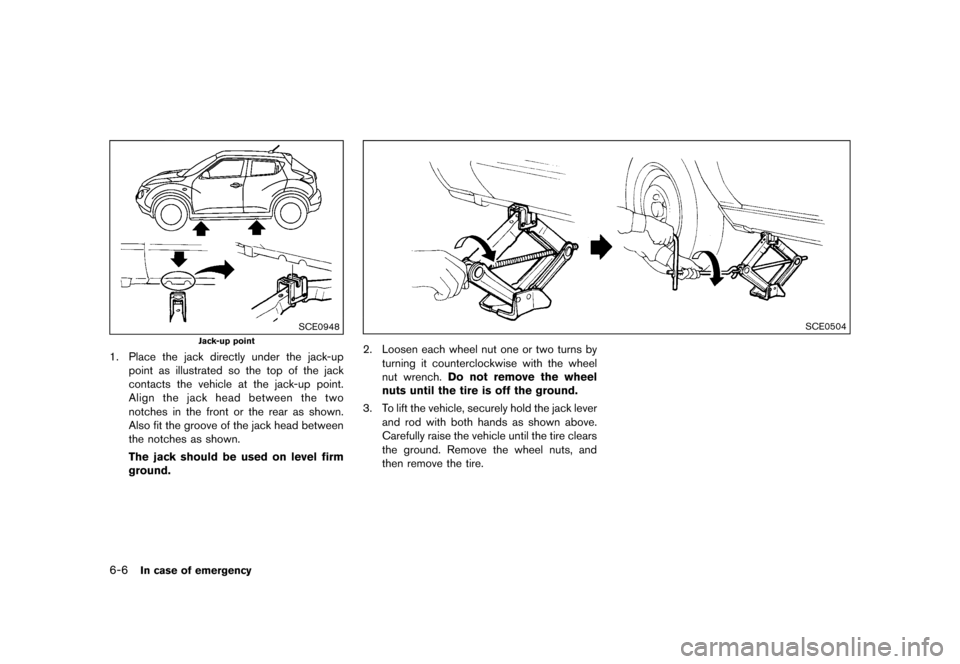

SCE0948
Jack -uppoint
1. Place thejack directly underthejack-up
point asillustrated sothe top ofthe jack
contacts thevehicle atthe jack-up point.
Align thejack head between thetwo
notches inthe front orthe rear asshown.
Also fitthe groove ofthe jack head between
the notches asshown.
The jack should beused onlevel firm
ground.
SCE0504
2. Loosen eachwheel nutone ortwo turns by
turning itcounterclockwise withthewheel
nut wrench. Donot remove thewheel
nuts until thetire isoff the ground.
3. To lift the vehicle, securely holdthejack lever
and rodwith both hands asshown above.
Carefully raisethevehicle untilthetire clears
the ground. Remove thewheel nuts,and
then remove thetire.
&RQGLWLRQ


> (GLW   0RGHO )'@
SCE0933
Installing thespare tire
GUID-5EA97 2A8-ECC0-4 BA2-9DA3-AA3F89474 077
The spare tireisdesigned foremergency
use. (See specific instructions underthe
heading ªWheels andtiresº (P.8-31) .)
1. Clean anymud ordirt from thesurface
between thewheel andhub.
2. Carefully putthespare tireonand tighten
the wheel nutsfinger tight.Check thatallthe
wheel nutscontact thewheel surface
horizontally .
3. With thewheel nutwrench, tightenwheel
nuts alternately andevenly inthe sequence
as illustrated (
*
1
,
*
2
,
*
3
,
*
4
,
*
5
) , more
than 2times, untilthey aretight. 4.
Lower thevehicle slowlyuntilthetire
touches theground. Then,withthewheel
nut wrench, tightenthewheel nutssecurely
in the sequence asillustrated. Lowerthe
vehicle completely .
WARNING
. Incorrect wheelnutsorimproperly
tightened wheelnutscancause the
wheel tobecome looseorcome off.
This could cause anaccident.
. Do not use oilorgrease onthe
wheel studsornuts. Thiscould
cause thenuts tobecome loose.
. Retighten thewheel nutswhen the
vehicle hasbeen driven for600
miles (1,000 km)(also incases ofa
flat tire, etc.).
.
As soon aspossible, tightenthe
wheel nutstothe specified torque
with atorque wrench.
Wheel nuttightening torque:
80 ft-lb (108 N´m)
The wheel nutsmust bekept tightened
to specifications atall times. Itis
recommended thatthewheel nutsbe tightened
tospecifications ateach
lubrication interval.
.
Adjust tirepressure tothe COLD
pressure.
COLD pressure:
After thevehicle hasbeen parked for3
hours ormore ordriven lessthan 1mile
(1.6 km).
COLD tirepressures areshown onthe
Tire andLoading Information label
affixed tothe driver sidecenter pillar.
Stowing thedamaged tireand thetools
GUID-91AF 6071-9A97-4265-A3F7 -ED7B079600F0
1. Securely storethejack, tools andthe
damaged tireinthe storage area.
2. Replace thecargo floorboxand board.
3. Close theliftgate.
WARNING
. Always makesurethatthespare tire
and jacking equipment areproperly
secured afteruse.Such items can
become dangerous projectilesinan
accident orsudden stop.
. The spare tireand small sizespare
tire aredesigned foremergency use.
See specific instructions underthe
In case ofemergency
6-7
&RQGLWLRQ


> (GLW   0RGHO )'@
6-8
In case ofemergency

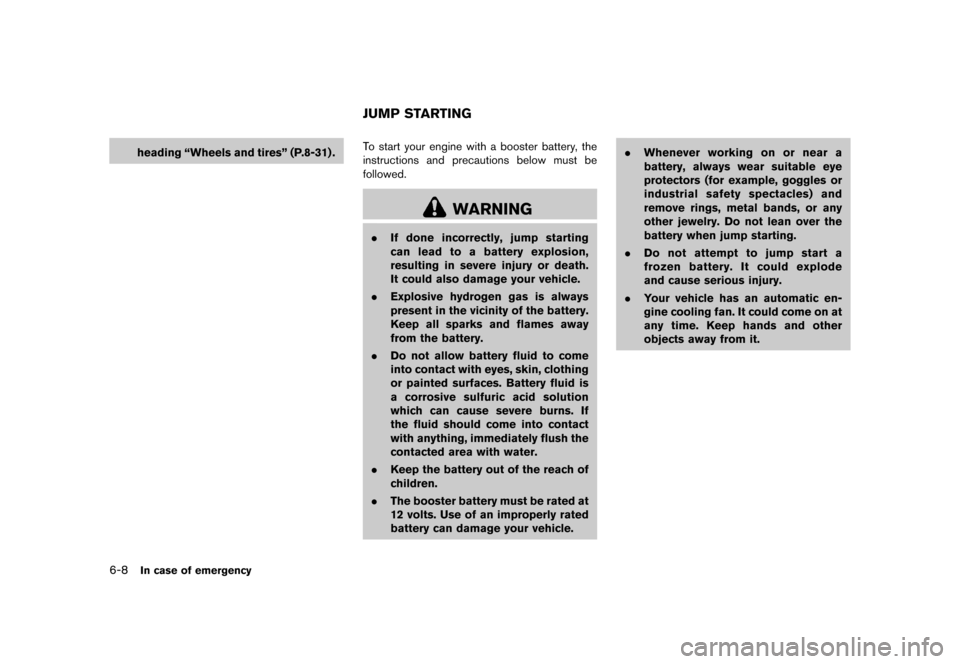

heading ªWheels andtiresº (P.8-31) .
GUID-EFD55 43C-B96C-4 978-B4C8-DDC9E8689D5B
T o start yourengine withabooster battery,the
instructions andprecautions belowmustbe
followed.
WARNING
. Ifdone incorrectly, jumpstarting
can lead toabattery explosion,
resulting insevere injuryordeath.
It could alsodamage yourvehicle.
. Explosive hydrogengasisalways
present inthe vicinity ofthe battery.
Keep allsparks andflames away
from thebattery.
. Do not allow battery fluidtocome
into contact witheyes, skin,clothing
or painted surfaces. Batteryfluidis
a corrosive sulfuricacidsolution
which cancause severe burns.If
the fluid should comeintocontact
with anything, immediately flushthe
contacted areawithwater.
. Keep thebattery outofthe reach of
children.
. The booster batterymustberated at
12 volts. Useofan improperly rated
battery candamage yourvehicle. .
Whenever workingonornear a
battery, alwayswearsuitable eye
protectors (forexample, gogglesor
industrial safetyspectacles) and
remove rings,metal bands, orany
other jewelry. Donot lean over the
battery whenjumpstarting.
. Do not attempt tojump starta
frozen battery. Itcould explode
and cause serious injury.
. Your vehicle hasanautomatic en-
gine cooling fan.Itcould comeonat
any time. Keep hands andother
objects awayfromit.
JUMP STARTING
&RQGLWLRQ


> (GLW   0RGHO )'@

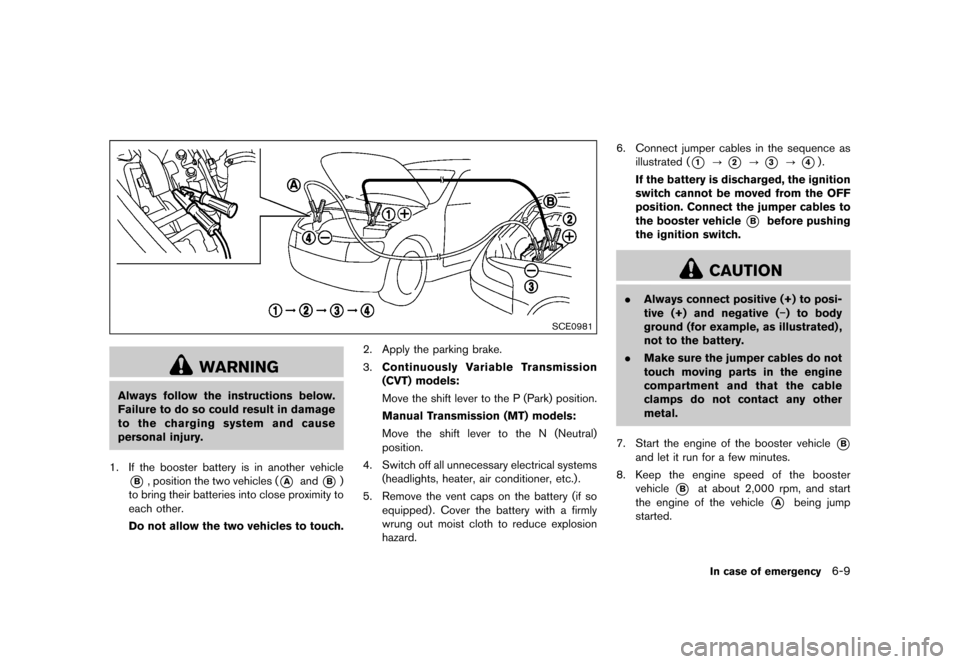

SCE0981
WARNING
Always followtheinstructions below.
Failure todo socould result indamage
to the charging systemandcause
personal injury.
1. Ifthe booster batteryisin another vehicle
*
B
, position thetwo vehicles (
*
A
and
*
B
)
to bring theirbatteries intoclose proximity to
each other.
Do not allow thetwo vehicles totouch. 2.
Apply theparking brake.
3. Continuously Variable Transmission
(CVT) models:
Move theshift lever tothe P(Park) position.
Manual Transmission (MT)models:
Move theshift lever tothe N(Neutral)
position.
4. Switch offallunnecessary electricalsystems
(headlights, heater,airconditioner, etc.).
5. Remove thevent caps onthe battery (ifso
equipped) .Cover thebattery withafirmly
wrung outmoist clothtoreduce explosion
hazard. 6.
Connect jumpercablesinthe sequence as
illustrated (
*
1
?
*
2
?
*
3
?
*
4
) .
If the battery isdischarged, theignition
switch cannot bemoved fromtheOFF
position. Connectthejumper cablesto
the booster vehicle
*
B
before pushing
the ignition switch.
CAUTION
. Always connect positive(+)toposi-
tive (+)and negative (


> (GLW   0RGHO )'@
6-10
In case ofemergency

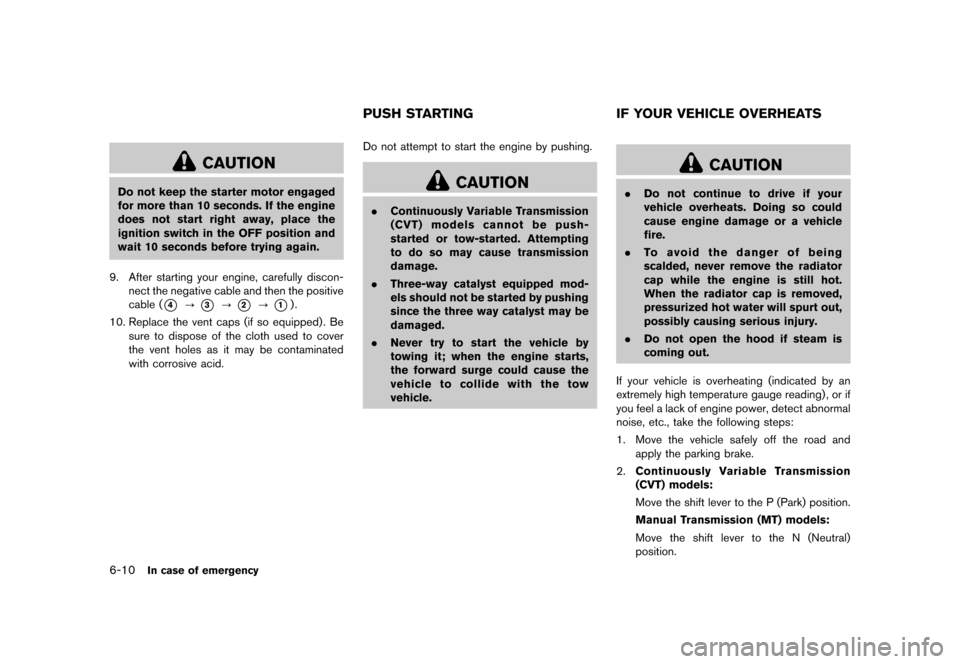

CAUTION
Do not keep thestarter motorengaged
for more than10seconds. Ifthe engine
does notstart right away, placethe
ignition switchinthe OFF position and
wait 10seconds beforetryingagain.
9. After starting yourengine, carefully discon-
nect thenegative cableandthen thepositive
cable (
*
4
?
*
3
?
*
2
?
*
1
) .
10. Replace thevent caps (ifso equipped) .Be
sure todispose ofthe cloth usedtocover
the vent holes asitmay becontaminated
with corrosive acid.
GUID-A764 C60A-F34B- 45BD-8A21-8 3DCBF259F31
Do not attempt tostart theengine bypushing.
CAUTION
. Continuously Variable Transmission
(CVT) models cannotbepush-
started ortow-started. Attempting
to do somay cause transmission
damage.
. Three-way catalystequipped mod-
els should notbestarted bypushing
since thethree waycatalyst maybe
damaged.
. Never trytostart thevehicle by
towing it; when theengine starts,
the forward surgecouldcause the
vehicle tocollide withthetow
vehicle.
GUID-70 6E277F-8F7 5-437A-8E9B -3AA46086CF31
CAUTION
. Do not continue todrive ifyour
vehicle overheats. Doingsocould
cause engine damage oravehicle
fire.
. To avoid thedanger ofbeing
scalded, neverremove theradiator
cap while theengine isstill hot.
When theradiator capisremoved,
pressurized hotwater willspurt out,
possibly causingseriousinjury.
. Do not open thehood ifsteam is
coming out.
If your vehicle isoverheating (indicatedbyan
extremely hightemperature gaugereading) ,or if
you feel alack ofengine power, detectabnormal
noise, etc.,takethefollowing steps:
1. Move thevehicle safelyoffthe road and
apply theparking brake.
2. Continuously Variable Transmission
(CVT) models:
Move theshift lever tothe P(Park) position.
Manual Transmission (MT)models:
Move theshift lever tothe N(Neutral)
position.
PUSH STARTING IFYOUR VEHICLE OVERHEA TS
&RQGLWLRQ


> (GLW   0RGHO )'@

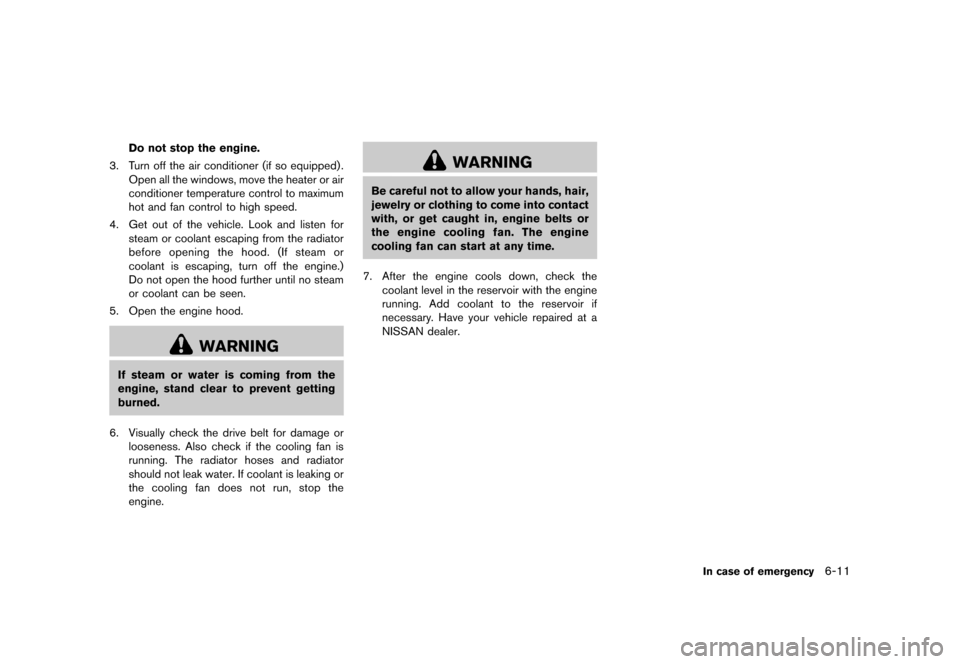

Do not stop theengine.
3. Turn offthe airconditioner (ifso equipped) .
Open allthe windows, movetheheater orair
conditioner temperature controltomaximum
hot and fancontrol tohigh speed.
4. Get outofthe vehicle. Lookandlisten for
steam orcoolant escaping fromtheradiator
before opening thehood. (Ifsteam or
coolant isescaping, turnoffthe engine.)
Do not open thehood further untilnosteam
or coolant canbeseen.
5. Open theengine hood.
WARNING
If steam orwater iscoming fromthe
engine, standcleartoprevent getting
burned.
6. Visually checkthedrive beltfordamage or
looseness. Alsocheck ifthe cooling fanis
running. Theradiator hosesandradiator
should notleak water. Ifcoolant isleaking or
the cooling fandoes notrun, stop the
engine.
WARNING
Be careful nottoallow yourhands, hair,
jewelry orclothing tocome intocontact
with, orget caught in,engine beltsor
the engine cooling fan.Theengine
cooling fancan start atany time.
7. After theengine coolsdown, checkthe
coolant levelinthe reservoir withtheengine
running. Addcoolant tothe reservoir if
necessary .Have yourvehicle repaired ata
NISSAN dealer.
In case ofemergency
6-11
&RQGLWLRQ


> (GLW   0RGHO )'@
6-12
In case ofemergency
GUID-9C30 82E6-7E05-4 D3B-99BC-7AC9A9D1 154A

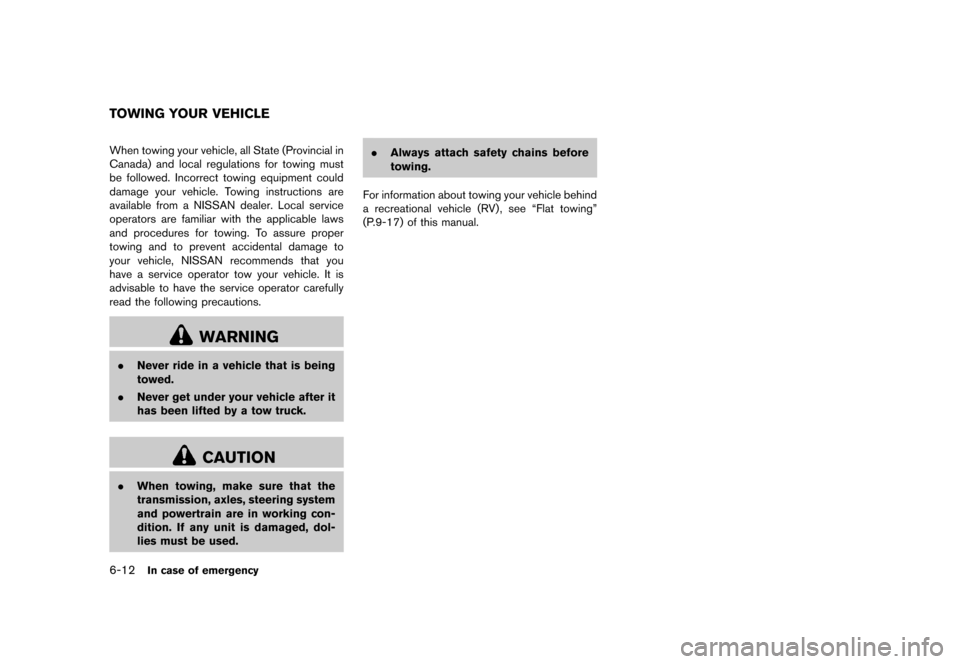

When towing yourvehicle, allState (Provincial in
Canada) andlocal regulations fortowing must
be followed. Incorrecttowingequipment could
damage yourvehicle. Towing instructions are
available fromaNISSAN dealer.Localservice
operators arefamiliar withtheapplicable laws
and procedures fortowing. To assure proper
towing andtoprevent accidental damageto
your vehicle, NISSAN recommends thatyou
have aservice operator towyour vehicle. Itis
advisable tohave theservice operator carefully
read thefollowing precautions.
WARNING
. Never rideinavehicle thatisbeing
towed.
. Never getunder yourvehicle afterit
has been lifted byatow truck.
CAUTION
. When towing, makesurethatthe
transmission, axles,steering system
and powertrain areinworking con-
dition. Ifany unit isdamaged, dol-
lies must beused. .
Always attachsafetychains before
towing.
For information abouttowing yourvehicle behind
a recreational vehicle(RV),see ªFlat towingº
(P .9-17) ofthis manual.
T OWING YOUR VEHICLE
